Setup: Vornado Whole Room Air Purifier CYLO51 User Manual

Vornado Whole Room Air Purifier CYLO51: Comprehensive Product Manual and Review

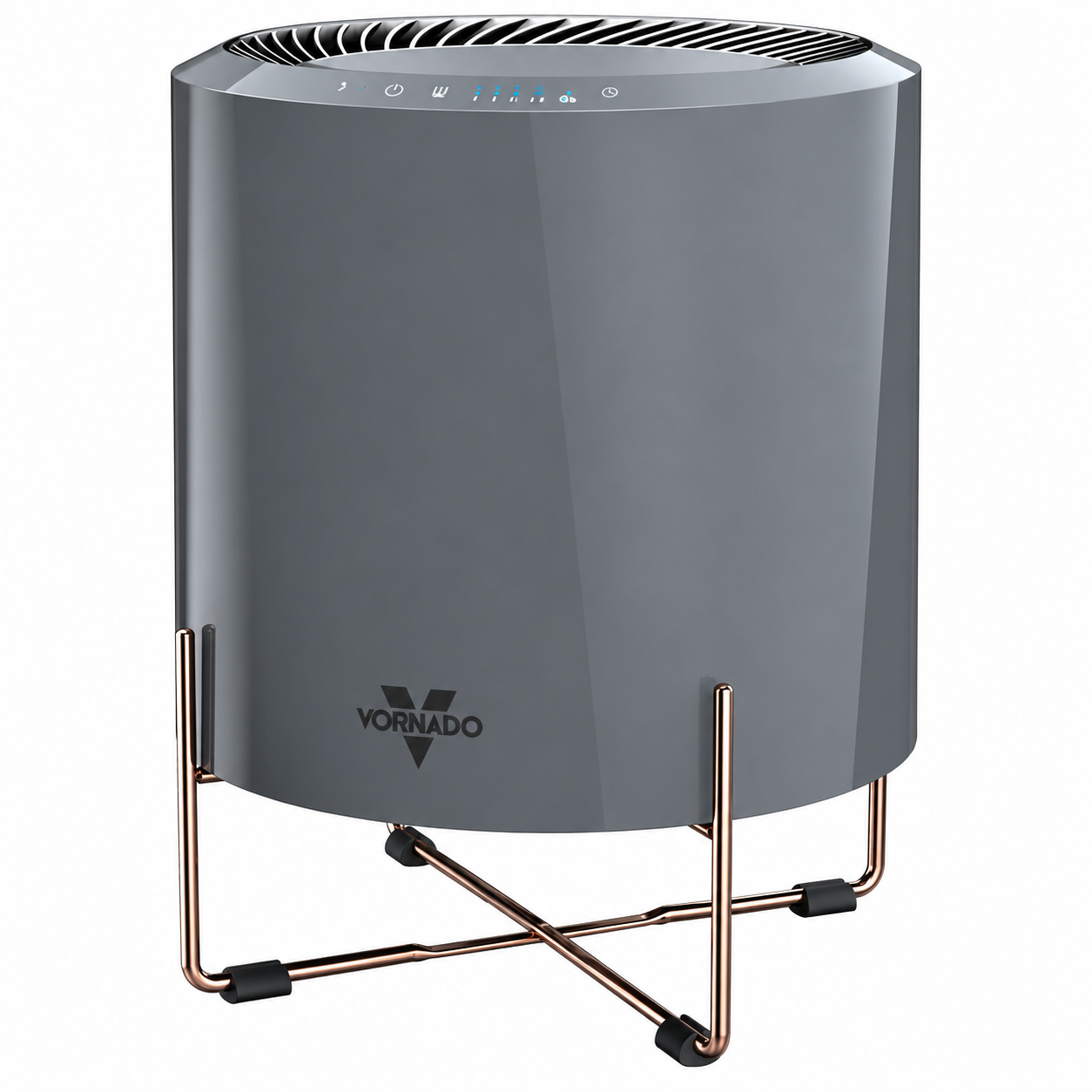

Introduction to the Vornado Whole Room Air Purifier CYLO51

The Vornado Whole Room Air Purifier CYLO51 delivers powerful 360-degree air purification for modern homes, effectively cleansing rooms up to 100 square feet with its True HEPA 3-stage filtration system. This compact, stylish unit removes up to 99.97% of airborne allergens, dust, pollen, smoke, bacteria, mold spores, and pet dander down to 0.3 microns, while the advanced carbon filter neutralizes odors for fresher indoor air.

Key benefits include customizable airflow with three speed settings, Sleep Mode for quiet nighttime operation, Quick Clean mode for rapid particle reduction, and a filter replacement indicator with a 2-12 hour timer for energy efficiency. Its sleek, minimalistic gray design complements any decor, making it ideal for bedrooms, offices, or small living spaces. Target audiences include allergy sufferers, pet owners, and those in urban environments seeking reliable whole room air purification without bulky equipment.

Perfect for daily use in homes with high pollen counts or cooking odors, the CYLO51 offers low-maintenance operation with filters lasting up to 4,500 hours (about 6 months). Estimated price ranges from $100-$200 depending on retailers, with wide availability at major outlets like QVC, Best Buy, and online deal sites. This Vornado CYLO51 air purifier stands out for its Vornado vortex technology, ensuring even air circulation and superior performance in small rooms.

Detailed Specifications and Key Features of Vornado Whole Room Air Purifier CYLO51

The Vornado Whole Room Air Purifier CYLO51 boasts robust specs tailored for efficient HEPA air purification in spaces up to 100 sq. ft. Its 3-stage system—permanent pre-filter for large particles, True HEPA filter for allergens, and carbon filter for odors—delivers Clean Air Delivery Rate (CADR) benchmarks of Dust: 77, Pollen: 85, Smoke: 64.

• Dimensions: 12.44" W x 12.44" D x 12.36" H; Weight: 7.8 lbs—portable for floor or tabletop use.
• Coverage: Up to 100 sq. ft. with 360° intake for whole-room cleaning.
• Airflow: High Speed: 81 CFM, 2450 RPM; Low Speed: 34 CFM, 1250 RPM.
• Features: 3 speeds, Sleep Mode, Quick Clean, 2-12 hour timer, filter indicator, electronic touch controls.
• Filtration: True HEPA (99.97% at 0.3 microns), 3-in-1 replaceable cartridge (every 6 months), power cord: 6 ft.
• Power & Warranty: AC-powered, 5-year warranty on select models.

Compared to similar units like basic Honeywell models, the CYLO51 excels in room-filling circulation and odor control, though larger purifiers (e.g., for 300+ sq. ft.) offer higher CADR.

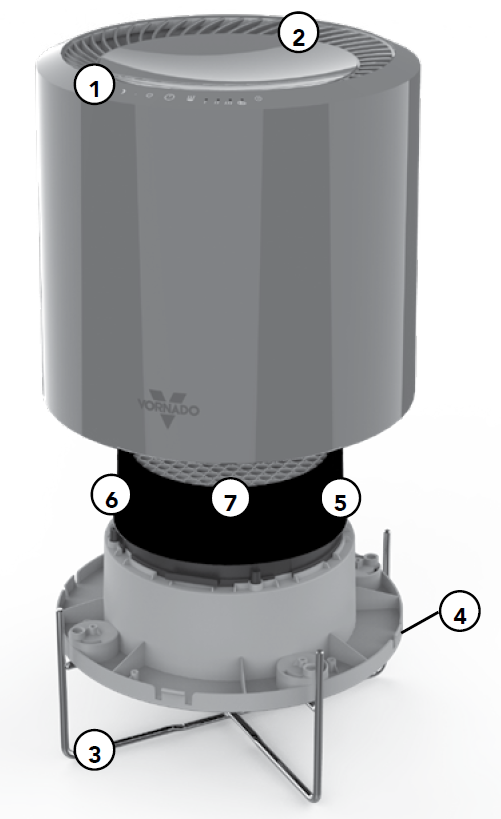

Features

• Control panel
• Outlet grill
• Leg stand
• Power cord
• Filter frame
• Filter frame support tabs (3)
• 3-in-1 filter cartridge: HEPA, Carbon, Pre-Filter

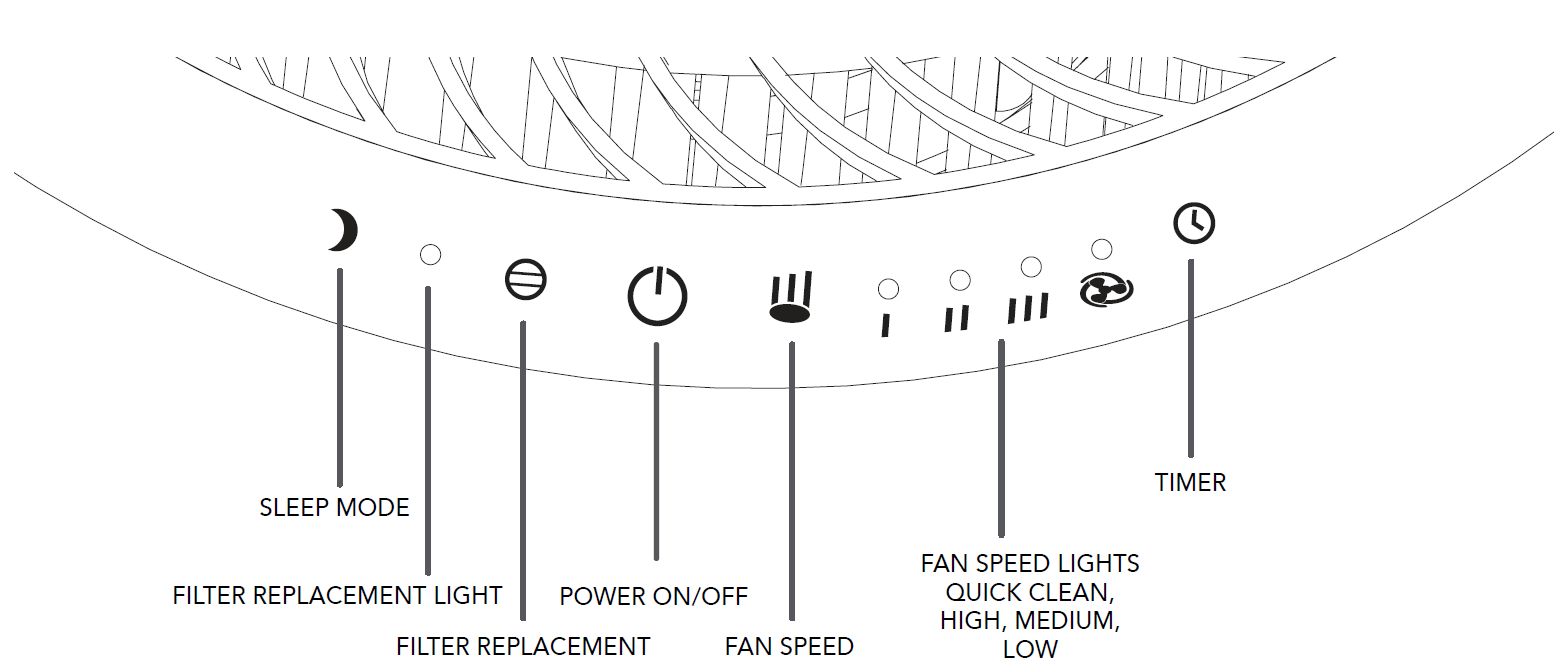

Control Panel

How to use

• Power

  Turn the unit ON or OFF by pressing the Power button.

• Fan speed

  The unit features 4 fan speed settings to meet different needs. Select Quick Clean, High, Medium, or Low by pressing the Fan Speed button.

• Quick clean

  The Quick Clean filtration setting can be used to rapidly filter the air when airborne particle levels are high. In Quick Clean Mode, you will immediately notice a dramatic increase in airflow, allowing the unit to provide maximum filtration. Due to increased sound levels, use of this mode is recommended only when conditions require it.

Filter replacement

The unit is equipped with a Filter Replacement indicator light that shows when it is recommended to change the filter. Please refer to the Filter replacement section for instructions. This feature is controlled by operating time. The light will illuminate after 4,500 hours of accumulated run time.

• Timer

  Press the Timer button to activate the timer. The Timer indicator and Speed 1 light will illuminate amber, indicating that the unit is set to turn off in 2 hours. Press again for the 4-hour setting (Speed 2), 8-hour setting (Speed 3), or 12-hour setting (Speed 4). The amber lights will blink three times to indicate the selected timer setting and then return to the white fan speed light. To cancel the timer, continue pressing through the four settings until the Timer indicator is no longer illuminated.

• Sleep mode

  Sleep Mode automatically adjusts the fan speed and indicator lights to their lowest settings. To activate Sleep Mode, press the Sleep Mode button until its indicator illuminates blue. The unit will remain in Sleep Mode until the button is pressed again to deactivate it.

• Placement and setup
  • Keep the retail carton for storing the unit when it is not in use.

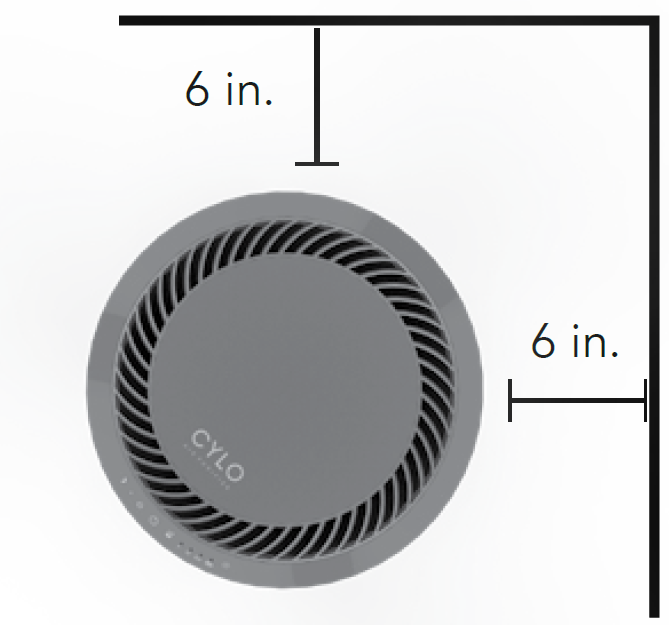

  • For best results, position the front of the unit (the side with the logo) toward the center of the room, leaving at least 6 inches of clearance from walls or furniture on every side.

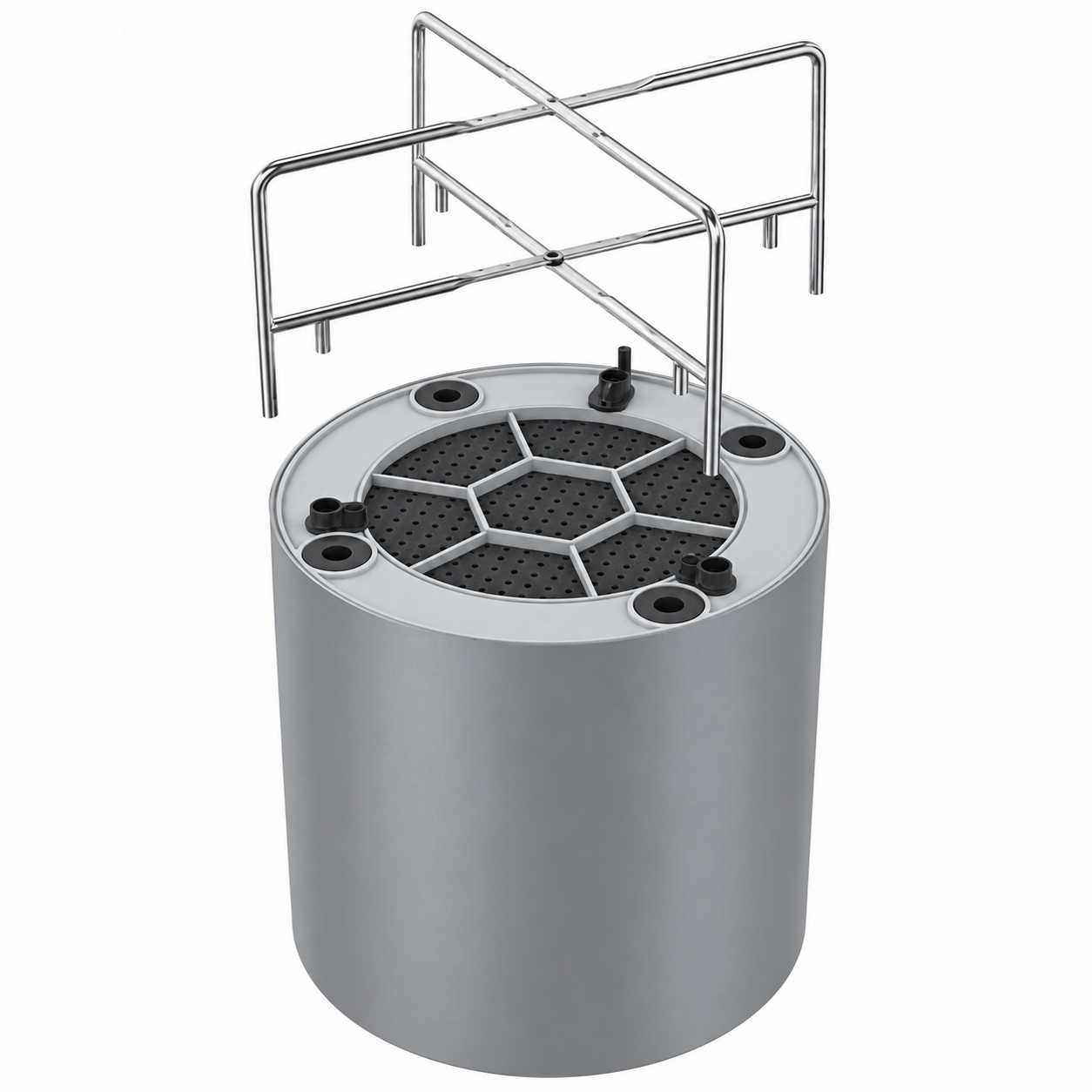

Leg installation

You must install the Leg Stand on your Air Purifier before use.

1. Turn the unit upside down.
2. Open the Leg Stand into an "X" shape.

Filter replacement

Genuine Vornado filters are recommended

Peak performance is achieved when genuine Vornado Carbon and HEPA filters are used. Other manufacturers may claim compatibility with Vornado units, but the Vornado Air Purifier is calibrated to achieve a 99.97% capture rate of particles 0.3 microns or larger only when used with genuine Vornado filters.

How to replace your filters

1. Turn off and unplug the unit.

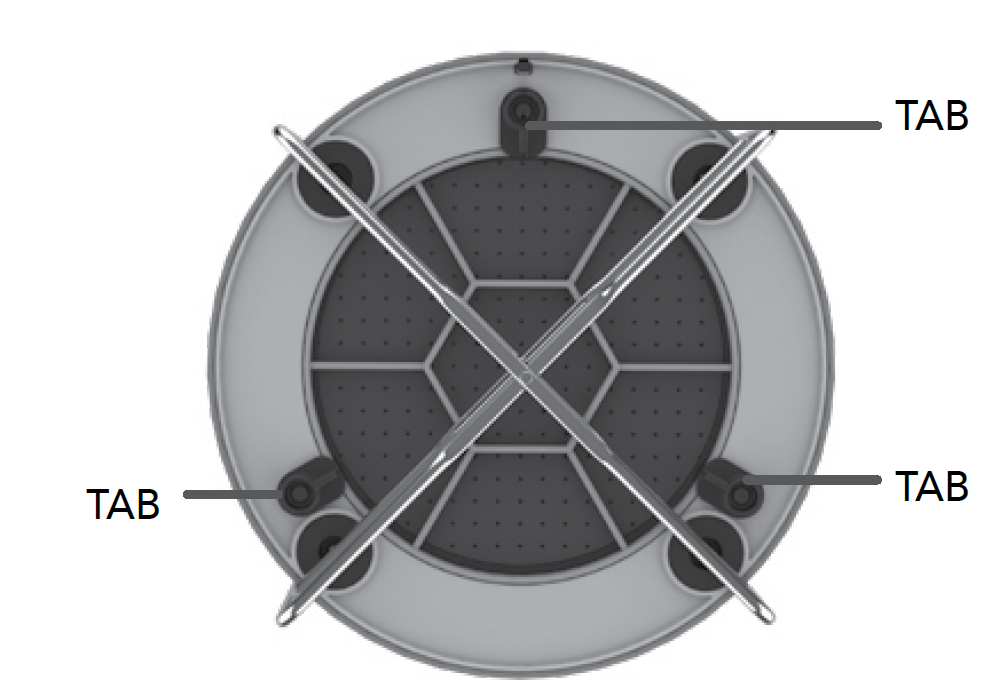

2. Turn the unit over and remove the Leg Stand. Remove the Filter Frame by twisting the Filter Frame Support Tabs to the open position.
3. Remove and discard the used filters. Take hold of the Pre-Filter anywhere along its perimeter and remove it. To remove the Filter Cartridge, pull upward on the side tabs until the filter is removed.
4. Replace the filters with genuine Vornado filters. Place the Filter Cartridge into the unit and gently press around the perimeter to ensure proper placement. The Carbon side of the cartridge should go into the unit first, with the tabs on the HEPA filter facing upward. Place the Pre-Filter on top of the HEPA filter.
5. Place the Filter Frame on top of the filters and twist the Filter Frame Support Tabs into the locking position. Reinstall the Leg Stand.
6. Turn the unit right-side up.
7. To reset the Filter Replacement Indicator, press and hold the Filter Reset button for approximately 3 seconds until the Filter Replacement light turns off.

Cleaning and maintenance

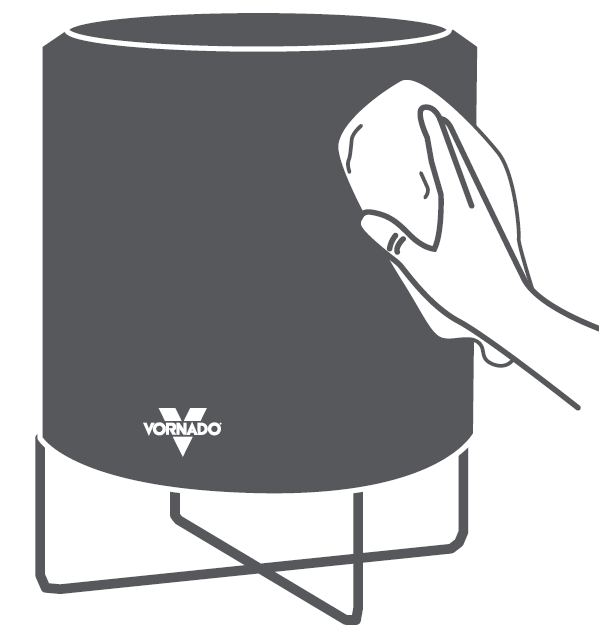

How to clean

Because large volumes of air pass through your Vornado Air Purifier each day, it requires regular cleaning.

• Turn off and unplug the unit before cleaning.
• Wipe down the unit with a soft, damp cloth.
• Dust or vacuum the top air outlet. It is recommended to clean the interior whenever the filters are replaced.

Storage

Follow the steps below when you are ready to store your unit.

1. Unplug the power cord and bundle it loosely.
2. Cover the unit or place it back in its original retail carton, if available. This will prevent dust from accumulating on the unit over time.
3. Store the unit in a cool, dry location.

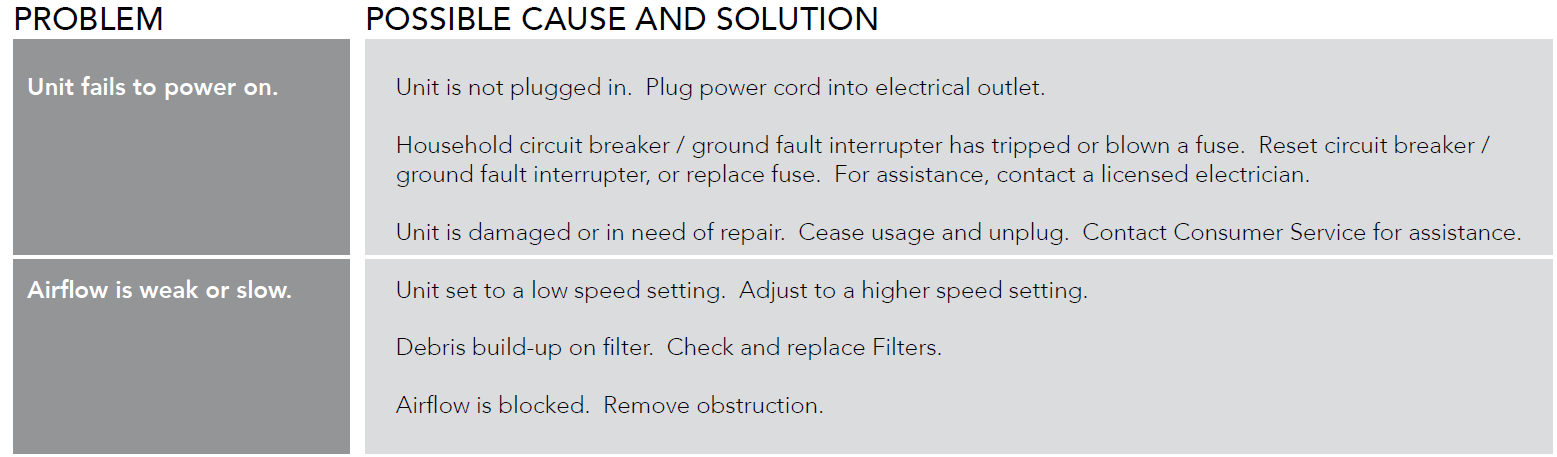

Troubleshooting

Pros and Cons of the Vornado Whole Room Air Purifier CYLO51

Pros

• Exceptional True HEPA filtration captures 99.97% of fine particles, ideal for allergies—users report noticeable dust reduction in small bedrooms.
• Compact 360° design fits tight spaces with stylish appeal, outperforming boxy competitors in aesthetics.
• Versatile modes like Quick Clean rapidly lower particle levels; Sleep Mode ensures whisper-quiet nights.
• Cost-effective with 6-month filter life and 5-year warranty—great value under $200 vs. pricier brands.
• Energy-efficient timer saves power for daily whole room air purifier use.

Cons

• Limited to 100 sq. ft., less suitable for larger rooms compared to Vornado's bigger models or Levoit Core 300.
• Lower CADR (e.g., Smoke: 64) may struggle in heavy smoke scenarios versus high-end units like Coway Airmega.
• Replacement filters add ongoing cost (~$30-50 every 6 months), though indicator helps timing.
• No smart app integration, unlike Wi-Fi-enabled alternatives.

Overall, excellent value for small-space users seeking reliable performance over premium features.

Customer Reviews and Feedback on Vornado Whole Room Air Purifier CYLO51

Customers praise the Vornado Whole Room Air Purifier CYLO51 for its effective allergen removal and quiet operation, averaging 4.5/5 stars across sites like Best Buy and QVC. "Cleared pet dander in my 90 sq. ft. office—breathing easier!" notes one reviewer, highlighting Quick Clean's speed.

Common praises include easy setup, stylish look, and odor neutralization: "Carbon filter zaps cooking smells perfectly" (5 stars). Frequent complaints involve limited coverage—"Fine for bedroom, but not living room" (3 stars)—and filter costs.

Testimonials recommend it for allergy relief: "Sleep Mode is a game-changer for nights" (4.8/5). Addressed issues like noise on high are minimal in Sleep Mode. Highly recommended for small rooms; pair with extras for bigger spaces.
