Setup: Vornado Whole Room Heater Velocity Cube 5S User Manual

Introduction — Vornado Whole Room Heater Velocity Cube 5S (overview, benefits, audience)

Vornado Whole Room Heater Velocity Cube 5S is a compact, high‑performance electric space heater engineered to deliver rapid whole‑room warmth using Vornado’s Velocity Tuned Heat technology and a swiveling base for directed airflow. The unit produces up to 1,500 watts (about 5,118 BTU/hr) and combines three heat settings, a fan‑only mode, LED touch controls, and safety features such as tip‑over protection and automatic shut‑off to provide reliable, everyday supplemental heating for homes and small offices.

Key benefits and unique selling points include fast vortex-style whole‑room circulation for even warmth, a rotating foundation that lets you aim heat without moving the heater, bedtime/nighttime dimming of the LED display for low‑light sleeping, and a 1–12 hour timer plus a 5‑year satisfaction guarantee for long‑term peace of mind. Ideal use cases are supplemental heating for living rooms, bedrooms, home offices, and medium rooms roughly 100–300 sq. ft., or anywhere you need quiet, directed heat with a cool‑touch exterior and multiple safety cutoffs.

Target audience: renters and homeowners who want portable whole‑room heating without hard‑plumbing, families with children or pets who need cool‑touch safety, and consumers seeking a balance of power, compact size, and modern controls. Estimated price range (street retail) typically falls in the mid‑range for 1,500W electric heaters; expect approximately $120–$220 depending on retailer, promotions and region. Availability: widely sold through major retailers and the manufacturer’s store with model EH1‑0212‑43 / Velocity CUBE 5S listed as current Vornado offering.

Specifications — Technical details and key features

• Model / SKU: Velocity CUBE 5S (Vornado whole room heater model often listed as EH1‑0212‑43).
• Power / Output: 1,500 Watts; ~5,118 BTU/hr (maximum heat output).
• Room coverage: Recommended for small to medium rooms — approximately 100–300 sq. ft.
• Controls: LED touch controls with digital display, bedtime/night dimming mode, lock function and 1–12 hour timer.
• Heat settings: 3 heat settings + fan‑only mode; automatic climate control/thermostat maintains set temperature.
• Air delivery / design: Velocity Tuned Heat (vortex circulation) with swiveling/rotating base to direct airflow farther into the room.
• Safety: Tip‑over protection, automatic shut‑off/overheat thermal cut‑off, cool‑touch housing, ETL listing in retail specs.
• Physical: Dimensions ~9.87" H × 8.9" W × 8.72" D; weight ~6.44 lbs; cord length ~72" (varies by listing).
• Warranty: 5‑year satisfaction guarantee (manufacturer/retailer policy varies).
• Other: No remote control included; electronic thermostat and timer features for energy management.

Comparison with similar products: versus traditional tower or ceramic oscillating heaters the Velocity CUBE 5S emphasizes directed vortex circulation and a swiveling base for farther, faster heat penetration; compared with infrared or oil‑filled radiators it provides quicker warm‑up times but consumes similar electrical power (1,500W) and is better for quick, whole‑room circulation rather than sustained radiant warmth.

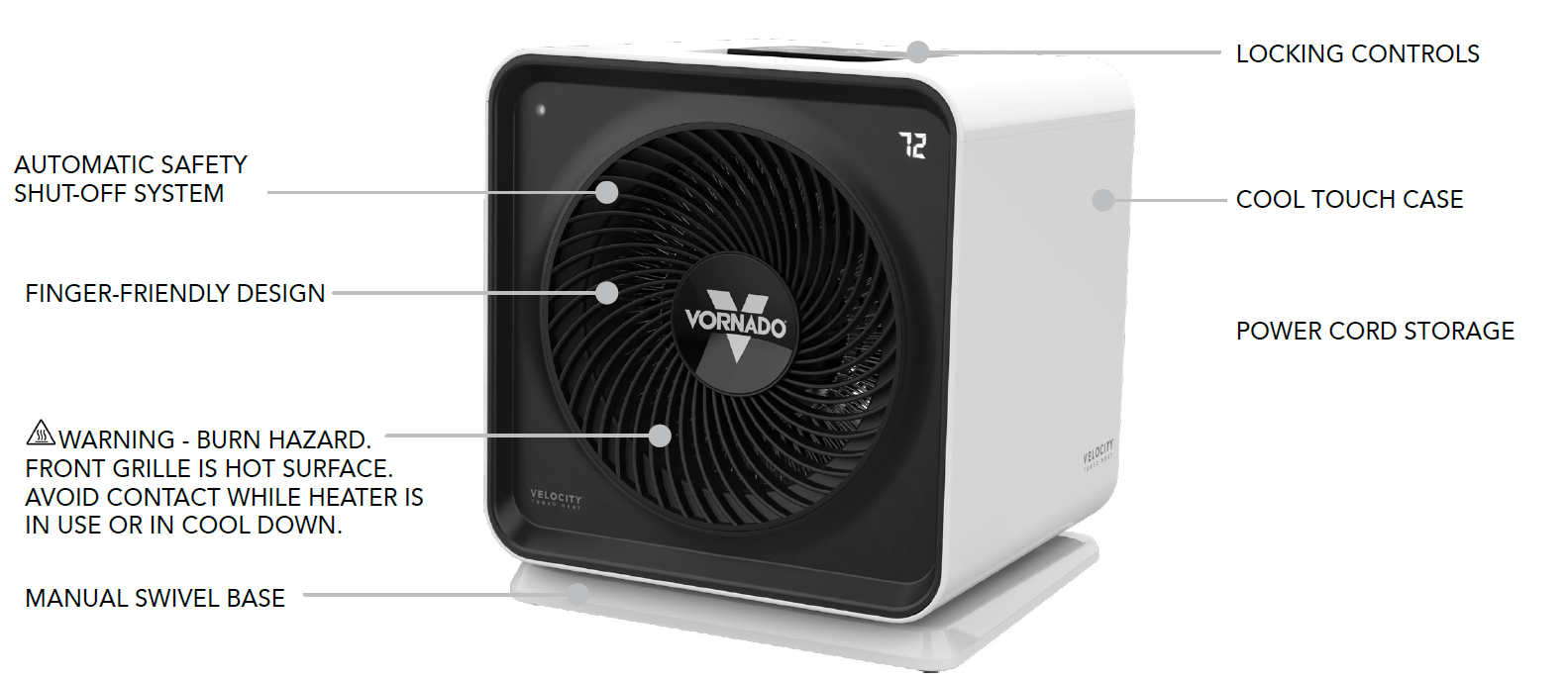

FEATURES

• AUTOMATIC SAFETY SHUT-OFF SYSTEM

  If airflow becomes blocked, power to the heater is shut off to prevent overheating.

• FINGER-FRIENDLY DESIGN

  Resists curious fingers.

• MANUAL SWIVEL BASE

  Allows manual adjustment of the heater's direction.

• LOCKING CONTROLS

  Keep the unit off when not in use or lock in your desired settings.

• COOL TOUCH CASE

  Safe to touch, even on the high heat setting.

• POWER CORD STORAGE

  Safely store excess cord in the tray on the back of the heater.

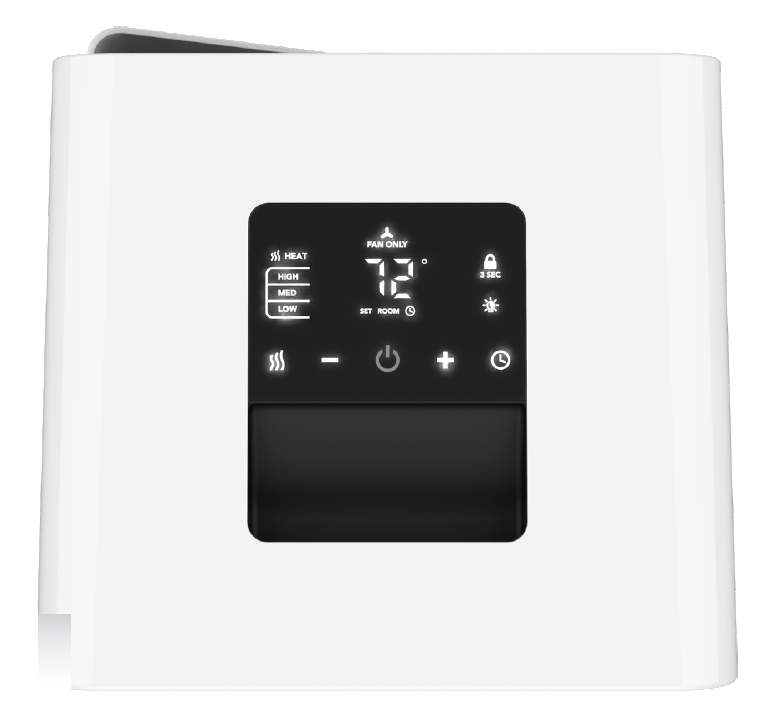

CONTROLS

• POWER ON/OFF

  Turns the heater on or off.

• MODE

  High Heat | Medium Heat | Low Heat | Fan Only

  TEMPERATURE AND TIMER ADJUSTMENT (+/-)

• Adjusts the desired temperature and timer settings.

• TIMER (1–12 HOURS)

  Allows automatic shut-off after the selected number of hours.

• NIGHTTIME MODE

  With the Nighttime setting, all non-essential lights are turned off, illuminating only when you adjust.

• LOCK MODE

  Locking Controls keeps settings where you left them.

HOW TO USE

Before use, check the appliance for visible damage. DO NOT USE THIS HEATER if there is evidence of damage. If any damage is found, contact Vornado Air LLC at 1-800-234-0604.

1. Use the integrated handle on top of the heater for lifting and carrying.
2. Position the heater so airflow is not obstructed.
3. Plug the power cord into a standard grounded wall outlet.
4. Press the Power button and select Mode. Choose High Heat, Medium Heat, Low Heat, or Fan Only. The room temperature will illuminate on the display. Set the thermostat to the desired temperature using the (+) and (-) buttons.
5. To enter Nighttime Mode, press the Nighttime button. All lights will turn off except the Nighttime button. The first touch of the controls will wake up the unit, and the lights will dim again until you exit Nighttime Mode. To exit, press the Nighttime button again.
6. Set the timer to automatically power the unit off by pressing the Timer button. The number of hours will display above the icon. Using the (+) or (-) buttons, select the amount of time in one-hour intervals, up to 12 hours. To cancel the timer operation, select 0 hours.
7. Lock the controls by pressing and holding the Lock button for 3 seconds. None of the control buttons will function or be illuminated until the controls are unlocked by pressing and holding the Lock button again for 3 seconds. If any controls are pressed while the unit is in Lock Mode, the lock icon will flash, indicating the need to unlock the controls before continuing use. If the unit is in both Lock Mode and Nighttime Mode, only the Nighttime and Lock buttons will be illuminated. Pressing any button will wake the heat setting, room temperature, and set temperature displays. The Lock button will illuminate and flash for 3 seconds to indicate that the product is locked. Follow the instructions above to unlock and access the controls.
8. When turning the unit off by pressing the Power button, a 20-second timer will display, and the unit will run in Fan Only Mode to remove excess heat before shutting off.

CLEANING

1. Unplug the heater before cleaning.
2. Use the brush attachment on a household vacuum cleaner to remove accumulated dust from the Front Outlet Grille.
3. Use the brush attachment on a household vacuum cleaner to remove accumulated dust from the Inlet Grille on the back of the heater.
4. Wipe down the entire heater with a soft, dry cloth.

STORAGE

During the off-season or after extended periods of non-use, you may choose to store your heater. To ensure the long life of the product, it is recommended to store your heater by following these instructions.

1. Unplug the power cord and bundle it loosely within the cord storage slot on the back of the unit. DO NOT wrap the power cord around the unit.
2. Cover the heater or place it back in the retail carton, if available. This prevents the heater from accumulating dust over time.
3. Store the heater in a cool, dry location.

RESET HEATER

RESETTING YOUR VORNADO HEATER

Your Vornado Heater has a multilevel safety shut-off system designed to prevent overheating. Overheating may occur when the air inlets or outlet are blocked. If this happens, the safety shut-off system cuts power to the heater, and you must manually reset the heater.

1. Power the heater off, then unplug the power cord.
2. Remove any obstructions.
3. Wait 5–10 minutes, allowing the heater to cool down.
4. Plug in the power cord and place the heater in the desired position.
5. Power the heater on. Your Vornado Heater should now function normally.

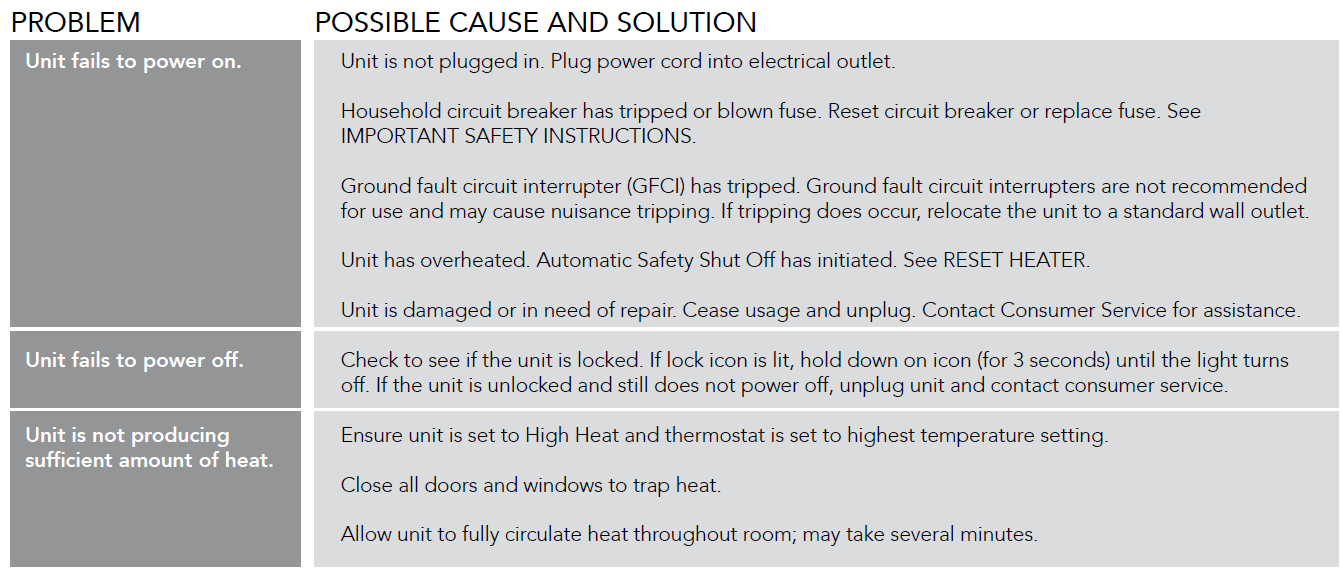

TROUBLESHOOTING

Pros & Cons — Honest assessment and alternatives

• Pros — Fast whole‑room heating: Velocity Tuned Heat and 1,500W output deliver quick temperature rise in 100–300 sq. ft. spaces, useful for living rooms and home offices.
• Pros — Safety and controls: Cool‑touch case, tip‑over protection, auto shut‑off, lockable LED touch controls, and bedtime dimming provide family‑friendly safety and convenience.
• Pros — Directional heat: Swiveling base allows aiming warm air without repositioning the heater, improving perceived coverage and comfort.
• Cons — No remote: Lacks remote control (common in some competitors), so adjustments require walking to the unit.
• Cons — Energy draw: At 1,500W it’s as power‑hungry as other compact electric heaters — not a long‑term replacement for central heating if energy cost is a concern.
• Cons — Room limits: Best for small to medium rooms; for very large or open‑plan spaces, a larger system or multiple units may be necessary.
• Value for money: Offers strong safety features, targeted airflow, and a 5‑year guarantee at a mid‑range price point, making it a good value for users who prioritize rapid, safe, whole‑room circulation over ultra‑low running cost.
• Alternatives: Infrared or oil‑filled radiators for quieter longer‑lasting radiant heat; oscillating ceramic heaters with remotes for added convenience; Vornado’s other Velocity series models (e.g., 5R or larger units) if a different aesthetic or output is required.

Customer reviews, ratings & common feedback

Average retailer ratings for the Vornado Whole Room Heater Velocity Cube 5S are generally positive on major outlets, with users praising fast heating, compact footprint, and safety features while noting a few recurring points.

• Typical praises: Rapid warm‑up, effective whole‑room circulation, easy LED controls, bedtime dimming useful for bedrooms, solid build and cool‑touch housing (safety for children/pets).
• Common complaints: No included remote control, fan noise on higher settings (some users find it noticeable), and expected energy consumption at 1,500W; a few buyers requested quieter operation for bedroom use.
• Star ratings: Retail listings commonly show high average ratings (4–5 stars on product pages), though ratings vary by retailer and sample size.
• Representative testimonial: “I like how quickly it heats my 150 sq. ft. office and the bedtime mode dims the display — feels safe and built well.” — typical user sentiment from retail reviews.
• Purchase recommendation: Recommended for buyers wanting a reliable, safe, portable whole‑room heater for medium rooms; consider quieter alternatives if you need ultra‑silent bedroom operation or want a remote control.
