Voxwelly Introduction

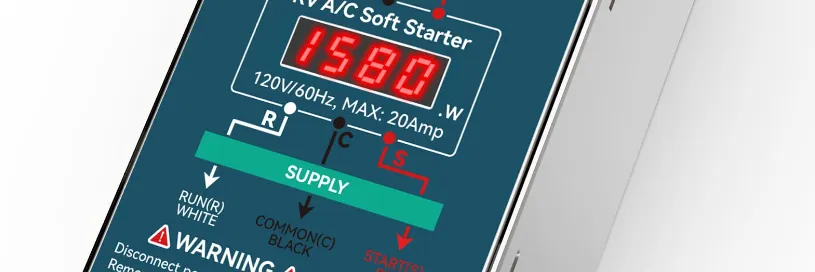

The X-Plus RV AC Soft Starter RV30B  Starter functions as a soft-starter, and is designed to be used across a wide range of RV air conditioning units. Unlike commonplace designs, this soft-starter only requires access to the compressor's three wires (Run, Start and Common). Find the easy installation instructions on the following page.

Priced at $199, the RV30B is essential for maintaining comfort during hot weather conditions.

Specifications

• Compatibility: Designed for most RV air conditioning units up to 30 amps.
• Soft Start Technology: Reduces inrush current by up to 70% to protect electrical systems.
• Energy Efficiency: Optimizes power usage to extend the life of your AC unit and reduce energy bills.
• Durable Construction: Built with high-quality components to withstand various environmental conditions.
• Ease of Installation: Simple and straightforward installation process with clear instructions.
• Compact Design: Space-saving design that fits easily into most RV electrical panels.

Parts List

• 1x X—PLUS‘RV A/C Soft Starter
• 1 x Instruction
• 4 x Screws
• 4x Cable ties
• 6 x Splice Connectors

Warning:

1. This model does NOT electrically isolate the control box from the compressor. A suitable contactor or relay is necessary.
2. All voltage to equipment MUST be disconnected before removing any devices.
3. Allow 2 minutes to discharge run capacitor BEFORE disconnecting.
4. DO NOT swap the Run & Start Windings.
5. Poor crimping can lead to heating & subsequent damage to the soft starter.

LED Display Codes

Code	Status	Code	Status
.W	The startup power is displayed. The start is normal.	.W	Self-checking exception.
.W	Run Windings abhor-mal/PCB breakdown. Startup failure.	.w	Start Windings abnormal. Startup failure.
.W	Power detection anomaly.	.w	Overload protection detected.

Field Wiring Terminals (Applicable if wire harness is not provided):

1. Wire Range: 14 AWG Cu, stranded, for all terminals (Run Winding (R) and Active(T2))
2. Tightening Torque: 4.4 Ibs-in [0.5 Nm] terminals.

Field wiring conductors shall be rated 167°F [75°C]

Suitable for use on a circuit capable of delivering no more than 5000rms symmetrical  amperes, 120 volts maximum, when protected by a non-time delay RK5 fuse or circuit breaker rated 80A, or a time delay fuse rated 70A. The device does not provide current limiting control or an equivalent.

X-PLUS RV A/C Soft Starter is NOT an overcurrent protection device and must NOT be used as a replacement for any primary circuit overcurrent protection.

Description

The Voxwelly X-Plus RV AC Soft Starter RV30B is more than just a starter; it's a comprehensive solution aimed at enhancing the overall performance of your RV's air conditioning system. By reducing the high inrush current typically required to start an AC unit, this device helps prevent voltage drops, protects your electrical system, and ensures smoother operation. The soft start technology also extends the lifespan of your AC unit by reducing wear and tear on the compressor and other components.

This device is user-friendly and does not require any advanced technical knowledge for installation. It comes with a detailed manual and support resources to ensure a seamless setup process.

Soft Starter RV30B INSTALLATION

X-PLUS RV A/C Soft Starter should be installed by a qualified technician Acquire manufacturer’s wiring diagram for the air-conditioning unit (provided with purchase). Turn off power to the RV unit.

Verify from the manufacturer’s wiring if there are any start-assist devices such as: start capacitors, start relays or PTCRs.

If present, these need to be removed. Follow the Start winding connection from the Compressor into the control box. This should terminate onto a run capacitor (HERM terminal, in case of a dual capacitor). If the same terminal has other wires terminated, these must be disconnected and electrically isolated.

Method:

1. Open the top hood of the RV air-conditioning.
   If necessary, gain access to the compressor’s wiring by removing any additional foam covers.



2. Identify the three wires (Run, Start and Common) routed to the compressor. Most often, these are routed through a sleeve cover.



3. Open the compressor cover and note the corresponding (R, S, C) color of the wires.



4. Densify a suitable location to place the soft-starter.
   Please avoid placing the soft-starter and its wiring in the following areas.
   • In the direct path of an air vent,
   • In proximity (less than 2 inches) to copper pipes (inlet or discharge),
   • Near rotating mechanical parts,
   • Near heat sources,
   • Anplace that interferes with closing the top hood. Suitable locations to place the soft-starter are:
   • Inside/adjacent to the foam cover,

   • On the base floor.



5. Cut the compressor three wires at a location within range of the soft-starter wire harnesses. Clearly identify the supply and compressor sides of the connections. In this illustration, Lower section is Compressor side and Upper section is Supply side.



6. On the compressor side, carefully match the cut run, start, and common wires coming from the compressor with the run, start, and common wires on the COMPRESSOR side of the soft starter. Strip each wire by %” and terminate all 3 connections using closed end splice connectors.



   1. On the supply side, carefully match the cut run, start, and common wires of the A/C unit with the run, start, and common wires on the SUPPLY side of the soft starter. Strip each wire by %” and terminate all 3 connections using closed end Step 4. splice connectors, see diagram below. Ensure that all 6 crimped connections are firm and secure.
      (The connection method of the supply side is the simplest, and the operation can be completed by referring to the colors found on the compressor side and connecting to the soft start supply side)
7. Ensure that the wire harness on both sides is securely routed within foam guides inside the unit. Clean the chosen mounting surface for the soft starter using the included alcohol pad. Secure the soft-starter box in place with the adhesive tape on the backside and press firmly. Securely replace any foam covers and the top hood. Turn on power and verify operation.

INSTALL TABLE

X-PLUS Soft Starter Configuration: R=WHITE, C=BLACK, S=RED

• This is a dynamic list and changes often with new models.
• A/C manufacturers may also change designs or have manufacturing defects.
• Always double check the cables coming off the compressor and connect accordingly.

Setup Guide

To operate the Voxwelly X-Plus RV AC Soft Starter RV30B, follow these steps:

1. Turn off the power to your RV's electrical system.
2. Locate the air conditioning unit's electrical connection and disconnect it.
3. Install the soft starter according to the provided instructions, ensuring all connections are secure and correct.
4. Reconnect the air conditioning unit to the soft starter.
5. Turn on the power to your RV's electrical system and test the AC unit.

The setup process is relatively straightforward and can be completed with basic tools and minimal technical expertise.

Troubleshooting

If you encounter any issues with your Voxwelly X-Plus RV AC Soft Starter RV30B, here are some common problems and solutions:

• No Power to AC Unit: Check if the power is turned off or if there are any loose connections.
• AC Unit Not Starting: Ensure that the soft starter is properly installed and that there are no faults in the wiring.
• Overheating: Verify that the soft starter is installed in a well-ventilated area and that there are no blockages around it.

Always refer to the user manual for detailed troubleshooting instructions and follow all safety precautions to avoid electrical hazards.

X-Plus RV AC Soft Starter RV30B Pros & Cons

Pros:

• Reduces inrush current significantly, protecting electrical systems.
• Enhances the lifespan of your AC unit by reducing wear and tear.
• Easy to install with clear instructions.
• Compact design fits easily into most RV electrical panels.
• Cost-effective compared to potential damages or replacements.

Cons:

• May require additional space in the electrical panel.
• Initial cost may be higher than traditional starters, though it offers long-term savings.
• Requires proper installation to function correctly.

Customer Reviews

Customers have praised the Voxwelly X-Plus RV AC Soft Starter RV30B for its effectiveness in reducing strain on their RV's electrical system. Many have noted a significant improvement in the performance and longevity of their air conditioning units. However, some users have reported minor issues with installation, highlighting the importance of following the provided instructions carefully.

Common complaints include the need for precise wiring and the initial investment cost, but overall, the product has received positive feedback for its reliability and efficiency.
