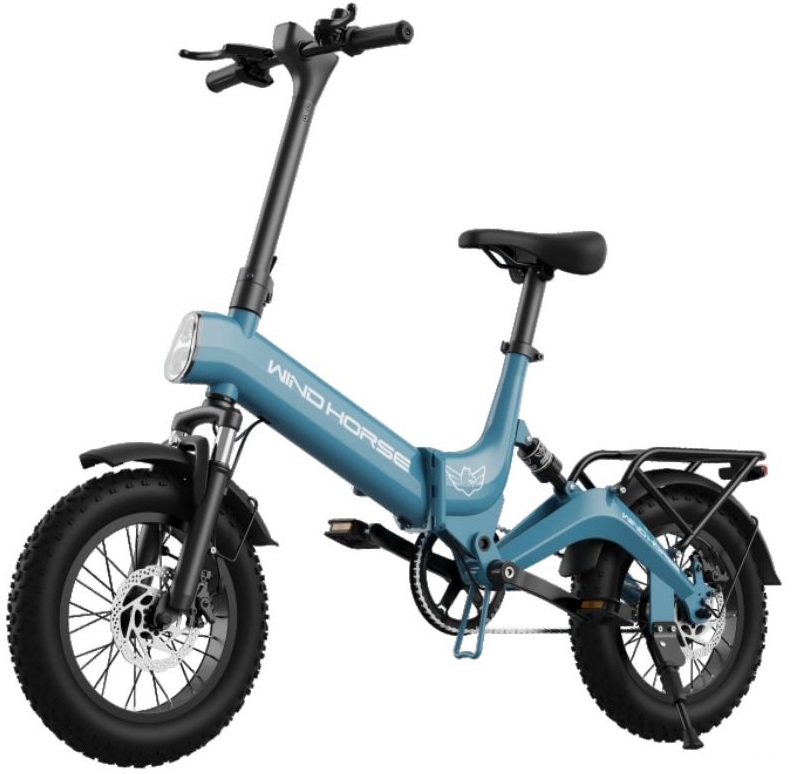

WindHorse Electric Foldable Bicycle W1

Introduction

The Wave WindHorse Electric Foldable Bicycle W1 is a revolutionary transportation solution designed for urban commuters and outdoor enthusiasts alike. This sleek, foldable e-bike combines the convenience of a compact design with the power and efficiency of electric propulsion. Scheduled to launch in the spring of 2024, the Wave WindHorse Electric Foldable Bicycle W1 is expected to be priced competitively in the mid-range segment of the e-bike market, likely around $1,200 to $1,500.

The primary usage purpose of this bicycle is to provide an eco-friendly, cost-effective, and convenient mode of transportation for short to medium distances. It is ideal for daily commutes, recreational rides, and even as a secondary vehicle for camping or travel. The foldable design allows for easy storage in small spaces such as apartments, cars, or public transportation, making it a versatile option for various lifestyles.

Featuring advanced technology and durable construction, the Wave WindHorse Electric Foldable Bicycle W1 promises to deliver a smooth riding experience with its powerful electric motor and long-lasting battery. The estimated launch date is set for early 2024, with pre-orders expected to start a few months prior.

Setup Guide

To operate the Wave WindHorse Electric Foldable Bicycle W1, start by ensuring the battery is fully charged. Unfold the bike by releasing the quick-release levers and extending the frame and handlebars. Adjust the seat height and handlebar position to your comfort. Turn on the bike using the power button on the LCD display and select your preferred mode of operation – either pedal-assisted or throttle mode.

For assembly, follow the instructions provided in the manual to attach any pre-assembled components such as the front wheel and pedals. Configuration involves setting up the gear system and adjusting the brakes according to your preference. Pairing with your smartphone can be done via Bluetooth through the dedicated app, allowing you to track your rides and monitor bike health remotely.

Wave Specifications

• Max Supported Weight: 330 lbs
• Min. Supported Weight: 48 lbs
• Max Speed: 20 mph
• Max Range: 40 miles
• Motor Power: 350W
• Battery Voltage: 36V DC Lithium Battery
• Battery Capacity: 10Ah
• Twist Throttle: Yes
• Power Requirement: Shenzhen Fuyuandian Power Co., Ltd. FY-4202000 100-240V /50-60Hz 2.5A 42.0V /2.0A
• Front Fork: Suspension Fork
• Tire Size: 16 "*3.0 Front & Rear
• Brake Type: Front & Rear Disc
• APP: WINDHORSE App

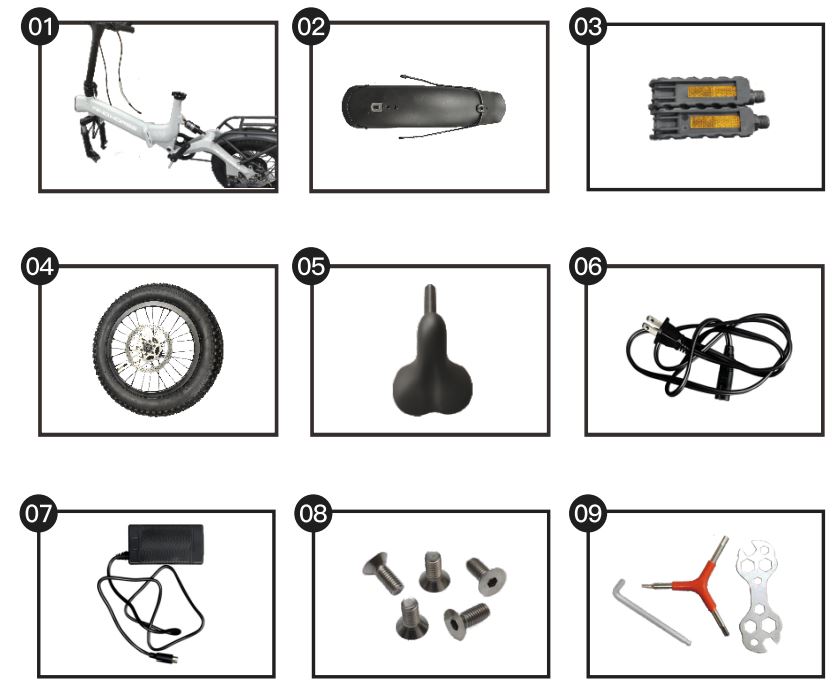

Packaging

1. Bike
2. Fender
3. Pedal
4. Front Wheel
5. Bike Siddle
6. Charger Cable
7. Charger
8. Screws
9. Tools

Assembly

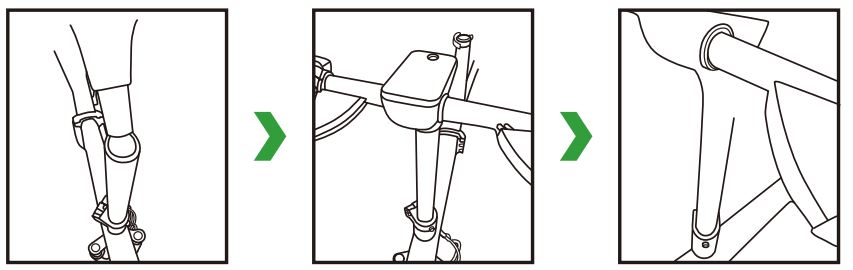

• Handlebar installation: Put the handlebar on the stem Move in the right direction Screw on and Tighten.

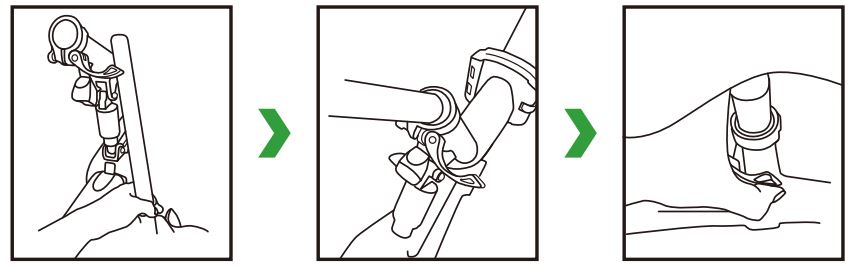

• Seat installation
  • Open the clamp.

  • Put the stem into the tube Adjust the height and lock.

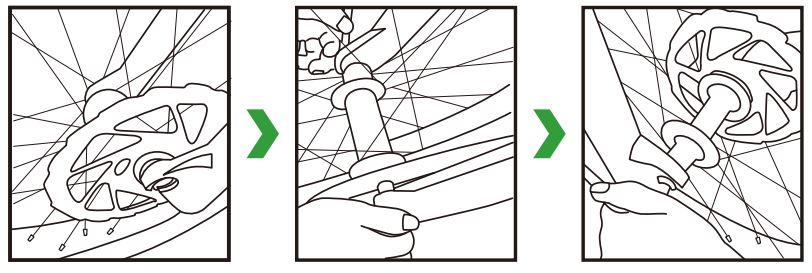

• Front Wheel Installation: Put the front wheel on the front fork Assembly quick release lever Screw on and tightened.

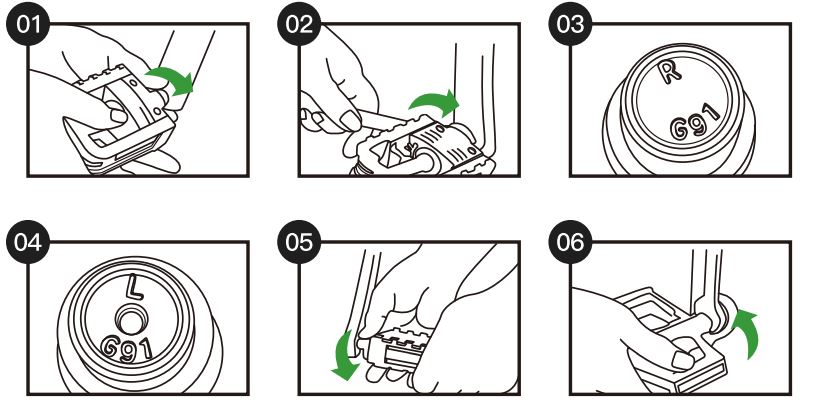

• Install the Pedals
  1. Rotate clockwise to tighten.
  2. Installed on the chainwheel side crank Looking for "R" mark.
  3. Looking for "L" mark.
  4. Rotate counterclockwise.
  5. Tighten.

Operation

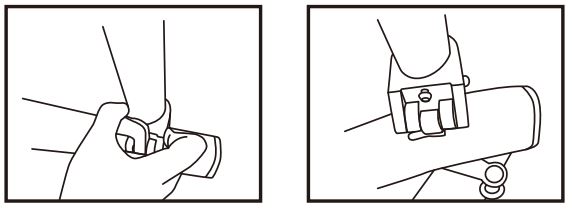

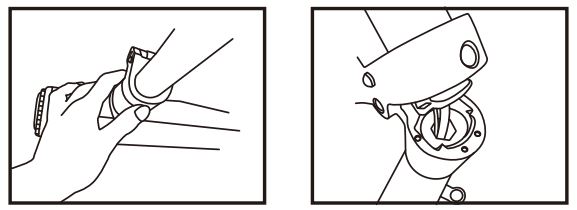

Stem Folding

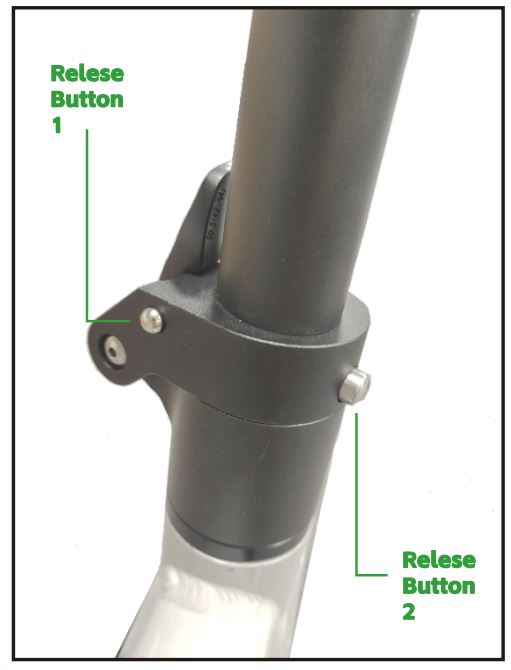

1. Hold on the release button 1 and lower the locking lever completely.




2. Hold on the release button 2 and fold the handlebar stem to the side of the bike.



Display Instruction

• Lock Motor Indicator
• Cruise Control
• Walk Mode
• Brake indicator
• Error Indicator
• Gear
• Battery Indicator
• Fault Indicator
• Headlight Indicator
• BLE Connection Status
• Throttle
• Turning State

Key Operation

• Function Name: Operation Method
• Power on/ off: Long press the button for more than 2S
• Trip and ODO switching: In the power-on state, click the button
• Turn on/o ffheadlights: In the power-on state, press the button twice
• Toggle kilometer units: In the power-on state, press the button three times
• Unlock speed limit (only for final gear to unlock limit speed): Hold the brake handle tightly, press and hold the button to turn on the machine, release the brake handle after turning the throttle 5 times, and the speed limit is set/unlocked successfully with a beep
• Unlock Motor: Hold the brake handle tightly, press and hold the button to turn on the power, turn the throttle 6 times and then release the brake handle, the anti-theft will be unlocked with a beep
• Upshift gear: Press the “UP” key
• Downshift gear: Press the "DOWN" key

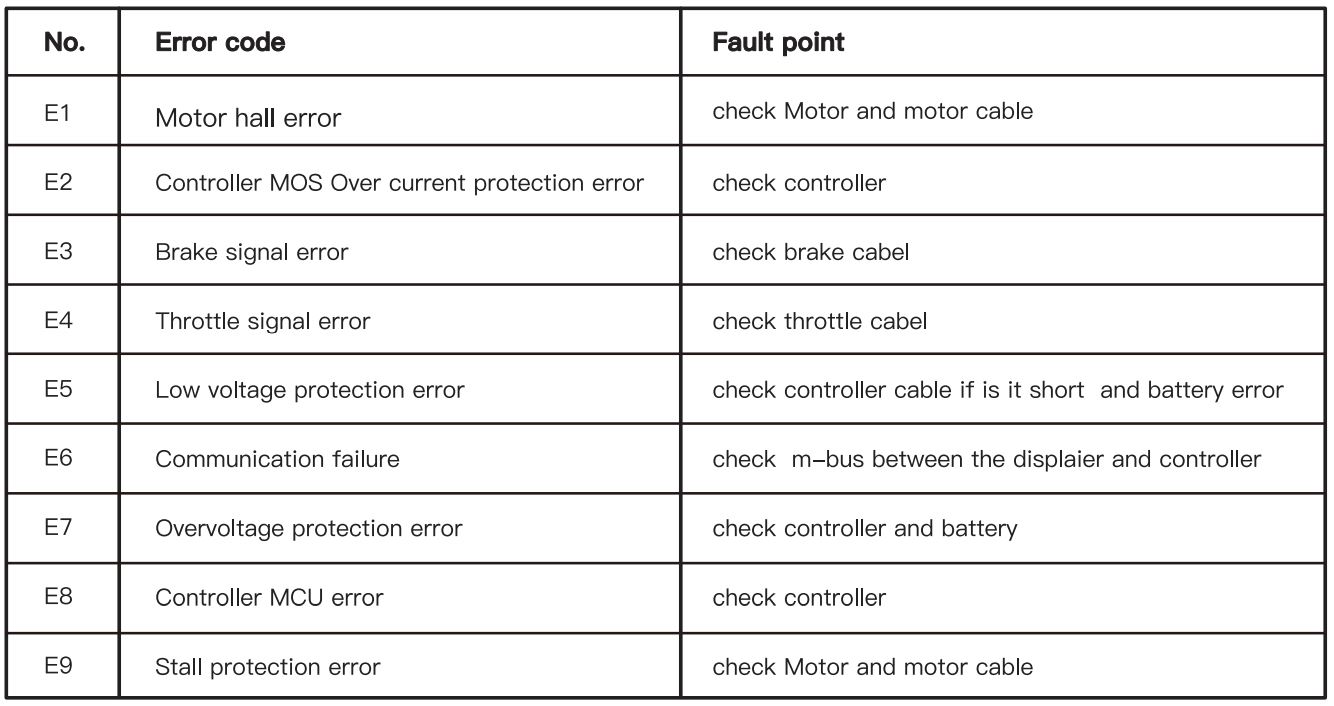

Error Code

Charging

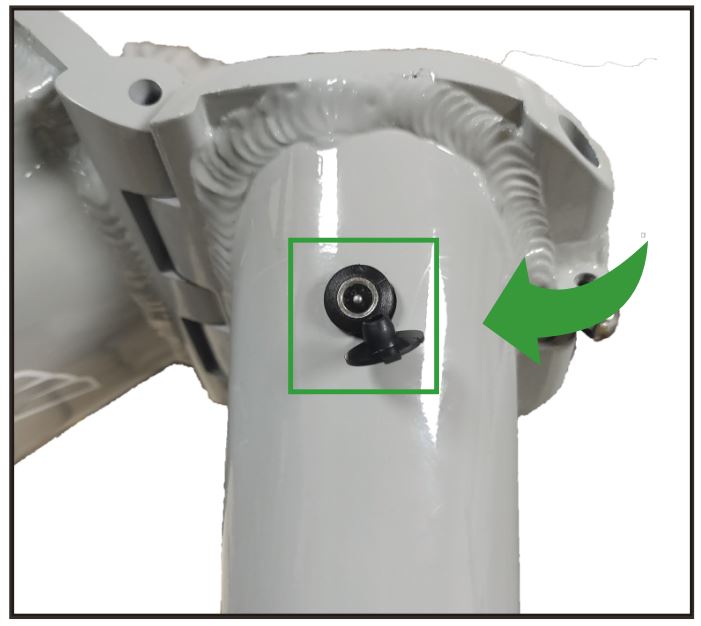

• The charging port is located under the frame
• Plug the charging cable into the charging port. (Make sure the connection is dry)
• The indicator LED of the charging adapter turns red when charging and turns green when the battery is full. Please stop charging when it is full to prevent battery life from deteriorating. Please use the batteries, chargers and cables supplied by the original manufacturer to prevent the battery from being overcharged.
• When finished charging, close the charging flap to prevent any damage to the port.

WARNING: UN-PLUG BEFORE TURNING ON IGNITION.

Note: Please be sure to keep the port covered and free of dirt and water.

Charging & Battery Safety Tips

WARNING: The WAVE is not waterproof, and therefore should always be kept away from any source of water-NEVER allow the charging block, cables or cable ends to touch water. Do not handle with wet hands as it may cause electric shock. If any failure occurs during charging, unplug immediately. Do not yank or pull on the plug to the WAVE or pull from an electrical socket in an abrasive manner.

• Check battery level before the first use.
• It is recommended that the battery be recharged after each use.
• To maximize the battery life, please charge once per month or after at least 2 days of operation.
• Recharge the battery pack at least once per month as all batteries of every type will slowly discharge energy when left idle for extended periods of time.
• Try to keep the battery from being exposed to excessive heat or very hot temperatures.
• Please use the batteries, chargers and cables supplied by the original manufacturer to prevent the battery from being overcharged.
• Do not allow the charger or cable to contact sharp or hot items.
• Perform a visual inspection of the charger and charging cables regularly.
• If the charging cable has obvious damage - do not use the charger to avoid injury or electrical damage.
• Please do not repair the battery, the charger, or the cable independently.
• Please ensure that the charger and charging cables are connected correctly and are free of dust, dirt, and water.
• Prolonged exposure to UV rays, rain and elements may damage the enclosure materials, store indoors when not in use.
• The charging range and use range are 0° -40C.
• Please do not disassemble parts by yourself.

Please contact us if you experience any problems or issues .

Usage Of The 1 Scooter

• The WAVE is a one-person mobility product - anyone who is under 12 years old needs to be assisted when riding.
• The WAVE is only for daily recreational use and is not designed for extreme sports.
• Check that the parts of the bicycle are installed correctly and not damaged.
• Check that folding mechanism is locked.
• Check the battery - is the battery charged?
• Check the brakes - do they function for both front and rear wheels?
• Check the tire - make sure there are no punctures or bubbles.
• Ride with caution and always wear a helmet.
• Make sure to follow maintenance protocols. Lack of proper maintenance may void warranty.

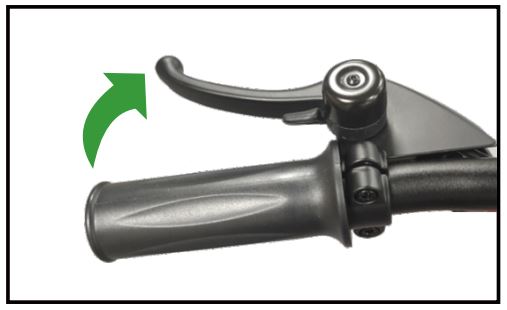

Handbrakes
Squeeze each brake slowly to avoid stopping abruptly and losing control.

Safety Information

Your electric bicycle can provide many years of service and fun - if you are safe and responsible when riding.

• Always Wear a Helmet
  Helmets significantly reduce the number and severity of head injuries. Always wear a helmet that complies with your local and state laws when riding any electric bicycle for that matter. Check with your local police department for requirements in your
  community. DO NOT wear loose fitting clothing as they can get tangled in the moving parts of the electric bicycle. Wear close-toed shoes. Always wear a helmet and appropriate apparel when riding. If you are usure, check with your local state laws concerning other protec-tive gear that may be required when riding the electric bicycle.
• Know Your WAVE ELECTRIC bicycle
  Your new WAVE bicycle incorporates many features and functions that you may not be familiar with. Read this manual thoroughly to understand how its features can enhance your riding experience.
• Ride Defensively
  One of the most frequent cycling accidents occurs when the driver of a parked car opens his door into a rider's path. Another common occurrence is when a car or another cyclist moves suddenly into your path. Always be aware of vehicles around you. Do not assume that surrounding drivers or pedestrians see you. Be prepared to take evasive action or stop suddenly.
• Make Sure You Are Visible to Others!
  Make yourself more visible by wearing bright reflective clothing. Keep your reflectors clean and properly aligned. Use your headlight in reduced lighting conditions. Signal your intentions so that drivers and other cyclists can anticipate your actions. Use your bell when needed to make your presence known .

Care & Maintenance

Storage

• Avoid storing the bicycle in direct sunlight. Hot temperatures can cause damage to the battery and function of the bicycle.
• Avoid storing electric bicycle in wet conditions.
• When the bicycle is not being used, the battery can lose power. You should test the battery at least once a month, to ensure the battery maintains full charging capabilities.
• Avoid leaving the bicycle [and battery] idle for long periods of time, as this can cause battery failure.
• In winter, the batteries may lose power faster because of low temperatures.
• Inappropriate storage can shorten the life of the lithium battery life or cause other mechanical problems. Please store the electric bicycle indoors in a cool and dry place.

Cleaning
Before cleaning, make sure the bicycle is turned off, unplug the charging line and cover the charging port. During the cleaning process, be careful keep the water and moisture out of charging port. Use a dry cloth or a damp cloth to clean the cables - do not spray water on the bicycle or battery. During the cleaning process, be careful to keep water out of the charging port. Do not immerse the electric bicycle in water as it will cause permanent damage.

Battery Recycling
Help keep the environment free of litter and harmful pollution by recycling the battery correctly - do not throw batteries in the trash - please recycle your battery responsibly. Please consult your local sanitation department guidelines for safe disposal of batteries and parts.

Tire Maintenance
Make sure the pressure of the two tires inflated correctly - do not overinflate tires and try to keep the two tires at the same pressure. The default tire pressure both tires is 36/PSI. It is recommended that any flat tries be changed by an
experienced bicycle shop mechanic .

Pros & Cons

Pros:

• Compact Design: The foldable feature makes it easy to store and transport.
• Powerful Motor: The 250W motor provides sufficient power for various terrains.
• Long Battery Life: Up to 40 miles on a single charge ensures extended use without recharging.
• Advanced Features: Includes an LCD display, integrated lights, and a USB charging port.
• Durable Construction: Made from high-quality aluminum for longevity and strength.

Cons:

• Weight Limitation: May not be suitable for heavier riders due to weight capacity limits.
• Assembly Required: Some users may find the initial assembly process challenging.
• Battery Charging Time: Full charge can take several hours, which may inconvenience some users.
• Limited Customization: Fewer customization options compared to other e-bikes in the market.
• No Water Resistance Rating: Users need to be cautious in wet conditions as there is no official water resistance rating.

Customer Reviews

Early adopters of the Wave WindHorse Electric Foldable Bicycle W1 have praised its performance, ease of use, and practical design. Many have noted the bike's ability to handle various terrains with ease and its impressive range on a single charge. However, some users have mentioned that the initial assembly process can be somewhat complex and time-consuming.

Common complaints include the relatively long battery charging time and the lack of customization options. Despite these, overall satisfaction remains high due to the bike's reliability, comfort, and eco-friendly nature.
