Introduction

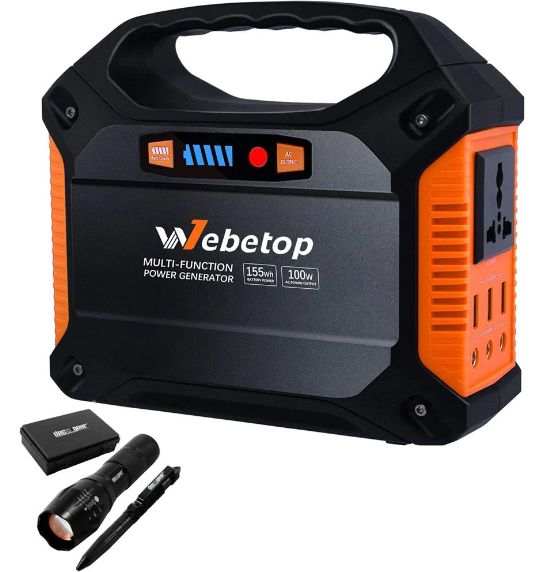

The Webetop E1WEBE3089 Power Inverter Battery Generator is a versatile and reliable power solution for both indoor and outdoor use. This product is a must-have for camping trips, tailgating parties, or as an emergency backup power source for your home. The estimated price of this product is around $300, and it is now available for purchase.

Package includes

• 1 x Portable Solar Generator
• 1 x Power Adapter
• 1 x Car Charger
• 1 x Cigarette Lighter Adapter
• 1 x User Manual

Detailed Specifications

The Webetop E1WEBE3089 Power Inverter Battery Generator has the following key features:

• 155Wh capacity
• Pure sine wave inverter
• Two 110V AC outlets
• Three USB ports
• LED flashlight and reading lamp
• Rechargeable via AC outlet, car charger, or solar panel
• Weighs only 3.97 lbs

Webetop E1WEBE3089 Power Inverter Battery Generator PARAMETERS

• Capacity: 155Wh/42000mAh, 3.7V
• Dimensions (LWH): 195x90x171mm
• Weight: about 1.58Kg
• Built-in Battery: High-Quality Lithium-ion Batteries

Input Recharging

• Adapter: DC15V/2A
• Solar Panel Charging: MPPT 13V~24V, up to 2.1A input

Fully Charged Time: DC 15V/2A: 7~8 hours

Output

• USB Output: USB 5V-2.1A (Max)
• DC Output: DC 9~12.6V/15A, 180W (Max)
• AC Output:
  • North America: AC 110V/ 50~60Hz
  • Japan: AC 110V/ 60Hz
  • Europe: AC 230V/ 50Hz

PLEASE REFER TO THE ACTUAL PRODUCT BEFORE USING.

Bulb Type: Ultra bright LED Flashlight
Power Indicator: LED Indicators
Operation Temperature Range: -10℃-40℃
Lifecycle: >500 times

There may be some differences in different spare parts. Please refer to the actual product.

PRODUCT DESCRIPTION

ATTENTION! AC outlets, AC output voltage, and frequency will differ according to different countries or areas. Please refer to the actual product before use.

Description

The Webetop E1WEBE3089 Power Inverter Battery Generator is a compact and lightweight power source that is perfect for a wide range of applications. With its pure sine wave inverter, it can safely power sensitive electronics like laptops and smartphones. The generator also has three USB ports, making it a convenient charging station for all your devices. The LED flashlight and reading lamp are also handy features for camping or emergency situations. The generator can be recharged via an AC outlet, car charger, or solar panel, making it a truly versatile power solution.

PRODUCT INSTRUCTION

How to provide power for DC12V appliances (such as headlamps, fans) with this product?

The 5.5mm 12V DC output is plug and play. Plug your appliances into the DC output port to gain power.

Notices: Please confirm whether your DC12V appliance supports charging with a 5.5mm DC header interface (the diameter of the DC port of the product is 5.5mm). Otherwise, it cannot connect with the DC output. You can consult the electrical manufacturer, buy the corresponding adapter, and connect with it.

Note: The 12V DC output voltage ranges between 9V~12.6V, with a maximum output current of 15A. DC output voltage drops as battery capacity drops due to the chemical characteristics of the battery. If your appliance does not have a built-in input voltage stabilizing function, it may shut down when the input voltage is too low. Please unplug your device from the unit in time and charge the unit as needed.

How to provide power for AC appliances with this product?

Connect the power cable plug of the electrical appliance to the AC outlet of the product, switch on the power button and the unit will start providing power to your appliances.

WARNING! The AC outlets, AC voltage, and frequency are different according to different countries; please carefully check whether the product specifications are consistent with the appliance specifications before use, otherwise it can lead to dangerous situations.

NOTE: When the AC port is not in use, turn it off to conserve power.

How to provide power for USB digital appliances with this product?

Connect the standard USB cable of the digital appliance to the USB output of the unit, press the Battery check button to switch on to gain power.

How to use the flashlight

This unit is built with an ultra-bright LED flashlight. Single press the flashlight button to switch on: Flashlight -> Blink -> Switch off.

Warning! Do not point directly at the eyes of humans to avoid damage due to the strong light.

How to charge the unit?

Charge through AC Wall Charger

Using the included AC Wall Charger, plug the unit into any wall outlet to charge the unit. You will know the unit is charging when the blue LED battery indicators are blinking. The unit is fully charged when all battery indicators stop blinking and remain solid. After the unit is fully charged, please remove the AC wall charger in time.

Charge from Solar panel

1. Place your solar panel where it will get as much direct sunlight as possible.

2. Plug the output of the solar panel into the input of the unit to start charging. You will know the unit is charging when the blue LED Battery Indicator lights up and blinks. The unit is fully charged when all battery indicators stop blinking and remain solid.



SUPPORT MPPT TECHNOLOGY

This unit is designed to support charging by solar panel. It’s built-in MPPT (Maximum Power Point Tracking) technique, which is designed to use with wind turbines and photovoltaic (PV) solar systems to maximize power extraction under all conditions. With MPPT technology, the unit can compare the output of the solar panels to the battery voltage. It then figures out what is the best power that the panel can put out to charge the battery and help the unit get maximum AMPS from the solar panels.

NOTE: Actual gain can vary widely depending on weather, temperature, battery state of charge, and other factors.

Charge by 12V Car Charger

Using the included Car Charger, plug the unit into a 12V car charger for charging. You will know the unit is charging when the blue LED Battery Indicators light up and blink. The unit is fully charged when all battery indicators stop blinking and remain solid.

Setup Guide

To operate the Webetop E1WEBE3089 Power Inverter Battery Generator, follow these steps:

1. Charge the generator fully before using it for the first time.
2. To charge the generator, plug it into an AC outlet, car charger, or solar panel.
3. To turn on the generator, press the power button.
4. To power your devices, plug them into the AC outlets or USB ports.
5. To check the battery level, press the "check" button.

SECURITY AND MAINTENANCE

• Do not short-circuit the unit. To avoid short-circuiting, keep the unit away from all metal objects (e.g. coins, hair-pins, keys, etc.).
• Do not heat the unit, or dispose of it in fire, water, or other liquids. Keep away from high temperatures. Do not expose the unit to direct sunlight.
• Keep away from high humidity, dusty places.
• Do not disassemble or reassemble this unit.
• Do not drop, place heavy objects on, or allow strong impact to this unit.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not cover the device with towels, clothing, and other items.
• The unit may become hot when charging. This is normal. Use caution when handling.
• Do not charge the unit over the required time.
• Disconnect the unit when fully charged.
• Use the unit properly to avoid electronic shock.
• Please deal with scrap products in accordance with the regulations, do not treat the built-in battery as household garbage, so as not to cause an explosion and pollution.
• The product is only used for an emergency power station, it cannot replace the standard DC or AC power of household appliances or digital products.

PRODUCT APPLICATION SKILLS

• This product is built with a high-quality original lithium-ion battery, it has no memory effect but high capacity, and it is durable. However, we still recommend you apply it in the range of 10 ℃ ~30 ℃, so as to obtain optimal charging capacity.
• When charging, in order to avoid interference, please stay away from TV, radio, and other equipment.
• If the device has not been used for a long time, please disconnect the cable and store it.
• Some portable devices may need to be set in charge mode to charge, see the corresponding equipment use manual for more information.
• In order to extend the life of the product (lithium battery), it is best to charge it within 3 months, and charge at least once within 6 months.
• After starting, if there is no output, it displays to automatically shut down within 3 minutes, so as to achieve a better energy-saving effect.

Recycle

Always return your used electronic products, batteries, and packaging materials to dedicated collection points. This way you help prevent uncontrolled waste disposal and promote the recycling of materials.

Battery information

• Your device has an internal, non-removable, rechargeable battery. Do not attempt to remove the battery, as you may damage the device.
• The battery can be charged and discharged over 500 times, but it will eventually wear out.

ABOUT WEBETOP BRAND

Support Appliance

This generator supports electrical devices under 100 watts. If the total power of the AC outlet exceeds 100 watts, the generator will automatically switch to DC output for self-protection. The built-in 3USB, 3DC, and AC output can support different kinds of devices. It is designed not only for emergency backup power at home but also for outdoor activities. With the Webetop portable generator, you can keep your electrical appliances full of power.

Thank you for buying the Webetop portable generator. Webetop is a professional company that is concerned with the design, development, production, and sale of portable generators. We are dedicated to offering top-quality products and excellent service. Before using this unit, please read the user manual carefully for reference. If you have any problems while using the product, please kindly contact us at: https://126.com/

Attention

The generator provides Modified Sine Wave output and is compatible with AC electrical appliances that work with Sinusoidal waveform (power <100W). However, electrical appliances that use AC motors won't work at full capacity on a modified sine wave and may produce some noise. Appliances like refrigerators, microwaves, compressors, and some delicate medical equipment will work better with a pure sine wave inverter. This product is only for emergency use and cannot replace normal alternating current for long-term use. Please ensure the power station specifications are adapted to the requirements of your electrical appliances.

Troubleshooting

Here are some common problems and solutions for the webetop Power Inverter Battery Generator:

• The generator won't turn on: Make sure the generator is fully charged, and the power button is pressed.
• The AC outlets are not working: Make sure the devices are properly plugged in and the generator is turned on.
• The battery level is not displayed: Press the "check" button to display the battery level.
• The generator is overheating: Make sure the generator is in a well-ventilated area and not overloaded.

Pros & Cons

Pros

• Compact and lightweight
• Versatile power source
• Safe for sensitive electronics
• Convenient USB charging ports
• LED flashlight and reading lamp

Cons

• May not be powerful enough for larger appliances
• Can take a long time to recharge via solar panel

Customer Reviews

Customers have praised the Webetop E1WEBE3089 Power Inverter Battery Generator for its compact size, versatility, and ease of use. Many have used it for camping trips and found it to be a reliable power source for their devices. Some have also used it as an emergency backup power source for their homes and found it to be a lifesaver during power outages. However, some have noted that it may not be powerful enough for larger appliances.
