Setup: Weiitech Breathing Cupping Massager Instrument Instruction Manual

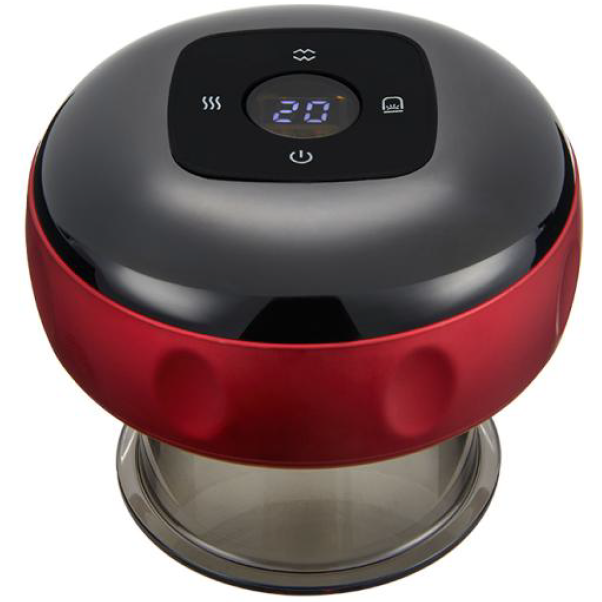

WeiiTech Intelligent Breathing Cupping Massager Instrument

Introduction

The Weiitech Breathing Cupping Massager Instrument is a revolutionary health and wellness device designed to combine the ancient practice of cupping therapy with modern massage technology. This innovative instrument aims to enhance blood circulation, relieve muscle tension, and promote overall well-being. The product is expected to launch in the spring of 2023, with an estimated price range of $150 to $200, making it an affordable and accessible solution for those seeking holistic health benefits.

The Weiitech Breathing Cupping Massager Instrument is designed for both professional therapists and home users. It features a user-friendly interface that allows for easy operation and customization of massage settings. The device is equipped with multiple suction modes and adjustable intensity levels, ensuring a personalized experience for each user. Whether you are looking to alleviate chronic pain, improve skin health, or simply relax after a long day, this instrument is a valuable addition to any health regimen.

Specification

Product

• 6-Gear plug-in payment
• 6-Gear charging
• 12 Gear charging and pressure relief

Model

• DS-A21
• DS-A22
• DS-A23

Product size

• 90mm*90mm*78mm
• 90mm*90mm*78mm
• 90mm*90mm*78mm

Charging voltage

• /
• SV 2A
• SV 2A

Suction strength

• -60-0kPa
• -60~0kPa
• -60-0kPa

Rated power

• SW
• SW
• SW

Executive standard

• GB4706.1-200S GB4706.10-2008

Operational guidelines

Preparation before use

1. Please read the safety precautions carefully when using this product. If it does not meet the use conditions, this product is a disabled product.
2. It is recommended to clean and moisturize the skin with a wet towel or spray to improve the sense of use experience.
3. Tighten and install the transparent tank (wipe the instrument with a wet towel before and after use).
4. Check whether the instrument is complete and normal.

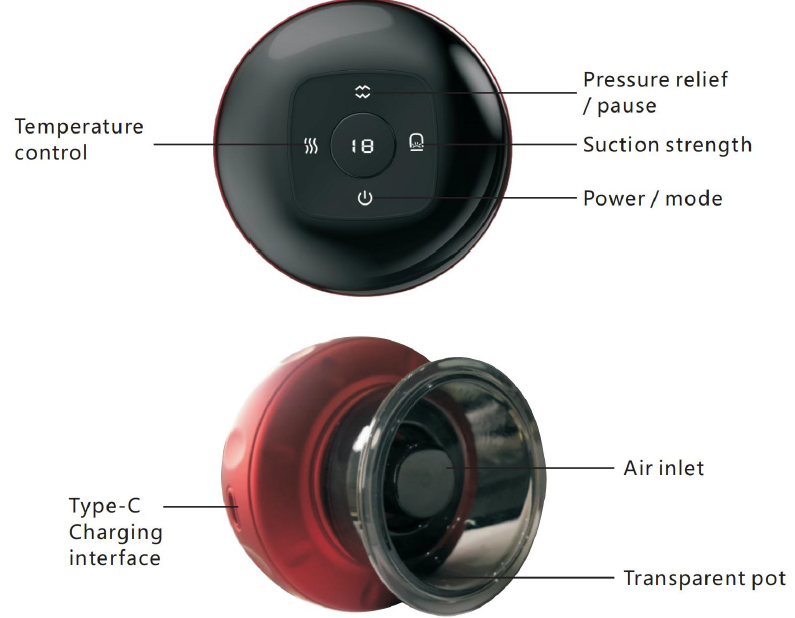

Power/ mode

1. Press and hold for 1.5 seconds to start the machine. The LCD shows the 20-minute countdown, and the temperature indicator lights up. The machine is equipped with 20 20-minute timer and automatically shuts down after 20 minutes.
2. Press and hold for 1.5 seconds to shut down, and the LCD and temperature indicator will go out.
3. In the power-on state, short-press to change the mode. The machine has two modes, deep negative pressure mode and soothing modeBreathing pattern.
4. The default startup mode is deep negative pressure mode, and the negative pressure function and heating function are automatically turned on.

Suction strength

1. The power on defaults to the third gear strength.
2. Short-press to adjust the suction strength (DS-A21 and DS-A22 have 0-6 gears, DS-A23 has 0-12 gears, 0Gear is off (negative pressure function)
3. Each short press will increase 1 gear upward, and the LCD will display the corresponding strength gear. After 1 second Re re-display the 20-minute countdown.
4. When the intensity reaches the highest gear, short-press again to return to gear 0 and turn off the negative pressure function.
5. It is recommended to use it from gear 1 for the first time or when the skin is not adapted.

Temperature control

1. The default 3-gear temperature is started, the red light at the bottom is turned on, and the temperature can be adjusted by short press (DS-A21, DS­A22There are 0-6 gears, DS-A23 has 0-12 gears, and 0 gear is to turn off the heating function).
2. When the temperature of DS-A23 reaches the ninth gear, the color of the temperature indicator starts to change into a colorful light and flashes.  The higher the temperature, the faster the change in speed of the colorful lamp.
3. When the temperature reaches the highest gearshort-pressss again to turn off the heating function (gear 0), and the temperature indicator goes out, the red light at the bottom goes out.
4. Pressure relief/ pause
   DS-A21 and DS-A22 models: During cupping, if you want to stop working, briefly press this key to pause work and enter standby mode.
   DS-A23: During cupping, if you want to stop or remove the product, briefly press this key to pause the tank adsorption fun. Action and Pressure relief can easily lift the tank and enter the standby state.
   Note: 1. When using this machine with liquid peripheral products such as essential oil, please be sure to keep the essential oil on the skinAfter the skin surface is evenly coated and there is no obvious liquid, attach the machine to the required position.

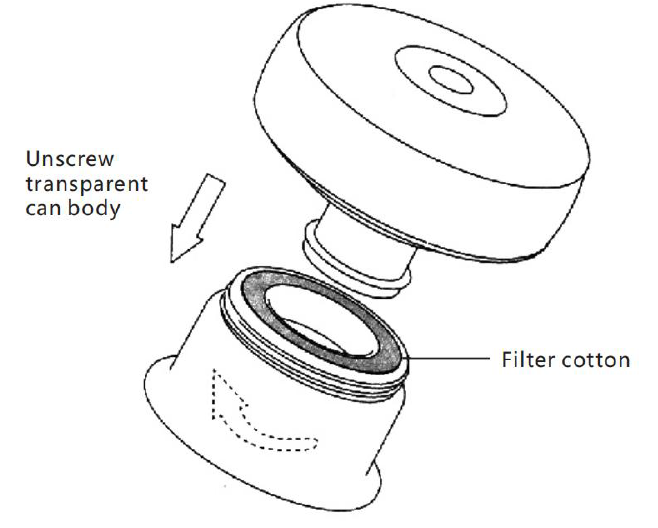

5. The machine is designed with a filter device, which can filter out most of the particles in the process of product use or liquid impurities to protect the internal cleaning of the fuselage and maintain the service life of the product. Please use it according to your personal needs, Frequency, check,k and replace the filter cotton regularly.

After replacing the attached filter cotton, restore it and install the transparent can body.

Charging instructions

• Connect the Type-C charging cable to the adapter socket, and connect the other end to the product charging interface to start charging. Adapter size SV=2A.
• Please keep the type-C charging port dry and clean during charging. The charging time will vary slightly due to environmental conditions. Subject to the actual time. Do not charge for more than 8 hours.
• During charging, the white indicator flashes and goes out after being fully charged.
• The product cannot be used when it is charged.

• Safety precautions

  DANGER (contents related to serious personal injury caused by wrong operation)

• Do not use with the following medical electronic equipment at the same time, which will cause errors or damage to medical instruments.  Seriou,I'mly I life-threatening i ng !
• Implantable medical electronic devices, such as a cardiac pacemaker;
• Life-sustaining medical electronic devices, such as an artificial heart and lung;
• Electrocardiograph and other medical electronic instruments;
• Patients with other medical implants.
• Please do not use under the following circumstances to avoid accidents or discomfort.
• Patients with pregnancy, menstruation, damaged epidermis, varicose veins, and those taking drugs.
• Patients with infectious diseases, skin sensitivities, postoperative patients, high fever,r or critical illness are prohibited.
• Patients with malignant tumors or local damage and ulceration, traumatic fractures, acute suppurative inflammation, and skin Patients with loss of elasticity.
•  Patients with abnormal heart, brain, nerve, and blood pressure.
• Severe neuroticism, convulsion, spasm, and manic anxiety.
• Bleeding-prone diseases, such as thrombocytopenia, leukemia, hemophilia, Henoch Schonlein purpura, a and other diseases. He is suffering from bleeding.
• Near the heart, facial features, private parts, or large blood vessels on the body surface.
• Patients with skin perception disorder or abnormal skin.
• A patient who is being treated by a doctor or feels physically abnormal.
• Excessive fatigue, drunkenness,s and staying up too late (2 hours before and after meals are also prohibited).
• Patients whose skin is allergic to metal and red light.
• The product has a heating surface, which is not sensitive to heat, children, or unable to express their wishes freely, or unable to s elfManagement personnel. & Be careful (contents related to serious personal injury caused by wrong operation)
•  Please use this product correctly according to the operating instructions.
• When using the product, the transparent can body shall be closely attached to the skin and evenly contacted to avoid contact with wounds and scars.
• The same part of this product may cause low-temperature scald or skin strain when used for a long time. Please pay attention to the use.
•  If you feel unwell during or after use, please stop immediately and consult a doctor.
• It is recommended that one user use it. When cross users use it, please turn off and clean the transparent tank before use.
• Do not use a notched or damaged transparent can body.
• After using this product, redness or ecchymosis occurs, which is a normal phenomenon and usually subsides naturally within 2 days (according to each individual's skin type vary).
• When the product works for a long time, there will be heating on the surface, which is a normal phenomenon.
• In case of abnormality, please remove it immediately.
• Do not use this product while driving.
•  Do not plug and unplug the USB charging cable with wet hands to prevent electric shock or accidents.
• This product contains a lithium battery. Please do not disassemble, change, immerse in water, or throw it into the fire to prevent damage and explosion of the product.
• After use, the blood vessels on the skin surface will dilate. You should rest for 45 minutes before bathing.
• Please observe the cleaning and maintenance methods to prolong the service life of the instrument:
• Please wipe the fuselage with dry non-woven cloth. Do not use acid-base detergent, alcohol, diluent, or gasoline. Clean with a solvent such as nail remover.
• After each use, please turn off the power supply and clean it (with a wet towel).
• Please store this product in a safe and dry place.
• Do not leave the product idle when there is water residue.
• Do not use a hard brush or stainless steel ball to wipe, so as not to damage the surface.
• Do not use water and other liquids to directly inhale the instrument for flushing.
• When the product is idle for a long time, please charge the product regularly to ensure its normal operation.
• Do not use or store this product in the following places:
• Places vulnerable to vibration and impact; Places with direct sunlight; Hot and humid places; Places with water; Strong electromagnetic fields; Near fireworks; Places accessible to children, etc.

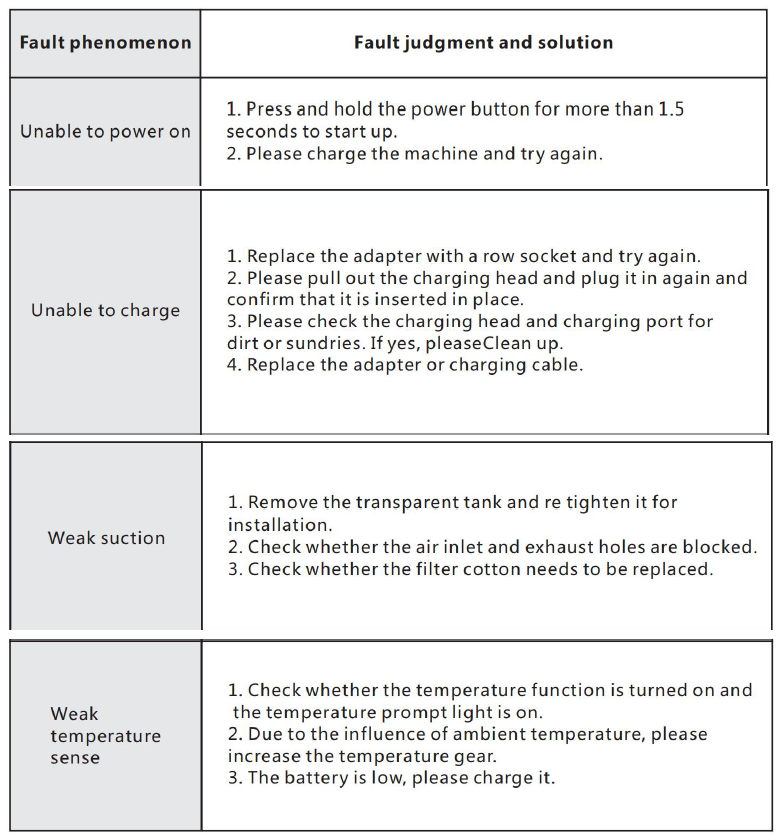

Troubleshooting

If the problem cannot be solved, do not disassemble the machine without permission.

 Reminder

1. When using it for the first time, please pay attention to the step-by­step adjustment to find a suitable mode and intensity.
2. In the deep negative pressure mode, if the suction reaches a certain degree, please press the pressure relief/ pause key in time to stop working or relieve pressure to avoid skin discomfort..

Pros & Cons

Pros:

• Effective in relieving muscle tension and improving blood circulation.
• User-friendly interface and easy operation.
• Portable and compact design.
• Adjustable suction modes and intensity levels.
• Rechargeable battery with long-lasting life.

Cons:

• May cause temporary skin marks or bruising.
• Requires proper skin preparation for optimal results.
• Not suitable for all skin types or medical conditions without consultation.
• It could be noisy in some modes.

Customer Reviews

Customers have praised the Weiitech Breathing Cupping Massager Instrument for its effectiveness in relieving chronic pain and improving skin health. Many users appreciate the ease of use and the adjustable settings that allow for a personalized massage experience. However, some users have noted that it may cause temporary skin marks and requires careful skin preparation.

Common Complaints: Some users have reported issues with the device's noise level in certain modes and the occasional need for more intense suction settings.
