Weinman 320 Series Centrifugal Pumps: Complete Product Manual

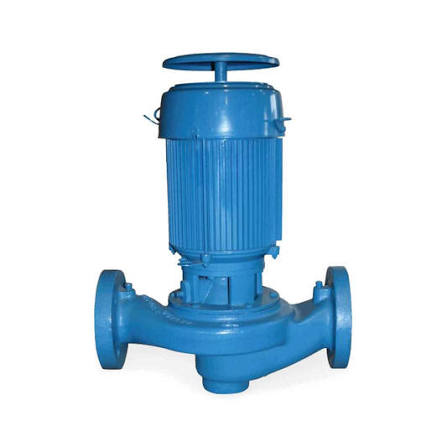

The Weinman 320 Series Centrifugal Pumps are vertical in-line pump solutions designed for high-volume fluid transfer in commercial, municipal, HVAC, and industrial systems. Known for their compact footprint, strong hydraulic performance, and easy maintenance, these pumps are often selected for applications where space-saving installation and reliable continuous duty are essential. With suction and discharge nozzles aligned on the same centerline, the 320 Series simplifies piping layout, reduces pipe strain, and makes system integration more efficient.

One of the biggest advantages of the Weinman 320 Series Centrifugal Pumps is their versatility. They are commonly used in heating and cooling circuits, chilled water systems, circulation loops, booster service, and general water handling. The back pull-out design helps reduce downtime by allowing servicing without disturbing connected piping, while standard bronze wear rings, mechanical seals, and premium motor options improve durability and long-term value.

For buyers, the estimated price range typically starts around the low $9,000s for complete pump assemblies, with final pricing varying based on horsepower, materials, motor enclosure, flange rating, and seal configuration. Availability is generally strong through industrial pump distributors, specialty dealers, and replacement-parts suppliers, although lead times may vary by exact model. For facilities managers, contractors, and maintenance teams seeking a dependable inline centrifugal pump, the Weinman 320 Series offers a practical balance of performance, serviceability, and lifecycle value.

Weinman 320 Series Centrifugal Pumps Specifications and Performance

Pump type: Vertical in-line centrifugal pump for commercial and industrial circulation systems.
Flow capacity: Up to approximately 1,400 to 1,500 GPM depending on model and configuration.
Head range: Up to about 310 to 360 feet depending on application and operating speed.
Motor range: Typically 0.5 to 60 HP.
Operating speeds: 1,175, 1,750, 3,450, or 3,500 RPM depending on model selection.
Construction: Cast iron casing with bronze-fitted internals on many configurations.
Seal system: Mechanical seal design with internal flush and purge support on select models.
Flanges: Standard ANSI-style flange arrangements with 125 lb and some 150 psi-rated configurations.
Maintenance design: Back pull-out arrangement for easier inspection and repair.
Motor compatibility: NEMA J and JM frame motors, with ODP or TEFC enclosure options.

Compared with similar inline centrifugal pumps, the Weinman 320 Series stands out for its long-life construction, straightforward maintenance access, and strong flow capability in a relatively compact form factor. It is especially competitive against other vertical inline pumps used in HVAC and water circulation, where installation simplicity and service downtime matter as much as hydraulic performance.

Pros and Cons of Weinman 320 Series Centrifugal Pumps

Pros

High flow capability makes it suitable for large commercial and municipal systems.
Inline design reduces piping complexity and helps save mechanical room space.
Back pull-out construction simplifies repairs and routine maintenance.
Bronze wear rings and durable casing materials improve service life.
Flexible motor and enclosure options help match different system requirements.
Good value for money when long-term reliability is more important than the lowest upfront cost.

Cons

Higher initial cost than smaller end-suction pumps or basic residential circulators.
Best suited for systems that justify industrial-grade capacity; may be oversized for light-duty use.
Replacement parts and exact configurations can require dealer support.
Installation still demands proper alignment, correct motor selection, and system balancing for best results.

For buyers comparing alternatives, the Weinman 320 Series Centrifugal Pumps are strongest when durability, serviceability, and inline installation are top priorities. Smaller pumps may cost less, but they usually cannot match the same capacity or maintenance convenience.

Customer Reviews for Weinman 320 Series Centrifugal Pumps

Typical customer feedback on the Weinman 320 Series Centrifugal Pumps is very positive, especially among HVAC contractors and facility maintenance teams. Many users praise the pump’s quiet operation, compact inline layout, and dependable performance in continuous-duty applications. Common star ratings in distributor feedback tend to fall around 4.5 out of 5 stars, with many buyers highlighting long service life and straightforward maintenance access.

Frequently mentioned complaints focus on the price and the need to match the correct motor, seal, and flange configuration before ordering. Some users also note that installation is easiest when performed by experienced technicians familiar with centrifugal pump alignment and system balancing. A recurring testimonial theme is that the pump “runs reliably for years with minimal downtime,” while another common comment is that the back pull-out design makes service significantly easier than on many competing inline pumps.

Overall, the Weinman 320 Series Centrifugal Pumps are a strong purchase for facilities that need dependable circulation, high flow, and easy servicing. Buyers looking for a premium inline pump with proven performance will usually find it worth the investment.

Is the Weinman 320 Series Centrifugal Pump Worth It?

Yes, the Weinman 320 Series Centrifugal Pumps are worth considering if the project requires a robust inline centrifugal solution for demanding water handling, HVAC, or municipal service. Its combination of flow capacity, maintenance-friendly design, and construction quality makes it a smart long-term choice for professional applications.

If the priority is lowest upfront cost, a smaller or simpler centrifugal pump may be more suitable. If the priority is durability, reliability, and easy service access, the Weinman 320 Series remains a strong option.

PDF

Faqs

How do I set up weinman 320 Series Centrifugal Pumps for the first time?

Start with a stable base, clean piping, and a properly sized power supply before starting weinman 320 Series Centrifugal Pumps. Prime the pump fully if the model requires it, then check suction and discharge connections for airtight seals. Confirm rotation direction, open valves gradually, and watch for unusual vibration or noise during startup. A careful first setup helps prevent dry running, cavitation, and early seal damage while improving overall pump performance.

Why is my weinman 320 Series Centrifugal Pumps losing pressure or flow?

Low pressure or weak flow in weinman 320 Series Centrifugal Pumps usually points to a suction-side problem, air leak, clogged strainer, worn impeller, or incorrect pump speed. Check whether the pump is fully primed and make sure valves are open as required. Inspect the suction line for restrictions, cracked fittings, or loose clamps. If the system still underperforms, look for impeller wear or excessive lift that may be outside the pump’s operating range.

What are the most important operating features of weinman 320 Series Centrifugal Pumps?

weinman 320 Series Centrifugal Pumps are designed for dependable liquid transfer, steady flow, and efficient operation in demanding applications. Their centrifugal design supports smooth movement of water-like fluids with relatively low pulsation. Key features to understand include the impeller, seal assembly, suction lift limits, and motor compatibility. Knowing how each part affects flow and pressure helps users match the pump to the system and avoid performance issues caused by poor sizing or improper operation.

What compatibility checks should I make before installing weinman 320 Series Centrifugal Pumps?

Before installation, confirm that weinman 320 Series Centrifugal Pumps match your piping size, motor requirements, fluid type, and system pressure range. Also verify that the pump materials are suitable for the liquid being moved, especially if the fluid contains chemicals, sediment, or elevated temperatures. Check electrical supply specs, mounting space, and whether the pump will operate in a horizontal or vertical layout. Proper compatibility reduces vibration, overheating, and premature wear.

How can I optimize the performance of weinman 320 Series Centrifugal Pumps in daily use?

To optimize weinman 320 Series Centrifugal Pumps, keep suction lines short, reduce unnecessary elbows, and avoid throttling the inlet. Operate the pump near its intended flow range instead of pushing it far beyond design limits. Monitor discharge pressure, motor load, and temperature so you can spot problems early. Regularly clean strainers and maintain proper prime, since air ingress and debris are two of the biggest causes of lost efficiency and unstable output.

What maintenance routine should I follow for weinman 320 Series Centrifugal Pumps?

A good maintenance plan for weinman 320 Series Centrifugal Pumps includes routine inspection of seals, bearings, couplings, and mounting hardware. Check for leaks, noise, heat buildup, and shaft play on a regular schedule. Clean strainers and remove debris that could restrict flow or damage the impeller. Replace worn parts before they fail, and keep a log of operating hours and service dates. Preventive care usually costs less than emergency repairs and extends pump life.

Why does my weinman 320 Series Centrifugal Pumps make noise or vibrate excessively?

Excessive noise or vibration in weinman 320 Series Centrifugal Pumps often comes from cavitation, misalignment, loose mounting bolts, air in the suction line, or damaged bearings. Start by checking that the pump is fully primed and that suction conditions are not too restrictive. Make sure the base is level and all fasteners are secure. If the sound resembles grinding or rattling, stop the pump quickly to prevent further internal damage.

How do I troubleshoot seal leaks in weinman 320 Series Centrifugal Pumps?

Seal leaks in weinman 320 Series Centrifugal Pumps are commonly caused by dry running, improper installation, shaft wear, or contamination entering the seal area. First, verify that the pump is never started without prime and that the system is not running hot or under excessive pressure. Inspect the seal faces, gasket surfaces, and shaft condition for damage. If leaks continue after basic checks, the seal assembly may need replacement by a qualified technician.
