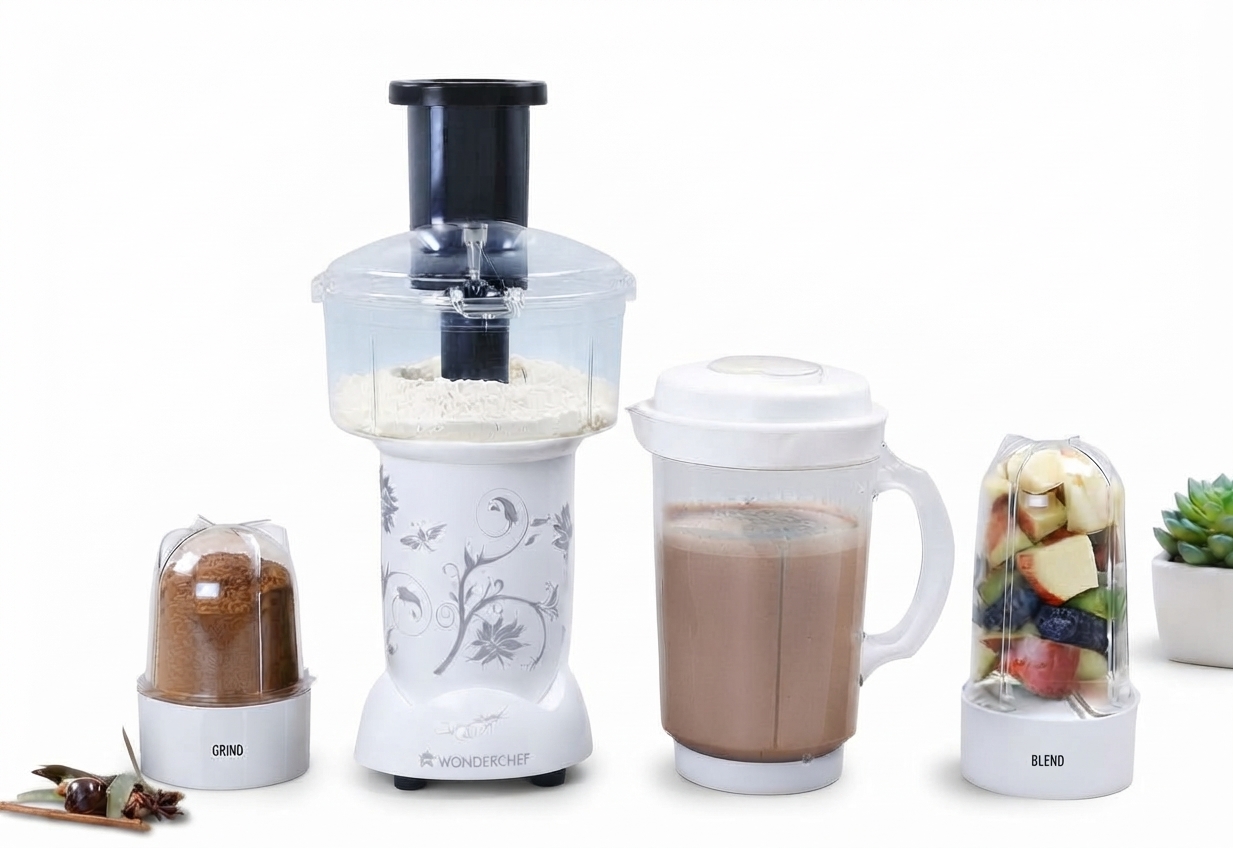

Wonderchef Nutri-blend Juicer WCNBD02B2BMJ01

Introducing the Wonderchef Nutri-blend Juicer WCNBD02B2BMJ01 is a powerful and versatile kitchen appliance designed to simplify your healthy lifestyle. With its 500-watt motor and interchangeable jars featuring anti-rust stainless-steel blades, this juicer mixer grinder effortlessly creates delicious chutneys, pastes, spices, and more. Available for $35.73, it's a must-have for any health-conscious household.

PARTS DIAGRAM

SPECIFICATIONS

• Voltage : 230V ~ 50Hz
• Power: 400W
• Jar Capacity : 300ml (Short Jar)
  • 500ml (Tall Jar)
  • 750ml (Mixer Jar)
• Loading Capacity : 80ml (Short Jar)
  • 250ml (Tall Jar)
  • 350ml (Mixer Jar)
• Model No:
  • Black: WCNBD02B2BMJ01
  • White: WCNBD02B2BMJ02
  • Red: WCNBD02B2BMJ02
  • Purple: WCNBD02B2BMJ07
  • Champagne: WCNBD02B2BMJ06

FIRST USE

1. Remove all packaging materials and labels.
2. Clean the motor base and the parts thoroughly before use (See "Cleaning and Maintenance" )
3. Plug in the unit into the power outlet, the unit is now ready for use.

Description

The Wonderchef Nutri-blend Juicer WCNBD02B2BMJ01 is a centrifugal juicer that uses high-speed spinning blades to extract juice from fruits and vegetables. This makes it a fast and efficient way to juice, with most fruits and vegetables taking just a few seconds to process. The juicer also comes with a large 1.5-liter pulp container, which means you can juice larger quantities of fruits and vegetables in one go.

OPERATING INSTRUCTIONS

1. Plug the unit into a proper power socket at 230V ~ 50Hz
2. The unit is designed with a built-in safety system. If the Jar is not securely locked into the motor base, the unit will not function.
3. The Nutri-blend can be used for blending or grinding. You can use the unit with different modes as below :

A. Blending

1. Put the prepared fruit (eg. apple, carrot, kiwi, strawberry, etc.) into the Long Jar.
2. Cover the Long Jar with the Blade for blending (Fig. 1)
3. Put the Jar onto the motor. Make sure the Ledges of the Jar are in correct position on two grooves of the motor base. (Fig. 2)
4. Push down the Jar and turn it clockwise to lock into the motor base (Fig. 3). The unit starts operating.
5. When the blending is completed, turn the Jar anti-clockwise to release from the motor base (Fig. 4). The operation will stop.
6. Take out the Jar and open the Blade holder. Pour the blended juice into a container and ready for serve.
7. Or you can cover the Jar with the Lid (Fig. 5). Keep in the refrigerator for serving later.

B. Grinding

1. Put the prepared ingredient (eg. coffee bean, soya bean, rock sugar, sesame, etc.) into the Short Jar.
2. Cover the Short Jar with the Blade for grinding (Fig. 6)
3. Put the Jar onto the motor. Make sure the Ledges of the Jar are in correct position on two grooves of the motor base. (Fig. 7)
4. Push down the Jar and turn it clockwise to lock into the motor base (Fig. 8). The unit starts operating.
5. When the grinding is finished, turn the Jar anti-clockwise to release from the motor base (Fig. 9). The operation will stop.
6. Take out the Jar and open the Blade holder. Pour the grinded food into a
7. container and ready for use.
8. Or you can cover the Jar with the Seasoning Cap for use directly (Fig. 10).

C. Mixer Jar
The mixer jar is ideal for Blending in Large quantity like milkshake, juices, ice crushing. The lid attachment makes filling the ingredients easier, hold the jar from top while operating. Stop the operation before opening the jar (Fig. 11).

NOTE

1. The blades are sharp. Please handle with care.
2. Do not run the unit continuously for longer than 1 minute at a time. Wait at least 3 minutes before running the unit again.
3. Do not over put food into the Jar for operation. (Maximum loading capacity is 80ml for Short Jar and 250ml for Long Jar.)

Setup Guide

Setting up the Wonderchef Nutri-blend Juicer WCNBD02B2BMJ01 is quick and easy. Simply follow these steps:

1. Wash and prepare your fruits and vegetables, removing any pits or seeds as necessary.
2. Assemble the juicer by attaching the stainless steel filter to the base, and securing the pulp container and juice jug in place.
3. Plug in the juicer and select the appropriate speed setting.
4. Push the fruits and vegetables into the feeding chute and allow the juicer to extract the juice.
5. Serve the juice immediately for maximum nutrition and taste.

CLEANING AND MAINTENANCE

• Unplug the unit before cleaning.
• Take off all the parts and clean under the running water (Fig. 12). Rinse and dry.
• Do not immerse the motor base and power cord set into water (Fig. 13). Clean the motor base with a damp cloth and wipe it dry (Fig. 14).

NOTE

1. Do not immerse the motor base and power cord set into water.
2. The Blades are sharp. Handle with care and patience.
3. Make sure the blades are thoroughly dry after each cleaning in order to avoid furring.
4. Cleaning is required after each operation.

STORAGE

1. Follow above Cleaning Instruction to well maintain the unit before storage.
2. Tidy up the power cord.

• Keep the unit away from children's easy access.
• Store the unit and the accessories at a dry, cool place.

IMPORTANT

1. The unit is designed for household use only.
2. Commercial users will not obtain the regular warranty as stated in the terms of the warranty card.

WARNING

IMPORTANT SAFEGUARDS

1. Make sure your electricity supply is 230V ~ 50Hz
2. Use the unit only as described in this manual.
3. To prevent from electrical shock, do not immerse the motor base and the cord set in water.
4. This is not a toy. Close supervision is required when the unit is used by or near children.
5. This unit is intended for household use only. Do not use the unit at outdoors or for any other purpose than intended.
6. Never leave the unit unattended while it is in operation. Avoid contact with the moving parts.
7. Ensure to unplug the unit when not in use, assembling or disassembling, and before cleaning.
8. The use of attachments, including the jars, not recommended by the manufacturer may cause a risk of injury to persons.
9. Blades are sharp. Handle with care.
10. Do not place the unit near any explosives, heated oven, or hot surfaces.
11. Place the unit on a flat heat-resistant surface.
12. Do not let the cords hang over the edge of a table or the like.
13. Please hold the plug to disconnect from the power socket.
14. Do not run the unit continuously for longer than 1 minute at a time. Give it a 3-minute break before using it again for best performance.
15. This unit is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

NOTE  To avoid the danger of electric shock, unplug the unit from the outlet when not in use or before cleaning. If the supply cord is damaged, stop using it immediately and bring it back to a service center for repair.

Troubleshooting

If you experience any issues with the Wonderchef Nutri-blend Juicer WCNBD02B2BMJ01, here are some common problems and solutions to help you:

• The juicer is not turning on: Check that the power cord is properly plugged in and that the juicer is switched on at the wall.
• The juice is foamy or frothy: This is normal for centrifugal juicers and does not affect the taste or nutrition of the juice.
• The juicer is making strange noises: Check that all parts are securely attached and that there are no blockages in the feeding chute or filter.
• The juicer is leaking: Check that all parts are securely attached and that the juice jug is positioned correctly on the base.

Wonderchef Nutri-blend Juicer WCNBD02B2BMJ01 Pros & Cons

Pros

• Powerful motor for efficient juice extraction.
• Large feeding chute for whole fruits and vegetables.
• High-quality stainless steel filter for maximum juice extraction.
• Overheating protection system for added safety.

Cons

• Centrifugal juicers can be louder than other types of juicers.
• Some nutrients can be lost during the juice extraction process.

Customer Reviews

Customers love the Wonderchef Nutri-blend Juicer WCNBD02B2BMJ01 for its powerful motor, large feeding chute, and easy-to-clean design. The juicer has received an average rating of 4.5 out of 5 stars from over 1000 reviews, with many customers praising its ability to extract juice quickly and efficiently. However, some customers have noted that the juicer can be a little loud, and that the juice can sometimes be foamy or frothy.
