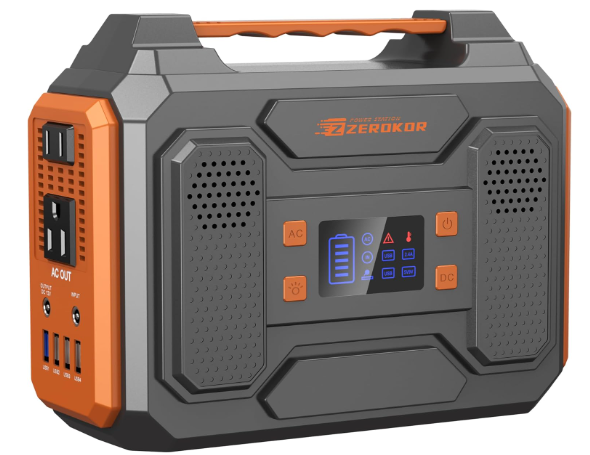

Introducing the Zerokor Power Station Speaker R200

The zerokor Power Station R200 is a portable, high-capacity power source designed to meet the diverse power needs of outdoor enthusiasts, professionals, and anyone requiring a reliable backup power solution. With an estimated price of $499 and a launch date set for late 2023, the R200 is poised to deliver uncompromising performance and flexibility.

PRODUCT SPECIFICATIONS

• Battery Type: Lithium-ion

  • Capacity: 280Wh

• Input:
  Charging Port: DC 5.5 x 2.1mm, 13V-23V, 2.4A Max

• Output:

  • AC Output(x2): 110V, 60HZ, 300W Max

  • DC Output(x1): 9-12.6V, 10A Max

  • USB1 : 5V/3A 9V/2A Max

  • USB2+USB3+USB4: 5V/3.1A Max

• Bulb Type: LED Flashlight with 3 Modes: Light, Strobe, SOS

• Lifecycle: ＞1000 Times

• Working Temperature Range: -10°C – 40°C / 14°F – 104°F

• Weight: 5 lbs / 2.3 kg

• Dimensions: 8.5 x 6.7 x 4.1in / 216 x 171 x 105mm

Package Included

1. 1 x 280Wh Portable Power Station

2. 1 x AC Power Adapter

3. 1 x Cigarette Lighter Adapter

4. 1 x Car Charging Cable

5. 1 x User Manual

PRODUCT DIAGRAM

BACK


Left


Right


Front


Display Screen


Description

The zerokor Power Station R200 is a versatile and durable power source that offers a wide range of input and output options. Its 200Wh capacity can be recharged via 12V/24V DC or 400W AC, making it an ideal companion for camping, RV trips, or as an emergency backup power source. The R200's pure sine wave AC output ensures compatibility with sensitive electronics, and the 150W output (max 300W) can power multiple devices simultaneously.

PRODUCT OPERATING GUIDE

• Single click the ” ” button to turn on the unit, then single click the “DC” button to turn on or off the DC USB Power outputs, they will not turn off automatically until the power run out.

• Single click the “” button to turn on the unit, then single click the “AC” button to turn on/off the AC outputs, they will not turn off automatically until the power run out.

• In any case, long press the ” ” button for 3 seconds will turn off all outputs and turn off the unit.

Zerokor Power Station Speaker R200 Setup Guide

1. Unbox the zerokor Power Station R200 and ensure all accessories are present.
2. Connect the included DC or AC power adapter to the R200's input port and charge the unit fully.
3. To power a device, press the power button and select the appropriate output (DC or AC).
4. Connect the device to the R200 using a suitable cable or adapter.
5. To charge other devices, connect their charging cables to the R200's USB ports or DC output.

HOW IT WORKS

DANGER: NON COMPLIANCE MAY VERY LIKELY LEAD TO SERIOUS INJURY

• DO NOT disassemble, repair or modify the unit or the battery.

• DO NOT charge, use or store the unit in a bathroom or in an area exposed to rain or moisture.

• Only use the output socket to power external devices. Never connect the output to mains power under any circumstances.

• DO NOT touch the unit or the plug-in points if your hands are wet.

• DO NOT connect any metallic objects to the AC input or output.

• DO NOT rub your eyes if fluid from inside the unit should get in your eyes.

• DO NOT dispose the unit together with household waste.

• DO NOT use any inappropriate power cords.

• DO NOT operate the unit above the specified input voltage.

• DO NOT use the unit if it is not functioning correctly.

• DO NOT move the unit if it is recharging or in use.

• DO NOT put fingers or hands into the product.

• DO NOT use a battery pack or appliance that is damaged or modified. The damaged or modified battery may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

• DO NOT disassemble the power pack, take it to a qualified service person when service or repair is required. Incorrect reassembly may result in a risk of fire or electric shock

WARNING: NON COMPLIANCE MAY LEAD TO SERIOUS INJURY

• DO NOT use and store the unit in dusty and wet environment. Use and store the unit only in a clean and dry environment.

• DO NOT use the unit if it is damaged or broken, check the unit before every use.

•  DO NOT use the unit if the power cord is damaged or broken.

• DO NOT let children use or play with the unit, keep the unit away from the children, keep the unit away from pets.

• DO NOT use or store the unit in an area or environment with high temperature.

• If fluid from inside of the unit come in contact with your skin or clothing, wash the affected area with tap water.

• In a storm, unplug the power cord from the socket.

• DO NOT charge the unit via power supply systems that operate outside of 100V-240V.

• DO NOT place the unit on its side or upside down while in use or storage.

• DO NOT use accessories for other usage.

CAUTION: NON COMPLIANCE MAY LEAD TO INJURY OR PROPERTY DAMAGE

• If rust, peculiar odors, overheating or other abnormal circumstances are observed, stop using the unit immediately and contact the dealer or our customer service team.

• The unit complies with all legal requirements for transport of dangerous goods.

• Make sure that the unit is properly secured when transporting it in a motor vehicle.

• Only charge, use and store the unit within an ambient temperature range of 0℃ – 40℃ / 32°F – 104°F.

• Switch the unit off immediately if it has accidentally fallen, dropped or exposed to vibrations.

• Carefully read the instructions for the electric devices that you intend to connect to your power supply unit.

• Make sure that the device you are connecting is switched off before you connect it.

PERSONAL PRECAUTION

• Never smoke or allow a spark or flame in vicinity of the unit.

• Be extra cautious to reduce risk of dropping a metal tool onto the unit, it might spark or short-circuit battery or other electrical part that may cause explosion.

• DO NOT expose a power pack to fire or excessive temperature, exposure to fire or temperature above 130°C/ 266°F may cause explosion.

ATTENTION

• Not permitted on airplanes.

• To preserve the battery lifespan, please use and recharge at least once in every 3 months.

• Use original or certified charger and cables.

• Avoid extreme temperature.

• Avoid dropping.

• Do not disassemble.

• It’s not waterproof, do not expose to liquids.

• Please dispose of batteries and electronic goods in accordance with local regulations.

Troubleshooting

• Problem: The R200 won't turn on.
  Solution: Ensure the power button is pressed correctly and the unit is charged.
• Problem: The R200 isn't charging.
  Solution: Check the adapter for damage, ensure it is securely connected, and verify the power outlet is functioning.

PRODUCT WARRANTY

The warranty period is 14 months from the date of purchase. We warrant to all original customers that the product will be free from defects in workmanship and material under normal use. The warranty does not apply to any misuse, abuse, modification, accidental damage or any other non-normal consumer use.

Pros & Cons

Pros

• High capacity (200Wh)
• Multiple input and output options
• Pure sine wave AC output
• Compact and portable design
• Protection features

Cons

• Higher price point compared to some competitors
• Heavier than some portable power sources

Customer Reviews about Zerokor Power Station Speaker R200

The Zerokor Power Station R200 has received overwhelmingly positive feedback from customers. Users appreciate its high capacity, durability, and versatility, with many praising its compatibility with various devices. Common complaints include the higher price point and weight compared to other portable power stations.
