Setup: Zoetis AlphaTrak 3 Blood Glucose Monitoring User Guide

Zoetis AlphaTrak 3 Blood Glucose Monitoring

Introduction

The Zoetis AlphaTrak 3 Blood Glucose Monitoring system is a cutting-edge device designed for the accurate and reliable measurement of blood glucose levels in cats and dogs. This product is particularly useful for veterinarians and pet owners who need to monitor their pets' glucose levels regularly. The AlphaTrak 3 is known for its ease of use, precision, and user-friendly interface.

Launched in recent years, the AlphaTrak 3 has quickly become a favorite among veterinary professionals due to its advanced features and reliability. The estimated price of the AlphaTrak 3 can vary depending on the region and retailer, but it generally falls within the range of $50 to $100, making it a valuable investment for pet health monitoring.

The system includes a glucometer, test strips, and a lancing device, all of which are designed to ensure accurate and quick readings. The device is also compatible with a variety of test strips, making it a versatile option for different testing needs..

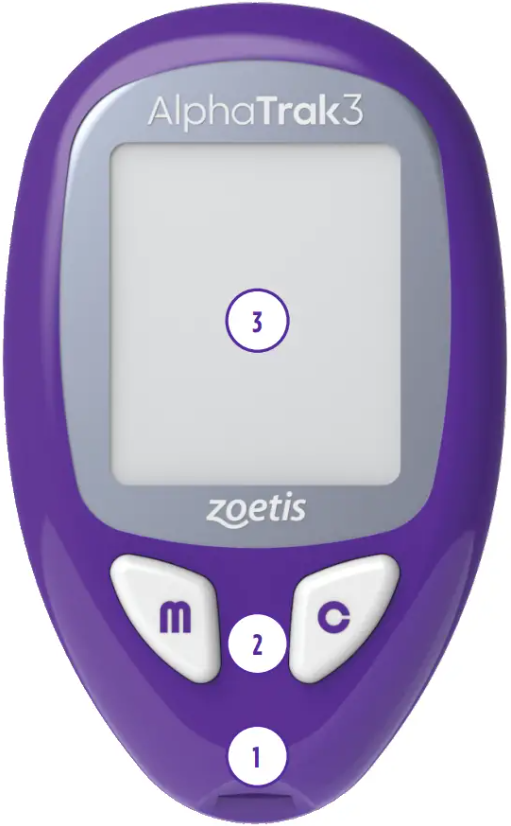

How It Works

AlphaTrak 3 is an easy-to-use veterinary canine and feline blood glucose monitoring system.

System Check Screen

• This display always appears when the meter is turned on. You should check that the meter matches the example exactly every time the meter turns on. Do not use the meter if the display check screen does not exactly match the example. If the screen does not match, the meter may show an incorrect result. Please contact   Customer Care

Display Screen

• Displays test results and other   important information

Test Strip Port

• Insert the top end of a new AlphaTrak 3 strip here. The meter powers on when you insert the test strip

AlphaTrak 3 Test Strip

• Insert the trip into the meter, printed side up, and following the purple arrow.

Sample Area

• The sample area is the dark-colored rectangle on the test strip. Apply blood or control solution to the  front edge of the sample area only  (not on top of it)

m (Mode) Button

• Turns the meter on/off
• Access primary settings
• Access record log
• Scroll backwards
• Silences alarm

c (Configure) Button

• Scrolls forward
• Silences alarm
• Access secondary settings
• Marks a control solution test

Press m and c at the same time after the glucose test or when viewing the record log to turn on Bluetooth. Hold c and press m to change the species code after inserting the test strip and waiting for the sample.

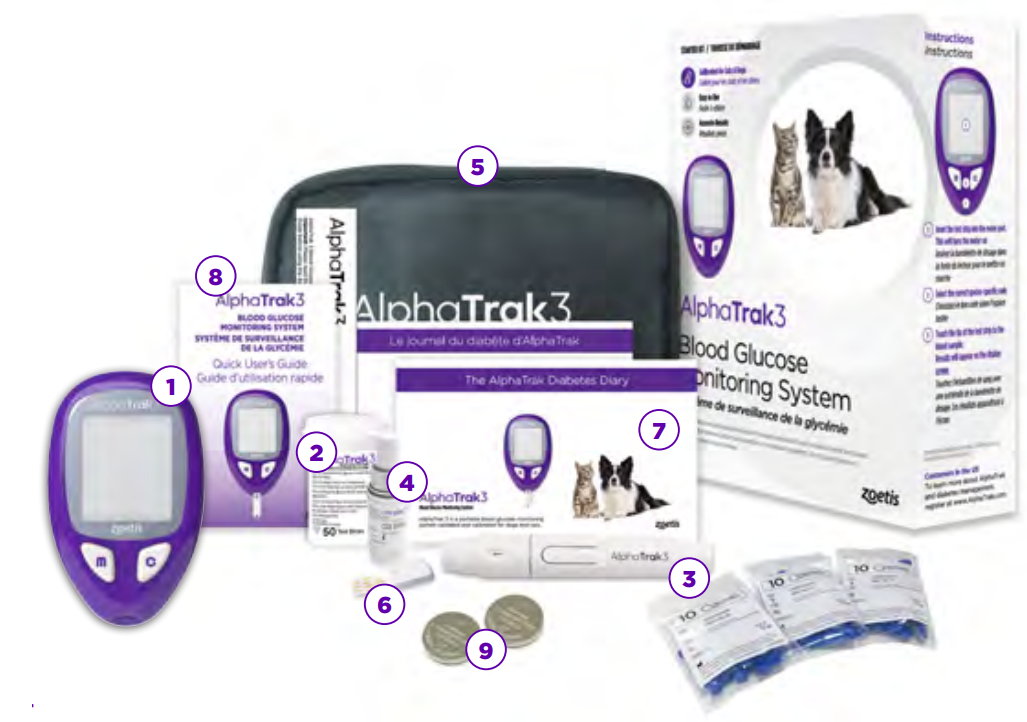

Components

Starter Kit

1. AlphaTrak 3 Meter
2. 50 AlphaTrak 3 Test Strips
3. Lancing Device and 30 Lancets
4. AlphaTrak 3 Control Solution (4 mL)
5. Carrying Case
6. Code Strip
7. Diabetes Diary
8. Quick User’s Guide
9. Two Batteries (3V, CR2032)

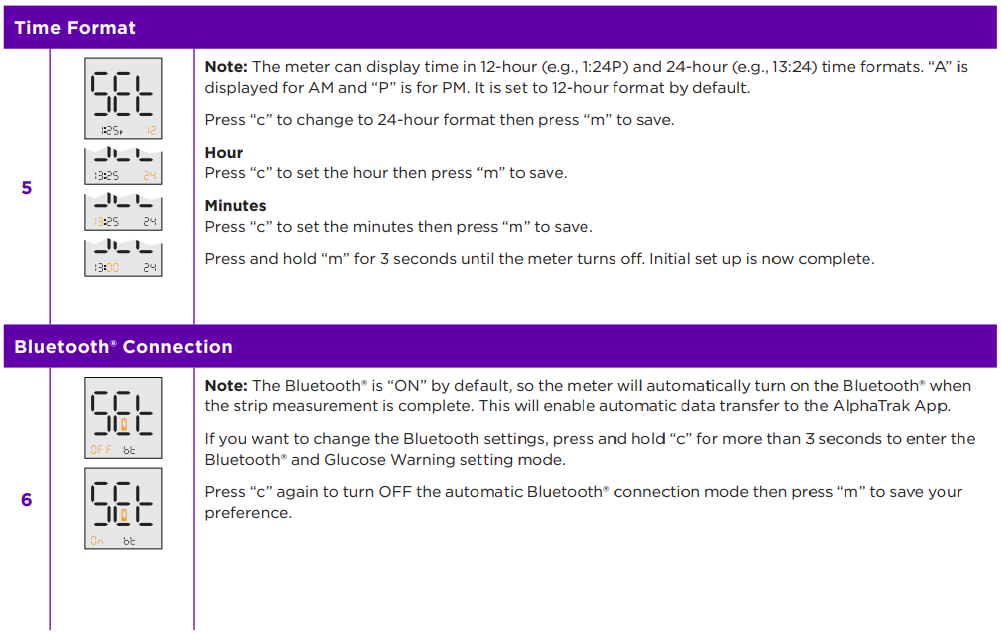

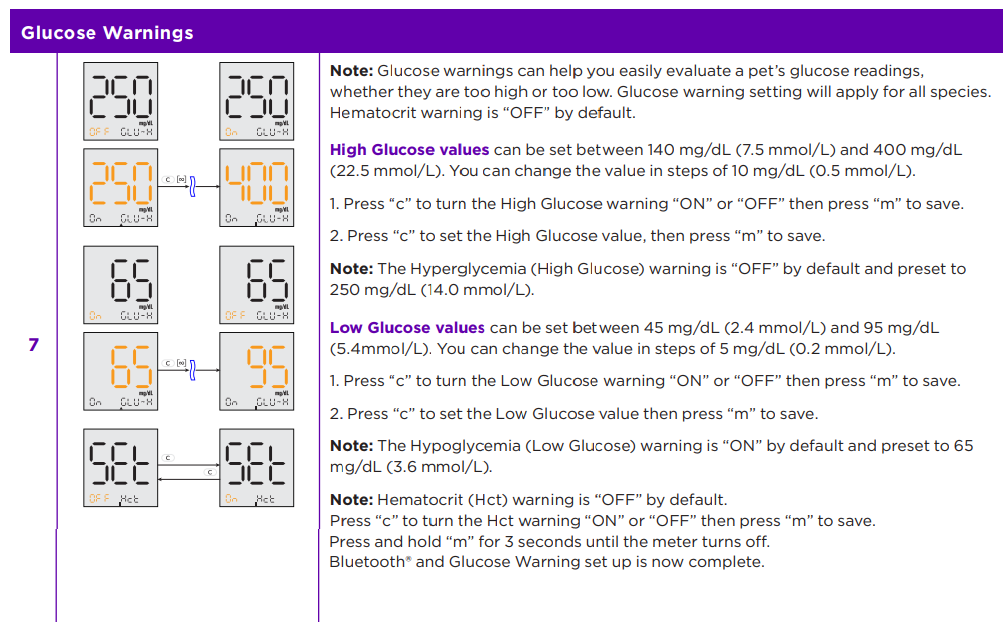

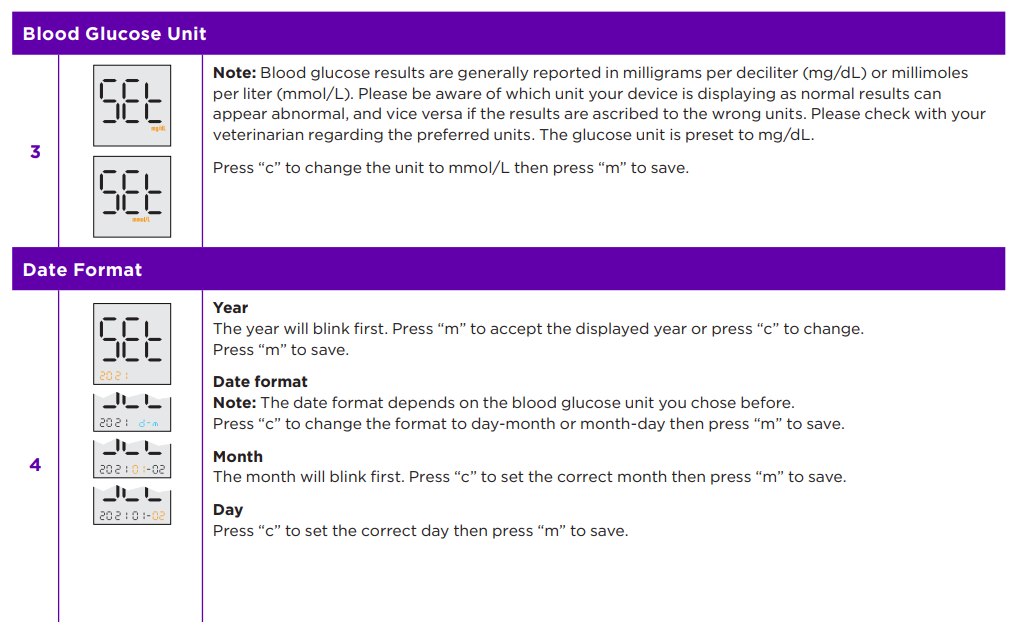

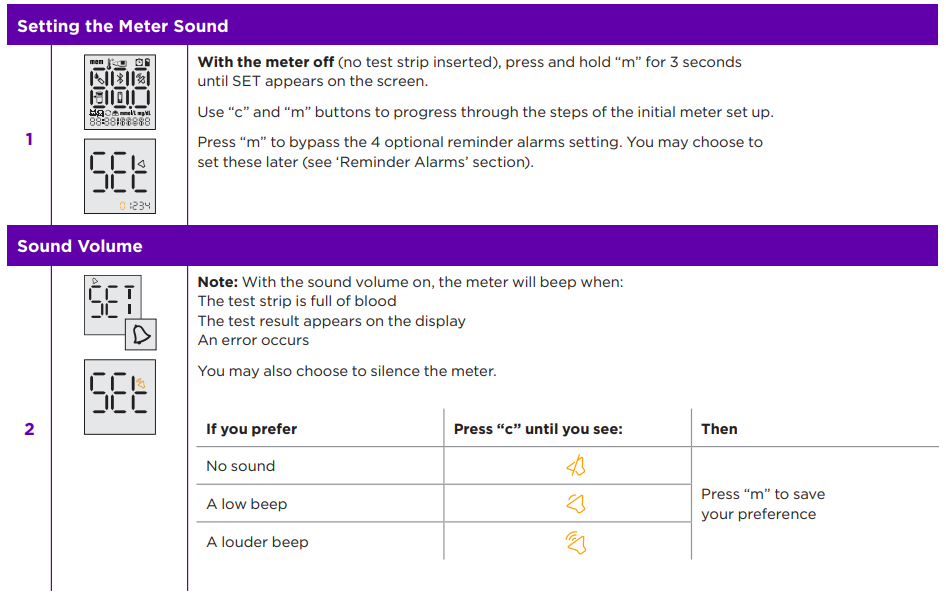

Meter Set Up

Maintenance & Care

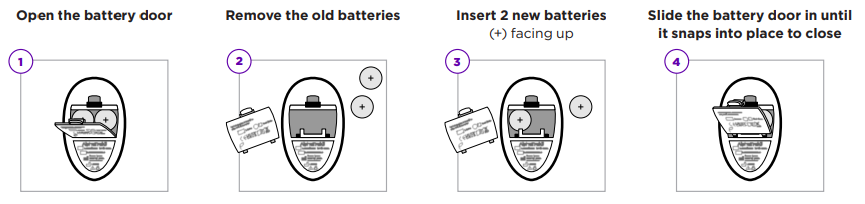

Replacing the batteries

• The meter comes with two CR 20323VV lithium batteries already installed.

Pull the plastic tab up to release the batteries, if you are using the meter for the first time.

• When the icon appears, the meter may fail to turn on
•  When you are ready to install new batteries, remove the old batteries and install the new ones one after the other to avoid losing your settings
• If time and date settings are lost, time and date will flash until reset
• Even if the time and date settings are lost, you may still perform an accurate blood glucose test
• Memory log and certain previously stored user settings, such as date and time format,  are not affected by removing the batteries
• Note: The battery in this product should be removed and disposed of in accordance with local regulations for the separate collection of electronic waste and spent batteries.

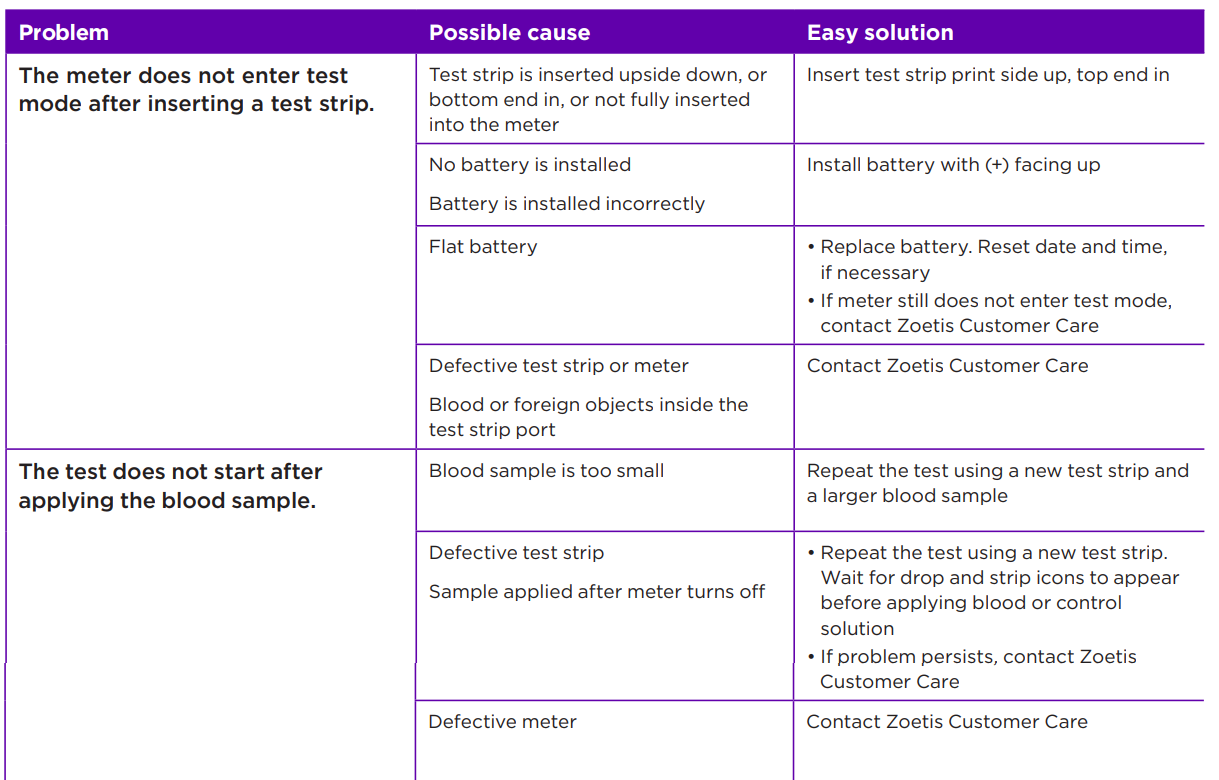

Troubleshooting

Specifications

• Assay method :Electrochemistry
• Calibration : Plasma equivalentAutomatic shutoff after 2 minutes of inactivity
• Hematocrit: 15-65%
• Measurement units : mg/dL or mmol/L
• Storage temperature: – 4 to 140 °F (– 20 to 60 °C)
• Relative humidity:
  • Operation: 5% to 90% (non-condensing)
  • Storage: 5% to 95% (non-condensing)
• Operating temperature: 39 to 104 °F (4 to 40 °C)
• Altitude Operation: 71.7kPA (3048 m)
• Storage: 54 kPa (5000 m)
• Usage: For indoor use
• Power source: Two CR 2032, 3V lithium batteries, replaceable
• Result range: 20 mg/dL (1.1 mmol/L) - 750 mg/dL (41.67 mmol/L)
• Sample: whole blood, capillary, or venous
• Sample Size: 0.3 microliter (300 nanoliters)
• Size: 3.56˝x 2.19˝ x 0.65˝
• Weight: 50 g (w/o battery)
• Safety :
  • EN 61010-1:2010; IEC 61010-1:2010/AMD1:2016 COR1:2019; IEC 61010-2-101:2018, EN 61010-2-101:2017; EN ISO 15197:2015 (Clause 5.9 & 5.10) EMC/RF: EN 61326-1:2013; IEC 61326-1:2020; EN 61326-1:2021; EN 61326-2-6:2013;
  • IEC 61326-2-6:2020; EN 61326-2-6:2021; EN 60601-1-2:2015; FCC Part 15 B (Class B ANSI C63.4-2014); J55011 (H27):2015 EN 301 489-1 V2.2.3:2019-11; EN 301 489-17 V3.2.4:2020-09; EN 300 328 V2.2.2:2019-07; EN 62479:2010
• EMC :
  • FCC Part 15 B, IEC 60601-1-2:2014, IEC 61326-1:2012,
  • IEC 61326-2:2012, J55011 (H27):2015
• Pollution : Degree 2
• Communication method : Bluetooth
• Operating Frequency Range : 2402.0 - 2480.0 MHz
• Operating Output : 0.000234 W

Test strips

• Storage temperature : 36 to 90 °F (2 to 32 °C)
• Storage relative humidity : 0% to 90% (non-condensing)
• Altitude : Storage: 54 kPA (5000 m)
• Strip Open vial : 12 months

Control solution

• Storage temperature : 39 to 86 °F (4 to 30 °C)
• Storage relative humidity : 0% to 90% (non-condensing)
• Altitude : Storage: 54 kPA (5000 m)

Pros & Cons

Pros:

• High Accuracy: Known for providing accurate and reliable blood glucose readings.
• User-Friendly: Easy to operate and understand, even for those who are not tech-savvy.
• Compact Design: Lightweight and easy to carry, making it perfect for on-the-go use.
• Memory Function: Stores previous readings to help track changes in glucose levels over time.
• Adjustable Lancing Device: Minimizes discomfort for pets by allowing customization of lancet depth.

Cons:

• Cost of Test Strips: While the initial device is reasonably priced, the ongoing cost of test strips can add up.
• Limited Compatibility: Test strips are designed exclusively for the AlphaTrak 3, which may limit options for users.
• Sensitivity to Handling: Requires careful handling to ensure accurate readings and avoid damaging the device.

Customer Reviews

Customers and veterinarians alike have praised the AlphaTrak 3 for its accuracy and ease of use. Many have noted that the device is simple to operate and provides quick, reliable results. However, some users have mentioned that the cost of replacement test strips can be a significant ongoing expense.

A common complaint is the occasional difficulty in getting a good blood sample, but this is generally mitigated by following the provided instructions carefully.
