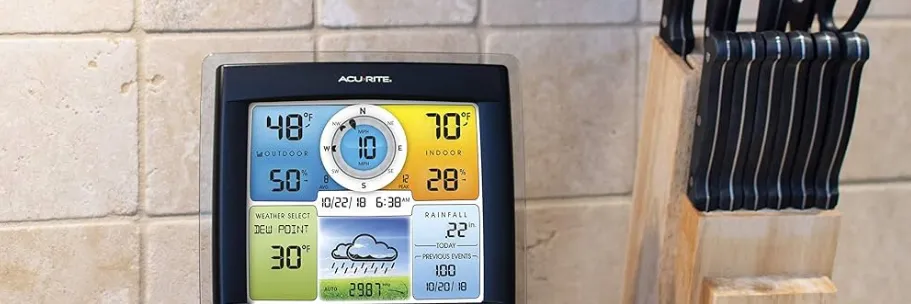

Acurite 5-in-1 Display Weather Sensor 06016RM Introduction

The AcuRite 5-in-1 Display Weather Sensor model 06016RM is a comprehensive weather monitoring solution designed for accurate and real-time data collection. This advanced sensor measures temperature, humidity, wind speed, wind direction, and rainfall, providing essential information for weather enthusiasts. Equipped with wireless technology, it transmits data every 36 seconds to compatible displays, ensuring you stay informed about changing weather conditions. The AcuRite 5-in-1 Weather Sensor is priced at approximately $99.99.

Specifications

Package Contents

1. Display unit with tabletop stand
2. Power adapter
3. Instruction Manual

This product requires an AcuRite 5-in-1 Weather Sensor (sold separately) to be operational.

PRODUCT REGISTRATION
Register online  t o receive 1 year  warranty protection https://www.AcuRite.com

Features & Benefits

Display Unit

1. Previous 2 Wind Directions
2. Current Wind Speed
3. Current Wind Direction
4. Current Indoor Temperature Arrow icon indicates direction temperature is trending.
5. Display Low Battery Indicator
6. Peak Wind Speed
   Highest speed from the last 60 minutes.
7. Current Indoor Humidity
   Arrow icon indicates direction humidity is trending.
8. Clock
9. Rainfall Alert Indicator Indicates rainfall of more than 1” of rain in 2 hours or less.
10. AUTO DIM Indicator
11. Current Rainfall
    Accumulates data during rainfall.
12. 12 to 24 Hour Weather Forecast  Self-Calibrating Forecasting pulls data from your 5-in-1 sensor to generate your personal forecast.
13. Storm Alert Indicator
14. Month/Year/All-Time Rainfall
15. Current Barometric Pressure Arrow icon indicates direction pressure is trending.
16. RAINFALL Button
    Press to change the RAINFALL data being displayed (Month, Year, All-Time).
17. Button for setup preferences.
18. SET Button for setup preferences.
19. Button for setup preferences.
20. SELECT Button
    Press to change the WEATHER SELECT category data being displayed.
21. Weather Ticker
22. Heat Index/ Wind Chill Alert Indicator
23. Learning Mode Icon
    Disappears after weather forecast self-calibration is complete.
24. WEATHER SELECT
    Displays heat index, dew point, wind chill, feels like, days with rain this month, and days since last recorded rainfall.
25. Date
26. Current Outdoor Humidity Arrow icon indicates direction humidity is trending.
27. Average Wind Speed of all speeds from past 2 minutes.
28. 5-in-1 Sensor Signal Strength
29. Sensor Low Battery Indicator
30. Current Outdoor Temperature Arrow icon indicates the direction temperature is trending.

BACK OF DISPLAY UNIT

1. Integrated Hang Hole
   For easy wall mounting.
2. Backlight Button
   Dimmer control while using power adapter. Activates momentary backlight while on battery power.
3. Plug-in for Power Adapter
4. Removable Tabletop Stand
5. CLEAR RECORD / RESET Button Press to clear the record currently being viewed. Press AND HOLD for more than 10 seconds for a full reset to factory defaults.
6. A-B-C Switch
   ID code that must match the 5-in-1 sensor’s A-B-C switch to ensure units synchronize.
7. Power adapter
8. Battery Compartment Cover (not shown)

Description

The Acurite 5-in-1 Display Weather Sensor is a robust and durable device that can withstand various outdoor conditions. The all-in-one sensor unit is designed to be mounted outdoors, while the base unit can be placed indoors for easy viewing. The sensor unit is powered by four AA batteries, ensuring long-lasting operation. The base unit features a large LCD screen that clearly displays current weather data, forecasts, and historical records. Additionally, the device supports integration with other smart devices through the Acurite Access Bridge.

Acurite 5-in-1 Display Weather Sensor 06016RM OPERATION

Placement for Maximum Accuracy

AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display unit and the sensor is critical to the accuracy and performance of this product.

Display Unit Placement
Place the display unit in a dry area free of dirt and dust. To ensure accurate temperature measurement, place out of direct sunlight and away from heat sources or vents. The display unit stands upright for tabletop use or is wall-mountable.

Using the Professional Weather Center

Learning Mode
Self-Calibrating Forecasting uses a unique algorithm to analyze changes in pressure over a time period (called Learning Mode) to determine your altitude. After 14 days, the Learning Mode icon disappears from the display screen. At this point, the self-calibrated pressure is tuned in to your location and the unit is ready for superior weather prediction.
Weather Forecast
AcuRite’s patented Self-Calibrating Forecasting provides your personal forecast of weather conditions for the next 12 to 24 hours by collecting data from the sensor in your backyard. It generates a forecast with pinpoint accuracy - personalized for your exact location.

Weather Select
Weather Select displays data including wind chill, dew point, heat index, feels like, days with rain this month, and days since the last recorded rainfall. To change the “Weather Select” category shown, press the “SELECT” button on the front of the display. To clear a record, view one of the values listed above and press the “CLEAR RECORD/RESET” button, located on the back of the unit in the battery compartment. Dashes display to confirm the record has been cleared.

Barometric Pressure
Subtle variations in barometric pressure greatly affect the weather. This weather center displays the current pressure with an arrow icon to indicate the direction the pressure is trending (FALLING, STEADY, or RISING).
Rainfall Tracking
This weather station features enhanced tracking of historical rainfall data. Rain accumulation data is recorded for today, over all time, by year, by month, and by rainfall event.

Press the “RAINFALL” button to review rainfall records. The icon is shown on the display while historical data is being viewed.
Records are shown in the following order:

• PREVIOUS RAINFALL #1*
• PREVIOUS RAINFALL #2*
• PREVIOUS RAINFALL #3*
• CURRENT MONTH TOTAL RAINFALL
• PREVIOUS MONTH TOTAL RAINFALL
• 2 MONTHS AGO TOTAL RAINFALL
• CURRENT YEAR TOTAL RAINFALL
• PREVIOUS YEAR TOTAL RAINFALL
• ALL-TIME TOTAL RAINFALL (The date shown is the start date of the all-time total; the date the display was powered on)

Previous rainfall is the amount of rain recorded from 12:00 am to 11:59 pm on the date shown.

Setup Guide

To set up the Acurite 5-in-1 Display Weather Sensor, follow these steps:

1. Mount the Sensor Unit: Attach the sensor unit to a sturdy outdoor location using the provided mounting hardware. Ensure it is at least 10 feet above the ground and away from obstructions.
2. Install Batteries: Insert four AA batteries into both the sensor and base units.
3. Pair Devices: Turn on both units and allow them to automatically pair. This process may take a few minutes.
4. Configure Settings: Use the base unit to customize settings such as unit preferences (e.g., Fahrenheit/Celsius), alert thresholds, and other options.

Display Unit Setup

AcuRite recommends high-quality alkaline batteries for the best product performance. Heavy-duty or rechargeable batteries are not recommended.

1. Set the A-B-C Switch
   The A-B-C switch is located inside the battery compartment. It can be set to A, B,, or C. However, you must select the same letter choices for both the sensor and the display unit in order for the units to synchronize.
2. Plug the Power Adapter into the Electrical Outlet
3. Install or Replace Batteries (optional)
   Insert 6 x AA alkaline batteries into the battery compartment, as shown. Follow the polarity (+/-) diagram in the battery compartment.

IMPORTANT: Batteries are a backup power source to preserve records in the event of a power outage. The power adapter is the recommended primary power source to enjoy the full functionality of this product.

Set the Time, Date & Units

• Press the “SET” button, located on the front of the display unit, to enter SET MODE. Once in set mode, the preference you are currently setting will blink on the display.
• To adjust the currently selected (flashing) item, press and release the ““ or ““ buttons (press and HOLD to fast adjust).
• To save your adjustments, press and release the “SET” button again to adjust the next preference. The preference set order is as follows:
  • TOP DISPLAY:
  • CLOCK HOUR
  • CLOCK MINUTE
  • CALENDAR MONTH
  • CALENDAR DATE
  • CALENDAR YEAR
  • TEMPERATURE UNITS (ºF or ºC)
  • WIND SPEED UNITS (MPH, KPH, Knots)
  • RAINFALL UNITS (in or mm)
  • PRESSURE UNITS (inHg or hPa)
    TICKER DISPLAY:
  • LANGUAGE (English, French, Spanish)
    WEATHER TICKER SPEED (SLOW, MEDIUM, FAST)
    You will automatically exit SET MODE if no buttons are pressed for 20 seconds. Enter SET MODE at any time by pressing the “SET” button.

Display Backlight Settings

• This weather station’s color display features three different lighting settings: High (100%) brightness, Medium (60%) brightness and Low (30%) brightness
• Using battery power alone, the backlight is available momentarily for 10 seconds by pressing the “BACKLIGHT” button.
• When display is powered with the power adapter, backlight remains on at 100% brightness. Press “BACKLIGHT” button once to dim to 60% brightness; press again to dim to 30%, press a 3rd time to enter “AUTO DIM” mode.
• “AUTO DIM” will appear below the time.

Care & Maintenance

Display Unit Care
Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away from dust, dirt,, and moisture. Clean ventilation ports regularly with a gentle puff of air.
Calibration
The indoor/outdoor temperature and humidity readings, and barometric pressure can be calibrated on the display unit to improve accuracy. Calibration can improve accuracy when sensor placement or environmental factors impact the data accuracy.

1. To access calibration mode, press AND HOLD the “”, “SET”, and “” buttons simultaneously for at least 5 seconds.
2. To adjust the currently selected (flashing) item, press and release the ““ or ““ buttons to calibrate the data value higher or lower from the actual reading.
3. To save your adjustments, press and release the “SET” button to adjust the next preference. The “” icon will remain illuminated next to calibrated values.
   The preference set order is as follows:
   • OUTDOOR TEMPERATURE
   • OUTDOOR HUMIDITY
   • INDOOR TEMPERATURE
   • INDOOR HUMIDITY
   • BAROMETRIC PRESSURE  (must be set to MANUAL mode to calibrate) To change from AUTO to MANUAL pressure mode and vice versa, press AND HOLD the “SET” button for at least 10 seconds. The display indicates the current pressure mode selected,“AUTO” or “MANUAL”.

After 20 seconds of inactivity, the display will save the adjustments and exit calibration mode. Note: Calibrations will be erased if the display is reset or if batteries are removed and the power adapter is unplugged.

Troubleshooting

If you encounter any issues with your Acurite 5-in-1 Display Weather Sensor, here are some common problems and solutions:

• No Signal: Check that both units are turned on and batteries are not dead. Ensure the sensor unit is within range of the base unit.
• Inaccurate Readings: Verify that the sensor unit is properly mounted away from direct sunlight, buildings, and other obstructions.
• Review alert settings on the base unit to ensure they are correctly configured.

Instructions & Warnings

• Avoid placing the sensor unit in areas where it may be exposed to extreme weather conditions or physical damage.
• Regularly check and replace batteries as needed to maintain optimal performance.

Acurite 5-in-1 Display Weather Sensor 06016RM One Year Warranty

At AcuRite, we proudly uphold our commitment to quality technology. Chaney Instrument Co. warrants that all products it manufactures to be of good material and workmanship, and to be free of defects when properly installed and operated for a period of one year from the date of purchase.
We recommend that you visit us at  https://www.AcuRite.com  for the fastest way to register your product. However, product registration does not eliminate the need to retain your original proof of purchase to obtain warranty benefits.

Pros & Cons

Pros

• Comprehensive Data: Provides a wide range of weather data including temperature, humidity, wind speed, wind direction, and rainfall.
• Ease of Use: Simple setup process and intuitive interface make it user-friendly.
• Customizable Alerts: Allows users to set custom alerts for various weather conditions.
• Remote Monitoring: Compatible with Acurite Access Bridge for remote access via the Acurite app.

Cons

• Cost: Pricier than some other weather stations on the market.
• Battery Life: Requires frequent battery replacements if not using solar power option.
• Sensitivity to Interference: Signal strength can be affected by nearby electronic devices or physical obstructions.

Customer Reviews

Customers have generally praised the Acurite 5-in-1 Display Weather Sensor for its accuracy and reliability. Many have noted its ease of setup and use, as well as its comprehensive weather data. However, some users have reported issues with signal strength and battery life.

Most Common Complaints

• Some users find it expensive compared to other options available in the market.
• Battery life can be a concern if not managed properly.
• Signal interference from nearby electronic devices can sometimes affect performance.
