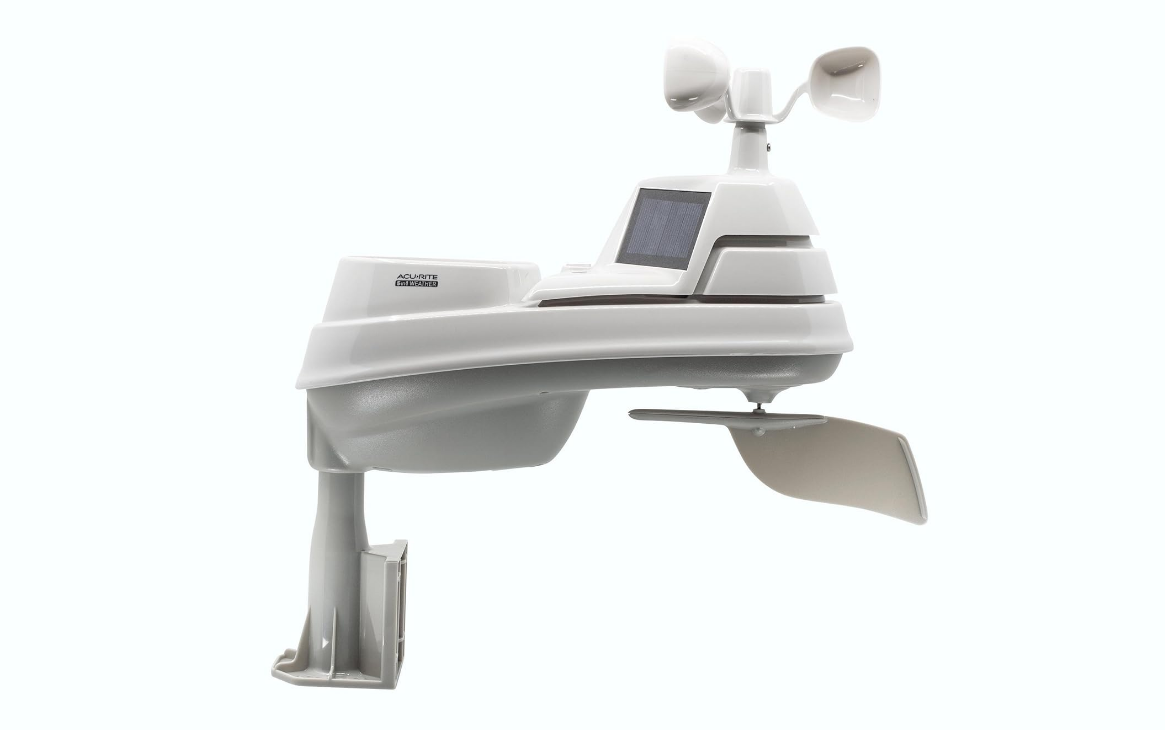

Acurite Iris Solar Panel Weather Sensor 06014 Introduction

The AcuRite Iris is a versatile 5-in-1 weather monitoring device that accurately measures temperature, humidity, wind speed, wind direction, and rainfall. Designed with solar panels to power its internal fan, it ensures precise readings by enhancing airflow around the sensors. This sensor transmits data wirelessly, making it easy to integrate with compatible AcuRite displays for real-time updates. The AcuRite Iris Weather Sensor is priced at approximately $129.99.

Package Contents

1. AcuRite Iris Weather Sensor
2. Mounting Hardware
3. Sensor Mounting Bracket
4. Instruction Manual

Specifications

Features & Benefits

AcuRite Iris SENSOR

1. Rainfall Collector Funnel
2. Solar Cell Panel
   Converts sunlight into power to run internal aspirating fan.
   Internal Aspirating Fan (not shown)
   Draws ambient air into sensor to reduce solar radiation heating, resulting in more accurate temperature measurement.
3. A-B-C Switch
   ID code that must match display’s
   A-B-C switch to ensure units synchronize.
4. Battery Compartment
5. Temperature & Humidity Sensors (internal)
6. Mounting Point
7. Wind Speed Anemometer
8. Wind Direction Vane
9. Mounting Bracket

10. Mounting Hardware
    Includes 5 anchors & the following screws:

    Qty	Diameter	Length
    5	#4	3/4”
    1	#4	1/2”
    1	#6	1/2”

11. Debris Filter
    Pre-installed to prevent debris from entering the rain gauge

Description

The Acurite Iris Solar Panel Weather Sensor 06014 is designed with functionality and durability in mind. The sensor is equipped with advanced technology to accurately measure temperature, humidity, wind speed, and other critical weather metrics. The solar panel ensures continuous operation during the day, while a rechargeable battery stores excess energy for nighttime use. This ensures that the sensor remains operational 24/7, providing consistent and reliable data. The sensor's sleek and compact design allows for easy installation in various locations, making it versatile for different settings.

Placement for Maximum Accuracy

AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display and the sensor are critical to the accuracy and performance of this product.

AcuRite Iris Sensor Placement
The AcuRite Iris sensor is designed to remain outdoors all year long. Choose an open location with no obstructions above or around the sensor for the most accurate measurements.

Important Placement Guidelines
Display and sensor must be within 330 feet (100 meters) of each other.
MAXIMIZE WIRELESS RANGE
Place units away from large metallic items, thick walls, metal surfaces, or other objects that may limit wireless communication.
PREVENT WIRELESS INTERFERENCE
Place units at least 3 feet (.9 m) away from electronic devices (TV, computer, microwave, radio, etc.).
LOCATE AWAY FROM HEAT SOURCES
Position sensor away from heaters, air conditioners, chimneys, exhaust vents, asphalt and concrete (surfaces that radiate heat).
LOCATE AWAY FROM HUMIDITY SOURCES
Avoid installing the sensor near pools, spas, or other bodies of water. Water sources may impact humidity accuracy.
LOCATE AWAY FROM SPRINKLER HEADS
DO NOT install the sensor where it will be sprayed by a sprinkler system. This may force water inside the sensor.
LOCATE AWAY FROM WIND & RAIN OBSTRUCTIONS
DO NOT mount the sensor with obstructions around it. Consider a location that is a wide open area, with few structures around to ensure accurate wind measurement.

AcuRite Iris Sensor Installation Guidelines

INSTALLATION HEIGHT
Mount the sensor at a minimum height of 5 feet (1.5 meters) off the ground, in an open area. Higher is better for wind measurements - the National Weather Service recommends 33 feet (10 meters) high!
MOUNTING OPTIONS
The included mounting bracket is designed to screw directly onto wooden posts or surfaces that are 2”x 4” or larger. The sensor can also be mounted directly to 3/4” steel pipe (available at hardware stores and home centers).

SOLAR CELL INSTALLATION
Install the sensor with the solar cell facing SOUTH. This ensures the cell receives as much sun as possible and orients wind direction.

AcuRite Iris Sensor Installation

1. Fasten mounting base (included) to a post or pole (not included) using the 4 longer screws included in the hardware bag.
2. Insert the mounting base into the hole on the bottom of the sensor.
3. Make sure the arrows on the top of the sensor are pointed in the proper direction and the bubble level is centered. The solar cell should be facing south to properly orient the wind direction.
4. Fasten the sensor into the mounting base using the 2 shorter screws included in the hardware bag.

The AcuRite Iris sensor is now ready to use.
Basic Setup is Complete
The AcuRite Iris sensor will now synchronize with the display. It may take a few minutes for synchronization to complete. If both or one of the units appear to be functioning improperly, please refer to the troubleshooting section.

Calibrate the Rain Gauge

The rain gauge on the AcuRite Iris sensor can be calibrated to improve accuracy. Items Needed: AcuRite Iris sensor, companion unit, plastic cup, pin, screw driver

1. First, ensure AcuRite Iris sensor is perfectly level using built-in bubble level.
2. Use compatible companion unit or AcuRite software to monitor during calibration.
3. Make a pin hole in the bottom of a plastic cup. Hold the cup over the rain gauge and fill it with exactly  1 cup (8oz) of water, allowing the water to drip into the rain gauge. You should hear the internal buckets tip and see water drain through the rain gauge.
4. A few seconds after each bucket tip, the companion unit displays rainfall in approximately 0.01” or more increments.
5. The cup of water should take more than 20 minutes to empty; a quicker period will result in inaccurate calibration. Try to simulate a normal steady rainfall. When cup is empty of water, companion unit should register 1.06”

Tips

There should be nearly an equal number of water drops (about 25 water drops) between bucket tips. If not, adjust the calibration screws on the bottom of the AcuRite Iris sensor until an equal number of water drops are tipping the buckets.

Adjustment
If the rain gauge doesn’t register close to 1.06”, make an EQUAL adjustment to the two calibration screws on the bottom of the AcuRite Iris sensor. Turning screws clockwise increases rainfall; counter clockwise decreases rainfall.

• To adjust the rainfall reading by 2% turn both screws 1/8  of a turn.
• To adjust the rainfall reading by 4% turn both screws 1/4 of a turn.
• To adjust the rainfall reading by 8% turn both screws 1/2 of a turn.

SETUP

AcuRite Iris Sensor Setup

1. Set the A-B-C Switch
   Locate the A-B-C switch inside the battery compartment. Set the A-B-C switch to A, B or C. You must select the same letter choice for both the sensor and the companion unit (not  included) in order for the units to synchronize.
2. Install or Replace Batteries
   Batteries MUST be installed for this product to operate. AcuRite recommends high quality alkaline or lithium batteries for the best product performance. Heavy duty or rechargeable batteries are not recommended.
   The AcuRite Iris sensor requires lithium batteries in low temperature conditions. Cold temperatures can cause alkaline batteries to function improperly. Use lithium batteries in the AcuRite Iris sensor for temperatures below -4ºF / -20ºC.
3. Remove Rain Gauge Stabilizer
   Locate and remove the rain gauge stabilizer (plastic tab) taped into the bottom of the sensor. The rain gauge will not function until this is removed.

Troubleshooting

If you encounter any issues with your Acurite Iris Solar Panel Weather Sensor 06014, here are some common problems and solutions:

• No Data Transmission: Check the wireless connection and ensure that the sensor is within range of the hub.
• Inaccurate Readings: Ensure the sensor is clean and free from debris. Also, check for any nearby interference sources.
• Low Battery Warning: Place the sensor in direct sunlight to recharge the battery. If the issue persists, consider replacing the battery.

Important Warnings: Avoid exposing the sensor to extreme temperatures or direct water exposure. Always follow the manufacturer's instructions for installation and maintenance.

Limited 1-Year Warranty

Any product which, under normal use and service, is proven to breach the warranty contained herein within ONE YEAR from date of sale will, upon examination by us, and at our sole option, be repaired or replaced by us. Transportation costs and charges for returned goods shall be paid for by the purchaser.

PRODUCT REGISTRATION

Register online to receive 1-year warranty protection https://www.acurite.com/product-registration

Pros & Cons

Pros

• Accurate Readings: Provides precise and reliable weather data.
• Solar Powered: Reduces the need for frequent battery replacements.
• Easy Setup: Simple installation process with clear instructions.
• Durable Design: Built to withstand various weather conditions.

Cons

• Dependence on Sunlight: Requires adequate sunlight to function optimally.
• Range Limitations: Wireless connectivity range may be limited in certain environments.
• Interference Issues: May experience interference from other electronic devices.

Customer Reviews

Customers have generally praised the Acurite Iris Solar Panel Weather Sensor 06014 for its accuracy and ease of use. Many have noted that it provides reliable data and is easy to install. However, some users have reported issues with wireless connectivity and interference.

Common complaints include occasional loss of signal and the need for frequent sensor cleaning to maintain accuracy. Despite these minor issues, the product has received positive feedback overall.
