Introduction

Your new blood pressure monitor uses the oscillometric method of blood pressure measurement. This means the monitor detects your blood movement through your brachial artery and converts the movements into a digital reading. An oscillometric monitor does not need a stethoscope so the monitor is simple to use.

When it comes to measuring blood pressure and pulse rate, the Omron BP7000 is a top-of-the-line device that is both accurate and convenient. It takes exact digital readings by detecting blood movement through the brachial artery using modern oscillometric technology. Thanks to its Bluetooth capability, this monitor can transmit data wirelessly to the Omron Connect app, making it simple to monitor and manage your health records. The Omron BP7000 is an accurate instrument for monitoring your heart health; it has a flexible cuff that fits wrists 9–17 inches in circumference and can identify abnormal heartbeats.

Specifications

Notes: These specifications are subject to change without notice.

• In the clinical validation study, K5 was used on 85 subjects for the determination of diastolic blood pressure.
• This monitor is clinically investigated according to the requirements of ISO 81060-2:2013.
• This monitor has not been validated for use on pregnant patients.
• IP classification is degrees of protection provided by enclosures in accordance with IEC 60529. This device is protected against solid foreign objects of 12 mm diameter and greater such as a finger, and against oblique falling water drops which may cause issues during normal operation.

Know Your Monitor

Monitor, 4 "AAA" batteries, instruction manual, quick start guide

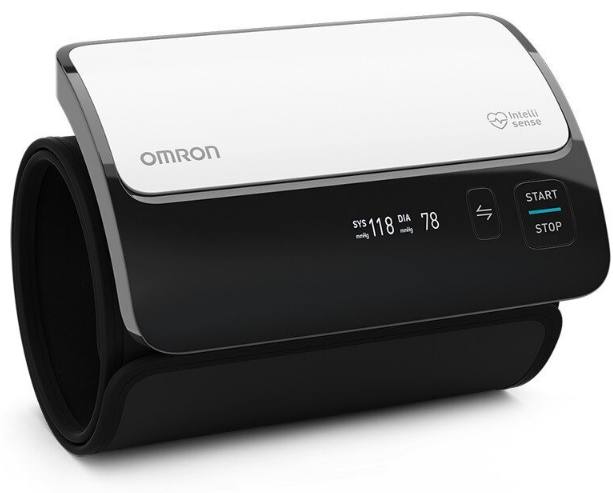

Monitor

• A: START/STOP button
• B: Connection button
• C: Display
• D: Arm cuff

• E: Battery compartment



Display

• F: Systolic blood pressure
• G: Diastolic blood pressure
• H: Pulse display

	Connection symbol		Irregular heartbeat symbol
	Connection OFF symbol		Battery symbol (low)
	Connection ON symbol		Battery symbol (depleted)
	Movement error symbol		Deflation symbol
	SYNC symbol		Heartbeat symbol (Flashes during measurement.)

Display Symbols

• Connection symbol (): Appears when transferring the data or pairing with your smart device.
• Connection OFF symbol (): Appears when Bluetooth is off.
• Connection ON symbol (): Appears when Bluetooth is on.
• Movement error symbol (): The movement error symbol will display when your body is moving during measurement. If the movement symbol displays, remove the monitor and wait for 2 to 3 minutes. After 2 to 3 minutes, remain still and take another measurement.
• SYNC symbol (): When the SYNC symbol appears on the display, make sure that your monitor has been paired with the smart device or transfer the data. When the SYNC symbol appears on the display, transfer the data before the measurements are deleted. Maximum internal memory is for 100 measurements. The oldest value will be deleted when this is reached before transferring.

• Irregular heartbeat symbol (): When the monitor detects an irregular rhythm two or more times during the measurement, the irregular heartbeat symbol will appear on the display along with the measurement values. An irregular heartbeat rhythm is defined as a rhythm that is 25% less or 25% more than the average rhythm detected while the monitor is measuring the systolic and diastolic blood pressure. If the irregular heartbeat symbol displays with your measurement results, we recommend you consult your physician. Follow the directions of your physician.



• Battery symbol (low) (): Appears when the batteries are low.
• Battery symbol (depleted) (): Appears when the batteries are depleted.
• Deflation symbol (): Flashes while arm cuff is deflating.
• Heartbeat symbol (): Flashes while taking a measurement.

2013 ESH/ESC Guidelines for the management of arterial hypertension
Definitions of hypertension by office and home blood pressure levels

Before Taking a Measurement

To help ensure an accurate reading, follow these directions:

• Avoid bathing, drinking alcohol or caffeine, smoking, exercising, and eating for 30 minutes before taking a measurement.
• Rest for at least 5 minutes before taking the measurement.
• Stress raises blood pressure. Avoid taking measurements during stressful times.
• Measurements should be taken in a quiet place.
• Keep a record of your blood pressure and pulse readings for your physician. A single measurement does not provide an accurate indication of your true blood pressure. You need to take and record several readings over a period of time. Try to measure your blood pressure at the same time each day for consistency.

Description

The Omron Blood Pressure Monitor BP7000 is a user-friendly device that offers a convenient and accurate way to monitor blood pressure at home. Its TruRead technology ensures precise readings by automatically taking three consecutive measurements and calculating the average. The extra-large screen and multi-color indicator make it easy to read and interpret results, even in low-light conditions. The cuff wrap guide helps ensure accurate placement, while the adjustable cuff comfortably fits arms with a circumference of 9 to 17 inches. The device can store up to 100 readings with date and time stamps, making it easy to track your progress over time. With its irregular heartbeat detector and hypertension detection feature, the Omron Blood Pressure Monitor BP7000 is a reliable tool for managing your health.

Preparation of Omron Blood Pressure Monitor BP7000

Battery Installation

1. Remove the battery cover. Insert your fingernail into the slot of the battery cover, and push downwards to remove the cover.



2. Insert battery, slide over so it is secured inside the circular battery positioner. Then insert the second battery.



3. Replace the battery cover.




   When the batteries have been securely placed in this monitor, the message below will appear on the screen:



Notes: When the depleted battery symbol appears on the display, turn the monitor off and remove all the batteries. Replace with 4 new batteries at the same time. Long-life alkaline batteries are recommended.

• The measurement values continue to be stored in the memory even after the batteries are replaced.
• The supplied batteries may have a shorter life than new batteries.
• Disposal of used batteries should be carried out in accordance with the national/local regulations for the disposal of batteries.
• When the batteries are replaced, the words "Please pair this device." or "Pairing not completed. No data transfer." will appear on the display. Press the [<] button to pair with the smart device or transfer the data before taking a measurement.

Applying the Arm Cuff

1. Remove tight-fitting or thick clothing from your arm while taking a measurement.

2. Apply the arm cuff to your left upper arm. The bottom edge of the arm cuff should be 1/2 inch (1 to 2 cm) above the elbow. The display should be in clear view and easy to read, positioned slightly on the inside of your arm.



3. Securely close with the fabric fastener.



Notes

• The blood pressure can differ between the right arm and the left arm, and the measured blood pressure values can be different. Omron recommends always using the same arm for measurement. If the values between both arms differ substantially, please check with your physician as to which arm to use for your measurements.
• Positioning the monitor with the [START/STOP] button toward the body makes it easier to use the monitor.

How to Sit Correctly

To take a measurement, you need to be relaxed and comfortably seated, at a comfortable room temperature.

• Sit in a chair with your legs uncrossed and your feet flat on the floor.
• Sit upright with your back straight.
• Sit with your back and arm being supported.
• The arm cuff should be placed on your arm at the same level as your heart.

Using the Monitor Without a Smart Device

You can use this blood pressure monitor without pairing to a smart device.

Taking a Measurement

Notes

• To stop the measurement, press the [START/STOP] button once to deflate the arm cuff.
• Remain still and do not talk while taking a measurement.
• When using this blood pressure monitor without a smart device, you will not be able to view your prior readings stored in the memory.
• Do not use the monitor with any other electrical device simultaneously. This may result in incorrect operation of the monitor.

1. Press the [START/STOP] button.



   The arm cuff will start to inflate.
   The following symbols indicate incorrect measurement.
   If "Please remeasure" and any of these symbols below are displayed, please take another measurement and try again.



2. Remove the arm cuff.
3. Write down your SYS/DIA and Pulse readings, along with the date and time of your measurement on a piece of paper to keep a record of your history.

WARNING: DO NOT adjust medication based on measurement results from this blood pressure monitor. Take medication as prescribed by your physician. Only a physician is qualified to diagnose and treat high blood pressure.

WARNING: Always consult your physician. Self-diagnosis of measurement results and self-treatment are dangerous.

Using the Monitor With a Smart Device

Pairing Your Monitor With a Smart Device

The date and time on your monitor will automatically be set when you pair it with your smart device. Review the list of compatible smart devices at: OmronHealthcare.com

1. Make sure the Bluetooth in your smart device is turned on.

2. Download and install the free "OMRON connect" app on your smart device.



   • If you already have the "OMRON connect" app, and have created your account, visit the "Manage Devices" in the "Profile" section of the "OMRON connect" app to add this new device.
3. Open the app on your smart device and follow the set-up and pairing instructions.

4. Confirm the monitor is connected successfully.
   If the monitor is connected successfully to the smart device, "OK" will appear on the display.



   If "Error" appears.



Notes

• If you use any other app instead of "OMRON connect", the date and time may not be automatically set. If you need to set the date and time, pair your monitor or transfer the data by using the "OMRON connect" app.
• The date/time will only be set for future measurements taken after the measurement that was transferred. It will not be saved to the measurement that was just transferred.
• Please be aware that Omron will not be responsible for the loss of data and/or information.

Taking a Measurement

Notes

• To stop the measurement, press the [START/STOP] button once to deflate the arm cuff.
• Remain still and do not talk while taking a measurement.
• This monitor will store 100 measurements.
• Stored measurements cannot be viewed on the monitor's display.
• You will need to use the "OMRON connect" app to view all measurements prior to the most recent reading taken.
• Do not use a mobile phone or other electrical devices that emit electromagnetic fields near this monitor except when transferring your readings to your smart device.
• This may result in incorrect operation of this monitor.

1. Press the [START/STOP] button.
   The arm cuff will start to inflate.



   The following symbols indicate incorrect measurement.
   If "Please remeasure" and any of these symbols below are displayed, please take another measurement and try again.



2. Remove the arm cuff.
3. Transfer your readings.
   Please make sure your monitor is within 16 ft. (5 m) of your smart device and your "OMRON connect" app is active. As soon as your measurement is complete, tap the "sync" icon in the Omron connect app on your smart device to transfer your readings.

Transferring Your Readings Later

1. Open the app on your smart device and then follow the instructions.

2. Press the [] button to transfer your readings.




   If your readings are successfully transferred to your smart device, "OK" will flash on the display.
   If "Error" appears, refer to section 5.1 for more detail.




   Notes: When the SYNC symbol appears on the display, transfer the data immediately before the readings are deleted.
   When the Connection OFF symbol appears on the display, turn on the Bluetooth feature of your monitor. (Refer to section 4.3)
   Once you send your readings to the app, the data cannot be sent again to the app or smart device.

3. After your readings have been transferred to the "OMRON connect" app, press the [START/STOP] button to turn the monitor off.

Notes

• The monitor will automatically turn off after 2 minutes.
• Wait 2-3 minutes before taking another measurement. Waiting between measurements allows the arteries to return to the condition they were prior to taking the measurement.
• If you use any other app instead of "OMRON connect", the data may not be displayed correctly after sending.

WARNING: DO NOT adjust medication based on measurement results from this blood pressure monitor. Take medication as prescribed by your physician. Only a physician is qualified to diagnose and treat high blood pressure.
WARNING: Always consult your physician. Self-diagnosis of measurement results and self-treatment are dangerous.

Data Transfer With Multiple Smart Devices

Once you transfer your data to a smart device, that data can no longer be transferred again to the same smart device, nor to another smart device.

About Multiple Users: To share your blood pressure monitor with other people, please refer to the "Help" section in the "OMRON connect" app.

Turning "OFF" Bluetooth

Turn off the Bluetooth in your monitor in the following areas where use of wireless equipment is prohibited:

• On aircraft
• In hospitals
• While abroad

Your monitor comes with Bluetooth already turned on.

1. Turn your monitor power off if it is on by pressing the [START/STOP] button on the monitor.



2. Press and hold the [] button for more than 10 seconds. Release the [] button when "→ " appears on the display. When the "" is blinking, you have now turned the Bluetooth off in your monitor.
3. Press the [START/STOP] button to turn the monitor off.
   • Note: The monitor will automatically turn off after 2 minutes.

How to Turn "ON" Bluetooth

Perform the following step when the power has been off:

Press and hold the [] button for more than 2 seconds and then release the [] button when "→ " appears on the display. The "→" will blink to show that the Bluetooth in your monitor has been turned on.

Restoring Your Monitor to the Default Settings

To delete all the information stored in your monitor, follow the instructions below. Make sure that your monitor is turned off. It will be off when the screen is not showing numbers or symbols.

1. While holding the [] button down, the Connection symbol "" and "P" appear on the display, and then press the [START/STOP] button for more than 5 seconds.



2. When the "Clear" symbol appears on the display, release the [→] button and [START/STOP] button.
   The "Clear" will appear on the display when your monitor settings have reverted back to their original.



3. Press the [START/STOP] button to turn the monitor off.

Notes

• The monitor will automatically turn off after 2 minutes.
• Reverting to the initial settings of this monitor will not delete the information in the app.
• When using this monitor again, first delete the registration of the monitor in the app and then pair your monitor.

Setup Guide

Setting up the Omron Blood Pressure Monitor BP7000 is simple and straightforward:

1. Insert batteries in the designated battery compartment
2. Wrap the cuff around your arm according to the cuff wrap guide
3. Press the power button to turn on the device
4. Press start/stop button to begin the measurement
5. Wait for the device to complete the measurement and display the results

Maintenance, Storage, and Cleaning

Maintenance

To protect your monitor from damage, please follow the directions below:

• Store the monitor and the components in a clean, safe location.
• Do not wash the monitor and any components or immerse them in water.
• Do not use gasoline, thinners, or similar solvents to clean the monitor.
• Changes or modification not approved by the manufacturer will void the user warranty.
• Do not disassemble or attempt to repair the monitor or components.

Storage

Do not store the monitor in the following situations:

• If the monitor is wet.
• Locations exposed to extreme temperatures, humidity, direct sunlight, dust, or corrosive vapors such as bleach.
• Locations exposed to vibrations, shocks, or where it will be at an angle.

Cleaning

• Do not use any abrasive or volatile cleaners.
• Use a soft dry cloth, or a soft cloth moistened with neutral soap to clean the monitor and the arm cuff, and then wipe it with a dry cloth.

Disposal

Dispose of the monitor and components according to applicable local regulations. Unlawful disposal may cause environmental pollution.

Intended Use

This device is a digital monitor intended for use in measuring blood pressure and pulse rate in adult patient population with arm circumference ranging from 9 inches to 17 inches (22 cm to 42 cm). The device detects the appearance of irregular heartbeats during measurement and gives a warning signal with readings.

Important Safety Information

Please read the Important Safety Information in this instruction manual before using the unit. Please follow this instruction manual thoroughly for your safety. Please keep for future reference. For specific information about your own blood pressure, CONSULT YOUR PHYSICIAN.

Contraindications

• The device is contraindicated for use in ambulatory environments.
• The device is contraindicated for use on aircraft.

Warnings

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

• DO NOT adjust medication based on measurement results from this blood pressure monitor. Take medication as prescribed by your physician. Only a physician is qualified to diagnose and treat high blood pressure.
• DO NOT wear the arm cuff on your arm while on an intravenous drip or blood transfusion.
• DO NOT apply or inflate the arm cuff around any body parts other than your arm.
• DO NOT use this monitor in areas containing high frequency (HF) surgical equipment, magnetic resonance imaging (MRI) equipment, computerized tomography (CT) scanners, or in oxygen-rich environments.
• DO NOT use this monitor on infants, toddlers, children, or persons who cannot express themselves.
• Consult your physician before using this monitor if you have common arrhythmias such as atrial or ventricular premature beats or atrial fibrillation; other conditions, including trembling or shivering, may affect the measurement reading.
• Always consult your physician. Self-diagnosis of measurement results and self-treatment are dangerous.
• Contains small parts that may cause a choking hazard if swallowed by children, toddlers, or infants.
• This product emits radio frequencies (RF) in the 2.4 GHz band. DO NOT use this product in locations where RF is restricted, such as in airplanes or medical facilities.

Cautions

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury to the user or patient or damage to the equipment or other property.

• Stop using this monitor and consult your physician if you experience skin irritation or discomfort.
• Consult your physician before using this monitor on an arm with an arterio-venous (A-V) shunt or if you have had a mastectomy.
• Consult your physician before using the monitor if you have severe blood flow problems or blood disorders as cuff inflation can cause bruising.
• Do not take measurements more often than necessary because bruising, due to blood flow interference, may occur.
• Remove the arm cuff if it does not start deflating during the measurement.
• Do not use this monitor for any purpose other than measuring blood pressure.
• Do not use a mobile phone or other electrical devices that emit electromagnetic fields near this monitor. This may result in incorrect operation of the monitor and inaccurate readings.
• Do not disassemble or attempt to repair the monitor or components. This may cause an inaccurate reading.
• Do not use in a location where there is moisture or a risk of water splashing the monitor. This may damage the monitor.
• Do not use this monitor in a moving vehicle such as in a car.
• Do not drop or subject this monitor to strong shocks or vibrations.
• Do not use this monitor in places with high or low humidity or high or low temperatures. See the "8. Specifications" section of the manual.
• Please check, by observation of the arm being used, that the monitor is not causing any impairment of patient blood circulation.
• Do not use this monitor in high-use environments such as medical clinics or physician offices.
• Avoid bathing, drinking alcohol or caffeine, smoking, exercising, and eating for 30 minutes before taking a measurement.
• Rest for at least 5 minutes before taking the measurement.
• Remove tight-fitting or thick clothing from your arm while taking a measurement.
• Remain still and do not talk while taking a measurement.

Data Transmission

• Do not replace the battery while your reading is being transferred to your smart device. This may result in the incorrect operation of your monitor and failure to transfer your blood pressure data.
• Do not place integrated circuit cards, magnets, metal objects, or other devices that emit electromagnetic fields near this monitor while your reading is being transferred to your smart device. This may result in the incorrect operation of your monitor and failure to transfer your blood pressure data.

Battery Handling and Usage

• Do not insert the batteries with their polarities incorrectly aligned.
• Use only 4 "AAA" alkaline batteries with this monitor. Do not use other types of batteries. Do not use new and used batteries together.
• Remove the batteries if the monitor will not be used for a long period of time.
• If battery fluid should get in your eyes, immediately rinse with plenty of clean water. Consult a physician immediately.
• If battery fluid should get on your skin, wash your skin immediately with plenty of clean, lukewarm water. If irritation, injury, or pain persists, consult a physician.
• Do not use batteries after their expiration date.
• Periodically check your batteries to ensure they are in good working condition.
• Only use batteries specified for this monitor. Use of unsupported batteries may damage and/or may be hazardous to the monitor.

About Wireless Communication Interference

This product operates in the unlicensed ISM band at 2.4GHz. In case this product is used around other wireless devices including microwave and wireless LAN, which operate in the same frequency band, there is a possibility that interference occurs between this product and such other devices. If such interference occurs, please stop the operation of other devices or relocate this product before using this product or do not use this product around other wireless devices.

Symbol Descriptions/Definitions

Error Messages

Troubleshooting

Warranty

Your BP7000 Upper Arm Blood Pressure Monitor, excluding batteries, is warranted to be free from defects in materials and workmanship appearing within 5 years from the date of purchase when used in accordance with the instructions provided with the monitor. The above warranty extends only to the original retail purchaser. We will, at our option, replace without charge any monitor covered by the above warranty. Replacement is our only responsibility and your only remedy under the above warranty.

Omron Blood Pressure Monitor BP7000 Pros & Cons

• Pros
  • TruRead technology for more precise readings
  • Extra-large screen and multi-color indicator for easy reading
  • Ability to store up to 100 readings with date and time stamps
  • Cuff wrap guide and adjustable cuff for accurate and comfortable placement
  • Irregular heartbeat detector and hypertension detection feature
• Cons
  • May not be suitable for users with arm circumferences outside the 9 to 17 inches range
  • Limited to one user's readings
  • May be bulkier than some other devices

Customer Reviews

Customers have praised the Omron Blood Pressure Monitor BP7000 for its accuracy, ease of use, and convenient features. Many users appreciate the large screen and multi-color indicator for easy reading, while others find the TruRead technology and hypertension detection feature to be particularly helpful. However, some users have noted that the device may be bulkier than other options and may not be suitable for users with arm circumferences outside the 9 to 17 inches range.
