Acurite Projection Alarm Clock 13026 Introduction

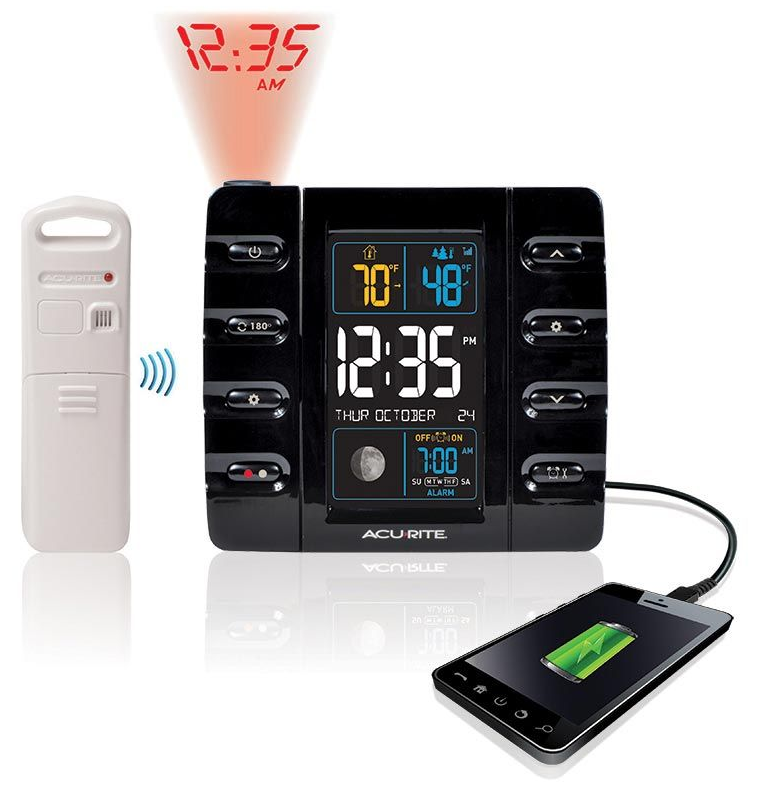

The AcuRite combines functionality with modern design, featuring a large, easy-to-read display that projects the time onto your wall or ceiling for effortless viewing. This versatile clock includes features such as an indoor temperature and humidity monitor, dual alarms, and a snooze function, making it ideal for any bedroom. With its sleek design and practical features, the AcuRite Projection Alarm Clock is priced at approximately $39.99.

Specifications

Unpacking Instructions

Remove the protective film that is applied to the LCD screen prior to using this product. Locate the tab and peel off to remove it.

Package Contents

1. Alarm clock
2. Outdoor sensor
3. Power adapter
4. Instruction Manual

Features & Benefits

OUTDOOR SENSOR

1. Integrated Hanger
   For easy placement.
2. Wireless Signal Indicator
   Flashes when data is being sent to the display.
3. Battery Compartment
4. A-B-C Switch
   ID code that must match the display’s A-B-C switch to ensure units synchronize.
5. Battery Compartment Cover

FRONT OF CLOCK

1. Button
   For turning the projector power on/off
2. 180ºButton
   For flipping projection orientation.
3. Snooze Button
4. Buttons
   For setup preferences.
5. Button
   Toggle between red or amber projection colors.
6.  Button
   Toggle between time, indoor temperature, or outdoor temperature.
7. Button
   For alarm setup.
8. Alarm ON/OFF Button
   BACK OF CLOCK
9. + Button
   Increase display brightness.
10.  A-B-C Switch
    ID code that must match the sensor’s A-B-C switch to ensure units synchronize.
11. ˚ C /˚ F Button
    Select degrees Celsius or degrees Fahrenheit temperature units.
12. ZONE Button
    Set time zone preference.
13. RESET Button
    Full reset to factory defaults.
14. — Button
    Decrease display brightness.
15. Battery Compartment
16. Plug-in for Power Adapter
17. USB Port
    For charging compatible smartphones.
18. Intelli-time
    Battery Compartment
19. Projector Focus Wheel
    Adjust the size and focus of the projected image.
20. Battery Compartment Cover
    (not shown)

Features & Benefits

1. Current Indoor Temperature
   The arrow icon indicates direction temperature is trending.
2. Intelli-Time Clock
   Pre-programmed to the correct time and automatically updates for Daylight Saving Time.
3. Day of Week
4. Moon Phase
5. Current Outdoor Temperature
   The arrow icon indicates direction temperature is trending.
6. Date
7. Alarm On/Off
8.  Alarm Set Time
9. Alarm Days Active
   Indicates daily alarm or weekday-only alarm setup.

Description

The Acurite Projection Alarm Clock 13026 boasts a sleek and modern design, making it a stylish addition to any bedroom. The clock's ability to project the time onto the ceiling or wall ensures that users can see the time without having to physically get out of bed. The backlit LCD display provides clear visibility, even in dark rooms. The built-in FM radio and USB charging port add to its functionality, making it more than just an alarm clock.

The device is user-friendly, with intuitive controls that allow for easy setup and operation. It also displays the indoor temperature, which is a useful feature for monitoring the room's climate.

OPERATION

Using the Alarm Clock

• Set Alarm Time
  1. Press and release the “ ” button to enter the ALARM SET MODE.
  2. To adjust the currently selected (flashing) item, press and release the“ ∧” or “ ∨” buttons (press and HOLD to fast adjust).
  3. To save your adjustments, press and release the “ ” button to adjust the next preference. The preference set order is as follows:
     • ALARM CLOCK HOUR
     • ALARM CLOCK MINUTE
     • ALARM EVERY DAY or WEEKDAY ONLY SELECTION
       You will automatically exit ALARM SET MODE if no buttons are pressed for 5 seconds. Enter setup mode at any time by pressing the “ ” button. 10′ X
• Momentary Backlight
  During power adapter use, press the Snooze button for momentary backlight at 100% brightness. During battery-powered use, press any button for a momentary backlight.

Moon Phase
Track the phases of the moon, conveyed through simple lunar phase icons.

USB Charging

Charge your mobile device by plugging your device’s USB power cord (not included) into the USB charging port on the back of the alarm clock. USB charging is only available during power adapter use; USB charging is not active when operating on battery power only.
Note: Follow the manufacturer’s instructions for your mobile device(s) to determine compatibility with the USB charging feature on this product. Some devices may not support  USB charging or may require a higher power rating than this product provides. Observe the charging status on your device. Ensure your device is working properly before attempting to charge.

Using The Projector

The projector can be rotated to project the time, indoor temperature, or outdoor temperature on a wall or on the ceiling.

• Press the projector power button “ ” to turn the projector ON/OFF.
• Press the “ 180 º ” button to flip the projection image 180º for use on a ceiling or wall.
• Press the “ “ button, located on the left side of the display, to select the information you want to be projected:

  • CURRENT TIME
  • INDOOR TEMPERATURE ( )
  • OUTDOOR TEMPERATURE ( )
• Press the color selection button () to choose between a RED or AMBER projection. If the projected information is hard to read or blurry, use the “FOCUS” dial on the back of the projector to make the projected image clearer.

NOTES:

• Do not stare into the projector lens directly!
• Do not touch the projector lens.
• Some rough surfaces will not display the projection clearly.

Display Backlight
Display backlight has 6 brightness levels: 100% (default), 70%, 50%, 30%, 10% and 5%. The backlight will be ON 100% intensity by default, you may adjust the backlight using the dimmer control buttons located on the back of the unit.

SETUP

Sensor Setup

1. Set the A-B-C Switch
   The A-B-C switch is located inside the battery compartment. It can be set to A, B or C. However, you must select the same letter choices for both the sensor and the display in order for the units to synchronize.
2. Install or Replace Batteries
   AcuRite recommends high quality alkaline or lithium batteries for the best product performance. Heavy duty or rechargeable batteries are not recommended. The sensor requires lithium batteries in low-temperature conditions. Cold temperatures can cause alkaline batteries to function improperly. Use lithium batteries in the sensor for temperatures below -4ºF / -20ºC.
   1. Slide off the battery compartment cover. Take note of the A-B-C switch setting inside the battery compartment for display setup.
   2. Insert 2 x AA batteries into the battery compartment, as shown. Follow the polarity (+/-) diagram in the battery compartment.
   3. Replace the battery cover.

Alarm Clock Setup

1. Set the A-B-C Switch
   Locate the A-B-C switch inside the battery compartment. Set the A-B-C switch to A, B, or C. You must select the same letter choices for both the display and the sensor in order for the units to synchronize.
2. Plug-in Power Adapter
   For the best performance, plug in the power adapter as the main power source for this product.
3. Install or Replace Backup Batteries (optional)
   1. Remove the battery compartment cover.
   2. Insert 3 x AA alkaline batteries into the battery compartment, as shown.
      Follow the polarity (+/-) diagram in the battery compartment.
   3. Replace the battery cover.

IMPORTANT: Batteries are a backup power source to preserve records in the event of a power outage. Power adapter recommended as the primary power source to enjoy the full functionality of the product.

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY

1. Clean the battery contacts and also those of the device prior to battery installation.
2. Remove batteries from equipment that is not to be used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment.
3. Promptly remove dead batteries from the device. Dispose of used batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries.
4. DO NOT dispose of batteries in free, as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard).
5. DO NOT use rechargeable batteries. DO NOT recharge non-rechargeable batteries. DO NOT short-circuit the supply terminals.

Intelli-Time Clock
Intelli-Time clock and calendar are pre-programmed to the correct time and date and update automatically for Daylight Saving Time. All you need to do is select your time zone using the “ZONE” button.
Set the Time, Date & Language
Press and hold the “ ” button, located on the right side of the display, to enter SET MODE. Once in set mode, the preference you are currently setting will blink on the display.  To adjust the currently selected (flashing) item, press and release the “ ∧” or “ ∨” buttons (press and HOLD to fast adjust).
To save your adjustments, press and release the “ ” button to adjust the next preference. The preference set order is as follows:
LANGUAGE (English or French)
TIME ZONE (PST MST CST EST AST HAST AKST)
AUTO DST (ON or OFF)*
CLOCK HOUR
CLOCK MINUTE
CALENDAR MONTH
CALENDAR DATE
CALENDAR YEAR
You will automatically exit SET MODE if no buttons are pressed for 5 seconds.
Enter setup mode at any time by pressing the “ ” button.
*If you live in an area that observes Daylight Savings Time, DST should be set to ON, even if it is not currently Daylight Saving Time.

Manual Clock Quick-Adjust

• Self-timed clocks may drift by a few minutes overtime. You can adjust the time using the “Quick Adjust” feature.
• To access “Quick Adjust” mode, press AND HOLD the “ ∧” or “ ∨” buttons for at least 8 seconds. The minutes will flash to indicate they can be adjusted.
• Press the “ ∧” or “ ∨” buttons to adjust the minutes. After 3 seconds of inactivity, any adjustments will be saved and the clock will return to normal operation.

Placement for Maximum Accuracy

AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display and outdoor sensor are critical to the accuracy and performance of this product.
Alarm Clock Placement
Place alarm clock in a dry area free of dirt and dust. To help ensure an accurate indoor temperature measurement, be sure to place the display away from heat sources or vents.
Outdoor Sensor Placement
The sensor must be placed outside to observe outdoor conditions. The sensor is water-resistant and is designed for general outdoor use, however, to extend its life place the sensor in an area protected from direct weather elements. Hang the sensor using the integrated hang holes or hanger, or by using string (not included) to hang it from a suitable location, like a well-covered tree branch. The best location is 4 to 8 feet above the ground with permanent shade and plenty of fresh air to circulate around the sensor.

Important Placement Guidelines

• To ensure accurate temperature measurement, place units out of direct sunlight and away from any heat sources or vents.
• Display and outdoor sensors must be within 330 ft (100 m) of each other.
• To maximize wireless range, place units away from large metallic items, thick walls, metal surfaces, or other objects that may limit wireless communication.
• To prevent wireless interference, place both units at least 3 ft (.9 m) away from electronic devices (TV, computer, microwave, radio, etc.).

Setup is Complete
The sensor will now synchronize with the alarm clock. It may take a few minutes for synchronization to complete.

If your AcuRite product does not operate properly after trying the troubleshooting steps, visit www.AcuRite.com or call 877-221-1252 for assistance.

Care & Maintenance

• Alarm Clock Care
  Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away from dust, dirt, and moisture. Clean ventilation ports regularly with a gentle puff of air.
• Outdoor Sensor Care
  Clean with a soft damp cloth. Do not use caustic cleaners or abrasives.

Replace Intelli-Time Clock Battery

Intelli-Time technology is powered by a pre-installed coin-cell battery that stores the time and date settings. The battery has a shelf life of several years. Time and date will need to be entered after replacing the Intelli-Time battery. To replace the Intelli-Time battery:

1. Locate the coin cell battery compartment door on the back of the display. Unscrew and remove the compartment cover.
2. Insert 1 x CR2032 coin cell battery into the battery compartment, as shown. Install battery with “+” positive terminal facing OUT.
3. Screw in the battery cover.

Troubleshooting

No outdoor sensor reception no bars	If the wireless signal indicator shows no bars: •Relocate the display and/or the outdoor sensor. The units must be within 330 ft (100 m) of  each other. •Make sure both units are placed at least 3 feet (.9 m) away from electronics that may interfere with the wireless communication (such as TVs, microwaves, computers, etc). •Use standard alkaline batteries (or lithium batteries in the sensor when the temperature is below -4°F/-20°C). Do not use heavy-duty or rechargeable batteries. NOTE: It may take up to 20 minutes for the display and sensor to synchronize after batteries are replaced.
Alarm dock display seems dark or hard to read	•Verify power adapter is plugged in. •Increase brightness using +/- buttons, located on the back of the clock. •The optimum viewing angle for this product is from slightly above it.
Alarm dock screen not working	•Check that the batteries are installed correctly. Batteries may need to be replaced. •Reset the display by pressing the RESET button, located in the battery compartment of the alarm clock. Time and date will need to be entered after a reset.
Inaccurate temperature	•Make sure both the display and sensor are placed out of direct sunlight and away from any heat sources or vents (see page 8).
Outdoor temperature is flashing or showing dashes	Flashing of the outdoor temperature is generally an indication of wireless interference. 1. Bring both the sensor and display indoors and power down both units. 2. Make sure the A-B-C switch on both units matches. 3. Power up the outdoor sensor. 4. Power up the display. 5. Let the units sit within a couple of feet of each other for about 5 minutes to gain a strong connection.

One Year Warranty

At AcuRite, we proudly uphold our commitment to quality technology. Chaney Instrument Co. warrants that all products it manufactures to be of good material and workmanship and to be free of defects when properly installed and operated for a period of one year from the date of purchase. We recommend that you visit us at http://www.acurite.com/  for the fastest way to register your product. However, product registration does not eliminate the need to retain your original proof of purchase in order to obtain warranty benefits.
Chaney Instrument Co. warrants that all products it manufactures to be of good material and workmanship and to be free of defects when properly installed and operated for a  period of one year from the date of purchase. Remedy for breach of this warranty is limited to repair or replacement of the defective item(s). Any product which, under normal use and service, is proven to breach the warranty contained herein within ONE YEAR from date of sale will, upon examination by Chaney,  and at its sole option, be repaired or replaced by Chaney. Transportation costs and charges for returned goods shall be paid for by the purchaser.

Acurite Projection Alarm Clock 13026 Pros & Cons

Pros

• Clear projection display on ceiling or wall.
• Convenient USB charging port.
• Backlit LCD display for night-time visibility.
• Indoor temperature display.
• Multiple alarm settings and FM radio.

Cons

• Some users find the projection angle adjustment tricky.
• The FM radio reception can be weak in certain areas.
• No Bluetooth connectivity for streaming music.

Customer Reviews

Customers generally praise the Acurite Projection Alarm Clock 13026 for its ease of use and innovative projection feature. However, some users have reported minor issues with FM radio reception and the projection angle adjustment. Overall, it is considered a reliable and practical alarm clock for bedroom use.

Common Complaints

• Weak FM radio signal in some areas.
• Difficulties adjusting the projection angle.
• No Bluetooth connectivity for music streaming.
