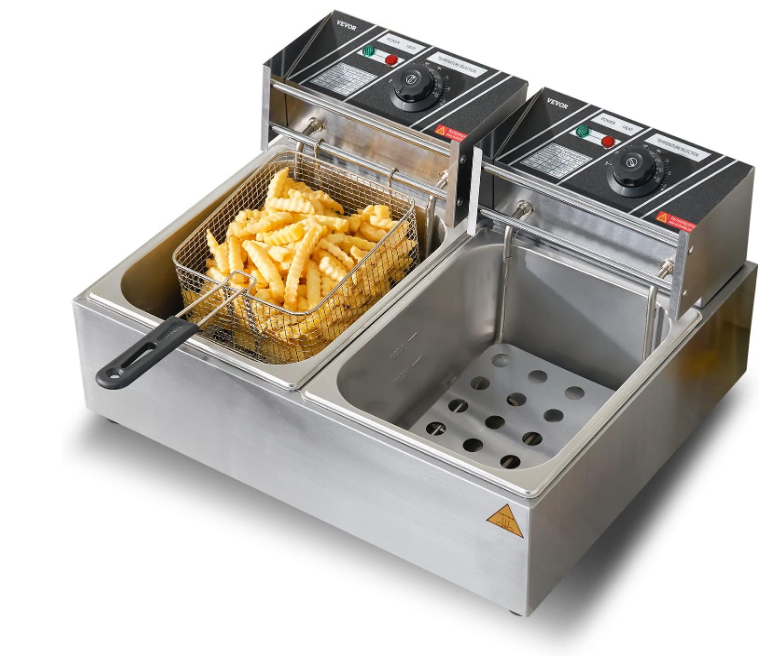

Adcraft Electric Fries Machine DF-6L2

For high-volume frying requirements, Adcraft Electric Fries Machine DF-6L2 is a commercial-grade deep fryer. This fryer is perfect for food service organizations and restaurants because of its sturdy construction and effective heating elements. It has a high capacity that allows you to fry a lot of fries, chicken, or other food at once. With its easy-to-clean design and dependable performance, the DF-6L2 is a durable and dependable appliance for busy kitchen environments.

Parts List

120V Deep Fryer - DF-6L, DF-GL/2

CIRCUIT DIAGRAM

• SI - Micro-switch
• SA - Overheat switch
• EH - Healer element
• HL I - Power-<>n indicator
• HL 2 - Heater-<>n cycling indicator
• SB - Temperature reg11lator
• E - Ground Connection

NOTE: THE CIRCUITS OF THE TWO FRYERS ARE IDENTICAL. THE DIFFERENCE IS THKf THE TWO TANK FRYER HAS TWO SEPARKfE ELECTRICAL UNIT BOXES AND RECEPTICLES.

Detailed Specifications

Several top-notch characteristics of the Adcraft Electric Fries Machine DF-6L2 include:

• 6-liter capacity to prepare big quantities of food
• Temperature control with adjustable settings between 175°F and 375°F
• A digital timer that shuts off automatically
• Cool-touch exterior and handle for secure handling
• The oil tank and basket are detachable and dishwasher safe for simple maintenance.
• Oil filtration system for better flavor and longer oil life
• For more stability, use non-slip feet
• Preheating and power indicator lights
• Overheat safeguard for increased security

FEATURES

1. These fryers are available in 2 different models. One is an I-tank fryer (DF-6L); another is a 2-tank fryer (DF-6L/2). The 2-tank fryer can fry two different kinds of foods at the same time.
2. The oil temperature is regulated by the temperature regulator and includes a yellow (hot light) which cycles on and off to indicate when the desired temperature has been reached.
3. The automatic shut-off feature cuts power to the unit when the oil has reached 446°F (the maximum allowable temperature).
4. There is an automatic micro-switch on the bottom of the unit head. This cuts power to the unit if the head has been separated from the base of the unit without the power switch turned off or the power cord unplugged.
5. The stainless steel tank is removable for easy cleaning. It also has calibration marks for filling with oil.
6. The heating coils are protected by a stainless steel panel base at the bottom of the unit.

WARNINGS

• Do not touch any hot surfaces
• Do not immerse the unit, cord,, or plug-inn liquid at any time
• Unplug the cord from the outlet when not in use and before cleaning
• It is recommended that the fryer not be moved when it contains hot oil or any other hot liquid
• Do not use this unit for anything other than the intended use
• Do not use outdoors
• Always cook on a finn, dry,, and level surface
• High temperature will cause scalding. Do not stand over the fryer ·when operating and do not touch any part of the machine while in operation, other than the handle of the basket and power controls
• Do not use the unit with a damaged cord or plug, in the event the appliance malfunctions, or has been damaged in any manner
• Keep children and animals away from the fryer
• Any incorrect installation, alterations, adjustments,, and/or improper maintenance can lead to property loss and injury. All repairs should be done by autl1orized professionals only
• Keep all flammable and combustible materials away from this unit
• This machine must be placed on a level surface
• The volume of food should be Ii1nited to avoid overflowing
• Foods that do not absorb oil easily should be limited to avoid overflow
• Use caution when placing large foods in the fryer
• When transporting the unit, the tl1e machine should be handled carefully, and held by the side handles

HOW TO USE

1. Make sure the tl1e power supply you are using is adequate for continual fryer use and voltage is adequate. The use of a surge protector or circuit breaker is advisable.
2. Make sure that the temperature regulator knob is set to the off position
3. Remove the basket from the machine.
4. Fill the oil receptacle with vegetable oil somewhere between the minimum and maximum levels, allowing room for food volume.
5. Plug the machine in.
6. A green "Power Light" will come on. Rotate the temperature regulator knob clockwise to the desired temperature. When the desired temperature has been reached, the yellow "Hot Light" will turn off and cycle, and the temperature controller will maintain the temperature automatically.
7. Load food into the basket, and carefully place the loaded basket into the machine to avoid splash.
8. Gently shake off excess oil from food when removing it from the tank after frying.
9. The enclosed frying basket is intended to hold small foods such as French fries and onion rings. Large food can be placed directly into the basket or oil tank.

Setup Guide

The Adcraft Electric Fries Machine DF-6L2 is simple and quick to set up. Just take these actions:

1. Before using, take off the fryer's oil tank and basket and give them a thorough cleaning.
2. Choose your favorite cooking oil and fill the oil tank, being careful not to fill it over the maximum fill line.
3. After replacing the basket and oil tank, turn on the fryer.
4. To adjust the cooking time and temperature, use the digital dials.
5. When the oil reaches the proper temperature, carefully add your food using the basket, being cautious not to pack it too full.
6. Cook the food for the allotted amount of time, stirring now and again to ensure equal cooking.
7. Use the basket to remove the food when the cooking time is complete, and before serving, let any extra oil drain out.

CLEANING

After fryer usage, turn the power controller counterclockwise to the tl1e "OFF" position and remove the plug from the power supply. Wait for the oil to fully cool down before removing the tank from the outer case. The procedure is as follows:

1. Carefully remove the unit head from the box and place it in a safe dry place.
2. Lift out the tank and carefully dispose of the oil
3. Gently wash the oil tank with soap and water. Dry completely and place back on the machine

For best results, cover the fryer when the oil is cool and not in use. This will keep unwanted debris from falling into the oil. For best results, always use fresh vegetable oil with each use. It is recommended that you inspect the unit before each use to check that the power cord is not frayed or damaged in any way.

WARNINGS

• Do not touch any hot surfaces
• Do not immerse the unit, cord,, or plug-in liquid at any time
• Unplug the cord from the outlet when not in use and before cleaning
• It is recommended that the fryer not be moved when it contains hot oil or any other hot liquid
• Do not use this unit for anything other than the intended use
• Do not use outdoors
• Always cook on a finn, dry,, and level surface
• High temperature will cause scalding. Do not stand over the fryer ·when operating and do not touch any part of the machine while in operation, other than the handle of the basket and power controls
• Do not use the unit with a damaged cord or plug, in the event the appliance malfunctions, or has been damaged in any manner
• Keep children and animals away from the fryer
• Any incorrect installation, alterations, adjustments,, and/or improper maintenance can lead to property loss and injury. All repairs should be done by autl1orized professionals only
• Keep all flammable and combustible materials away from this unit
• This machine must be placed on a level surface
• The volume of food should be Ii1nited to avoid overflowing
• Foods that do not absorb oil easily should be limited to avoid overflow
• Use caution when placing large foods in the fryer
• When transporting the unit, the tl1e machine should be handled carefully, and held by the side handles

Troubleshooting

The plug

The troubles listed are for reference. If any fault occurs, please discontinue use. Do not attempt to repair yourself. This will void the warranty.

TO RESET: Located on the back of the flyer head, it will read ‘reset’

1. With the unit unplugged and fully cooled off, unscrew the know to expo export button



2. Press the red button in to reset



Pros & Cons

Pros

• Large 6-liter capacity
• Adjustable temperature control
• Digital timer with automatic shut-off
• Removable, dishwasher-safe oil tank and basket
• Oil filtration system for extended oil life
• Cool-touch handle and exterior
• Indicator lights and overheat protection
• Non-slip feet for added stability

Cons

• May be too large for some kitchens
• Can be expensive for some users
• May produce strong odors when in use
• Requires regular cleaning and maintenance

Customer Reviews:

"I adore this fryer so much! Its vast capacity and ease of use make it ideal for preparing large quantities of food for events and get-togethers. The oil filtering technology is revolutionary and simplifies cleanup. Strongly advised!" - Sarah J.
Although a little costly, this fryer is well worth the money. It is really simple to prepare a range of items to perfection thanks to the digital timer and adjustable temperature control. A pleasant addition and additional safety measure is the cool-touch exterior. All in all, a fantastic purchase for any kitchen." - John D.
"Since I've owned this fryer for a few months, it has truly saved my life. You can fry up large quantities of fries and chicken without worrying about needing to change the oil all the time thanks to the enormous capacity and oil filtration system. The only drawback is that it occasionally makes a lot of noise when operating, but the quality and convenience make up for it." - Emily L.

Most Common Complaints

Although reviews for the Adcraft Electric Fries Machine DF-6L2 have been largely positive, a few consumers have complained about the following:

1. Costly pricing range
2. Powerful smells while in usage
3. Requires routine upkeep and cleaning
4. Perhaps too big for certain kitchens

ACE Electrical Equipment One-Year Warranty

ACE Electrical Equipment is warranted for one year, effective from the date of purchase by the original owner. A copy of the original receipt, or other proof of purchase is required to obtain warranty coverage.

Should any product fail to function in its intended manner under normal use within the limits defined in this warranty, at ACE's discretion, such product will be repaired, replaced with a refurbished unit, or replaced with a new unit by ACE, after the defective unit has been inspected and the defect has been confirmed. ACE does not assume any liability for ended delays in replacing any item beyond its control. This warranty does not apply to member and non-metallic synthetic parts where usage, wear, or lack of preventative maintenance may create abnormal replacement rates, and these parts are excluded from this limited warranty.
