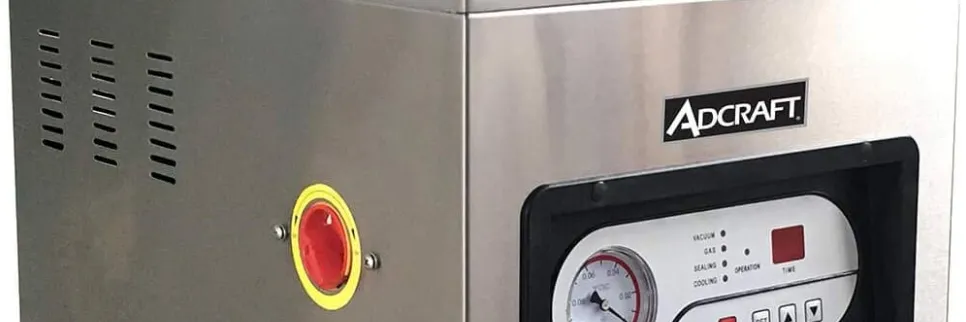

How to Use: Adcraft Vacuum Packaging Machine VS-300 User Manual

cover-image

Content


Introduction of Adcraft Vacuum Packaging Machine VS-300

The Adcraft Vacuum Packaging Machine is a powerful, efficient, and versatile machine designed to meet the needs of businesses and individuals who require reliable vacuum packaging solutions. With its advanced features and user-friendly interface, the Adcraft Vacuum Packaging Machine VS-300 is an ideal choice for those who want to preserve their food, extend its shelf life, and reduce waste. The estimated price of the VS-300 is around $700 to $800, and it was launched in the market in 2021.

Detailed Specifications of Adcraft Vacuum Packaging Machine

The Vacuum Packaging Machine VS-300 comes with the following key features

  • Chamber size: 11.4 x 13.8 x 5.1 inches
  • Motor power: 1/4 HP
  • Voltage: 110V/60Hz
  • Sealing time: automatic
  • Sealing bar: 12.5 inches
  • Weight: 28.8 pounds
  • Vacuum level: 23-26 Hg
  • Operating temperature: 32-158°F
  • Warranty: 1 year

FEATURES OF Vacuum Packaging Machine VS-300

  1. Seal Pad
  2. Lid Gasket
  3. Power Switch
  4. Vacuum Chamber
  5. Filler Plates
  6. Seal Bar
  7. Lid Lock
  8. Control Panel

Control Panel Of Machine VS-300

  1. Vacuum Gauge: Indicates the vacuum level inside the chamber.
    Function Lights
    • Vacuum: Illuminates to adjust vacuum time as well as during the vacuum process.  During set up, adjust the vacuum time using the UP/DOWN buttons.
    • Sealing: Illuminates to adjust vacuum time as well as during the sealing process.During set up, adjust the sealing time using the UP/DOWN buttons.
    • Cooling - Illuminates to adjust vacuum time as well as during the cooling process. During set up, adjust the cooling using the UP/DOWN buttons.
  2. Working Indicator Light: Illuminates to indicate the machine is in use.
  3. LED Screen (Time): Displays current function to cycle time, measured in seconds.
  4. STOP Button: Press to stop the cycle and immediately seal the pouch.  This button will only work when the machine is in the vacuum process.
  5. SET Button: Press to select the vacuum time, sealing time or cooling time.  Use with the UP/DOWN buttons.
  6. UP/DOWN Buttons: Press to increase or decrease vacuum time, sealing time or cooling time.

Adding Oil to the Vacuum Machine
NOTE: OIL MUST BE ADDED TO THE MACHINE PRIOR TO USE.  MAKE SURE THE UNIT IS TURNED OFF AND UNPLUGGED BEFORE ADDING OIL.

  1. Prepare the oil: Fill the empty oil bottle with the oil that comes with the machine.
  2. Remove the back panel: Using a Phillips head screwdriver, remove the four screws from the back panel and take the panel off the machine.
  3. Remove the oil fill bolt: Locate the oil fill bolt on the vacuum pump and remove it using an adjustable wrench or simular tool.
  4. Fill the pump with oil: Insert the spout inot the open hole and begin pouring the oil into the pump.  Fill the pump until the oil level is at 1/2 to 3/4 in the site glass.  This is approximately 3 - 3 1/2 ounces of oil.
  5. Replace the oil fill bolt and back panel: Once the pump is filled with oil, screw the oil fill bolt back in place and put the back of the panel on the machine.

Starting Up the Vacuum Machine

  1. Attach the power cord and plug the machine in.
  2. Open the lid
  3. Turn the power switch on - red power switch is located on the left side of the unit.  Once turned on an indicator symbol with show on the control panel.

Adjusting the Timing Controls

NOTE: All timing adjustments must be made with the lid lock off and the lid open.
To adjust or set the timing controls, press the SET button on the control panel until the required label (Vacuum, Sealing or Cooling) is illuminated.  For each selection, the current time setting will show on the LED screen.  All time settings are dsplayed in seconds.
For initial testing, the time settings should be

  • Vacuum time - 40 seconds
  • Sealing time - 1.2 seconds
  • Cooling time - 2 seconds

Vacuum Time: To increase or decrease the vacuum time, press the SET button until VACCUM is illuminated and then use the UP/DOWN buttons to adjust the vacuum time accordingly.  The time setting will display on the LED screen on the control panel.
NOTE: filler plates can be used to reduce the vacuum time required.  Place the filler plates inside the chamber as desired.
Sealing Time: To increase or decrease the sealing time, press the SET button until SEALING is illuminated and then use the UP/DOWN buttons to adjust the sealing time to accommodate your application.  It is recommended that you make adjustments in 0.1 second increments to avoid melting the pouch.
Note: for thicker pouches, you should increase the seal time in 0.1 increments until the pouch seals completely.  For thinner pouches, decrease the seal time in 0.1 increments to avoid over-sealing the pouch
Cooling Time: To increase or decrease the cooling time, press the SET button until COOLING is il-luminated and then use the UP/DOWN buttons to adjust the cooling time accordingly.
NOTE: to prolong the life of your seal bar, set the cooling time to twice the sealing time.


Detailed Description of Adcraft Vacuum Packaging Machine VS-300

The Vacuum Packaging Machine is a high-quality chamber vacuum sealer that can handle a wide variety of food products, from solid to liquid, and from small to large. Its compact size and lightweight design make it an excellent option for those who have limited space in their kitchen or workspace. The Adcraft Vacuum Packaging Machine VS-300 features a digital control panel that allows users to set the vacuum level, sealing time, and operation mode easily. It also has a built-in cooling system that prevents overheating and prolongs the lifespan of the machine. The VS-300 is easy to clean and maintain, with a removable sealing bar and a transparent acrylic lid that provides a clear view of the sealing process.

WARNING

  • Do not touch any hot surfaces
  • Plug only into a 3-hole grounded electrical outlet of the appropriate voltage
  • Do not immerse unit, cord or plug in liquid at any time
  • Unplug cord from outlet when not in use and before cleaning
  • Do not operate unattended
  • Do not use this unit for anything other than intended use
  • Do not use outdoors
  • Always use on a firm, dry and level surface away from any heat sources
  • Do not use if unit has a damaged cord or plug, in the event the appliance malfunctions, or has been damaged in any manner
  • Keep children and animals away from unit
  • Any incorrect installation, alterations, adjustments and/or improper maintenance can lead to property loss and injury.  All repairs should be done by authorized professionals only.

IMPORTANT TIPS

  • Vacuum packaging is not a substitute for canning.  All perishables still need to be refrigerated or frozen
  • Follow all food safety regulations as outlined by the FDA at www.FDA.gov
  • Some fruits and vegetables may release gases which is known as outgassing.  When packaging these fruits and vegetables, outgassing can cause the vacuum to be gradually lost over time.  Blanching or freezing before vacuum packaging helps prevent this from occuring.
  • Delicate foods can be frozen prior to packaging to protect them from getting crushed by the vacuum,
  • Allow foods and liquids to cool before vacuum packaging
  • Avoid overfilling the pouch by leaving a minimum of 3” of space between the contents and the open end of the pouch.  This will prevent spills during the vacuum sealing process.
  • To prevent wrinkles from forming in the seal, gently strech the pouch flat along the seal bar before closing the lid

Replacement Parts for the Adcraft Vacuum Packaging Machine VS-300


Troubleshooting of Vacuum Packaging Machine VS-300

Here are some common problems and solutions for the Adcraft Vacuum Packaging Machine

ProblemPossible CausesSolution
Power light is on but the unit is not getting hot when you turn the thermostat upIt’s either a defective thermostat or a burnt out heating elementReplace the broken part
Temperature keeps rising on its ownThe thermostat is malfunctioningReplace the thermostat
Power is connected, heat is working but the indicator light is not onThe indicator light is defectiveReplace the indicator light
Unit is plugged in but no indicator light or heat is workingThe electrical connection is not connected well or the fuse is blownCheck the electrical connection to ensure it’s connected properly. Replace the fuse if it’s blown.
  • Problem: The machine does not start.
  • Solution: Check the power cord and make sure it is plugged in properly. Also, check the fuse or circuit breaker.
  • Problem: The vacuum level is too high or too low.
  • Solution: Adjust the vacuum level setting on the control panel. If the problem persists, check the intake valve and filter for any obstructions.
  • Problem: The sealing bar does not seal properly.
  • Solution: Clean the sealing bar and the heating element with a damp cloth. Also, make sure the sealing pressure is set correctly.

Adcraft Vacuum Packaging Machine VS-300  Warranty

ACE Equipment One Year Limited Warranty Admiral Cruft Equipment Corp. (ACE) warrants it equipment against defect in raptor inks and workmanship, sudgiect to the following conditions
ACE Equipment is traced for one year, effective from the date of purchase by the original longer. A copy of the miginal receipt or other proof of purchase is required to obtain warranty coverage. This warranty applies to the original owner only, and is not assignable Should any product fail to function in its intended manner under normal use within the limits defined in this warranty, at ACE's discretion, such product will be repaired, replaced with a refurbished unit, or replaced with a new unit by ACE, after the defective unit has been inspected and the defect has been confirmed. ACE does not assume any liability for extended delays in replacing any item beyond its control. This warranty does not apply to rubber and non-metallic synthetic parts that may need to be replaced due to normal usage, wear, or lack of preventative maintenance.

Pros & Cons of Adcraft Vacuum Packaging Machine VS-300

Pros

  • Compact and lightweight design
  • User-friendly interface
  • Versatile and efficient
  • Built-in cooling system
  • Removable sealing bar and transparent lid

Cons

  • Higher price point compared to some other models
  • May not be suitable for heavy-duty use

Customer Reviews about Adcraft Vacuum Packaging Machine VS-300

Customers who have used the Vacuum Packaging Machine VS-300 have generally given it positive reviews, praising its ease of use, efficiency, and versatility. Some common complaints include the high price point and the need for frequent filter changes. Overall, the Adcraft Vacuum Packaging Machine VS-300 is a solid choice for those who require a reliable and efficient vacuum packaging solution.

Faqs

The Adcraft Vacuum Packaging Machine VS-300: What is it?

Commercial-grade vacuum sealers like the Adcraft Vacuum Packaging Machine VS-300 are made to remove air from packages and create an airtight seal, which helps to preserve food. This procedure increases product shelf life, which makes it a necessary tool for food retailers, caterers, and eateries.

How should I use the Adcraft VS-300 vacuum packaging machine?

First, prepare the bag by placing your food item inside and ensuring sure the opening is large enough. Press the start button, shut the lid firmly, and place the bag's open end over the sealing bar. After the air is expelled, the bag will be sealed by the machine. The sealing operation is finished when the sealing indicator light goes out.

Can I use the Adcraft VS-300 to vacuum seal liquids?

For foods that are solid or semi-solid, the Adcraft Vacuum Packaging Machine VS-300 is ideal. It's recommended to freeze liquids beforehand or use a chamber vacuum sealer made especially for handling liquids.

What upkeep is necessary for the Adcraft Vacuum Packaging Machine VS-300 to operate at its best?

Cleaning the Adcraft Vacuum Packaging Machine VS-300 chamber and sealing bar after every use, inspecting the silicone seal for wear, and making sure the vacuum pump is free of debris are all part of routine maintenance. Comprehensive maintenance instructions are included in the user manual.

If the VS-300 isn't vacuum sealing properly, how can I troubleshoot it?

First, make sure the bag is in the proper position and that the lid is securely closed. Make sure the bag is not too full and is appropriate for vacuum sealing. If the machine is still not vacuuming, contact Adcraft's customer care or refer to the handbook for specific troubleshooting instructions.

Can sous vide meals be prepared using the Adcraft VS-300?

Adcraft VS-300-made vacuum-sealed bags work well for sous vide cooking, which lets you cook food in a water bath at exact temperatures.

How can I change the Adcraft VS-300's sealing wire?

Remove the sealing bar cover, unplug the machine from the power source, and gently reinstall the sealing wire. It is advised to seek professional advice or to adhere to the detailed instructions provided in the user manual.

When using the Adcraft Vacuum Sealer, what kind of bags should I use?

To guarantee a good seal with the Adcraft Vacuum Packaging Machine VS-300, use textured or embossed vacuum seal bags made for external vacuum sealers.

How should the Adcraft VS-300's vacuum chamber be cleaned?

After unplugging the Adcraft Vacuum Packaging Machine VS-300, clean the chamber with a moist towel. Abrasive cleansers and immersing the machine in water should be avoided. Use a mild detergent diluted with water to get rid of tough residues. Prior to using the machine once more, confirm that the chamber is dry.

What kind of warranty is offered for the VS-300 Adcraft Vacuum Packaging Machine?

For this equipment, Adcraft Vacuum Packaging Machine VS-300 normally provides a one-year warranty that covers labor and components related to manufacture defects.
