Aluratek Digital Photo Frame Touch Screen ADMPF310F

The Aluratek Digital Photo Frame Touch Screen ADMPF310F is a revolutionary device that allows you to display your favorite photos and memories in a modern and convenient way. With its high-resolution LCD display and WiFi connectivity, you can easily access and display your photos from various sources, such as social media platforms, cloud storage, and USB drives. The estimated price of this product is around $150, and it is now available for purchase.

Package Contents

Your order has been carefully packaged and inspected. The following accessories should be included in your package. Please inspect the contents of the package to ensure that you have received all items and that nothing has been damaged. If you discover a problem, please contact us immediately for assistance.

• USB 2.0 Cable

• Power Adapter

• Frame Stand

• Instructional Manual

• Quick Start Guide

Detailed Specifications

• High-resolution 10.1-inch LCD display with IPS technology
• WiFi connectivity for accessing and displaying photos from various sources
• Support for major photo formats, including JPEG, PNG, and BMP
• Built-in USB port for importing and displaying photos from USB drives
• Easy-to-use touch screen interface
• Motion sensor for automatic power on/off
• Customizable display options, including slideshow, zoom, and rotation
• Remote control for convenient operation

Getting Started

• Screw in the frame stand

• Plug in the power adapter

• Power On: Connect your WiFi Frame to an AC outlet. The photo frame will power on

• Connect to your WiFi

  1. Select the WiFi connection utilizing the photo frame touch screen display. (if required, enter the WiFi password)

  2. “Connected” will appear below your selected WiFi network.

  3. Press the arrow in the upper right corner to move to the next step

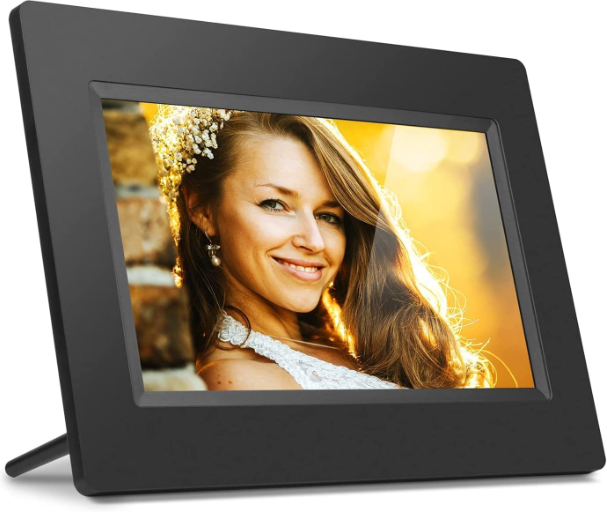

Frame Features: 7” Frame

1. 7” IPS LCD Touchscreen Frame

2. SD/SDHC Card Slot

3. Power Adapter Port

4. USB 2.0 Ports

5. Menu Button

6. Directional Keypad

7. Power Button

8. Wall Mount Hole

9. Speakers

10. Security Lock

11. Frame Stand

Connect a USB hard drive, USB flash drive or SD/SDHC card to easily access and share your favorite pictures, music, or videos. Transfer and store files quickly and easily to the frame’s 8GB built-in memory.

Frame Features: 8” / 10” Frame

1. 8” / 10” IPS LCD Touchscreen Frame

2. SD/SDHC Card Slot

3. Power Adapter Port

4. USB 2.0 Ports

5. Menu Button

6. Directional Keypad

7. Power Button

8. Wall Mount Hole

9. Speakers

10. Security Lock

11. Frame Stand

Connect a USB hard drive, USB flash drive or SD/SDHC card to easily access and share your favorite pictures, music, or videos. Transfer and store files quickly and easily to the frame’s 16GB built-in memory.

Frame Features: 15.6” / 17.3” Frame

1. 15.6” / 17.3” IPS LCD Touchscreen Frame

2. Power Button

3. Wall Mount

4. Speakers

5. SD/SDHC Card Slot

6. Headphone Jack

7. Power Adapter

8. Mini USB Port

9. USB 2.0 Port

10. Security Lock

11. Frame Stand

12. Wall / VESA Mount

Connect a USB hard drive, USB flash drive or SD/SDHC card to easily access and share your favorite pictures, music, or videos. Transfer and store files quickly and easily to the frame’s 16GB built-in memory.

7” / 8” / 10” Frame Control Close-Up

1. Power On / Off

2. Menu

   • (a) Press to return to previous screen

   • (b) Press & hold to return to Main Menu

3. ►║ Play / Pause

   • (a) Press to select option on Main Menu

   • (b) Press to pause slideshow, music or video

4. |◄◄ Up Arrow

   • (a) Press to navigate UP when selecting options

   • (b) Press to select Previous file (Photo & Music mode)

   • (c) Press & hold to Fast Forward

5. ►►| Down Arrow

   • (a) Press to navigate DOWN when selecting options

   • (b) Press to select Next file (Photo & Music mode)

   • (c) Press & hold to Scan Backward

6. Volume Up

   • (a) Press & hold to increase volume

7. Volume Down

   • (a) Press & hold to decrease volume

Detailed Description

The Aluratek Digital Photo Frame Touch Screen ADMPF310F is a stylish and functional device that lets you enjoy your favorite photos and memories in a modern and convenient way. With its high-resolution LCD display and WiFi connectivity, you can easily access and display your photos from various sources, such as social media platforms, cloud storage, and USB drives. The built-in USB port allows you to import and display photos from USB drives, and the customizable display options let you choose how you want to view your photos, including slideshow, zoom, and rotation.

The Aluratek Digital Photo Frame Touch Screen ADMPF310F also features a motion sensor that automatically turns on the display when it detects movement and turns it off when there is no movement, saving energy and prolonging the life of the device. The easy-to-use touch screen interface and remote control make it easy to operate, and the sleek and modern design makes it a great addition to any room in your home or office.

Operating Instructions

Download the ‘Aluratek Smart Frame” APP to your Smartphone / Tablet

1. Go to the App store on your Apple or Android device and search for “Aluratek Smart Frame” then install and open. (Image 1 & 2)
   NOTE: Make certain you download “Aluratek Smart Frame” and not “Aluratek WIFI Frame”

2. Tap “Complete” on the device info screen



Creating Your Account in the APP

1. Open the “Aluratek Smart Frame” APP (Allow notifications if prompted)

2. Select “Sign Up” (Image 3)

3. Create “Username” “Password” (write this down as you will need it later)

4. Enter your email address then press the “right arrow icon” next to the email address you entered (Image 4 & 5)

5. Check your email for the verification code and enter it in the “Verify Code” field then click “Submit”.



Bind Your Frame

1. Make sure you are signed in within the APP

2. Select “Devices” within the APP

3. Click the “+” next to My Devices (Image 6)

4. Enter a device Name that will help you identify this particular frame.

5. Create a unique email address name for your frame so you can email pictures/ videos.
   Tip: Make it unique using 6 or more characters including letters, numbers, and symbols. (Image 7)

6. Enter your frame ID - this is found on your WiFi frame by selecting “Settings” the “Device info”. See “Frame ID:” xxxxxx at the top of the screen. (Image 8)

7. Enter your unique “Frame ID” into the field on the app. Your frame will notify you that a request has been sent to allow a user to bind to it. Touch “Accept” to bind.

8. On your digital frame go to “Settings” the “User Management” to see “Pending User Request” and touch “Accept”.

9. Your phone and frame are now connected!



Send Pictures from your Smartphone / Tablet to the frame using the Aluratek Smart Frame APP

1. Select the photo or video icon within the APP to take a live photo / video. If prompted to access the camera, please “Allow” access.

2. Select the “Files” icon to send a photo or video previously saved to your smartphone / tablet. Select the files you would like to send then click done. (Image 9)

3. Under “Push Device” Select the frame that you would like to send the files to. (Image 10)

4. Select the right arrow (send mail) icon to send.(Image 10)



Enjoy Your Photos!

1. On the main screen on your photo frame - select the photos in the upper left box

2. Use the menu on the left to select the source for your photos - typically, that is “ALL”

3. Tap a photo in the right column to start enjoying your photos.

Enable the Email to Frame Feature

1. Verify / enable your newly created email to the frame by sending a one-time email to the frame to authorize it from your personal email.

2. IMPORTANT: Email the frame with the subject ‘bd+frame id’.
   Example: To: [email protected]
   (Note: the email must match the email you created in the app)
   Subject: bd123456 (if your ID was 123456)
   (Note: there is no need to put anything in the body of the email.)

3. You will receive a confirmation email with the subject line “Your Binding Request was Complete” that confirms you can now email photos to your photo frame.

Aluratek Digital Photo Frame Touch Screen ADMPF310F Link to Facebook

How to link the frame to your Facebook account so that you can send pictures to the frame via Facebook:

1. Open Facebook app or go to Facebook from your browser and login to your Facebook account if you are not logged in already.

2. Search for “Aluratek WiFi Frame”.



3. Send a message with your frame ID to bind the frame. For example, if your frame ID is 123456, please send “bd123456”.



4. You will see the binding message, “Successful Binding!” once the binding is completed.

5. You can now send pictures to your frame by just attaching a picture and sending it via message.



Link to Twitter

How to link the frame to your Twitter account so that you can send pictures directly from your Twitter account to the frame:

1. Open Twitter app or go to Twitter from your browser.

2. Search for “Aluratek WiFi Frame”.

3. Click on “Follow”.

4. Please login to your Twitter account. If you are already logged in on this computer, you will not need to login again and you will be directed to the next step directly.

5. Click “Message” to send a private message to link the frame.



6. Type ‘bd+frame ID’ to bind. For example, if the frame ID is 123456, please type bd123456 in the message. Once the binding is successful, you will see a reply for confirmation.



7. Congratulations! Your Twitter account is now linked to the frame. To post a picture to your frame, you can just send a private message to the frame.



Transfer Pictures Directly From Your Computer To The Frame

To transfer pictures from your computer to the WiFi frame directly, the frame and the computer will need to be in the same network. Follow the steps below to transfer the pictures:

1. Go to Settings > PC Control on the frame. Click “Start” to see the FTP address of the frame on the screen.



2. Go to your computer and open “File Explorer”. In the File Explorer, type in the exact address in the address bar. In this example, it is ftp://192.168.0.100:2121.



3. The internal memory of the frame will show up like a folder on your computer. Please just drag and drop pictures that you like to transfer to this folder.

4. Once transferred, please go to Album > Internal memory of the frame to see the pictures.

Note: If the computer and the frame are not on the same network, you can send/transfer the pictures to the frame via Facebook / Twitter or Aluratek Smart Frame app.

Setup Guide

1. Unpack the Aluratek Digital Photo Frame Touch Screen ADMPF310F and all its accessories.
2. Connect the power adapter to the device and plug it into a power outlet.
3. Turn on the device and follow the on-screen instructions to connect it to your WiFi network.
4. Once connected, you can start accessing and displaying your photos by using the touch screen interface or the remote control.
5. To import photos from a USB drive, simply connect the drive to the built-in USB port and follow the on-screen instructions.

Main Menu

Album Settings

1. From the main menu, tap on “Settings”.

2. Tap on “Album Settings”.



   • Full Screen: Set photo play in original size or to full screen.

   • Slideshow: If enabled, the slideshow will start automatically based on the time selected. The slideshow will display pictures from the cloud media folder unless you are in the thumbnail page of the Internal memory or USB/SD Card folder then the slideshow will show pictures in those folders only.

   • Background Music: Set background music on / off.

   • Slideshow Mode: Enable random pictures in slideshow mode.

   • Slideshow Transition Effect: Slideshow transition effect.

   • Slideshow Interval: Slideshow time interval.

   • Delete Photos: Delete all photos from the cloud media and internal memory folders.

   • Reset Default Settings: Reset all settings and disconnect all linked accounts without removing pictures in the cloud media and internal memory folders.

System Settings

1. From the main menu, tap on “Settings”.

2. Tap on “System Settings”.



   • System Function

     • Sound: To adjust the media volume and notification volume, enable the touch sounds.

     • Display: To adjust the brightness of the display.

     • Date and Time: To set the date and time for the frame.

     • Auto ON / OFF: Enable the auto on / off feature.

     • Auto OFF: Set the time for the frame to auto power off.

     • Auto ON: Set the time for the frame to auto power on.

     • Factory Data Reset: Reset all data from the device’s internal memory and the inserted SD card.

Alarm Function

How To Set Alarm

1. From the main menu, tap on “Alarm”.

2. To edit an existing alarm, tap on “Edit alarm” or tap “Add alarm” to create a new alarm.

3. Once you have set the days, time, and ringtone of the alarm, tap OK to set the alarm.

Troubleshooting

If you encounter any issues with the Aluratek Digital Photo Frame Touch Screen ADMPF310F, here are some common problems and solutions:

• The device won't turn on: Make sure the power adapter is properly connected to the device and plugged into a power outlet.
• The device can't connect to WiFi: Check your WiFi network name and password, and make sure they are correct. If the problem persists, try resetting the device's network settings.
• The display is blank or frozen: Try turning off the device and then turning it back on. If the problem persists, try resetting the device to its factory settings.

Warranty

Aluratek warrants this product against defect in material or workmanship for 1 Year from the date of purchase.

This warranty becomes invalid if the factory-supplied serial number or “warranty void” sticker has been removed or altered on the product.

• A) Cosmetic damage or damage due to acts of God
• B) Accident, misuse, abuse, negligence or modification of any part of the product.
• C) Damage due to improper operation or maintenance, connection to improper equipment, or attempted repair by anyone other than Aluratek.

Pros & Cons about Aluratek Digital Photo Frame Touch Screen ADMPF310F

Pros

• High-resolution Aluratek Digital Photo Frame Touch Screen ADMPF310F
• WiFi connectivity for accessing and displaying photos from various sources
• Customizable display options
• Motion sensor for automatic power on/off
• Easy-to-use touch screen interface and remote control

Cons

1. Infrequent updates can lead to unresolved bugs and compatibility issues.

2. The built-in speakers may offer subpar audio quality for videos or music.

3. Lacks a remote control, requiring users to always interact with the touchscreen.
