American Water Heaters SE62-119R-045S Solar Water Heating System Manual

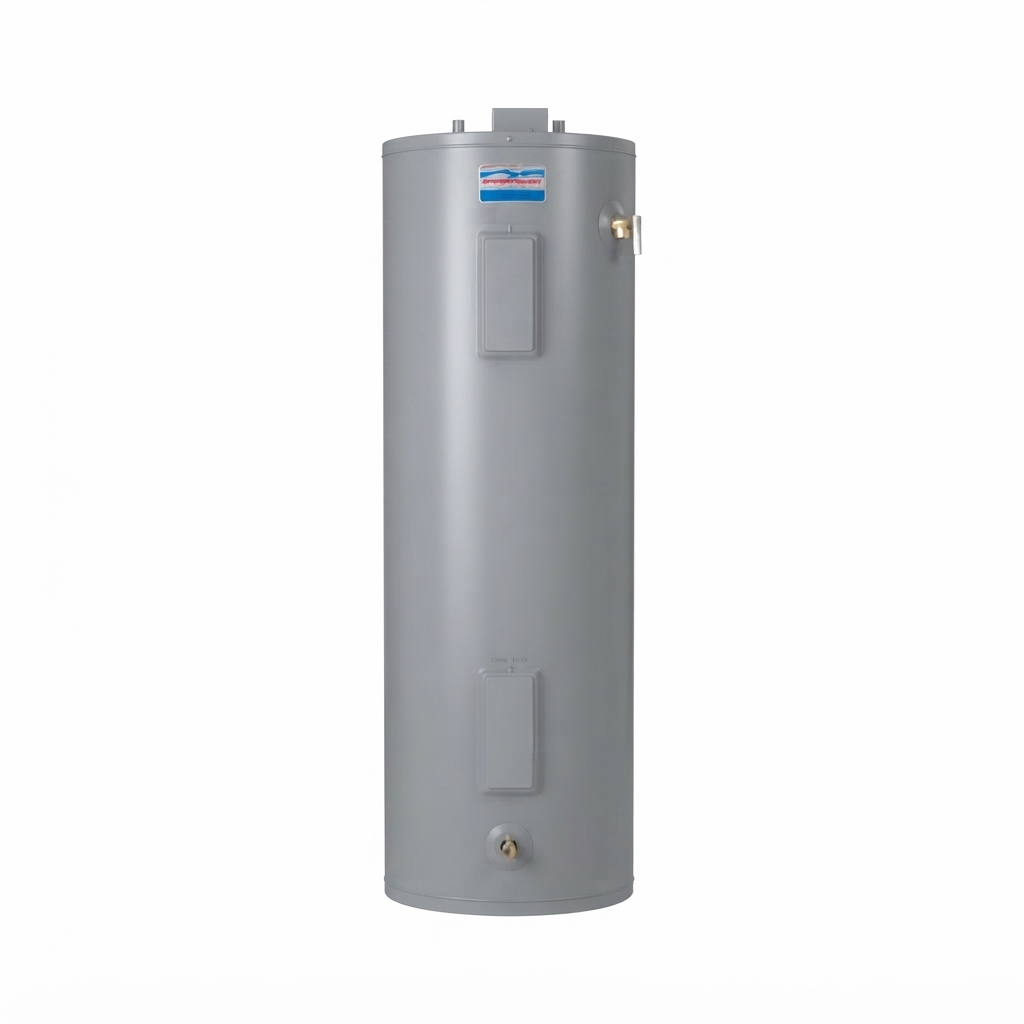

The American Water Heaters SE62-119R-045S Solar Water Heating System is a 119-gallon solar storage tank designed for direct open-loop solar water heating systems and compatible closed-loop setups that use an external heat exchanger. It combines high-capacity thermal storage with a 4,500-watt auxiliary electric element, giving homeowners dependable hot water when solar input is low. This makes it a strong fit for solar-assisted homes, larger households, and properties that want to reduce reliance on conventional water heating while maintaining steady performance.

One of the biggest advantages of the american water heaters SE62-119R-045S Solar Water Heating System is its practical balance of solar storage, backup heating, and installation flexibility. The tank includes foam insulation to reduce standby heat loss, a corrosion-resistant glasslined interior, an anode rod for added tank life, and multiple connection points for easier system layout. These features make it especially appealing for installers who need a durable solar storage tank for residential solar hot water systems.

Typical pricing for the american water heaters SE62-119R-045S Solar Water Heating System generally falls in the mid-range for solar storage tanks, with market listings often around the $1,700 to $2,000 range depending on supplier, availability, and shipping. Availability can vary because solar storage tanks are often sold through plumbing distributors, specialty solar retailers, and replacement-parts channels rather than mainstream retail stores. Buyers should expect lead times to differ by region and distributor inventory.

Specifications for the American Water Heaters SE62-119R-045S Solar Water Heating System

Nominal capacity: 119 gallons for high-demand residential solar hot water storage.
Heating element: 4,500-watt electric backup element for consistent water temperature when solar energy is unavailable.
Tank construction: Glasslined steel tank designed to resist corrosion and extend service life.
Insulation: 2-inch foam insulation to reduce heat loss and improve standby efficiency.
Connections: 3/4-inch NPT solar loop and domestic water connections with factory-installed dielectric nipples.
Installation flexibility: Side and top connection options support open-loop systems and closed-loop systems with an external heat exchanger.
Safety components: CSA-certified and ASME-rated temperature and pressure relief valve.
Water quality protection: Aluminum anode rod with stainless steel core for corrosion resistance.
Recovery support: Designed to maintain stored hot water for solar-assisted systems with backup electric support.
Warranty: 6-year limited tank and parts coverage.

Compared with smaller 65-gallon and 80-gallon solar storage tanks, the SE62-119R-045S offers more buffering capacity for larger families and higher hot water consumption. It is best suited to systems that need extra storage volume rather than compact footprint efficiency.

Setup Guide for the SE62-119R-045S Solar Storage Tank

Before installation, confirm that the tank matches your system type. The american water heaters SE62-119R-045S Solar Water Heating System is intended for direct solar water heating systems or closed-loop systems using an external heat exchanger. Always shut off water, power, and solar circulation equipment before beginning work.

Position the tank on a level, load-bearing surface with enough clearance for plumbing and service access.
Connect the domestic water lines to the correct 3/4-inch NPT fittings and ensure all joints are sealed properly.
Route the solar loop connections according to your system layout, using either the top or side ports as needed.
Install the temperature sensor in the pre-wired sensor lead location, if your controller requires one.
Wire the 4,500-watt backup element according to local electrical code and the manufacturer’s voltage requirements.
Fill and purge air from the tank and solar loop before energizing the system.
Set the controller, thermostat, and pump logic to match collector type, storage volume, and desired temperature range.

Safety precautions are critical: never power the heating element without water in the tank, never bypass the temperature and pressure relief valve, and never install the unit without proper freeze, scald, and pressure protection. If temperatures or flow rates are unstable, check for trapped air, loose sensor placement, incorrect pump settings, or reversed connections.

Troubleshooting the American Water Heaters SE62-119R-045S Solar Water Heating System

Common issues usually involve temperature control, circulation, or backup heating. If hot water output is too low, first verify that the collectors are receiving enough sunlight, the pump is running, and the storage tank is fully purged of air. If the electric backup is not heating, confirm breaker status, thermostat settings, and element continuity.

Low water temperature: Check solar pump operation, controller settings, and insulation around exposed piping.
No backup heat: Inspect the element, thermostat, wiring, and circuit breaker.
Erratic sensor readings: Re-seat the sensor, check cable integrity, and verify correct placement.
Pressure relief discharge: Inspect for overheating, excessive pressure, or a faulty relief valve.
Unusual noise: Look for air in the lines, scale buildup, or pump cavitation.

There are no widely published consumer error codes specific to this tank model, so most diagnosis is done through controller messages and standard solar hot water checks. Preventive maintenance should include annual inspection of the anode rod, relief valve, plumbing seals, and insulation. Warranty support is generally handled through the seller or American Water Heaters support channels, and parts can often be matched through OEM replacement lookup tools or distributor support teams. For help, contact the authorized dealer, installer, or the manufacturer’s customer support department through its official support resources.

Pros and Cons of the SE62-119R-045S

Pros

Large 119-gallon capacity supports bigger households and higher daily hot water demand.
Built-in 4,500-watt element provides dependable backup during cloudy periods.
Multiple connection options make it adaptable to different solar system layouts.
Foam insulation helps reduce standby losses and improve efficiency.
Glasslined steel construction and anode protection improve durability.
Good value for homeowners who want solar storage with electric backup in one tank.

Cons

Requires professional installation for plumbing, electrical, and solar-loop integration.
Larger footprint may be difficult in tight mechanical rooms.
Best suited to solar thermal systems, so it is less versatile than standard electric water heaters.
Availability can be limited compared with mainstream residential water heaters.

Against alternatives such as smaller solar storage tanks, the american water heaters SE62-119R-045S Solar Water Heating System offers stronger capacity and better recovery support, but it may cost more and require more installation space. For buyers focused on long-term solar hot water performance, the tradeoff is often worthwhile.

Customer Reviews of the American Water Heaters SE62-119R-045S Solar Water Heating System

Customer feedback for this model generally centers on reliability, storage capacity, and steady hot water delivery. Many users appreciate the tank’s large volume and the peace of mind that comes from having an electric backup element. Overall satisfaction is commonly in the 4 to 4.5 star range for homeowners who value performance over compact size.

“Great storage capacity for our family of five. The backup element keeps showers consistent even on cloudy days.”
“Solid build quality and easy to integrate into our solar setup.”
“Installation was straightforward for a professional, but not ideal for DIY users.”

Common praise includes dependable hot water, durable construction, and good solar compatibility. Common complaints include the need for professional installation, limited retail availability, and the size of the unit. For buyers comparing solar hot water tanks, this model is best recommended for homeowners seeking a proven solar storage tank with backup heating and long-term value.

PDF

Faqs

How do I set up the american water heaters SE62-119R-045S Solar Water Heating System for a direct open-loop installation?

For a direct open-loop setup, connect the american water heaters SE62-119R-045S Solar Water Heating System as a solar storage tank that receives heated water directly from the collectors. Use the 3/4-inch NPT solar loop and domestic water connections, and make sure the sensor lead is wired for the control system before startup. The tank is designed for installation with either side or top solar loop connections, which gives installers flexibility during layout.

What should I check if the american water heaters SE62-119R-045S Solar Water Heating System is not producing enough hot water?

If hot water output drops, first confirm that the solar collectors are receiving enough sun and that the circulating pump is running correctly. Then check the thermostat setting, sensor placement, and backup electric element operation. The SE62-119R-045S includes a 4500-watt heating element for supplemental heat, so poor performance can also come from a failed element, sediment buildup, or heat loss from damaged insulation.

Can the american water heaters SE62-119R-045S Solar Water Heating System work with a closed-loop solar setup?

Yes, the american water heaters SE62-119R-045S Solar Water Heating System can be used in closed-loop systems when paired with an external heat exchanger. Its multiple connection options support flexible installation, including side and top connections, which makes it suitable for solar systems that transfer heat indirectly. This is useful when protecting potable water from freeze risk or when system design requires glycol-based circulation.

What size household is the american water heaters SE62-119R-045S Solar Water Heating System best suited for?

The SE62-119R-045S is a 119-gallon solar storage tank, so it is typically suited for homes with moderate to high hot water demand. It works well where solar collectors supply most of the daily water heating and the electric backup element only covers low-sun periods. For households with multiple bathrooms, heavy laundry use, or several occupants, the larger storage capacity helps reduce temperature swings and improve comfort.

How do I optimize the performance of the american water heaters SE62-119R-045S Solar Water Heating System?

To get the best performance, keep collector plumbing short, insulate all exposed pipes, and verify that the sensor and thermostat are calibrated properly. Set the backup temperature only as high as needed for comfort and hygiene, since higher settings increase standby loss. The tank’s 2-inch foam insulation helps retain heat, but performance improves further when the system is installed in a dry, protected area and inspected regularly for leaks.

What maintenance does the american water heaters SE62-119R-045S Solar Water Heating System need over time?

Routine maintenance should include checking the anode rod, inspecting the T&P relief valve, testing the backup element, and flushing sediment from the tank when needed. Since the tank stores heated water for solar use, mineral buildup can reduce efficiency over time. Also inspect insulation, pipe fittings, and control wiring seasonally. Regular maintenance helps extend tank life and keeps the system operating safely and efficiently.

Why is the backup electric element on the american water heaters SE62-119R-045S Solar Water Heating System important?

The 4500-watt backup electric element keeps water temperatures stable when solar input is low, such as on cloudy days or at night. This is especially useful in winter or during periods of heavy household demand. It acts as a secondary heat source, preventing cold-water complaints and improving reliability. If the system suddenly delivers lukewarm water, the element, thermostat, and power supply should be checked first.

What installation requirements should I know before buying the american water heaters SE62-119R-045S Solar Water Heating System?

Before installation, confirm that the system location can support a 119-gallon tank and that the plumbing layout matches the tank’s top or side connection options. The unit requires proper pressure relief protection, compatible 3/4-inch NPT connections, and space for service access. It should also be installed with a compatible solar control setup and, when needed, an external heat exchanger or circulation pump designed for solar thermal systems.
