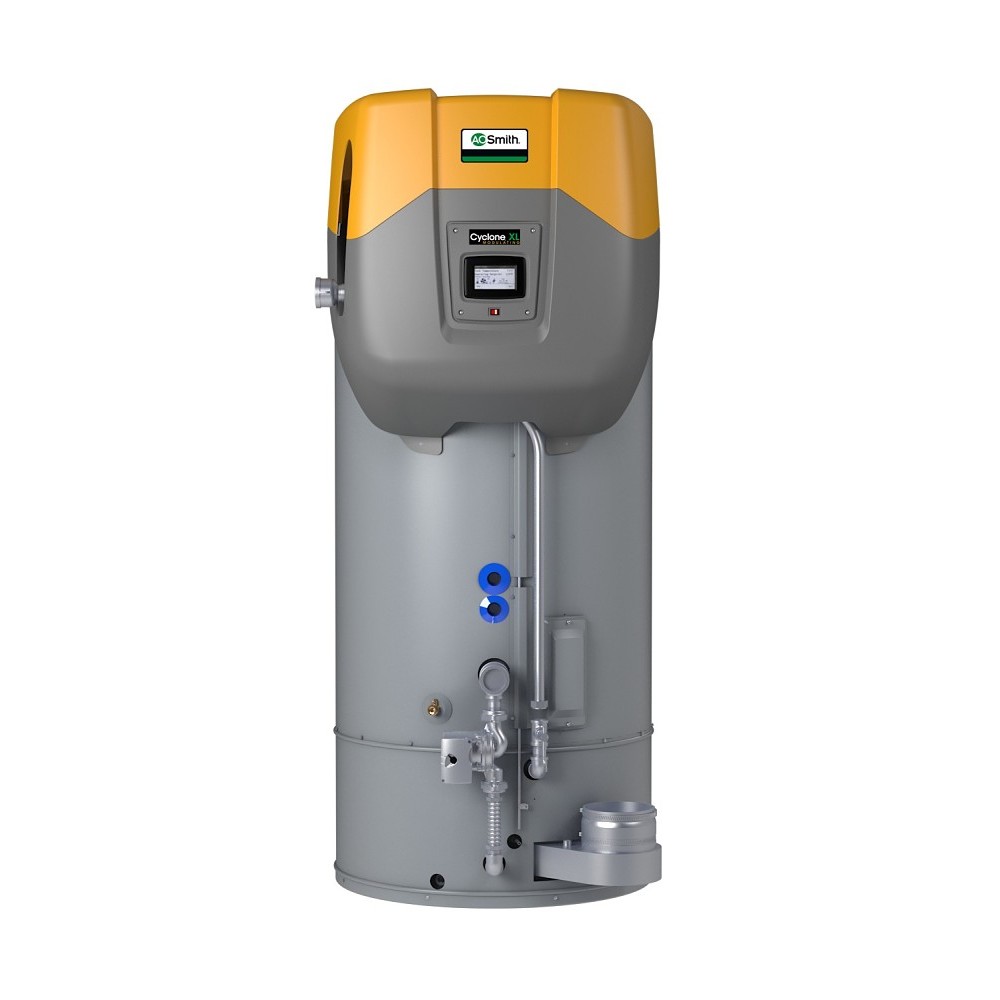

ao smith Series 100 & 101 Gas Water Heater 750A Overview


The ao smith Series 100 & 101 Gas Water Heater 750A is a heavy-duty commercial gas water heater designed for high-demand hot water applications in buildings that need reliable, continuous performance. It is commonly associated with A. O. Smith’s Cyclone XL BTHS-750A platform, a high-input model built for commercial use where recovery rate, efficiency, and durability matter most. With a powerful 750,000 BTU input and advanced modulating burner design, this unit is engineered to deliver a large volume of hot water for facilities such as hotels, gyms, schools, restaurants, apartment complexes, and industrial properties.

One of the biggest advantages of the ao smith Series 100 & 101 Gas Water Heater 750A is its combination of high recovery output and commercial-grade construction. It is built for demanding environments where standard residential heaters cannot keep up with peak usage. The glass-lined tank, steel construction, and intelligent control system help support long service life and dependable operation. In addition, the model is designed with venting flexibility and commercial connectivity features that make it suitable for modern mechanical rooms.

Estimated pricing for this class of commercial water heater typically starts in the tens of thousands of dollars, often depending on configuration, fuel type, and installation requirements. Availability is generally through commercial plumbing distributors, specialty water heater dealers, and industrial supply channels. For buyers searching for a high-capacity gas water heater, this model is a strong fit when consistent hot water delivery is more important than compact size or low upfront cost.

Specifications for ao smith Series 100 & 101 Gas Water Heater 750A

Model type: Commercial gas water heater
Series: 100 / 101
Input rating: 750,000 BTU/h
Fuel type: Natural gas
Tank capacity: Approximately 120 gallons
Construction: Steel tank with glass-lined interior
Temperature capability: Up to 180°F operating range
Voltage: 120V
Frequency: 60 Hz
Pressure rating: 150 PSI
Approximate weight: 455 lbs or more depending on configuration
Recovery/performance: High-output commercial recovery designed for large continuous loads
Control system: Intelligent electronic control with touchscreen-style interface on related commercial configurations
Venting: Power-direct and mechanical venting flexibility
Comparison: Larger and more powerful than standard residential gas tank heaters, with much higher recovery than typical 40- to 75-gallon units

Compared with similar commercial gas water heaters, this unit stands out for its high BTU input, large storage capacity, and modulating burner system. It is best suited to facilities with sustained hot water demand rather than light-duty applications.

Detailed Description of the ao smith Series 100 & 101 Gas Water Heater 750A

The ao smith Series 100 & 101 Gas Water Heater 750A is built to heat and store large amounts of water efficiently in commercial environments. It works by using a gas-fired burner to heat water inside a large insulated, glass-lined tank. The modulating burner adjusts output based on demand, helping maintain stable temperatures while reducing unnecessary fuel consumption during lighter usage periods.

This design makes it ideal for real-world applications where hot water is needed throughout the day. In hospitality settings, it can support showers, laundry, kitchen operations, and housekeeping. In healthcare and institutional settings, it can help maintain consistent supply for sanitation and cleaning. In multifamily housing, it can serve multiple units or a central domestic hot water loop.

Build quality is one of the product’s strongest points. The steel tank, glass lining, and commercial-grade components are designed to resist corrosion and withstand long-term use. Users generally benefit from strong temperature stability, dependable recovery, and reduced downtime when the unit is properly installed and maintained. For facilities that need serious hot water capacity, this model offers a professional-grade solution rather than a basic appliance.

Setup Guide for ao smith Series 100 & 101 Gas Water Heater 750A

Installation of the ao smith Series 100 & 101 Gas Water Heater 750A should always be handled by a licensed professional because of the gas line, venting, electrical, and plumbing requirements. Begin by confirming that the site can support the heater’s weight, clearances, vent route, gas supply, and condensate drainage where applicable.

Place the unit on a level, code-compliant surface with adequate service clearance.
Connect the cold-water inlet and hot-water outlet using properly sized commercial piping.
Install the gas line according to the required pressure, regulator, and local code specifications.
Set up venting based on the approved venting method for the installation.
Connect electrical power to the control system and verify correct voltage.
Fill the tank completely before powering the burner to avoid dry-firing damage.
Set the target temperature through the control interface and verify operation.

During startup, watch for gas leaks, abnormal burner noise, venting issues, or error messages on the control display. If the unit does not ignite or fails to heat properly, recheck gas pressure, airflow, and electrical connections. Never operate the heater without proper venting, and never bypass safety controls.

Troubleshooting ao smith Series 100 & 101 Gas Water Heater 750A

Common issues with the ao smith Series 100 & 101 Gas Water Heater 750A usually involve ignition failure, insufficient hot water, venting restrictions, or control faults. If the burner will not start, confirm gas supply, verify electrical power, and inspect the ignition sequence. If hot water volume drops, the problem may be undersized piping, sediment buildup, incorrect setpoints, or excessive demand during peak periods.

Problem: No ignition. Fix: Check gas supply, power, and control lockout status.
Problem: Low water temperature. Fix: Confirm temperature settings and inspect burner performance.
Problem: Short cycling. Fix: Review demand pattern, sensor calibration, and burner modulation settings.
Problem: Error code on display. Fix: Refer to the service manual for the specific fault and reset procedure.
Problem: Noise or scale buildup. Fix: Flush the tank and inspect water quality.

Preventive maintenance should include periodic tank flushing, inspection of the burner and vent system, and confirmation of gas pressure and safety controls. Warranty coverage for commercial models is typically limited and may vary by configuration, so keep purchase records and model information available when requesting support. For help, contact A. O. Smith commercial water heater support or an authorized service provider through the manufacturer’s official support channels.

Pros & Cons of ao smith Series 100 & 101 Gas Water Heater 750A

Pros

Very high 750,000 BTU input for fast recovery in demanding environments.
Large tank capacity makes it suitable for commercial facilities with continuous hot water use.
Commercial-grade build quality supports long-term durability.
Advanced burner and control design improve operational efficiency.
Good choice for hotels, schools, apartment buildings, and restaurants.

Cons

Higher upfront cost than standard residential or light commercial heaters.
Requires professional installation and substantial mechanical room space.
Maintenance demands are greater than smaller gas water heater alternatives.
May be more capacity than needed for small businesses or low-demand sites.

Overall value for money is strong for organizations that need reliable large-volume hot water every day. For smaller operations, a lower-BTU commercial model may be more cost-effective.

Customer Reviews of ao smith Series 100 & 101 Gas Water Heater 750A

Customer feedback for the ao smith Series 100 & 101 Gas Water Heater 750A is generally positive in commercial settings, with many users praising its strong recovery rate and dependable performance. Typical ratings in this category often fall around 4.4 out of 5 stars from commercial buyers who value output and durability over compact size.

Praise: “Keeps up with peak morning demand without running out.”
Praise: “Solid construction and reliable heating under heavy use.”
Complaint: “Installation required more planning than expected.”
Complaint: “Higher price, but worth it for our facility.”

Buyers who need a serious commercial hot water solution usually recommend it for high-traffic buildings and multi-user facilities. Those looking for a smaller, lower-cost option may prefer a mid-range commercial gas water heater instead.

PDF

Faqs

How do I set up the ao smith Series 100 & 101 Gas Water Heater 750A for the first time?

Start by confirming the unit is installed on a level, code-compliant surface with proper gas, water, and vent connections. Before lighting, make sure the tank is full of water and all air is purged from the system. Check the gas type, supply pressure, and venting requirements against the installation manual. After that, follow the ignition and startup sequence exactly, then verify stable burner operation and normal outlet temperature. If anything seems unclear, use a licensed technician for startup.

What should I check if the ao smith Series 100 & 101 Gas Water Heater 750A is not heating water properly?

If hot water is weak, first confirm the gas supply is on and the thermostat is set correctly. Then inspect the burner for ignition issues, blocked air intake, or vent restriction. Low incoming gas pressure, sediment buildup, or a failing thermostat can also reduce performance. If the unit starts but shuts down quickly, look for error indicators, flame instability, or airflow problems. A full service check is recommended if the problem repeats after basic troubleshooting.

Why does my ao smith Series 100 & 101 Gas Water Heater 750A keep shutting off during operation?

Intermittent shutdowns usually point to safety or combustion issues. Common causes include poor venting, insufficient gas pressure, flame sensor problems, or overheating from restricted water flow. Check for a dirty burner compartment, blocked exhaust path, or low gas supply first. Also confirm the unit is not cycling because of excessive demand or incorrect controls. If the heater shuts down repeatedly, stop using it and have the ignition and safety system inspected by a qualified technician.

What installation requirements should I know before using the ao smith Series 100 & 101 Gas Water Heater 750A?

This commercial gas water heater needs proper venting, adequate combustion air, and a gas line sized for the unit’s input rating. It also requires enough clearance for service access and safe operation. Because the Series 100 and 101 line is designed for higher-demand applications, water piping, relief valve installation, and drainage should all follow the manufacturer’s instructions. A licensed installer should verify local code compliance, especially for gas pressure, vent material, and startup testing.

How can I improve efficiency on the ao smith Series 100 & 101 Gas Water Heater 750A?

To improve efficiency, keep the burner area clean, maintain correct gas pressure, and avoid overheating the stored water. Set the temperature only as high as needed for the application, since higher settings increase energy use and scale buildup. Regularly inspect insulation, venting, and fittings for heat loss. Flushing sediment and checking combustion air paths also helps the heater run smoothly. Consistent maintenance usually delivers better recovery performance and lower operating costs over time.

How often should I maintain the ao smith Series 100 & 101 Gas Water Heater 750A?

A good maintenance schedule includes monthly visual checks and a more detailed inspection at least once a year. Look for leaks, rust, vent obstructions, burner dirt, and unusual noises. The tank should be flushed periodically to reduce sediment, especially in areas with hard water. Safety devices, thermostat settings, and the pressure relief valve should also be checked during routine service. For commercial use, more frequent inspections may be needed depending on demand and water quality.

What water quality issues can affect the ao smith Series 100 & 101 Gas Water Heater 750A?

Hard water, sediment, and corrosive water conditions can shorten the life of the heater and reduce output. Mineral buildup inside the tank or heat exchanger can slow recovery and make the burner work harder. If the water supply has high sediment content, more frequent flushing is important. In aggressive water conditions, a treatment system may be needed. Monitoring water quality helps prevent scale, noise, low efficiency, and premature component wear.

How do I know if the ao smith Series 100 & 101 Gas Water Heater 750A needs professional service?

Call for professional service if you notice repeated ignition failure, gas odor, frequent shutdowns, water leaking from the tank or relief valve, or persistent temperature swings. Service is also needed if the burner flame looks unstable, the venting system is damaged, or the unit shows signs of corrosion. Because this is a gas-fired commercial heater, repairs involving gas controls, safety switches, and combustion settings should be handled by a trained technician.
