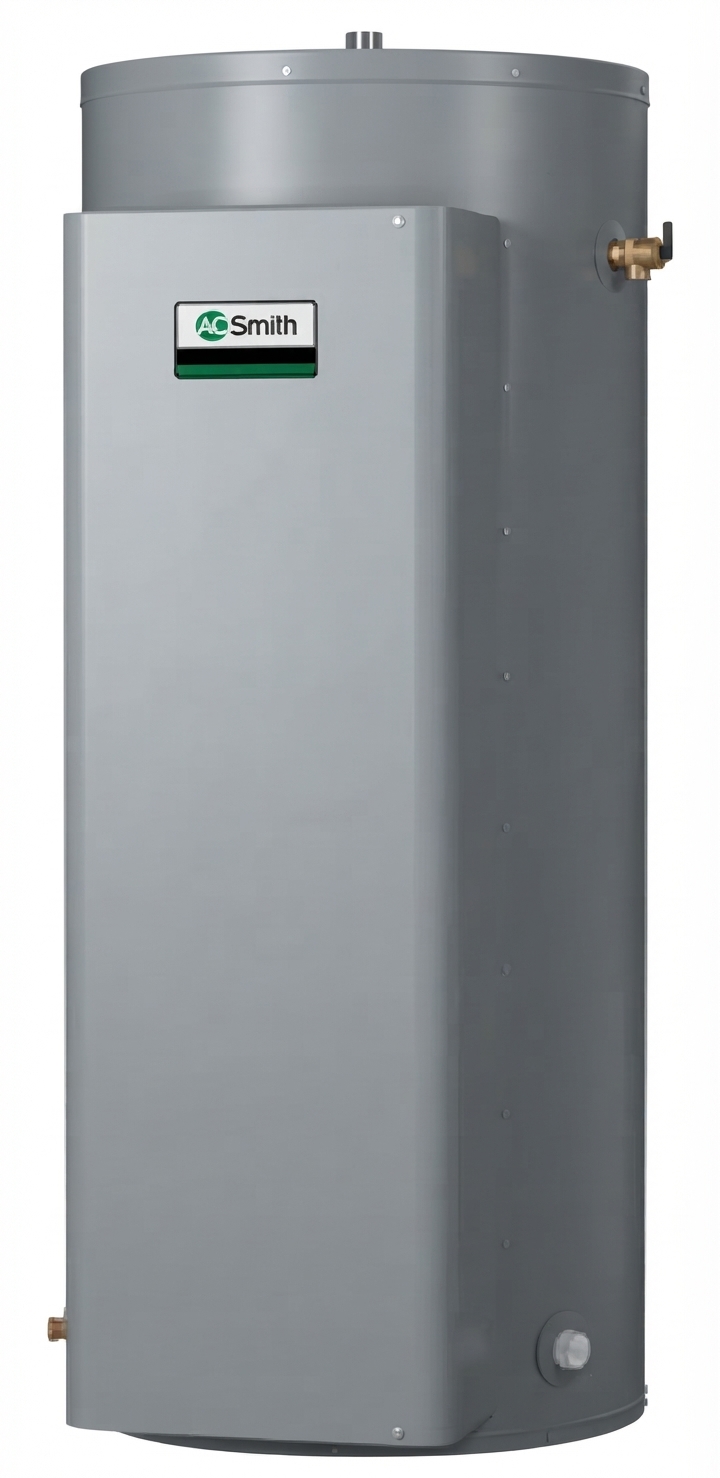

AO Smith Series 100 Electric Water Heater DRE-52: Complete Product Manual and Review

The ao smith Series 100 Electric Water Heater DRE-52 is a commercial-grade electric storage water heater designed for reliable hot water delivery in demanding environments. Built for small businesses, apartments, offices, and light commercial facilities, this model is engineered to handle frequent hot water use with stable recovery and consistent performance. It is a practical choice for users who need dependable hot water without the complexity of advanced smart controls or gas connections.

One of the biggest advantages of the ao smith Series 100 Electric Water Heater DRE-52 is its straightforward design. It uses electric resistance heating elements and a storage tank to keep water at the desired temperature, making it easy to integrate into buildings with existing electrical infrastructure. The unit is typically available in a 50-gallon capacity with 208V or 240V configurations, and commercial versions commonly include multiple Incoloy heating elements, a 150 psi pressure rating, and temperature settings from 120°F to 181°F.

This model is especially useful for property managers, facility operators, and contractors looking for a durable, cost-effective hot water solution. Estimated pricing varies by supplier, configuration, and voltage, but the typical range is about $1,000 to $2,500 for the heater itself, with installation costs depending on plumbing and electrical requirements. Availability is strongest through commercial plumbing distributors, supply houses, and regional water heater dealers. For buyers comparing commercial electric water heater options, the ao smith Series 100 Electric Water Heater DRE-52 stands out for its balance of performance, durability, and serviceability.

Specifications for AO Smith Series 100 Electric Water Heater DRE-52

Type: Commercial electric storage water heater
Series: Gold Series / Series 100 configuration
Tank capacity: 50 gallons
Voltage options: 208V or 240V, depending on model variant
Power output: Commonly 12 kW to 18 kW, depending on electrical setup
Phase: 3-phase in commercial configurations
Heating elements: Incoloy elements for improved corrosion resistance
Temperature range: Approximately 120°F to 181°F
Pressure rating: 150 psi
Recovery rate: Approximately 246 gallons per hour at 30°F rise in higher-output versions
Dimensions: About 21.75 inches wide x 27 inches deep x 55.75 inches high
Finish: Baked enamel exterior with durable tank construction

Compared with standard residential electric water heaters, this commercial model offers stronger recovery and more robust components. Against similar 50-gallon commercial units, it competes well on recovery speed, serviceability, and long-term durability. Buyers needing higher volume may want a larger-capacity commercial heater, while smaller operations may find this unit more than sufficient for consistent daily hot water demand.

Detailed Description of the AO Smith Series 100 Electric Water Heater DRE-52

The ao smith Series 100 Electric Water Heater DRE-52 works by heating stored water inside an insulated tank through electric elements. Cold water enters the tank, is heated to the selected temperature, and remains ready for use until drawn from faucets, sinks, showers, or equipment lines. When hot water is used, the tank refills with cold water and the heating elements cycle on to restore temperature. This makes the unit ideal for steady demand patterns rather than instantaneous on-demand use.

In real-world applications, the heater is well suited to restaurants, salons, apartment laundry areas, office restrooms, and small commercial kitchens. Its commercial-grade components are designed to handle repeated heating cycles and frequent usage. The tank body and Incoloy elements improve resistance to wear, scaling, and corrosion, which helps support a longer service life in challenging water conditions.

User experience is generally centered on reliability and simplicity. The unit does not require fuel storage, venting, or combustion airflow, which simplifies installation in many buildings. The overall build quality is solid, with a practical design that prioritizes dependable operation over premium digital features. For many facilities, that is exactly the advantage: predictable hot water, straightforward maintenance, and fewer system complications.

Setup Guide: How to Install and Configure the AO Smith Series 100 Electric Water Heater DRE-52

Installation of the ao smith Series 100 Electric Water Heater DRE-52 should be handled by a qualified plumber and licensed electrician. Before installation, confirm the correct voltage, phase, breaker size, and wiring requirements for the exact model. Verify that the site has adequate clearance, a properly rated drain pan if required, and a suitable location for service access.

Turn off electrical power at the breaker panel before beginning any work.
Position the unit on a level surface with proper support for its filled weight.
Connect the cold-water inlet and hot-water outlet using approved fittings.
Install a temperature and pressure relief valve if not already included.
Fill the tank completely before restoring power to prevent dry-firing the elements.
Set the thermostat to the desired operating temperature, usually between 120°F and 140°F for general use.
Test for leaks, verify electrical connections, and confirm proper heating cycle operation.

Configuration options may include temperature adjustment and electrical setup based on the building’s available supply. This is not a Wi-Fi or app-connected unit, so pairing and smart connectivity are not part of the setup. Important safety precautions include keeping the tank dry during handling, grounding the unit properly, and never energizing the heater until the tank is full of water. If the unit does not heat, check the breaker, thermostat settings, wiring, and water level before assuming a component failure.

Troubleshooting Common Problems with the AO Smith Series 100 Electric Water Heater DRE-52

Common issues with the ao smith Series 100 Electric Water Heater DRE-52 usually involve power, temperature, or recovery performance. If there is no hot water, first check the circuit breaker, disconnect switch, and thermostat settings. If only lukewarm water is available, the issue may be a failed heating element, incorrect voltage supply, or sediment buildup inside the tank.

No hot water: Verify power supply, reset breaker, and check thermostat operation.
Water too hot: Lower the thermostat setting and confirm the control is not stuck.
Slow recovery: Inspect element function, sediment buildup, and incoming voltage.
Tripped breaker: Look for damaged wiring, shorted elements, or incorrect breaker sizing.
Leaks: Check fittings, drain valve, and pressure relief valve for defects or loose connections.

Preventive maintenance should include periodic flushing to reduce sediment, visual inspection of wiring and connections, and testing the relief valve as recommended. Warranty coverage varies by supplier and configuration, but many commercial electric water heaters include manufacturer support and parts assistance through authorized distributors. For service help, contact the dealer that supplied the unit or the local AO Smith commercial support channel listed in the product documentation.

Pros and Cons of the AO Smith Series 100 Electric Water Heater DRE-52

Pros

Reliable commercial hot water performance for steady daily use.
Durable construction with corrosion-resistant heating elements.
Simple electric operation with no gas lines or venting requirements.
Strong recovery for small to medium commercial demand.
Easy to service compared with more complex systems.
Good value for facilities needing dependable hot water without smart features.

Cons

Requires sufficient electrical capacity and professional installation.
Not ideal for users wanting Wi-Fi, app control, or digital automation.
Higher operating costs than some gas-fired alternatives in certain regions.
50-gallon capacity may be limiting for larger commercial operations.
Performance depends heavily on correct sizing and installation quality.

Compared with compact residential water heaters, this model is more robust but less feature-rich. Compared with larger commercial alternatives, it offers a strong middle ground for value, durability, and recovery performance. For many buyers, that balance makes the ao smith Series 100 Electric Water Heater DRE-52 a smart long-term investment.

Customer Reviews and Buyer Feedback

Customer feedback for the ao smith Series 100 Electric Water Heater DRE-52 is generally positive, especially from property managers and service contractors who value dependable operation. Many users rate it around 4 to 4.5 stars for consistent hot water delivery, sturdy build quality, and straightforward maintenance. One common praise is that it performs well in daily commercial use without requiring constant attention.

Frequent complaints usually involve installation costs, electrical requirements, and occasional slow recovery when the unit is undersized for the application. Some buyers also mention that it lacks premium digital controls found in newer smart water heaters. A typical testimonial theme is: “It heats reliably, runs quietly, and has been easy to maintain.”

For buyers comparing commercial electric water heaters, this model is a strong recommendation when reliability matters more than advanced features. It is especially suitable for facilities needing a dependable replacement unit or a practical, service-friendly hot water solution.

PDF

Faqs

How do I set up the ao smith Series 100 Electric Water Heater DRE-52 for first-time use?

Start by confirming the unit matches your power supply, phase, and voltage, since the DRE-52 is commonly sold in 208V, 240V, and other configurations. Make sure the tank is fully filled with water before energizing it, then verify all plumbing connections are tight and leak-free. Set the thermostat to your preferred temperature, typically within the 120 to 181°F range. For safety, have the wiring and startup checked by a qualified electrician or installer.

What electrical requirements does the ao smith Series 100 Electric Water Heater DRE-52 need?

The DRE-52 is a three-phase electric water heater, so it requires the correct voltage, amperage, and breaker size for the exact model you purchased. Common versions include 208V and 240V units, with power ratings ranging from 12 kW to 24 kW. Because the electrical load can be significant, the circuit must be sized properly and installed to code. A licensed electrician should verify compatibility before commissioning the heater.

Why is my ao smith Series 100 Electric Water Heater DRE-52 not heating water fast enough?

Slow recovery usually points to one of a few issues: incorrect voltage, a failed heating element, a thermostat problem, or demand that exceeds the tank’s recovery capacity. The DRE-52 is designed as a commercial recovery water heater, so it performs best when the electrical supply and usage pattern match the model rating. Check for tripped breakers, cold water mixing at fixtures, and sediment buildup that can reduce efficiency. If the problem continues, test the elements and thermostats.

How do I adjust the temperature on the ao smith Series 100 Electric Water Heater DRE-52?

The DRE-52 uses adjustable thermostats, so temperature changes are made at the control settings inside the access panel. Before adjusting anything, shut off power at the breaker and confirm the unit is safe to open. Set the thermostat to the lowest temperature that still meets your hot water needs, then allow time for the tank to stabilize. For most commercial uses, moderate settings improve energy efficiency and reduce scale formation while still providing reliable hot water.

Can the ao smith Series 100 Electric Water Heater DRE-52 be used in both tall and short installations?

Yes, many DRE-52 configurations are available in tall or short layouts, but the exact installation depends on the model variant and available space. Before buying or installing, compare the heater’s dimensions against your mechanical room clearances, piping layout, and service access needs. The unit typically requires enough room for maintenance, element replacement, and inspection. Always confirm the orientation and footprint in the product specification sheet before final placement.

What should I do if the ao smith Series 100 Electric Water Heater DRE-52 keeps tripping the breaker?

Frequent breaker trips usually mean the circuit is overloaded, the wiring is undersized, or one of the heating elements has failed. Start by checking that the installed voltage and breaker rating match the exact DRE-52 model. Loose connections, moisture in the electrical compartment, or damaged elements can also cause nuisance trips. Turn off power immediately if the problem repeats, and have an electrician inspect the wiring, contactor, thermostats, and elements before restarting the heater.

How often should I maintain the ao smith Series 100 Electric Water Heater DRE-52?

Inspect the DRE-52 at least twice a year, and more often in hard-water areas or high-use commercial settings. Regular maintenance should include checking for leaks, testing the relief valve, inspecting thermostats and heating elements, and looking for sediment or scale inside the tank. A clean tank and healthy anode help preserve performance and extend service life. If water quality is poor, flushing the heater periodically can improve recovery speed and reduce operating strain.

What are the key features of the ao smith Series 100 Electric Water Heater DRE-52 that affect performance?

The DRE-52 is built as a three-phase commercial electric water heater with multiple Incoloy-sheathed heating elements and independent thermostat control. That design helps deliver steady recovery and more responsive heating under heavy demand. Many versions offer 50-gallon storage, high-temperature operation, and strong recovery rates suited to commercial applications. Its manual reset high-limit protection adds safety, while the separate element control system helps improve efficiency and maintain consistent outlet water temperature.
