Introduction

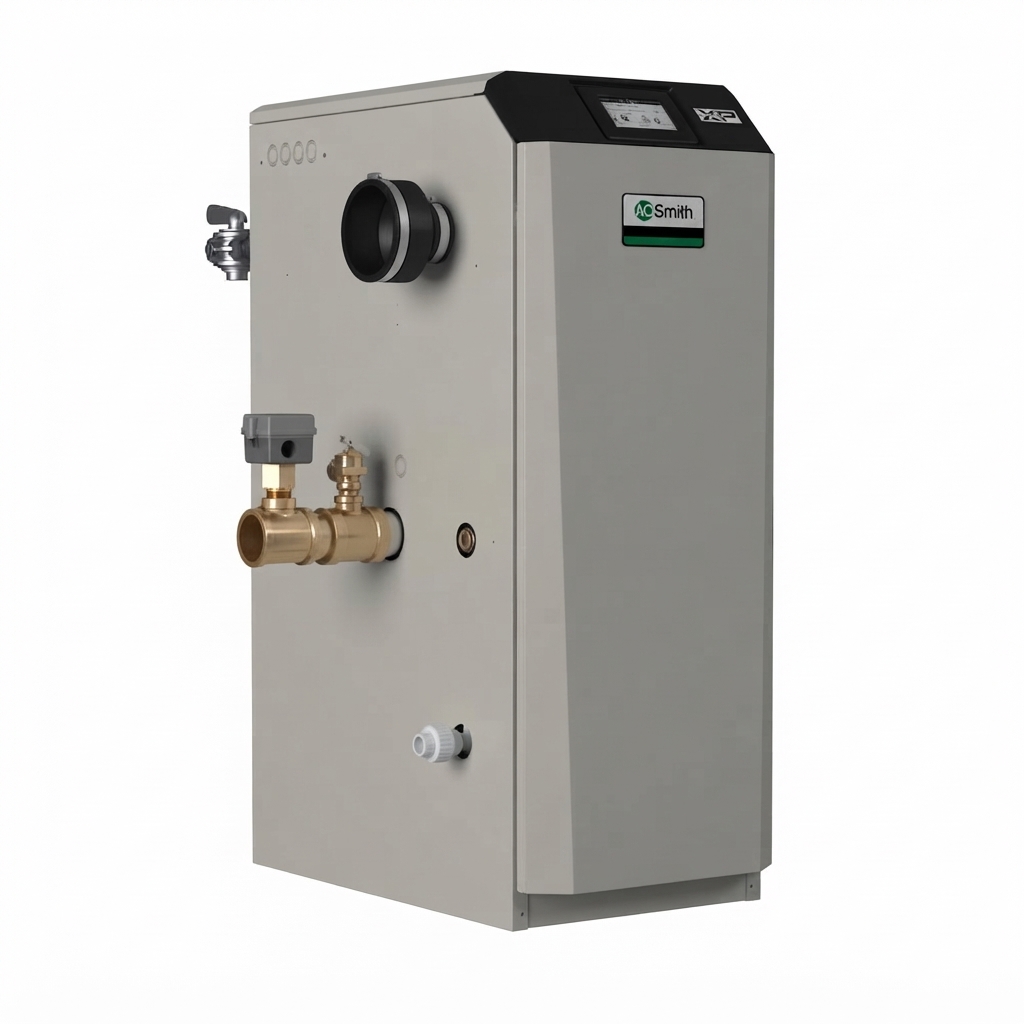

The A. O. Smith XWH-150 Gas Water Heater is a commercial-grade circulating water heater designed for dependable hot water delivery in demanding environments. Built for light commercial applications, it is well suited for offices, restaurants, hospitality properties, multi-unit facilities, and service areas that need consistent recovery performance and reliable temperature control. The ao smith XWH-150 Gas Water Heater stands out for its compact footprint, high input capacity, and efficient gas-fired operation, making it a practical choice where space is limited but hot water demand remains steady.

This model is known for its strong recovery performance and flexible installation options. With a 150,000 BTU/hr input range and circulating design, it supports quick reheating and stable operation for continuous-use scenarios. The XWH-150 is also built for natural gas or propane configurations, which gives installers and facility managers more flexibility. Its commercial construction, integrated controls, and support for venting and water connection standards make it easier to incorporate into existing mechanical systems.

For buyers comparing commercial gas water heaters, the XWH-150 typically falls in an estimated price range of about $2,500 to $4,500 depending on configuration, supply conditions, and installation requirements. Availability is generally through plumbing distributors, HVAC suppliers, and commercial equipment dealers. If you need a compact, efficient, and durable gas water heater for steady-demand environments, the ao smith XWH-150 Gas Water Heater is a solid option worth considering.

Specifications

Model: XWH-150
Fuel type: Natural gas or propane gas
Input rating: 30,000 to 150,000 BTU/hr
Water content: 1.3 gallons
Water connection size: 1-1/4 inch NPT
Gas connection size: 1/2 inch NPT
Venting / air size: 3 inch / 3 inch
Dimensions: approximately 33-1/4 in. H x 15-1/2 in. W x 18 in. D
Electrical supply: 120V control power
Amperage with pump: about 3.0 amps
Recovery performance: built for high-demand circulation and rapid reheating
Construction: commercial-duty tank and heat exchanger assembly

Compared with smaller residential gas heaters, the XWH-150 offers stronger commercial recovery and more durable system integration. Compared with larger XWH models, it is more compact and easier to place in tighter mechanical rooms while still providing substantial output. This makes it a practical middle-ground option for businesses that need performance without oversizing the system.

Detailed Description

The ao smith XWH-150 Gas Water Heater is designed as a circulating commercial hot water system, meaning it is built to keep hot water moving through the application rather than simply storing it for occasional use. In practical terms, this helps maintain more stable water temperatures and improves availability during repeated draw cycles. The system uses gas combustion to heat water through an integrated exchanger, then distributes hot water through the connected plumbing loop.

This model is particularly useful in settings such as small hotels, gyms, commercial kitchens, wash stations, and light industrial facilities. Its compact size allows it to fit where larger units may be difficult to install, while the metal cabinet and internal components are built for regular duty cycles. The build quality is aimed at long-term service, with attention to venting, gas input control, and service access for maintenance teams.

Users typically value the XWH-150 for consistent hot water supply, manageable installation size, and strong recovery. It is not a basic residential unit; it is better suited to environments where uptime, temperature stability, and durability matter more than a low entry price.

Setup Guide

Place the unit on a level, code-compliant surface with enough clearance for service access, combustion air, and vent routing.
Verify the gas supply matches the unit configuration for natural gas or propane before connecting any lines.
Connect the water lines using the correct 1-1/4 inch NPT fittings and confirm all joints are properly sealed.
Install the vent and air components using the specified 3 inch / 3 inch sizing and follow local mechanical codes.
Connect the 120V control power supply and confirm the pump circuit is wired correctly if included in the system.
Open the water supply, purge trapped air, and inspect for leaks before ignition.
Set the operating controls according to the application’s temperature and circulation requirements.
Perform a test start and monitor ignition, flame stability, and outlet temperature.

During setup, avoid installing the heater in a confined space without proper combustion air. Never operate the unit with loose gas fittings, blocked venting, or unverified pressure settings. If the heater fails to ignite, check gas supply, power, and venting before calling for service. For best results, have the installation completed by a qualified technician familiar with commercial gas water heater systems.

Troubleshooting

No ignition: Check power supply, gas valve position, gas pressure, and air intake/vent blockage.
Weak hot water output: Inspect circulation settings, temperature controls, and scaling in the heat exchanger.
Short cycling: Confirm correct thermostat settings and verify that flow conditions match system requirements.
Noise during operation: Look for air in the lines, sediment buildup, or vibration from loose fittings.
Error or lockout condition: Reset the system only after correcting the cause; repeated resets can hide a gas, airflow, or sensor issue.

Preventive maintenance is the best way to avoid downtime. Schedule annual inspection of burners, venting, pressure settings, and heat exchanger condition. Keep the unit clean, ensure proper water treatment where needed, and watch for scale buildup in hard-water regions. Warranty support is typically provided through A. O. Smith’s commercial product support network, with service documents available by model and serial number. For assistance, contact A. O. Smith customer support through its official support channel or work with a licensed commercial water heater contractor.

Pros & Cons

Pros

Strong commercial recovery: Good fit for continuous hot water demand in light commercial spaces.
Compact footprint: Easier to install in smaller mechanical rooms than larger capacity systems.
Flexible fuel options: Supports natural gas and propane configurations.
Reliable brand reputation: A. O. Smith is widely recognized in commercial water heating.
Good value for business use: Offers a balance of performance, size, and durability.

Cons

Higher upfront cost: More expensive than residential water heaters.
Professional installation recommended: Not ideal for DIY users.
Maintenance required: Commercial systems need regular inspection and servicing.
Overkill for small homes: Better suited to commercial or multi-use applications.

Compared with lower-cost alternatives, the XWH-150 offers better durability and recovery but requires a larger investment. For buyers prioritizing long-term performance and consistent output, the value for money is strong.

Customer Reviews

Average user sentiment for commercial A. O. Smith units in this class is generally positive, with many buyers giving the product around 4.3 out of 5 stars. Common praise includes fast recovery, stable hot water delivery, and dependable operation in busy facilities. One facility manager noted that the unit “keeps up with demand much better than the smaller heater it replaced.”

Common complaints usually focus on installation complexity, higher purchase price, and the need for regular maintenance. Some users also mention that performance depends heavily on correct sizing and professional setup. For best results, the ao smith XWH-150 Gas Water Heater is recommended for businesses that need steady hot water and can support proper installation and servicing.

PDF

Faqs

How do I set up ao smith XWH-150 Gas Water Heater for the first time?

For first-time setup, install the ao smith XWH-150 Gas Water Heater on a stable surface with proper clearances, then connect the gas supply, water lines, and venting exactly as required by the installation guide. Before lighting, verify the gas valve is open, purge air from the gas line if the unit is newly installed, and confirm the electrical controls and safety switches are ready. After installation, run a hot water tap and follow the lighting sequence on the rating label.

Why is my ao smith XWH-150 Gas Water Heater not producing hot water?

If the ao smith XWH-150 Gas Water Heater is not heating, check whether the pilot is lit and whether the status light is flashing normally. Make sure the gas supply valve is on and the thermostat is set to hot. If the pilot will not stay lit, the issue may be air in the gas line, a tripped thermal switch, or a combustion-air restriction. Also confirm venting is unobstructed and allow enough time for the tank to recover after heavy use.

What does the status light on ao smith XWH-150 Gas Water Heater mean?

The status light is a key diagnostic feature on the ao smith XWH-150 Gas Water Heater. A normal flashing pattern usually indicates the pilot is lit and the control is working properly. If the light is off, flashing irregularly, or not behaving as expected, the heater may have a pilot outage, ignition problem, or safety shutdown. Use the light pattern together with the lighting instructions and troubleshooting chart to narrow down the cause before resetting anything.

Can ao smith XWH-150 Gas Water Heater be used with direct vent or special venting requirements?

Yes, the ao smith XWH-150 Gas Water Heater is designed for vented gas operation, so correct vent sizing and installation are essential. The vent path should be free of blockage, and combustion air must be available for safe operation. If venting is restricted or the heater is installed in a tight space, the thermal switch may trip and shut the unit down. Always match the venting setup to the installation manual and local code requirements.

How do I reset a tripped thermal switch on ao smith XWH-150 Gas Water Heater?

If the ao smith XWH-150 Gas Water Heater stops working because of a thermal shutdown, first check for airflow and venting problems. Then locate the thermal switch reset and press it once after the heater has cooled. A tripped switch often means the unit was starved for combustion air or the flame arrestor is dirty. After resetting, relight the pilot and watch the status light. If it trips again, the airflow or venting issue still needs correction.

How often should I maintain ao smith XWH-150 Gas Water Heater?

Routine maintenance for the ao smith XWH-150 Gas Water Heater should be done at least once a year, and more often in dusty areas or high-use locations. Inspect the burner compartment, clean the base ring filter and flame arrestor, check venting, and look for signs of corrosion or leaks. You should also test the temperature and pressure relief valve as recommended. Regular upkeep helps prevent ignition problems, shutdowns, and reduced hot water performance.

What are the key performance features of ao smith XWH-150 Gas Water Heater?

The ao smith XWH-150 Gas Water Heater is built for strong recovery and efficient operation, making it suitable for demanding hot water use. It uses modulating gas control to help maintain smoother heating and reduce short cycling. The unit also includes diagnostic status indicators and safety controls that help identify faults early. For users, this means more stable water temperature, better reliability during high demand, and easier troubleshooting when a problem appears.

How can I improve efficiency and recovery time on ao smith XWH-150 Gas Water Heater?

To improve efficiency on the ao smith XWH-150 Gas Water Heater, keep the thermostat at a practical setting, avoid excessive hot water demand during peak times, and make sure the venting and combustion air paths stay clean. Insulate nearby hot water pipes to reduce heat loss and inspect the burner area for dirt or lint buildup. If recovery seems slow, check for sediment, weak gas supply, or partially blocked airflow before assuming the heater is failing.
