Setup: Ariete Airy Fryer Oven 4619 User Manual

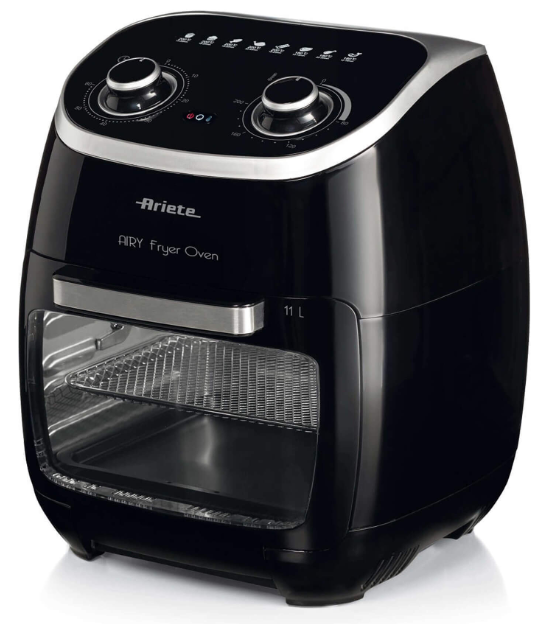

Ariete Air Fryer Oven 4619

Introduction

The Ariete Air Fryer Oven 4619 is a versatile kitchen appliance that combines the functions of an air fryer and an electric oven, designed to deliver healthy, oil-free cooking with convenience and efficiency. Featuring a spacious 11-litre capacity and powerful 2000-watt heating, it is ideal for families and individuals seeking a healthier alternative to traditional frying methods without sacrificing taste or texture.

This appliance is perfect for cooking a wide variety of dishes, including fries, cakes, fish, roasted chicken, kebabs, and shellfish, thanks to its eight preset cooking programs. The innovative 360° hot air circulation technology ensures even cooking with minimal fat, resulting in crispy and delicious meals. The integrated rotisserie and rotating basket expand cooking versatility for juicy spit-roasts and perfectly crisp fries.

Designed for health-conscious home cooks and busy families, the Ariete Airy Fryer Oven 4619 offers user-friendly features such as an adjustable temperature range from 80°C to 200°C, a 60-minute timer, and multiple cooking racks for preparing several dishes simultaneously. It typically retails in the mid-range price bracket, making it an affordable yet multifunctional addition to any kitchen. Available through leading online retailers and speciality stores, it combines practicality, innovation, and quality to enhance everyday cooking experiences.

Specifications of the Ariete AAirFryer Oven 4619

• Capacity: 11 litres, suitable for medium family meals
• Power: 2000 watts for fast and efficient cooking
• Temperature Range: Adjustable from 80°C to 200°C, with a maximum of 200°C
• Cooking Modes: 8 preset programs including fries, cakes, fish, chicken rotisserie, kebabs, red meat, shellfish, and chicken
• Cooking Technology: 360° hot air circulation for even, oil-free frying and roasting
• Accessories: Rotisserie spit, 3 overlapping grids, rotating basket, fat collection tray, removable and washable door, interior light
• Dimensions: External – 32.5 cm (L) x 34 cm (W) x 38.5 cm (H); Internal – 26 cm x 24.4 cm x 17.5 cm
• Weight: 7.94 kg
• Additional Features: 60-minute timer, smoke-free cooking, multi-dish preparation with stacked grids
• Comparison: Compared to similar multifunction air fryer ovens, the Ariete 4619 stands out with its rotisserie function and large internal capacity, providing more cooking flexibility than most compact air fryers

Setup Guide for the Ariete Air Fryer Oven 4619

1. Unbox the appliance and remove all packaging materials, including protective films on the glass door and accessory parts.
2. Place the oven on a stable, heat-resistant surface, ensuring adequate ventilation on all sides.
3. Install the supplied accessories: insert the three grids, place the rotating basket securely on its holder, and attach the rotisserie spit if roasting meat.
4. Connect the oven to a suitable power outlet (220-240V) , ensuring the cord is not stretched or near water.
5. Set the desired cooking mode by turning the rotary control to one of the eight preset programs or manually adjusting temperature (80°C-200°C) and timer (up to 60 minutes).
6. For rotisserie cooking, secure the meat on the spit and place it inside, then activate the rotisserie function.
7. During cooking, monitor progress via the internal light through the removable glass door.

Troubleshooting tips: If the oven does not heat, check he power connection and reset the timer. For uneven cooking, ensure air vents are unobstructed and grids are properly placed.

Safety Precautions: Avoid touching hot surfaces during and after cooking; use oven mitts for handling accessories. Always unplug before cleaning. Keep the appliance away from water and flammable materials.

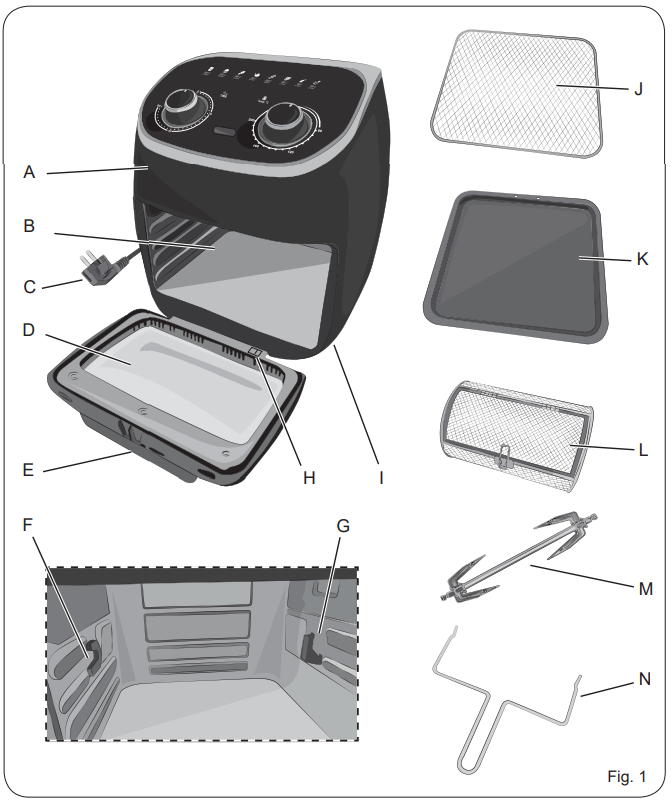

DESCRIPTION OF THE APPLIANCE

• Appliance
• Cooking compartment
• Power cord
• Door
• Handle
• Motorised left support
• Right support
• Door release button
• Caring handle
• Grill (3 pieces)
• Drip pan
• Basket
• Roaster spit
• Spit and basket removal fork
• Basket rotation button with indicator lights, operating light button-indiætor for basket/spit rotation, and internal light off temperature light
• Setting the nob for cooking time
• Temperature adjustment knob
• Air intake

INSTRUCTIONS FOR USE

Attention

• Danger of material damage. Do include foods that may drip during smoking. In addition to making difficult the cleaning operations difficult, they can cause fires. Clean the cooking compartment of any residue or crumbs before each use.
• Glass breakage danger. Do not Fur water on the door glass when it is hot. Do not place any object on the door glass when it is on.
• Do not place any object on top of the appliance during its operation.

Attention

• Risk of electric shock. Do not insert forks or other utensils into the appliance. This operation might damage the heating elements of the appliance and give rise to a danger of electric shock

Attention

• Danger of burns. During operation, the metal and glass parts are hot: only touch the door handle.
• Do not heat any food with its own packaging (bottle, box, etc).

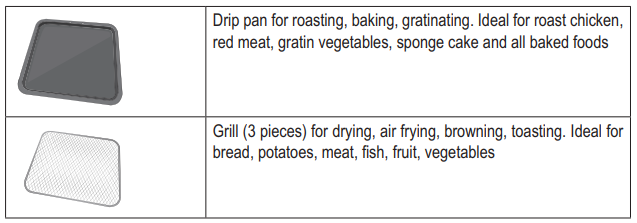

• Place the food to on the grill (J) or inside the drip pan (K). It is to use only one grill (Fig. 4)



  or the three grills simultaneously (Fig. 5).

1. Place the food to on the grill (J) or inside the drip pan (K). It is to use only one grill (Fig. 4) or the three grills simultaneously (Fig. 5).







   When cooking foods with oil, use two aluminium sheets to avoid splashing hot oil on the heating elements of the cooking compartment. Put a sheet on the drip pan or on the grill, and the other one covering the food.
   When cooking foods using the grill or the basket, evenly distribute oil on the food to make it more crunchy and golden. Next, place the foods to be cooked on the grill or into the basket.

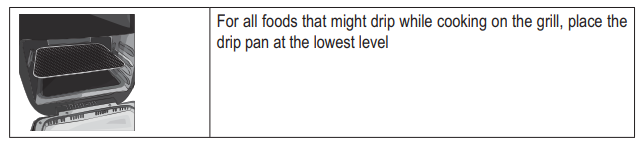

   When cooking food using the grill, the spit or the basket, also place the drip pan at the lowest level of the cooking compartment to collect fats. To avoid fumes, odours and incrustations, it is advisable to pour a little water into the drip pan.
   It is possible to preheat the food for 3-5 minutes before setting the cooking time, or directly add the heating time to the cooking time.

2. Place the grill (J) or the drip pan (K) with the previously prepared food inside the cooking compartment.
   Place the grill or the drip pan so that the food is at least 2 cm away from the heating elements placed in the upper part of the cooking compartment.
   Do not overload the grills, the drip pan or the basket with too much food. Adhere to the maximum permitted quantity indicated in the table.
3. Insert the plug into the socket, which must be earthed.
4. To turn on the appliance, turn the timer knob (P). Set the cooking time. The timer is adjustable up to 60 minutes.
5. The operation indicator turns, on, and the oven starts cooking. After the set time expires, the indicator light turns off.
6. Turn the temperature adjustment knob (Q). Set the desired cooking temperature. The temperature range is O-2m to 2 °C.
7. The temperature indicator light (turns on. As soon as the appliance reaches the temperature, the indicator light turns off.
8. The internal light can be turned on during cooking by pressing the button (O).
   When the appliance starts operating, ventilation also starts automatically. The hot ventilated air ensuræ a uniform distribution of temperature and allows even cooking on multiple levels without mixing the odours.  The appliance can be paused during its functioning, for example, to stir the during the cooking process.
9. To turn off the appliance, turn the timer knob (P) to O. The heating elements turn off..
   After cooking, the appliance eps and turns off.. If the ingredients are not ready, just put everything back in the cooking compartment and set the timer for a few more minutes.
   The appliance is provided with an auto-off function. If the door is opened during cooking, the heating elements and the internal light automatically turn off. When closing the door, the appliance resumes normal operation, and the internal light automatically turns on if it had been previously turned on.
   Attention
   Danger of burns. During operation, the metal and glass parts are hot: only touch the door handle. To remove the grill or the drip pan, use or cloth to avoid the danger of burns..
   To remove the basket or the spit, use the provided fork to avoid the danger of burns. Do not touch the heating elements.
10. Unplug it from the socket outlet.
11. Open the door.
    Attention
    Danger of burns. When the appliance door is opened, hot air and steam also come out. Kæp your hands and face away from the cooking compartment.
12. Use gloves or cloths to remove the dirt from the rill.
13. Pour the ingredients on a plate. Serve out.

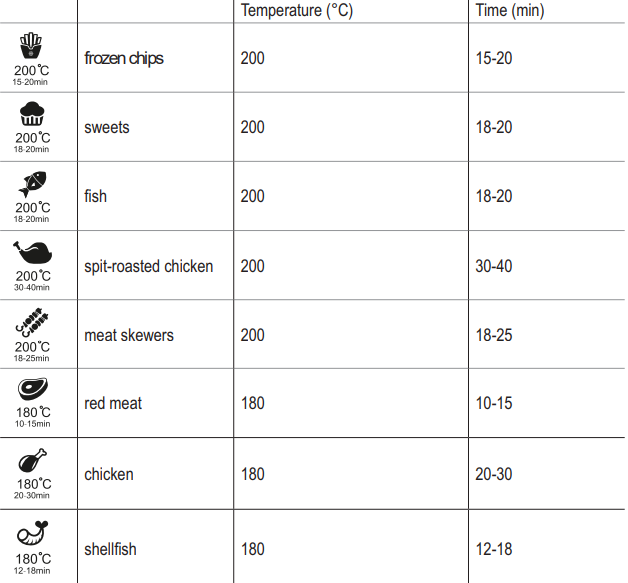

Pre-set programs

The following table shows the control panel preset programs.

ROASTER COOKING

1. Remove the grill (J). Place the drip pan (K) on the best level of the theeompartment (Fig. 6).



2. Slide one of the forks onto the spit (M) (the two tips inwards) and screw to lock it (Fig. 7).



   Tie the roast with a twine (meat, chicken, etc.) and skewer it,, being æreful to centre the meat properly.
   Let the other carving fork glide on the spit always with the tips inwards. If necessary,, unscrew the first carving fork to center the roast and block the two carving forks.

3. Insert the end of the spit into the housing located in line with the left motorised support (Fig. 8).



   Rest the opposite end on the right support (Fig. 9).



   Proceed with cooking food as described in the paragraph "Instructions for use".

4. Press the spit or basket rotation button (O). The internal light will automatically turn on. To stop the rotrotationy time, press the spit or basket rotation button (O).

At the end of cooking, use the fork (N) to lift the spit from the side of the right support and then remove the other end from the left motorized support (Fig. 10).

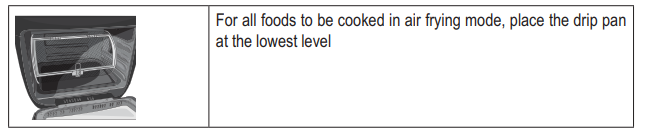

COOKING WITH THE BASKET

1. To open the basket door, lift the hook upwards (Fig. 11).



2. Place foods inside.

3. Close the basket door.



4. Remove the grill (J). Place the drip pan (K) on the lowest level of the cooking compartment (Fig. 6).

5. Insert the end of the basket ros into the housing located in line with the left motorised support (Fig. 13).





   Rest the opposite end on the right support.
   Proceed with cooking food as described in the paragraph "Instructions for use".

6. Press the spit or basket rotation button. The internal light will automatically turn on. To stop the rotation at any time, press the spit or basket rotation button (O).

At the end of cooking, use the fork (N) to lift the basket from the side of the right support and then remove the other end from the left motorised support (Fig. 14).

CLEANING AND MAINTENANCE

• Attention
  Danger of bums. Always unplug the appliance before cleaning it. Each operation must be carried out when the appliance is cold.
  Attention
  Risk of electric shock. Never immerse the appliance in water or other liquids.
• Attention
  Danger of material damage. Check the state of the main cable of your appliance on a regular basis before using it, and if it is damaged, take it to the service centre closest to you to have it replaced only by specialised personnel.
  Do not use abrasive tools to clean the applianæ.

Cleaning the appliance

• Clean any residue or crumbs in the oven before each use.
• Clean plastic parts with a damp, non-abrasive cloth and dry them with a dry cloth.
• Clean the internal part of the appliance with a non-abrasive cloth, soaked in hot water. Dry the surfaces.
• Clean the resistances with a dry cloth to remove residual of food.

Cleaning of components

The grills, the drip pan, the basket and the spit are dishwasher safe. Or use a monodish detergent and a soft, non-abrasive sponge.
To soften food residues on the basket, it is possible to fill a container with hot water. Add a few drops of detergent. Insert the basket and leave it act for 10 minutes. Wash and dry.
The appliance door can be removed to clean it in the dishwasher.

• Open the door.

• Move the slider (H) to the left and remove the door from the left support (Fig. 15).



• Pull the door to the right to free the door from the right support.

Carry out such operations in reverse order to reinstall the door.

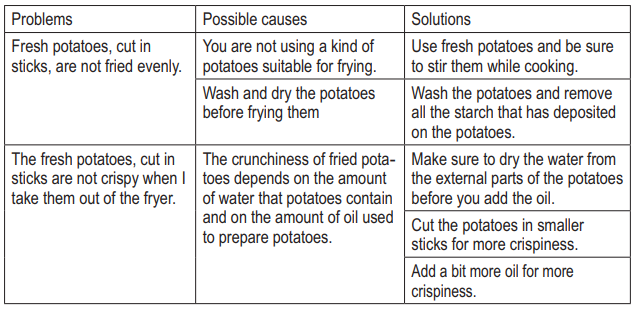

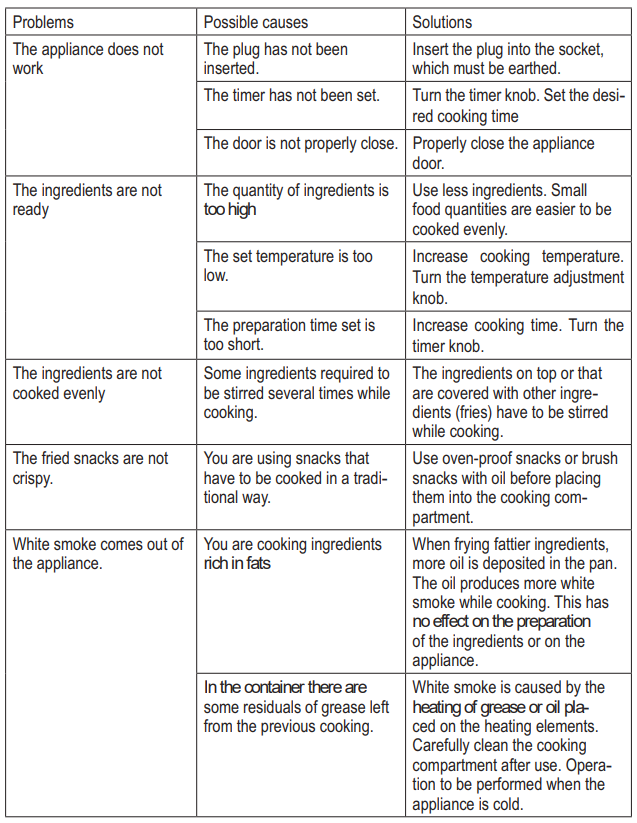

Troubleshooting the Ariete Air Fryer Oven 4619

• Problem: The ven does not start. Solution: Verify power supply and ensure timer is set correctly. Reset if necessary.
• Problem: Food is undercooked or unevenly cooked. Solution: Check that grids are properly placed; preheat oven if needed; avoid overcrowding for optimal air circulation.
• Problem: Excessive smoking during cooking. Solution: Clean the fat collection tray regularly; avoid using excessive oil; check for food debris inside the oven.
• Error Codes: This model does not display error codes; rely on manual troubleshooting steps.

Preventive measures: Regular cleaning of the door, grids, and drip tray prevents buildup and maintains performance. Use recommended cooking settings and avoid opening the door frequently during operation.

Warranty and support: The Ariete AirFryer Oven 4619 typically comes with a standard 1-2 year manufacturer's warranty. For assistance, contact Ariete customer service or authorised dealers through their official website or provided hotline.

Pros & Cons of the Ariete Air Fryer Oven 4619

• Pros:
  • Multifunctional appliance combining air fryer, oven, rotisserie, and dryer in one
  • Large 11-litre capacity allows cooking for families
  • 8 preset programs simplify cooking various dishes
  • 360° hot air technology ensures oil-free, healthier meals with crispy textures
  • Multiple grids enable the simultaneous cooking of different foods, saving time
  • Easy to clean with a removable, washable door and a fat tray
  • Integrated interior light for monitoring cooking progress
• Cons:
  • A relatively bulky size might require significant counter space
  • The weight (7.94 kg) makes it less portable compared to smaller air fryers
  • Higher power consumption (2000W) compared to compact models
  • Absence of a digital display may reduce precision for some users who prefer touchscreen controls
• Value for money: Offers excellent versatility and advanced features for the price range, outperforming many entry-level air fryers and ovens.

Customer Reviews of the Ariete Air Fryer Oven 4619

Users generally praise the Ariete Air Fryer Oven 4619 for its multifunctionality and healthy cooking performance, highlighting the crispiness of fries and the quality of rotisserie-roasted chicken. Many appreciate the convenience of cooking multiple dishes simultaneously using the stacked grids and the rotating basket.

Common praises include the ease of cleaning due to removable parts and the clear interior light that helps monitor food. Some users note occasional uneven cooking if the oven is overloaded or improperly loaded.

Star ratings typically range between 4 and 4.5 out of 5 stars, with repeated recommendations for families and health-conscious cooks looking for a reliable air fryer oven combo. A few customers suggest the appliance is best suited for kitchen spaces with ample counterspace for its size.

Overall, the product is recommended for those wanting to reduce oil consumption without compromising on taste, with special mention of the rotisserie feature as a standout benefit.
