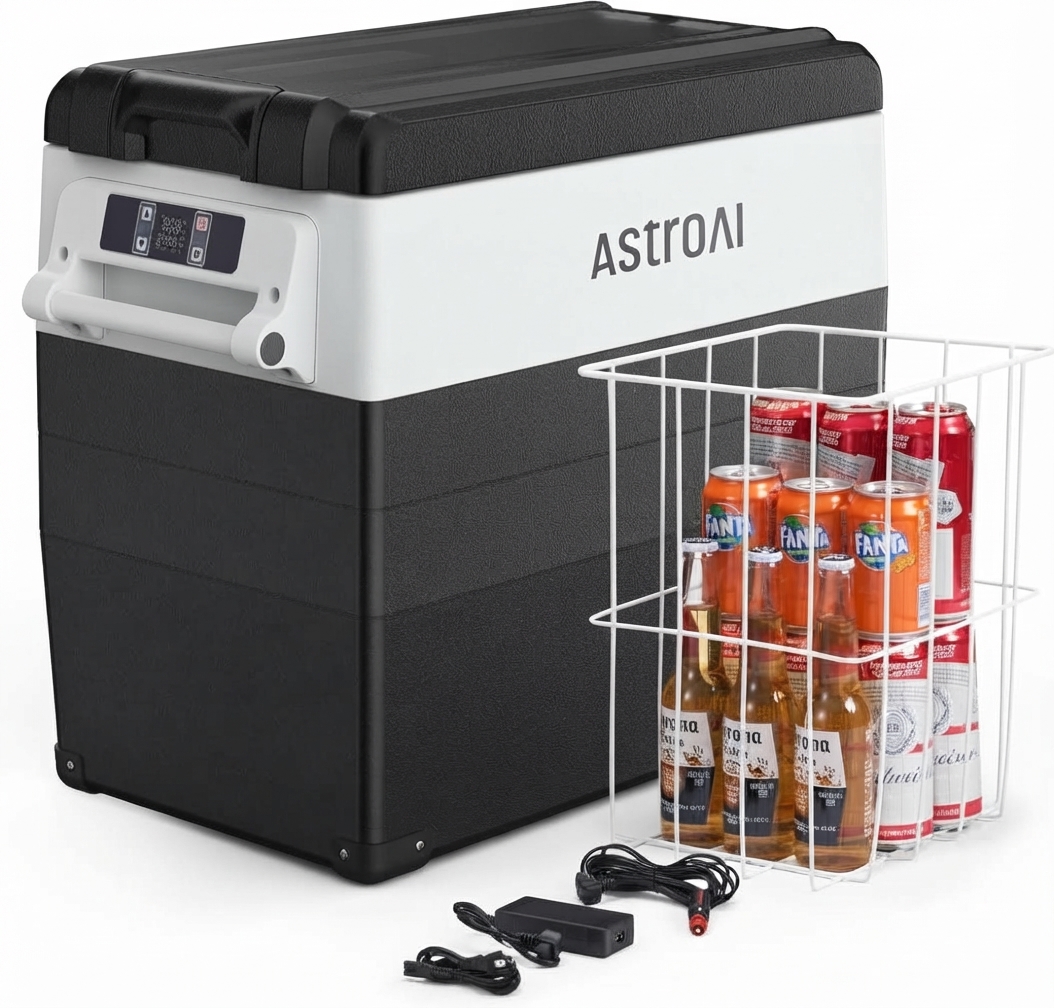

Introduction of the AstroAI Portable Car Freezer 55L

The AstroAI Portable Car Freezer 55L is a versatile and efficient solution for keeping food and beverages cold during road trips or outdoor adventures. With a spacious 55-liter capacity, it can accommodate a variety of items, from groceries to camping supplies. This freezer features adjustable temperature settings, allowing users to select between cooling and freezing modes, ensuring optimal preservation of perishable items. Its compact design and built-in handles make it easy to transport, while the energy-efficient compressor ensures reliable performance. Priced at $252.79, the AstroAI Portable Car Freezer is an essential companion for anyone seeking convenience and reliability on the go.

SPECIFICATIONS

Important note: After initially unpacking the fridge, let it stand for at least 6 hours before powering on. Always keep the freezer horizontal.

DIAGRAM

1. Door Handle
2. Control Panel
3. Carrying Handle
4. Heat Dissipation Port
5. AC Cord and plug
6. DC Cord and plug
7. LED Light
8. Rack

DISPLAY INTRODUCTION

1. Increase Temperature
2. Decrease Temperature
3. Power Button
4. Set Button

SIZE DESCRIPTION

Detailed Description

The AstroAI Portable Car Freezer 55L is designed to be easy to use and convenient to operate. It has a large digital display that shows the current temperature and mode, and it has a simple and intuitive control panel that allows you to adjust the temperature, set the timer, and switch between modes. The freezer also has a removable wire basket that makes it easy to organize and access your food and drinks. The freezer has a built-in battery that can last up to 10 hours on a single charge, and it can be recharged using the included 12V DC cable or a standard 100-240V AC power outlet.

AstroAI Portable Car Freezer 55L Operation

1. Connect the power supply: Connect one end of the power supply to the freezer socket.



2. Connect the other end to a car cigarette lighter or a standard household outlet.



3. Press the" "button to turn the freezer on to cooling mode. The temperature on the display is the current internal temperature.
4. Press the button to set the cooling temperature. Hold""-" or" '" to quickly increase/ decrease the temperature. The first time you use the freezer, it will default to the lowest temperature. In subsequent uses, the temperature will default to the lest user-set temperature.
5. Press the" "button to change the freezer to ECO (Energy Saving Mode) or MAX  (Quick Cooling Mode). The factory default mode is MAX
6. Press the" "button to turn off the freezer.

CHANGE TEMPERATURE UNIT

1. Set the freezer to its" "state.
2. Press and hold the" " button until the display reads 'E1"
3. Press the button again to toggle through the settings until the display reads "ES" '
4. Press the button to switch between Fahrenheit and Celsius.

BATTERY PROTECTION SETTING

This freezer has a three-level battery protection function which not only guarantees the normal operation of the freezer, but also protects the battery of the vehicle

1. Set the freezer to its "on" state.
2. Hold the" " button until the display flashes "H".
3. Press the" "button again to select a low voltage protection level - L, medium voltage protection level - M, or high voltage protection level -- H, The factory default is 'H",

Note: Due to differing output voltage of different vehicle power supplies, if the voltage protection appears (if the display reads “F1”), you can lower the battery protection setting by one level (H adjusted to M or L).
It is not recommended to run the freezer while the engine is off. If you must run the freezer while the engine is off, set the protection level to H (high). If the freezer is run for too long without the engine on, the vehicle may not be able to start.

Setup Guide

Setting up the AstroAI Portable Car Freezer 55L is simple.

1. First, make sure the freezer is fully charged before use.
2. Next, connect the freezer to a power source using the included 12V DC cable or a standard 100-240V AC power adapter.
3. Then, use the control panel to set the temperature, mode, and timer as desired.
4. Finally, place your food and drinks in the freezer and close the lid. The freezer will automatically start cooling and will maintain the set temperature until it is turned off or the power is disconnected.

SAFETY INFORMATION

• When using the 12/24V in-car adapter, the compact fried should not be left connected for long periods when the engine is not running.
• Unplug this device during lightning storms or when not in use for long periods to prevent damage to the device.
• DO NOT open or remove covers, doing so may expose you to dangerous voltages and other hazards.
• The supply voltage should match the voltage indicated in the technical specifications and on the appliance rating plate
• To completely disconnect the device from a power source, switch off the outlet and unplug the freezer.
• Do not bend, stretch, or pull the power cable. Doing so may cause an electric shock.
• Avoid operation In locations where dust or other airborne contaminants may enter the fan.
• Allow at least 5 inches of distance from the back and sides of the device to allow proper air circulation and heat dispersion.
• Never leave the freezer running in poorly ventilated areas like an enclosed vehicle trunk.
• The installation of DC power on a vehicle must be performed by a professional electrician.
• Do not use electrical products inside the freezer.
• After initially unpacking the freezer. let it stand for El Lees! 6 hours before powering on
• Keep the freezer horizontal at all times.
• The freezer should be operated in a well-ventilated area away from heat sources and direct sunlight.
• Do not soak the freezer with water. If water accumulates inside the freezer, use a cloth to dry the condensation. Do not pour water out of the freezer.

TROUBLESHOOTING

CODE ANALYSIS

WARRANTY

1 Year Limited Warranty from AstroAI
Each AstroAI portable freezer will be free from defects in material and workmanship This warranty does not cover damage from neglect, misuse, contamination, alteration, accident, or abnormal conditions of operation or handling. This warranty covers the original purchaser only and is not transferable.

AslroAI aims to provide our customers with excellent products and customer service. Learn more about us at https://www.astroai.com  or our Instagram @astroai.

Pros & Cons

Pros

• Large 55L capacity
• A powerful cooling system that can reach -20°C
• Quiet and energy-efficient ECO mode
• Shockproof and waterproof exterior
• Removable wire basket for easy organization

Cons

• May be too large for some vehicles or storage spaces
• May use a lot of power if used for extended periods
• May be expensive for some users

Customer Reviews

The AstroAI Portable Car Freezer 55L has received excellent reviews from customers, with many praising its spacious capacity, powerful cooling system, and durable design. Some customers have noted that the freezer is a bit heavy and bulky, but most agree that it is worth the extra weight for the convenience and versatility it provides. Some common complaints include issues with the battery life and the power cord, but these are relatively minor and do not detract from the overall quality and performance of the freezer.
