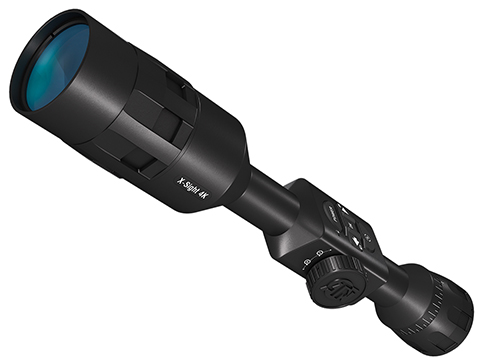

Introduction of ATN Smart Rifle Scope X-Sight 4K BH

The ATN Smart Rifle Scope X-Sight 4K BH is a state-of-the-art optic device designed for serious hunters and shooters. This scope features a 4K ultra HD sensor, providing crisp and clear images, even in low light conditions. The estimated price of the X-Sight 4K BH is around $800 to $900, making it a high-end yet affordable option. The launching date has not been officially announced, but it is expected to be released in the latter part of 2021.

Specifications

ATN Smart Rifle Scope X-Sight 4K BH Overview

Features

• RECORD HD VIDEO
• DUAL STREAM VIDEO
• BLUETOOTH
• SMOOTH ZOOM
• E-COMPASS
• 3D GYROSCOPE
• DAY/NIGHT MODE*
• SMART RANGE FINDER
• BALLISTIC CALCULATOR
• RECOIL ACTIVATED VIDEO (RAV)
• ONE SHOT ZERO
• PROFILE MANAGER
• ULTRA LOW POWER CONSUMPTION
• DUAL CORE PROCESSOR

Application

ATN has been at the forefront of your digital optic needs, and now we are surpassing all expectations by presenting a new series of products that deliv-ers a profoundly new experience!

The X-Sight 4K Day/Night scope offers an enhanced HD Night Vision Mode, higher resolution and faster optics that allow for a faster image to form on the new HD Display. Our New 4K Sensor and Dual Core Processor gives you the power to Record

Video and WiFi Stream at the same time!
You wanted longer lasting power capabilities? You got it! The X-Sight 4K scope includes a long lasting internal Lithium Ion Battery, allowing for up to 18 hours of power. The X-Sight’s new retro design allows you to use your traditional 30 mm mounting rings that will allow you to have plenty of eye relief while using the rifle you want. Sighting your scope has never been easier with our One Shot Zero feature. Plus, a slew of other features, you have come to expect from the ATN Smart HD Optics line.

PREPARING THE DEVICE

UNPACKING
The following steps must be performed before using the device.

1. Open packaging box, remove X-Sight 4K.
2. Verify your box has the following: Optic, Optic Cover, Sunshade, Rubber Eye Piece, IR Illuminator (only with X-Sight 4K Pro), Rings (only with X-    Sight 4K Pro), Charging Cable.
3. Inspect the device for damage to optical surfaces, body, eyecups, opera-tion buttons, etc.
4. Ensure that all optical surfaces are clean and ready for use.

NOTE: If any accessories are missing or broken contact ATN’s Customer Ser-vice at 1.800.910.2862.

CHARGING THE DEVICE

The device is equipped with a USB (type C) port. You will find it under the rubber cap on the right side of the device (caps are marked with appropriate icon). We have included a USB (type C) charging cable with your scope. Plug the cable into a USB wall charger that has an output of 2 amps (Wall Charger not included).  Charge your scope for 6 hrs using a 2A USB wall charger. Note using a wall charger with lower amperage will take longer to charge your scope.

1. Recommended charger is 2A USB charger.
2. Battery charging time (from 0 to 100%) is 6 hours with 2 A USB charger.
3. Battery run time is 18 hours on a single charge.

MICRO SD AND USB C PORTS

The device is equipped with a microSD Card and USB (type C) ports. You can find them under the rubber caps on the right side of the device (we marked the caps with appropriate icons).  To open the rubber port cover, gently lift the rubber cover and move it out of the way.

NOTE: Make sure that the device is turned off before inserting the formatted microSD Card into its assigned port.

1. Always format a new microSD card before using.
2. Insert microSD card as shown.
3. Use a thin object (small coin, paper clip) to lock the microSD card in place after inserting it into the slot.
4. Return the cover to its original position.

NOTE: There is only one correct direction to insert the microSD Card. Do not force the microSD Card into the port doing so may cause damage to both the scope and the card itself. To remove the microSD Card from the port, push the card slightly in using the same thin object you did before. When the card pops up a few millimeters, pull the card out with your fingers or tweezers.

NOTE: If you are going to record video, the microSD Card should be a Class 10 (10 Mb/sec) or faster and have capacity from 4 to 64 Gb that is an HC type SD card.

FIRMWARE UPDATE

Before operating your device, update the firmware to the latest version. All firmware updates can be found on at https://www.atncorp.com/firmware. To receive a notification concerning new firmware updates, please register your device on our website. An email notification will be sent when a new firm-ware update becomes available. To update the firmware you will need a microSD Card and fully charged internal battery.
NOTE: In the event of a power failure during an update, the device may crash. This will corrupt the system files and the device will need to be sent back to the ATN factory for service. To ensure your zero coordinates are not lost, write down your zero coordinates before continuing to update the firmware.

Update the new firmware as follows:

1. Download the ***.bin file and copy to your microSD Card — root direc- tory.
2. Insert the card into the scope.
3. Turn ON the scope.
4. In the “Firmware Update” dialog box select “Yes” to start the update.
5. When the update counter reaches “100%” the device will automatically restart.
6. Once the device is powered up it will enter self configuration mode.
7. After completing it will automatically restart.
8. Motion Sensing platform will be configured when first turned on.
9. Once the Firmware update completes, please do a factory reset before using the product.
10. Please delete the Firmware file off of the microSD card after the process is complete. Or the system will try to update the Firmware every time you turn the scope on.

NOTE: If the device does not restart within 30 seconds, press and hold the power button for 15 seconds and the scope will turn off.

ON/OFF

• To TURN ON the device, press and hold the POWER button until you see the ATN splash screen.

• To TURN OFF the device, press and hold the POWER button, until “Shut down the device?” appears in the dialog box. Choose “Yes” to turn off.



If the scope freezes or stops responding to the control panel. Press and hold the Power button for 15 seconds to reboot the scope.

USING YOUR KEYPAD AND SCROLL WHEEL

The KEYPAD is programmed to be used in two different ways.

• Short and Quick Taps — used for most functions and to get around the menu.
• Press and Hold — designed to be used in the following situations — ON/OFF, SHORTCUT MENU.
• You can use the POWER and FUNC-TION buttons in System Menu as UP and DOWN buttons.
• The Scroll Wheel is used to magnify your target from the Home Screen, or during the zero in process.

NOTE: Using LEFT or RIGHT buttons in the Menu. You can quickly choose Exit Shortcut from any position. Use the Function Button from any menu screen to exit to the Home Screen by pressing and holding down the Function button for a few seconds.

FOCUSING

DIOPTER ADJUSTMENT
By rotating the Diopter Adjustment Ring you will achieve optimal sharpness for your vision. Look through the eyepiece while focusing on the reticle and widgets on the screen.
NOTE: Once the Diopter Adjustment is set to your liking, adjustment will not need to be performed unless another user altered the focus for their needs.
DISTANCE FOCUS
Rotate the Adjustment Ring, as necessary, to achieve the proper focus at various distances.

MOUNTING

The X-Sight 4K has a 3.5-inch eye relief, and can be mounted using 30 mm mounting rings. ATN has provided two standard rings and one L shape ring (For X-Sight 4K Pro only). The L shape ring is for those instances when you need extra eye relief for certain rifles. First, choose your preference of rings and position and mount the bottom portions of your rings to your rail for optimal eye relief. Place the scope on the bottom half of the rings you just mounted, verifying you have sufficient eye relief for your platform. Place the top portion of your ring over the mounted bottom portion, make sure the holes align and the screws turn easily. Apply equal torque to all screws with the provided Allen wrench. Make sure your rings are tight on your rifles rail and will not come loose due to recoil.

For mounting the X-Sight 4K on the weaver rail:

1. Loosen the fixing screws on the sides of the mounting rings.
2. Place the rifle scope on the weaver rail so that the projection of the rail, which is in the base of the ring, enters the recess in the rail.
3. Tighten the fixing screws of the mounting rings.

CAUTION! Be sure your weapon is not loaded. Use safe weapon handling procedures at all times.

NOTE: Rings are only included with the X-Sight 4K Pro models only.
LONG RANGE 850m W INFRA-RED ILLUMINATOR

INTRODUCTION
ATN IR850 an extremely powerful, long range 850 mW infra-red illuminator for hunt-ing, law enforcement, search & rescue and military use. Before using your IR850, please read this manual care-fully. If a problem occurs, refer to the troubleshooting tips.

SPECIFICATIONS

ATN reserves the right to change the above specifications at any time without notice.

FEATURES

• Constructed using aircraft grade aluminium.
• Waterproof to IPX-8 standard
• Flawless white bea
• Easy rail mounting system
• One-year Warranty

BATTERY
NOTE: Please hold the battery tube (not the flashlight head or neck) when Tightening/loosening the tail-cap.

The IR850 IR Illuminator uses two CR123A batteries.

1. Remove the tail cap unscrewing it until it is free of the body.
2. Install the battery in the body, observing proper battery polarity.

3. Install the tail cap back on the body.



MODES
The IR850 has three stage output — Low, Medium and High system. Low at 5%, 20 h. Medium at 30%, 8 h. High at 100%, 1.6 h.

General Mode
The factory preset modes control the brightness of the IR850 illuminator. The three modes are designated on the tail cap that activates the modes.

The modes are distinguishable by the size of the dot on the tail cap. The small dot indicates the lowest power output setting. The medium dot indicates the medium output power setting. The large dot indicates the strongest output power setting.
To activate the desired mode, turn the end of the tail cap, so that the dot indicator is aligned with the desired power output. This will turn on the required output for your needs.
To turn off the IR850 illuminator, simple turn the tail cap so that the dot indi-cator is positioned on the off setting.
FOCUS
Turn the light on maximum output and shine it on a wall 8~10 m away. To focus the beam, hold the head in one hand and turn the neck section with your other hand turn clockwise or anti-clockwise.

MOUNT

1. Unscrew the two screws.
2. Place the insert in the mount.
3. Insert the illuminator into the mount with insert.

4. Secure the two screws using an align wrench.



Do not apply excessive torque.

ALIGNING THEIR BEAM
In order to Align the IR850 illuminator to your scope. After the IR850 is assembled into the mount. Place it on the X-Sight side accessory rail or on your rifles accessory picatinny rail. Once mounted securely, slightly loosen the two screws on top of the mounting ring. While looking through the X-sight at night with night mode activated. Move the IR850 around in the mount until you see the IR light covering your entire field of view in the X-sight view finder. Once you have adjusted your IR light to be aligned with your X-Sight FOV, gently tighten the two screws on top of the mounting ring with an align wrench.
MAINTENANCE
To prevent wear and retain water-resistance it is a good idea to lubricate the threads and o-rings if they become dry.

TROUBLESHOOTING

Light dimming

1. Battery may be faulty. Try another fully charged battery.
2. Battery may need charging. Charge your battery and re-try.

COMPASS CALIBRATION

When the compass needs to be calibrated the word “CAL” appears instead of the Compass Scale. To calibrate you should rotate the device on three axis as pictured on the right.

NOTE After calibrating the device please remember that the compass will work best when holding the X-Sight parallel to the ground. Other possible abbreviations:

• ERR — an error was detected;
• SMF — your device is under Strong Magnetic Field;
• UPD — your firmware needs to be updated.

Description of ATN Smart Rifle Scope X-Sight 4K BH

The ATN X-Sight 4K BH is a high-performance smart rifle scope that offers advanced features for serious shooters. Its 4K ultra HD sensor and dual-core processor deliver crisp and clear images, even in low light conditions. The dual-stream video recording feature allows you to record and stream your hunts in 4K resolution, making it perfect for sharing your hunting experiences with others. Additionally, its smart range finder and ballistic calculator help you accurately estimate range and compensate for bullet drop, ensuring a more precise shot. The recoil activated video feature automatically records and saves the video of your shot, so you won't miss any important moments.

INTERFACE

HOMESCREEN

The first screen you’ll see after turning on the device is the Homescreen. It consists of Scales, Status Bar icons and different Information Widgets.

SCALES

• E-Compass Scale shows yaw angle, based on e-Magnetometer data.
• Roll Scale shows rifle cant, based on internal 3D Gyroscope.
• Pitch Scale shows rifle inclination, based on internal 3D Gyroscope.

STATUS BAR
Displays information about the current state of the system. Icons that are inactive become invisible when not in use, and only the important information will appear.

1. Battery  shows how much energy is left in the system.
2. Micro SD Card  shows the presence or absence (red icon) of memory card. Ballistic Calculator, Bluetooth, and WiFi — shows when the function is enabled.

WIDGETS
Interface elements will appear as widgets that will provide access to useful information.

There are sev-eral types of widgets:

• icons without value are used for mode display-ing (Photo and Video Modes);
• only numerical value (Detailed Roll and Pitch Values);
• icons with a numerical value: Range, Zoom, Reticle Correction, Wind Speed.

1. Photo Preview appears at the bottom of the Homescreen, after the photo is taken.
2. Display widgets can be disabled from the System Settings.
3. To enter System Settings you should click the OK button from Homescreen to access the Shortcut Carousel.

4. Select the wrench icon with RIGHT or LEFT buttons and push the OK button to enter the System Settings menu. Select the Display tab with RIGHT button and choose subcategory Display Widgets with the Scroll Wheel or Keypad buttons . Press the OK button to select the Display Widgets. Use the Scroll Wheel or Keypad buttons to change from Extended to Minimal.



MAIN OPERATIONS

ZOOM LEVEL
Use the Scroll Wheel on the left side of the scope to Zoom IN and OUT. Zoom Level is displayed in the Zoom widget on the Homescreen.
NOTE: When the device is activated for the first time, you need to configure the lens option in the pop-up window before zooming. Please refer to System Settings, Device Type on page 28.
TAKING PHOTOS
Press the LEFT button to TAKE A PHOTO. Depending on the selected mode, you will take one or several photos. Various photo modes are available in the System Settings.
VIDEO RECORDING
By pressing the RIGHT button you will be able to RECORD VIDEO (if you use Normal Mode) or START RAV (if Recoil Activated Video mode is on).The video recording modes can be switched in the System Settings options.
NOTE: Recording will automatically stop when the memory card is full or the battery is out of power.
SHORTCUT CAROUSEL
Pressing down on the OK button opens and closes the Shortcut menu.

MODES

The X-Sight 4K Pro has 2 modes of ope ration: basic and advanced.
Basic Mode has the following fea-ture options:

1. Exit
2. System Settings
3. Night Mode (X-Sight 4K Pro Models Only)
4. Advanced Shortcut
5. Zero Reticle

Advanced Mode has the following feature options:

1. Exit
2. System Settings
3. Night Mode (X-Sight 4K Pro Models Only)
4. Range Finder
5. Advanced Shortcut
6. Distance Entry
7. Environment
8. WiFi
9. Zero Reticle
10. Ballistic Calculator
11. Gallery

SHORTCUT CAROUSEL

The Carousel is your access to a number of shortcuts that will allow you to quickly access your scope’s features. Click the OK button  from Home-screen to access the Car-ousel. Buttons highlighted in Red are the only ones that activate a particular short-cut. Use the LEFT & RIGHT  buttons  to move bet-ween functions, except with the group of ON/OFF switches (WiFi, Bluetooth, Ballistic Calculator, RAV), use the Scroll Wheel or Keypad buttons  between switches. To turn a particular function ON or OFF, you should click the OK button while that function is selected. Example — WiFi.

1. EXIT
   Exit Carousel.
2. ONE SHOT ZERO
   Sighting in your scope has never been easier with One Shot Zero. Take a shot adjust your reticle and you are good to go.
3. NIGHT MODE
   Switch between Day and Night Mode.
   Note: Night Vision Mode is only available on the X-Sight 4K Pro Series.
4. RANGEFINDER
   Activates Smart Rangefinder feature. If the Ballistic Calculator is ON then the range that is found using the Rangefinder will be automatically used to adjust your point of impact (shift reticle to adjust for drop).
5. DISTANCE ENTRY
   Manually input or adjust the distance to the target to be used by the Ballistic Calculator.
6. GALLERY
   Gives you access to the library of Images and Videos that are stored on your scope’s micro SD card.
7. ENVIRONMENT
   Allows for input of various environmental data to improve ballistic correction, such as wind speed and direction.
8. SYSTEM SETTINGS
   Allows access to various system options and adjustments.
9. WIFI
   Allows you to connect to your smart phone or tablet; password is atnsmarthd.
10. BLUETOOTH
    Allows you to connect to ATN Smart accessories, that use Bluetooth, to communicate with your scope.
11. BALLISTIC CALCULATOR
    Allows you to have the scope automatically adjust your reticle POI for bullet drop, based on the ballistic information you input into the scope.
12. RAV (Recoil Activated Video)
    Allows you to record your hunt without having to press the record button.

USING SYSTEM SETTINGS

• To enter the System Settings, open the Shortcut Carousel by pressing the OK button .
• Select the wrench icon with RIGHT or LEFT buttons .
• Push the OK button to enter the menu.
• The System Set tings consists of a Tab Bar at the top of the screen, list of subcategories in the center and Help Information at the bottom.
• On the left side of the Tab Bar you will find the Exit (with arrow icon). Selecting Exit and pressing the OK button will bring you back to the Homescreen.
• Movement between the tabs is carried out using the LEFT and RIGHT buttons

• Each tab includes subcategories. To select a particular subcategory you should use the Scroll Wheel or Keypad buttons and press the OK button to select it.



• To change a particular value, follow the next few steps. Select the subcategory you need with the Scroll Wheel or Keypad buttons .



• Press the OK button to select a particular value (once selected it will turn red).
• Change the value with the Scroll Wheel or Keypad buttons .

• To select a new value, press OK button to confirm the change.



ATN Smart Rifle Scope X-Sight 4K BH Functions

NIGHT VISION

NOTE: Night Vision Mode is only available in the X-Sight 4K Pro Series.

1. To switch between Day and Night Mode, choose NIGHT MODE in Shortcuts. Shortcuts allow you quick access to the Carousel that contains your scope’s features. Just click the OK button to access the Carousel.

2. Buttons highlighted in Red are the only ones that  activate a particular shortcut. Movement between the  items is carried out using the LEFT & RIGHT buttons
   NOTE: Remember that turning on Night Mode during daylight will not harm your device; however, you may not be able to see anything due to the image being too bright. You can adjust the Light Sensitivity in the System Settings.



3. To enter the System Settings, open the Shortcut Carousel by clicking the OK button . Select the wrench icon with RIGHT or LEFT buttons .



4. Push the OK button to enter the menu. Choose Night Vision in the Tab Menu. Movement between the tabs is carried out using the RIGHT or LEFT buttons .

NOTE: For the best video quality while recording in Night Vision mode. We suggest having your Light Sensitivity settings on Low.

PHOTO MODE

1. Press the LEFT button while staying on the Homescreen to TAKE A PHOTO.
2. You must have a microSD card inserted in the device for this feature to work. All files will be stored on the microSD card.
3. Depending on the selected mode, you will take one or several photos. You can choose from various photo modes in the System Settings.
4. To enter the System Settings you should open the Shortcut Carousel by pressing the OK button and selecting the wrench icon with RIGHT or LEFT buttons .
5. Push the OK button to enter the menu. Use the Right button till you select the Photo/Video tab.
6. There are three photo modes to choose from. Switching between modes is done in the System Settings from the Photo/Video tab, subcategory PhotoMode.
7. Use the Scroll Wheel or Keypad buttons to switch between modes. Press the OK button to select a particular value (once selected it will turn red).

8. Change the value with the Scroll Wheel or Keypad buttons . To select a new value, press OK button to confirm the change.



SINGLE
This default mode allows you to take one photo at a time.

VIDEO RECORDING

NOTE: You must have a microSD card inserted in the device for these features to work
All files will be stored on the microSD card. Recorded videos can be found in the Gallery on your device. The scope allows you to record videos in two modes.

NORMAL
The default mode  While recording the Counter widget appears. In order to Start recording video. While on the Homescreen, Press the RIGHT button to act ivate video recording. Press the RIGHT button oncemore to Stop recording video.

RECOIL ACTIVATED VIDEO (RAV)

1. When you set your video record to RAV mode (from Shortcut Menu), the system buffers everything your scopesees.
2. While you are in this mode, the RAV widget appears and then after starting to record the Time Counter appears.

3. After activating the RAV function in the Shortcut Carousel, return to the Homescreen. Continue the activation process by pressing the Right button that activates Video. Also, make sure you see the RAV icon on the Home screen upper left corner. Press the RIGHT button again to stop Video recording.



4. When a shot is fired and your scope experiences recoil (some airguns may not provide enough recoil for RAV to be activated). The scope will record video prior to the shot being taken, the moment of, and some time after. Exact settings may be adjusted in the System Settings.


RECOIL ACTIVATED VIDEO

1. Recoil Activated Video (patent pending) offers a unique approach to taking videos with your Smart Sight. RAV offers you the ability to take a video of before, during and after your shot has been fired.
2. Perfect for those hunting moments when hitting your target, far outweighs the importance of remembering to turn on your video record. Simply set your RAV to ON, set your parameters. Anytime you Pull the Trigger, RAV is activated from the recoil of your weapon and the sight will record a number of seconds before your shot, and a number of seconds after.
3. All conveniently organized as one continuous video. Press the RIGHT button to Activate RAV from the Homescreen to Start Video recording. Press the RIGHT button again to stop Video recording.

NOTE: It may be best to turn OFF the Microphone in conditions of extreme wind.

You can turn on the microphone and switch the quality of the video in the System Settings (Photo/ Video tab).

To enter the System Settings:

1. Open Shortcut Carousel by pressing the OK button and select the wrench icon with RIGHT or LEFT buttons .
2. Push OK button to enter the menu.
3. Using the Scroll Wheel or Keypad buttons select Microphone. Press the OK button to select it.
4. Change the setting with the Scroll Wheel or Keypad buttons and press the OK button to confirm the change. All files will be stored on the microSD card. Recorded videos can be found in the Gallery of the device.

ZEROING

NOTE

1. Before Zeroing your scope, please make sure the correct lens type is selected. You can check this by going to the System Settings and selecting Settings. You will see the subcategory Device Type. Please make sure you select the lens type of your scope. This lets the systemknow which Scope you are actually using (example: X-Sight 4K 3-14 or 5-20).

2. To Zero in your scope you will need to go to the Profile/ Zero section of the System Settings, or select it from the Shortcut Carousel.



3. To enter the System Settings, open Shortcut Carousel with OK button and select the wrench icon with RIGHT or LEFT buttons . Or select the Zero Reticle shortcut from the Shortcut Carousel.
4. Push the OK button to enter the menu.
5. Before you begin the Zeroing process you will need to either create a new Profile or utilize an existing one. We recommend to create a new one to understand the process better.
6. Under the Profiles/Zero Category you will find Current, Other, Import from SD card, Export to SD card. Select Other. There you will see Profile 1 and Create New Profile. You can select Profile 1 and edit it, or create a new one and make changes to it. Once you select a profile, press the OK button to load it.
7. Once the profile is loaded, it becomes your current profile. Profiles are primarily used in order to utilize your scope on various weapons. This way, when moving your scope from one gun to the next, you can simply select the Profile that you have already created for the particular gun you are using. Multiple profiles are also used to zero in the scope, on the same gun, but at different ranges.

For example, one Profile may be called AR 50 yards and another AR 200 yards. Allowing you to create two separate profiles to better fine tune your shooting solutions for both shorter and longer range shooting. In order to change the profile name to what you want, open the ATN Obsidian app and connect your Phone/Tablet to your scope.
To zero your rifle with the ATN device, follow the next few steps.

Zeroing Scope

1. In the System Settings, Select the Profiles/Zero Tab. The main Subcategories of the Profiles/Zero are Current, Other, Import from SD card and Export to SD card. Select Current, by pressing the OK Button . There you will see Zero Reticle. We suggest you fill out  all the ballistic info, to thebest of your ability, before proceeding to Zero. This will save you time when you want to use the Ballistic Calculator at a later time.



2. Proceed to Zero the Reticle.  Press the OK buttonto select Zero Reticle. You will see on your screena cross hair reticle. While  keeping the gun as steadyas possible, fire a round. Use the key pad and scroll wheel to move the Red cross hair to the point of impact. While keeping the White crosshair in the same place you where aiming. Once you have placed the Red crosshair on the POI, press the OK button . A dialogue box will appear with options. Select Save & Exit.



NOTE : Although you may not need more then one shot to Zero in your scope, we do recommend that you repeat the process several times to make sure that you truly are Zeroed in. As you gain experience in Zeroing in your scope it should take you no time at all to Zero it.
NOTE: In order to fine tune your zero, select the Zero Reticle once more. Press the OK button and select Zoom. Zoom in all the way and fire the weapon. If your POI is not where you aimed, move the Red reticle to the POI and Exit & Save. This will ensure your POI is the same on optical and maximum magnification.

RANGEFINDER

Using the Smart Range Finder will allow you to estimate the distance to your target, as long as you have reasonable knowledge of the size of your target.
NOTE: To have this featureenabled you must activate Advance Mode settings.
NOTE: Once the distance is measured, the value will be automatically integrated into your Ballistic Calculator.
RANGEFINDER
Select the Flag Icon from the Shortcut Carousel. Pressing the OK button will take you to theMain Screen of the Rangefinder feature.

To measure the distance, follow the next steps:

• put the arrow-mark on the top of the target and press the OK button , wait for the scope to take the readings (it will take a number of readings so try to keep your weapon steady);

• put the arrow-mark under the target and press the OK button ;



• if satisfied with the value that was generated, press the Function button to go back to the Homescreen or repeat steps 1 and 2, if necessary.



NOTE: During the measurement process, you can zoom in and out using the Scroll Wheel. If the Target Height is incorrect you can change it:

• press the RIGHT button to enter the Menu;



• choose one of the presets or input the height manually;
• accept the height with OK button and go back to the Main Screen.

DISTANCE ENTRY
Allows you to input or correct the distance manually.

Choose the Distance
Entry option to launch this function. Change distance value using the Scroll Wheel or Keypad buttons . To accept the new distance, press the OK button .

BALLISTIC CALCULATOR

The X-Sight 4K has a ful-ly integrated Ballistics Cal-culator that enables your scope to seamlessly adjust its point of impact. The first step in utilizing this func-tion requires you to enter all relevant information in-to the Profile that is being used.

NOTE: To have this feature enabled you must activate Advance Mode settings.

NOTE: If you do not know all or part of this info (example: Initial Velocity), we recommend that you contact the manufacturer of the ammunition and/or the weapon that you are using. Generally this info should be found on the manufacturer’s website.

1. Once your profile has been setup, you are ready to activate the Ballistic Cal-culator on your sight. Open the Shortcut Car-ousel and follow the instructions in this section.



2. You will need  to use your key pad and Scroll Wheel or Keypad  buttons , to find the Bal-listic Calculator bullseye icon. If this function is off (indicated by a diagonal line running through the icon), you will need to turn it on by pressing the OK  button while having the icon selected. You will see the diagonal line disappear and the Ballistic Calculator icon will appear in the top right corner of the screen. Profiles which are not in use are situated in the Oth-er section. You can use an existing profile or create up to 6 new user profiles.



3. To edit a Profile, select it (highlighted in red) and  press the OK button . Choose the action you want to perform; Load, Co-py (Duplicate) or Delete the selected profile.



ENVIRONMENT

NOTE: To have this feature enabled you must activate advance mode settings.

There are a number of Environmental elements that may be entered to in-crease the precision of your shots.
Wind
Wind strengths and di-rection are by far the most important of the group, especially during medium to heavy winds. We highly recommend that if you plan to shoot at ranges over 300 yards. Take wind readings and enter the information into your sight. Both wind speed and wind direction are needed if you plan to make accurate shots. You can enter the information through the Environment shortcut or your mobile device using the Obsidian App with a WiFi connection to your scope, whichever you find easier.

Humidity
Humidity must also be entered through the Envi-ronment shortcut or by uti-lizing the Obsidian App.

Barometer Pressure, Altitude and Tempera-ture
Pressure, Altitude and Temperature will be set automatically using your sight’s internal sensors.

Other Data Collected

The angle of your scope, as in relation to your target, is also noted and the Ballistic Calculator takes the information into its calculations.
RANGING IN ON YOUR TARGET
Clearly, the number one priority to achieve accuracy in long range shooting is to know the range to your target.  The Ballistic Calculator will make your adjustments for you, but only after you have entered the distance to your target. Your sight offers several ways to accomplish this task.

RETICLE STYLE ADJUSTMENT

• You can manage reticle style in the System Settings (Display section).

• To enter the System Settings, open the Shortcut Carousel by pressing the OK button and selecting the wrench icon with RIGHT or LEFT buttons .



• Press the OK buttonto enter the menu. Choose Display in the Tab Menu. Movement between the tabs is carriedout using the LEFT and RIGHT buttons .

• Using the Scroll Wheel or Keypad buttons , select the Reticle Style subcategory. Press the OK button to select it.



• To change the Reticle Shape press the OK button
• Select the preferred Reticle style that suits your preference. Use the scopes Key Pad arrows to switch between shapes.

• To accept the Reticle, press the OK button .



• You can change Reticle Color to whatever color suits your preference. Movement between the colors is carried out using the LEFT and RIGHT buttons

• Press the OK button to accept your color.



Setup Guide of ATN Smart Rifle Scope X-Sight 4K BH

To set up the ATN X-Sight 4K BH, follow these steps:

1. Install the batteries and mount the scope onto your rifle.
2. Turn on the scope and connect it to the ATN Obsidian app on your mobile device.
3. Use the app to configure the scope's settings, such as the reticle, language, and Wi-Fi password.
4. Use the smart range finder to estimate the range of your target.
5. Adjust the scope's magnification and windage/elevation settings as needed.
6. Press the record button to start recording your hunt. Note: It's recommended to sight in the scope before using it for hunting.

SYSTEM SETTINGS

NIGHT VISION

NOTE: Night Vision Mode is only available in the X-Sight 4K Pro Series.

LIGHT SENSITIVITY
There are two options for Light Sensitivity; Low or High. On the Low setting, you will get 30 fps. On the High setting, you will get 15 fps. Your selection will depend on the amount of ambient light needed for op-timal performance.

PHOTO/VIDEO

PHOTO MODE  includes Single (capture a single photo), Time Lapse (series of photos at timed intervals) and Burst (up to 10 photos in one second) modes.
BURST COUNT amount of photos in one second (2 – 10).

TIME LAPSE SETTINGS

• Total Photos amount of photos in a series (2 – 10).
• Frame Interval  length of the interval (2 – 15 sec).
  • MICROPHONE sound recording (ON/OFF).
  • VIDEO QUALITY can be 1080p @ 30/60/120 fps*.
  • RECOIL ACTIVATED VIDEO
• Record Before Shot the time before pulling the trigger (5 – 30 sec).
• Record After Shot the time after pulling the trigger (5 – 30 sec).
• FORMAT SD CARD after you choose this subcategory, you’ll see a pop-up window asking you about formatting.

NOTE: The ATN X-Sight 4K is capable of recording in day mode at 120 fps. This feature allows for postproduction editing for slow motion purposes. Please note that the 120 fps mode is available in daytime setting only and it does not improve your image or quality. It should only be used if you plan on doing post production video editing. When choosing to use this option, the incorporation of your widgets are absent. Widgets would include reticle, time stamp, and logo that are added during video processing.

DISPLAY

SCREEN BRIGHTNESS
Gives you a 1 to 5 numer-ical selection, with 1 be-ing the dimmest and 5 the brightest. It is recommended that you use the brightest setting during the day for optimal performance.
DISPLAY WIDGETS
 Allows you to disable several widgets (Minimal/Ex-tended).

• Sleep Mode allows you to switch the mode (ON/OFF).
• Hibernation Time can be 1 – 60 min.

RETICLE STYLE

• Shape you can choose the shape of your Reticle.
• Color you can choose the color of your Reticle.

PROFILES/ZERO

CURRENT

• Zero Reticle — allows to enter zeroing mode
• Drag Function — the flight path and characteristics of bullets divided into types (G1–    G8, GL).
• Ballistic Coefficient — measure of bullet’s ability to overcome air resistance in flight.
• Bullet Weight — influences the kinetic energy of the bullet downrange.
• Muzzle Velocity — is the velocity of the projectile as soon as it leaves the barrel.
• Zero Range — is the range that a firearm is sighted at.
• Sight Height — is referring to the distance between the center of the op-tics and the center of the barrel. OTHER
• Profile Name — list of existing profiles.
• Create New Profile — allows to create up to 6 profiles.

SETTINGS

• UNITS  can be Metric or Standard system. DATE AND TIME
• WIFI AND BLUETOOTH WiFi values are not changeable.
• Remote controller Allows for pairing of X-Trac remote.
• Remote Controller Orientation  Allows you to choose the orientation of the remote, changing the direction of the scroll wheel.
• Rangefinder Allows for pairing of the LBRF.
• ABL Allows for pairing of the ABL Rangefinder.
• ABL Mode Allows you to change the mode in which the ABL will func-tion. Standard or Fog mode.
• SSID.
• Password.
• MAC Address.

DEVICE TYPE  to make all features work correctly you need to choose the type of lens you have. (Example: 3x stands for 3-14 and 5x stands for 5-20).
ZOOM allows you to choose different types of zoom (Standard, Extended). Extended Zoom will give an electronic zoom of 10x your optical Zoom. Exam-ple: 3-14 in Extended mode becomes 3-30x. However, we would like to caution you that you will begin to see considerable pixelation at such a zoom.
RESTORE FACTORY SETTINGS  allows to reset all the settings to default.
FIRMWARE VERSION  allows you to learn the firmware version currently running on your sight. We recommend that you register your product on our home page (www.atncorp.com) in order to make sure that you are getting emails when new firmware versions become available. We are constantly working on new features, functions, and improvements that we provide to you free of charge via firmware upgrades.

ABL PAIRING

• Insert battery into ABL and turn unit on via power switch.
• Activate Bluetooth with-in the carousel menu in the scope.
• Enter the System Set-tings menu via carousel Wrench icon.
• Navigate to settings menu at far right.
• Select WiFi and Bluetooth option.
• Select ABL option in the menu.
• Select pair from the ABL dropdown menu.
• You’ll notice the Bluetooth icon, in the up-per right of the display, will now have a swirl-ing circle around it. This indicates the scope is searching for available Bluetooth devices.

• Short press the small button on the ABL with  the Bluetooth symbol



• You’ll now see that the Bluetooth icon in the upper right of the display is enveloped in a colored circle. White in day mode and yellow in night mode. After the pairing has completed, the ABL menu option will dis- play “Paired”, to the right
• Exit the setting menu and proceed to the PROFILES / ZERO menu.
• Navigate down to the Zeroing ABL menu op- tion and select it. The ABL reticle will now appear on screen.
• Having previously remove the Allen screw that covers the visible red la-ser, you can now move the ABL reticle to the correct area of the display to align the reticle with the infrared ranging laser. The visible red laser is used as a visual reference point for zeroing. Use the arrow keys on the keypad to move the reticle to the correct position.
• Once the box area of the ABL reticle is centered around the red laser, press to Enter button to confirm the reticle correction.
• Exit the menu and return to the Homes- creen /Main reticle screen of the scope.

• To range a target, press and release the power but ton. The ABL reticle will instant- ly appear on screen. Place the box area of the ABL reticle on the desired target and hold it there until the ranging process times out. You’ll now see the range in the upper left of your extended wid- gets has updated and indicates the correct range to the target you just ranged.



WARNINGS AND CAUTIONS

• Always remember to turn off the device when it is not in use.
• Do not disassemble, drop, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint or insert foreign objects: it will void your war-ranty.
• Keep the scope in the provided protective cover when not in use.
• Avoid contact with dust, steam, and gas.
• This product contains natural rubber latex which may cause allergic reac-tions.
• The scope is a precision electro-optical instrument and must be handled carefully.
• Do not scratch the external lens surfaces or touch them with your fingers.

CAUTION
Failure to follow these safety instructions could result in damage to the device!

Troubleshooting

Here are some common problems and solutions for the ATN X-Sight 4K BH:

• Problem: The scope won't turn on.
  Solution: Make sure the batteries are properly installed and charged.
• Problem: The scope won't connect to the app.
  Solution: Make sure the scope and app are both connected to the same Wi-Fi network.
• Problem: The image is blurry or distorted.
  Solution: Adjust the scope's focus and diopter settings.

Warning: Do not expose the scope to extreme temperatures or harsh weather conditions for an extended period of time as it may damage the device.

ATN Smart Rifle Scope X-Sight 4K BH Warranty

This product is guaranteed to be free from manufacturing defects in material and workmanship under normal use for a period of 2 (two) years from the date of purchase. In the event a defect that is covered by the foregoing warranty occurs during the applicable period stated above, ATN, at its option, will either repair or replace the product, and such action on the part of ATN shall be the full extent of ATN’s liability, and the Customer’s sole and exclusive remedy.

Pros & Cons

Pros

• 4K Ultra HD sensor for crisp and clear images
• Dual-stream video recording
• Smart range finder and ballistic calculator
• Recoil activated video
• Rugged and weather-resistant housing

Cons

• Expensive compared to other rifle scopes
• Requires regular firmware updates
• May require some time to get used to the various features and settings

Customer Reviews about ATN Smart Rifle Scope X-Sight 4K BH

Customers have praised the ATN X-Sight 4K BH for its impressive image quality and advanced features. However, some have criticized it for its high price point and steep learning curve. Overall, the X-Sight 4K BH has received positive reviews for its durability, ease of use, and value for money.

Most Common Complaints

The most common complaints about the ATN X-Sight 4K BH are its high price, the need for regular firmware updates, and the steep learning curve. Some users have also reported issues with connectivity and image stability, but these issues are not widespread.
