Introduction

The Australian Taxation Office Vector Control Inverter GK3000 is a sophisticated power conversion device designed to meet the stringent requirements of various industrial and commercial applications. This inverter is part of a broader suite of products aimed at optimizing energy efficiency and reliability. The GK3000 is expected to be launched in the fourth quarter of 2023, with an estimated price range between $5,000 to $7,000, depending on the specific configuration and features chosen.

This inverter is engineered to provide high-performance vector control, ensuring precise control over motor speed and torque. It is particularly useful in applications where precise control is crucial, such as in manufacturing processes, HVAC systems, and renewable energy installations. The GK3000 is built with robust components and advanced software algorithms to ensure long-lasting operation and minimal downtime.

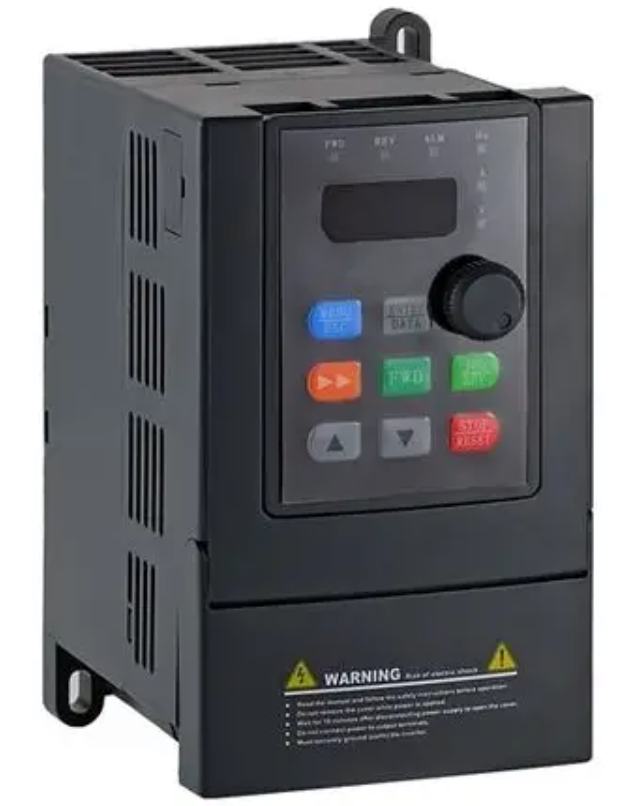

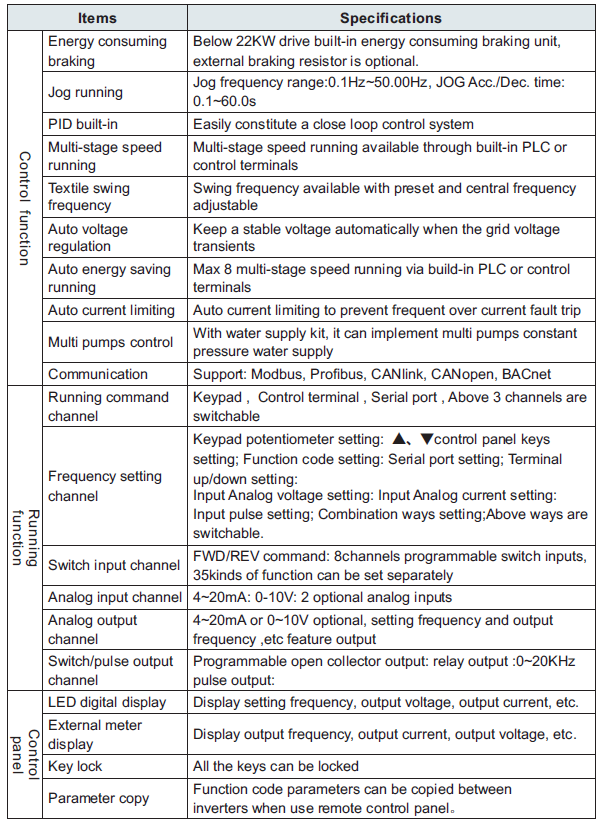

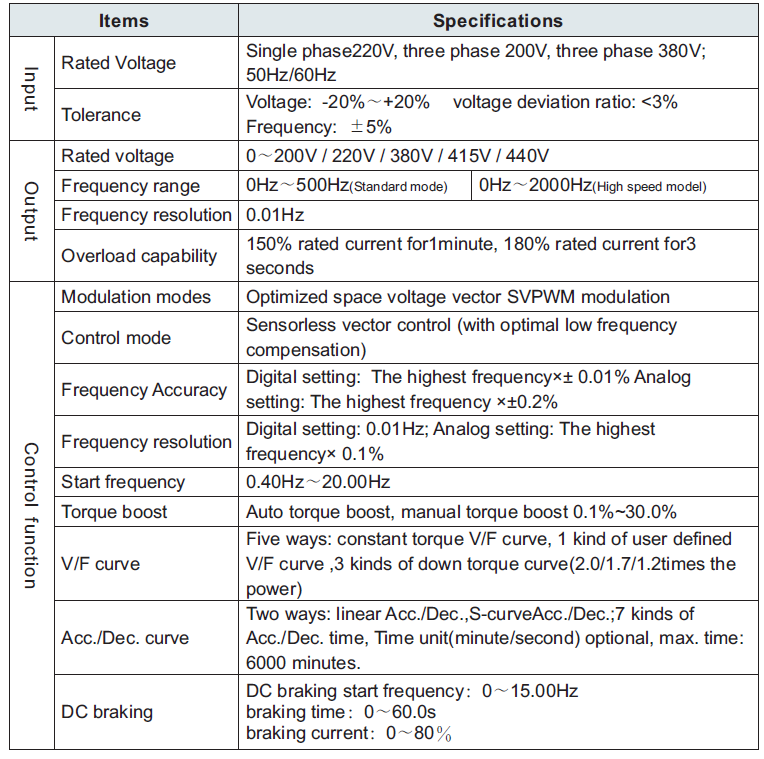

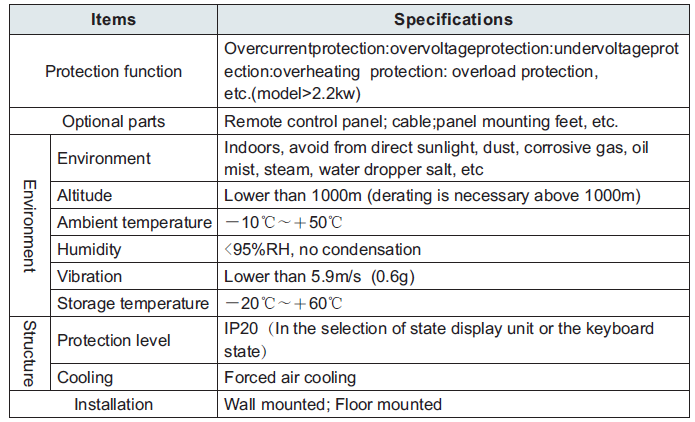

Technical Specification

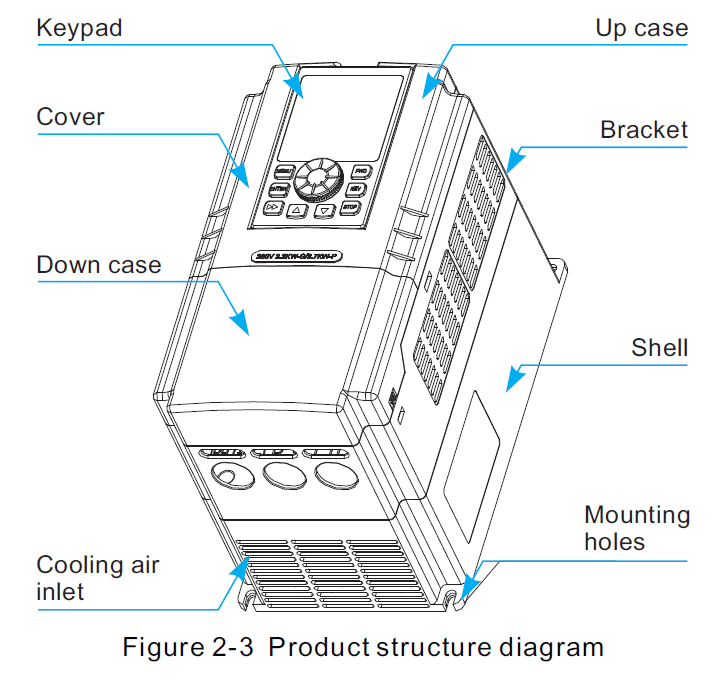

Structure diagram

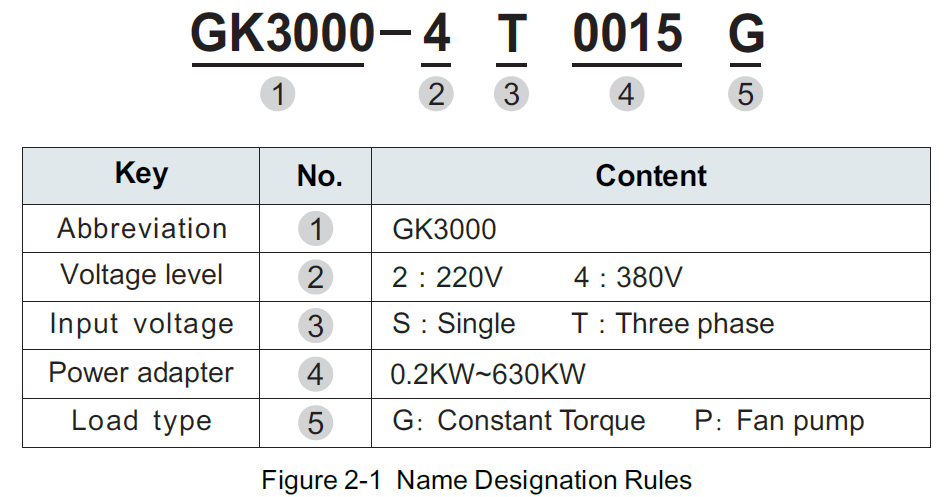

Naming Rules

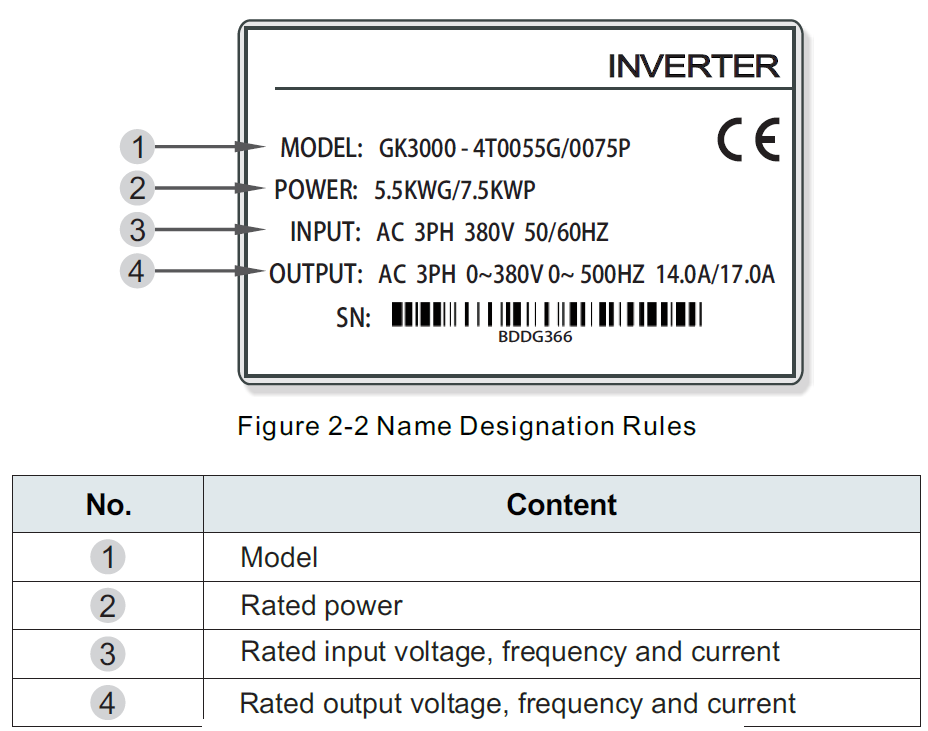

Nameplate

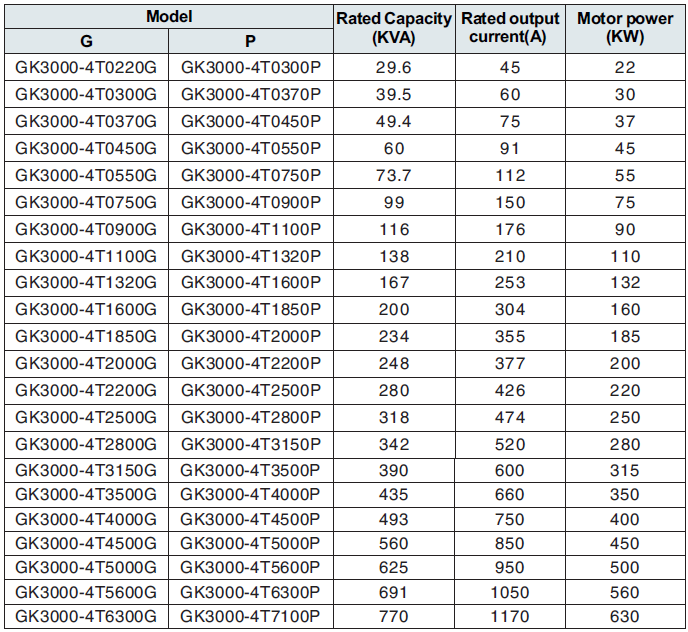

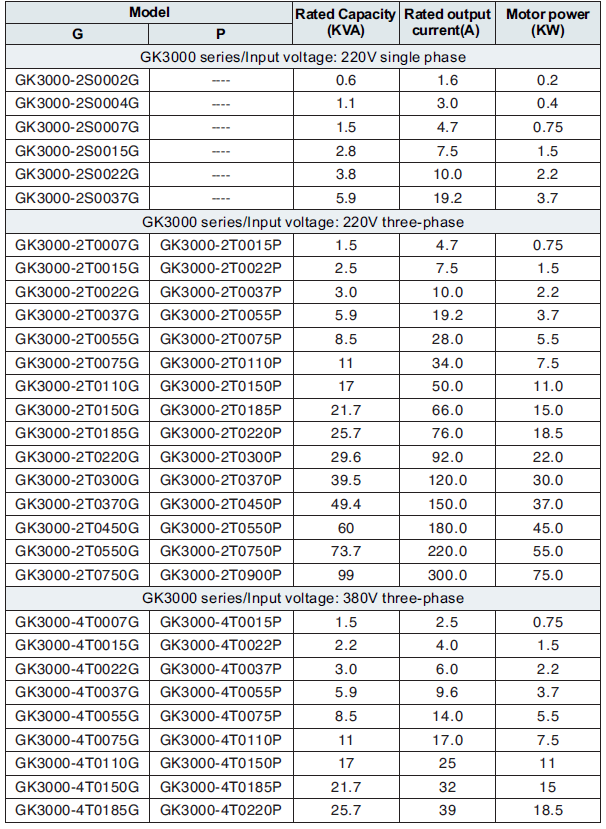

Series model

Setup Guide

To set up the GK3000, begin by ensuring all electrical connections are secure and meet the specified voltage and current requirements. Follow the manufacturer's instructions for mounting the inverter in a well-ventilated area to prevent overheating.

Configure the inverter using the provided software or the built-in display panel. Select the appropriate control mode (vector or V/F) based on your application needs. Connect the inverter to your motor and other devices according to the wiring diagram provided in the manual.

Perform a soft start to test the system and ensure all parameters are correctly set. Finally, integrate the inverter with your control system using the supported communication protocols.

Troubleshooting

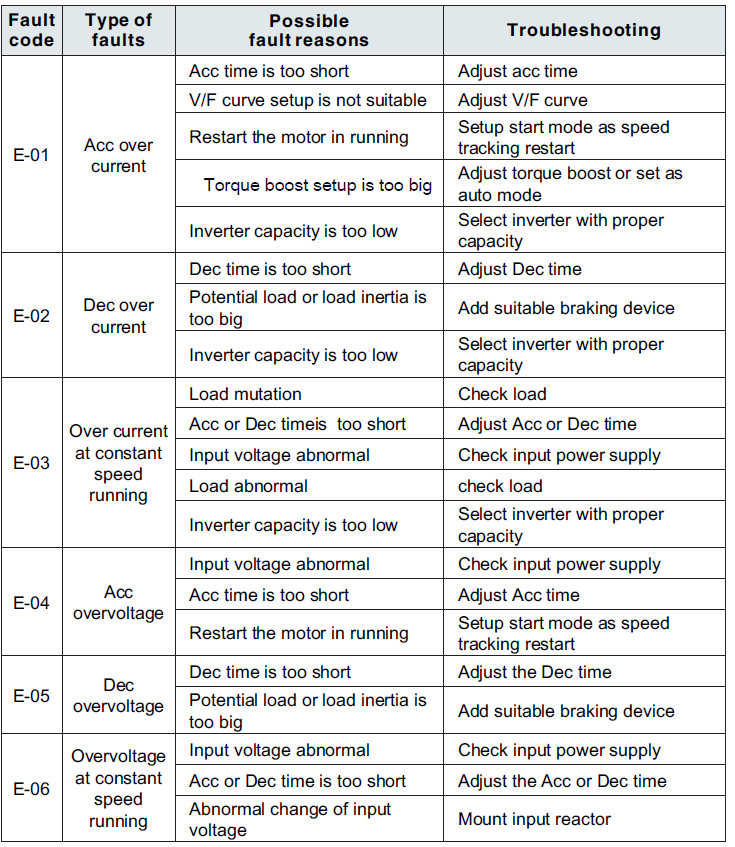

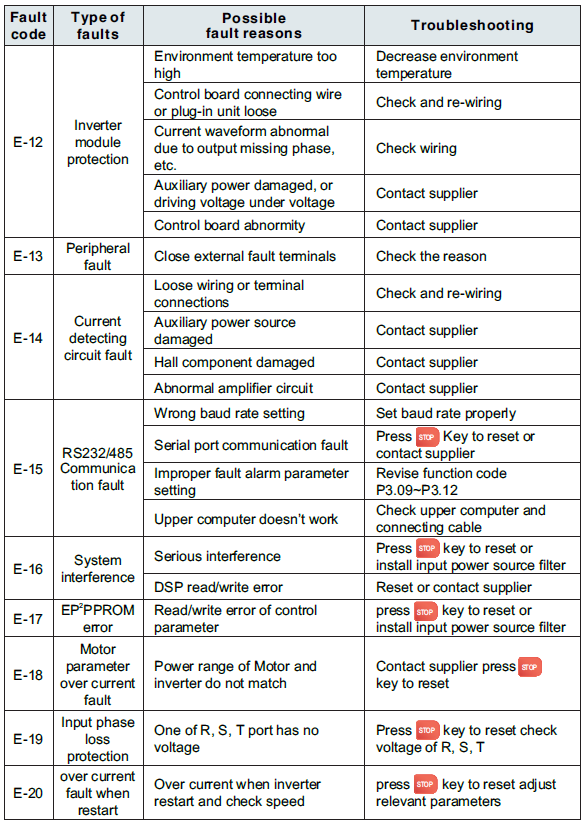

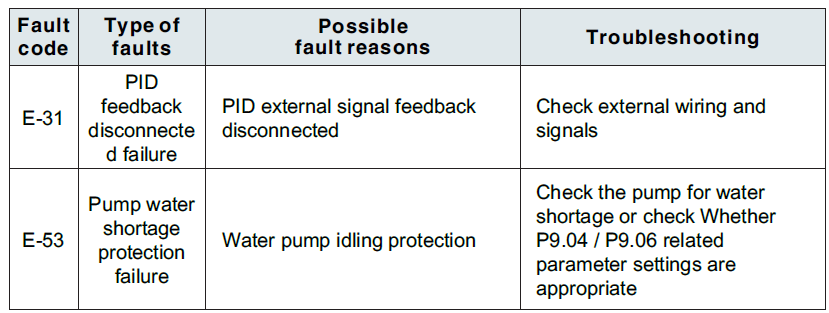

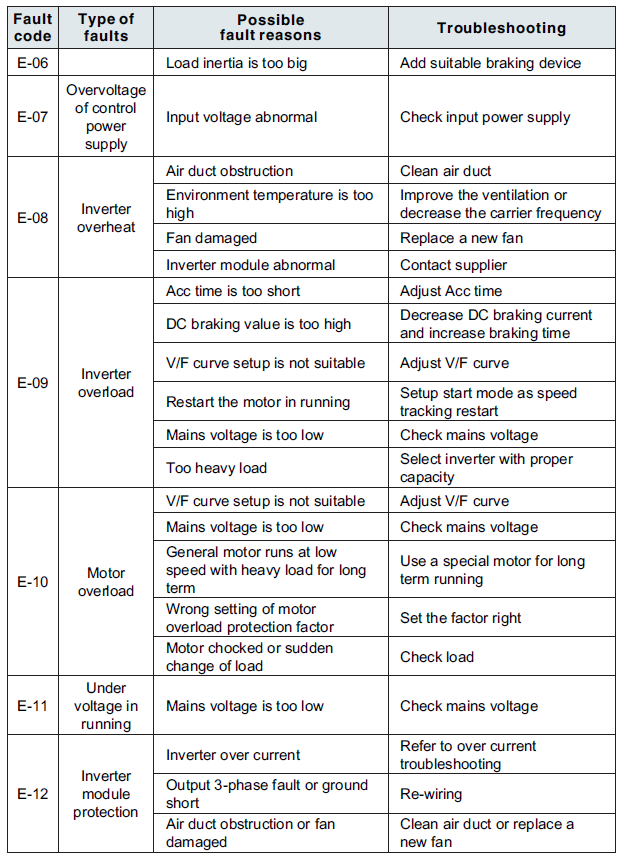

Fault Alarm and Troubleshooting
When the inverter is abnormal, protection function acts: LED displays fault code and the content, fault relay acts, the inverter stops output,, and the motor coast-downs to stop. GK3000 series inverter’s fault contents andtroubleshootinareee shown in Table 7-1. After fault alarm occurs, fault phenomenon should be recorded in detail, the fault should be processed according to Table 7-1. When in need of technical assistance, please contact your supplier.

Preservation and Maintenance

Potential hazards exist due to aging, wear and tear of inverter internal components as well as environmental influences to the inverter, such as temperature, humidity,, particles, etc. Therefore, daily inspection, periodic preservation, and maintenance must be performed on the inverter and its driving mechanism during their storage and operation.

Daily Maintenance
The following must be verified before starting up：

• No abnormal vibration and no abnormal noise;
• No abnormal heat.
• No abnormal ambient temperature;
• The ammeter satisfies the specification.
• Fan is working in good condition.

Periodic Preservation and Maintenance

Periodic Maintenance
Cut off the power when inverter is maintained thermally, check after the main circuit power indicator light is off. The checking content is shown in Table 8-1.

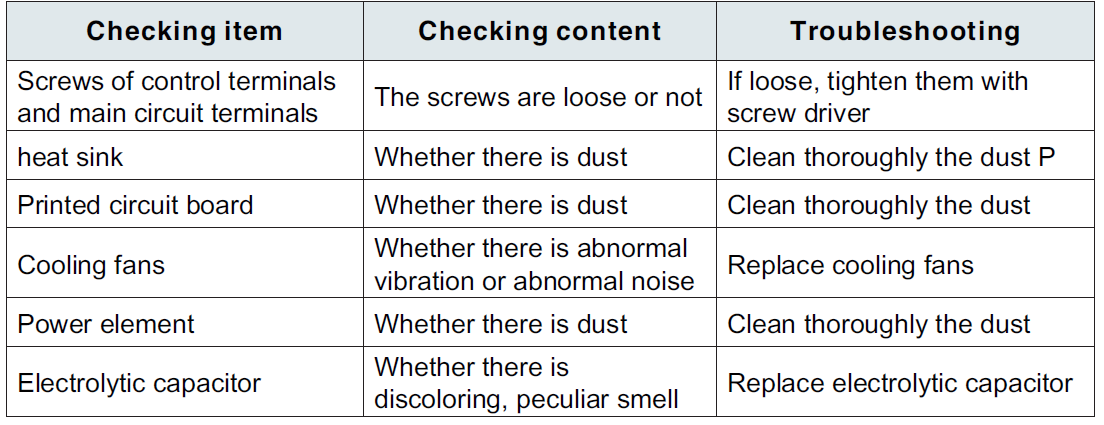

table 8-1   Periodic inspections

Thermally maintaining
To let the inverter work well for a long time, the user must maintain the inverter thermally. The replacement time of the elemint of the inverter is shown in Table 8-2.

Table 8-2  frequency inverter parts replacement
The working condition of the inverter is as follows:

• Environment temperature: average 30 °C;
• Load coefficient: under 80%;
• Running time: under 12 hours every day

Communication overview

Our series of inverters provide users with a common industrial control RS485 communication interface, in which the MODBUS standard protocol is used for communication. The inverters can be used as slave connected to the host (such as PLC controller, PC), both of which have the same communication interface and protocol, for the purpose of centralized monitoring of the inverters. Or one inverter can be used as a host and the other inverters as slaves, all connected with an RS-4855 communication interface, to achieve multi-machine interaction of the inverters. And with this communication interface, a Keyboard can also be connected to inverters for remote operation.
The MODBUS communication protocol of the inverter supports two transmission modes: RTU mode and ASCII, and either can be chosen. The following is a detailed description of the communication protocol of the inverter.

Communication protocol specification

Communications networking methods

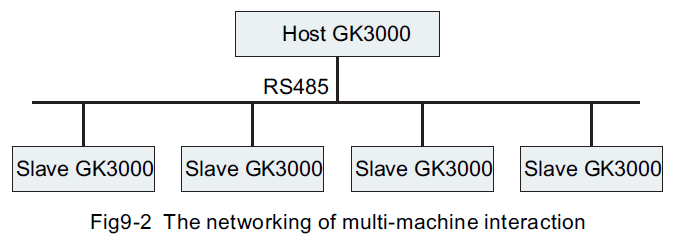

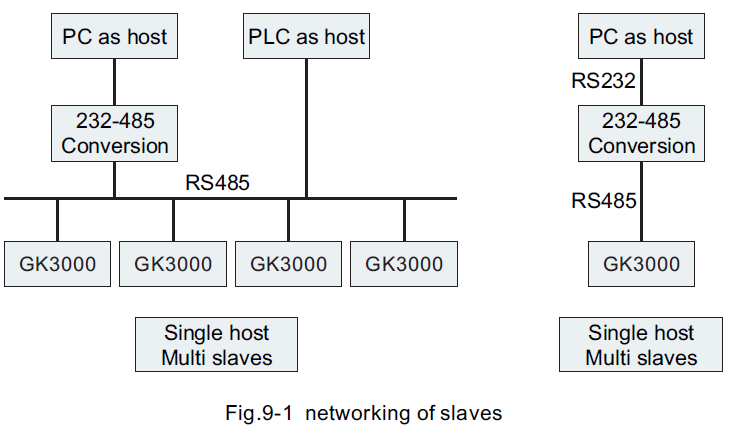

networking methods with an inverter as a slave:

Networking methods with an inverter as a slave:

Warranty of Inverter

Our company supplies a warranty under the following conditions:

1. Only inverter in the warranty range;
2. In the normal use, the inverter is damaged in 15 months. Over 15 month,our company will charge for the repair service.
3. In the following condition in 15 monthsmonths, our company will also charge for the repair service:
   • The inverter is damaged caused by the user did not comply with the instructions.
   • The inverter is damaged caused to fire, flood, and abnormal voltage.
   • Inverter is damaged caused by wrong wiring.
   • The inverter is damaged when it is used in the abnormal applications.
4. Service charge will be calculated with reference to actual cost, but if included in the contract, then according to the contract.
