Setup: Beldray Compact Air Purifier EH3348 User Manual

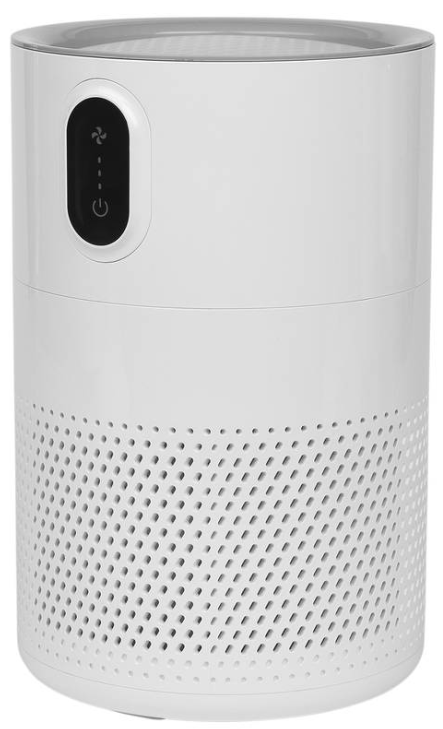

Beldray Compact Air Purifier EH3348

Introduction

The Beldray Compact Air Purifier EH3348 is a highly efficient and affordable air purification solution designed primarily for home and bedroom environments. This compact device combines advanced filtration technology with user-friendly features to deliver fresh, clean air, helping to reduce allergens, dust, pet dander, and airborne pollutants. Its sleek design and portability make it ideal for small to medium-sized rooms up to 20 m², appealing to individuals seeking an effective yet budget-conscious air purifier.

Key benefits include a multi-stage filtration system with a true HEPA filter that captures 99.97% of particles, three adjustable fan speeds, including a quiet sleep mode, and a touch-sensitive control panel with a calming blue night light. These features allow users to customise air purification based on their needs and comfort preferences. The purifier’s 360° air circulation ensures thorough room coverage, making it suitable for allergy sufferers, pet owners, and urban dwellers looking to improve indoor air quality.

Available for an estimated price range of €90 to €110, the Beldray Compact Air Purifier EH3348 is widely accessible through online retailers and specialist home appliance stores. Its combination of performance, convenience, and price point positions it as a strong contender in the budget air purifier market.

Technical Specifications and Features of Beldray Compact Air Purifier EH3348

• Filtration System: Multi-stage with Pre-filter, True HEPA filter, and Activated HEPA filter capturing 99.97% of airborne particles.
• Coverage Area: Effective for rooms up to 20 m² (approx. 215 sq. ft).
• Power Consumption: 16 Watts, ensuring energy-efficient operation.
• Fan Speeds: Three adjustable speeds, including a quiet sleep mode for nighttime use.
• Air Circulation: 360-degree air intake and circulation for uniform purification.
• Control Interface: Touch display with blue night light for ease of use and low-light operation.
• Timer Settings: Options for 2, 4, or 8-hour operation.
• Weight: Approximately 1.2 kg, emphasising portability.
• Noise Level: Quiet operation in sleep mode, suitable for bedrooms.
• Comparison: Compared to similar budget models, the EH3348 offers superior HEPA filtration and a user-friendly touch interface, while maintaining a compact design and competitive price.

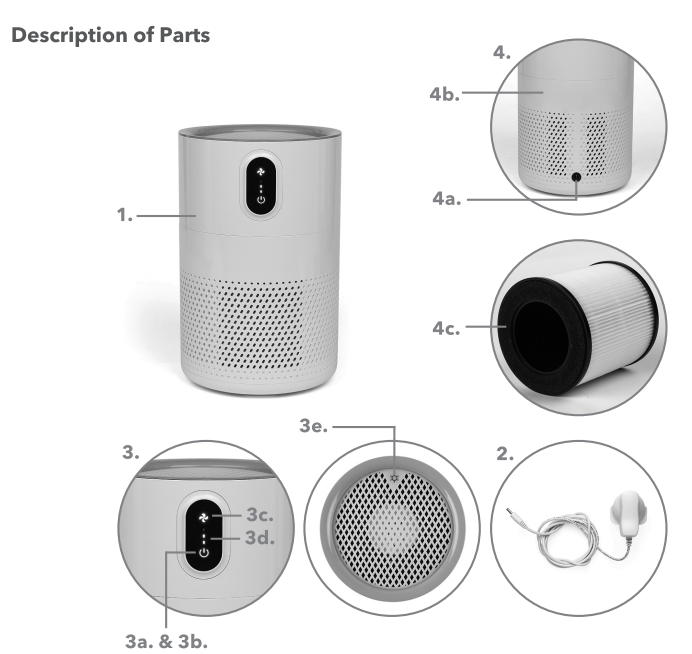

1. 16 Watt Air Purifier main unit
2. Power adaptor
3. Control panel
   1. Power button
   2. Power indicator light
   3. Fan speed button
   4. Speed setting indicator lights (e, ••, • ••)
4. Bash light button
   1. Power adaptor inlet
   2. Base cover lid
   3. Filter

Using the Night Light Function

STEP 1: To turn on the night light function, press " on ' on the control panel.
STEP 2: Press ' again to cycle through the LED light colour options. There are 3 LED light colour options to choose from: green, orange and red. The night light will automatically illuminate in the selected colour.

Replacing the Filter

The speed setting indicator lights (o, • •, • • •) will flash when the filter needs to be replaced.

• STEP 1: To remove the filter from the air purifier, invert the air purifier and remove the base cover lid by twisting in an anticlockwise direction and pulling away from the air purifier main unit.
• STEP 2: Remove the exhausted filter by lifting up and away from the air purifier main unit.
• STEP 3: Place a new filter back into the air purifier main unit.
• STEP 4: Replace the base cover lid, checking that the tabs are aligned with those on the base cover and lock into place by pressing downwards and rotating in a clockwise direction until secure.

Care and Maintenance

• STEP 1: Unplug the air purifier from the mains power supply before attempting any cleaning or user maintenance.
• STEP 2: Wipe the air purifier with a soft, damp cloth and dry thoroughly.
• Note: Do not use flammable liquids, abrasive cleaning solvents, polishes or scouring pads to clean the air purifier, as this may cause damage.
• Warning: Should the air purifier fall or be pushed over while there is water in the tank, it must be unplugged from the mains outlet immediately as a first action. The air purifier should be righted promptly and dried thoroughly before it is used again.

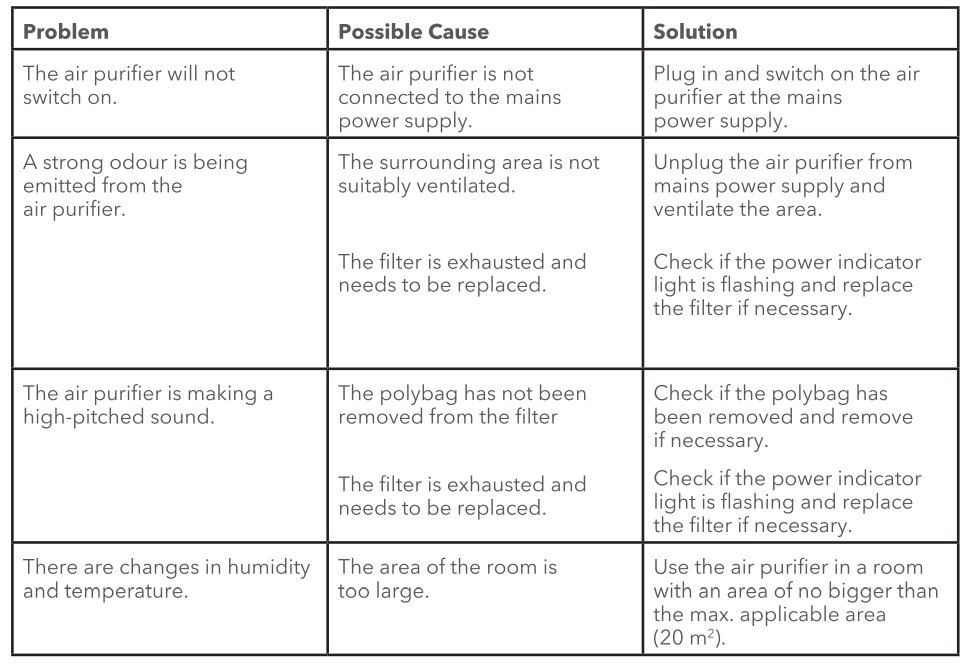

Troubleshooting Guide for Beldrayy Compact Air Purifier EH3348

Pros & Cons Beldrayyrayy Compact Air Purifier EH3348

Pros

• Highly efficient filtration: Captures 99.97% of airborne particles with a true HEPA and activated HEPA filter.
• User-friendly interface: Touch display with adjustable blue night light and three-speed setting,s including a quiet sleep mode.
• Compact and portable: Lightweight (1.2 kg) and suitable for small rooms up to 20 m².
• Energy efficient: Low 16W power consumption.
• Affordable: Offers excellent value for money compared to other air purifiers in the budget category.

Cons

• Limited room coverage: Best suited for smaller rooms, less effective in large open spaces.
• No advanced smart features: Lacks Wi-Fi or app connectivity found in higher-end models.
• Filter replacement cost: Ongoing cost for replacement HEPA filters may add up over time.
• Basic noise management: Sleep mode is quiet but not completely silent.

Customer Reviews oBeldrayay Compact Air Purifier EH3348

Users consistently praise the Beldrayy Compact Air Purifier EH3348 for its reliable air cleaning performance and ease of use. Many highlight the effectiveness of the HEPA filter in reducing allergens and improving breathing comfort, especially in bedrooms. The quiet sleep mode is frequently appreciated for overnight use without disturbance.

Common complaints include the limited size suitability type,, ty and occasional need for frequent filter replacements. Some users wish for smart features like remote control or air quality sensors, which are not available in this model. Overall, the purifier receives an average rating of 4 out of 5 stars, with strong recommendations for individuals seeking a simple, affordable, and effective air purifier for small spaces.
