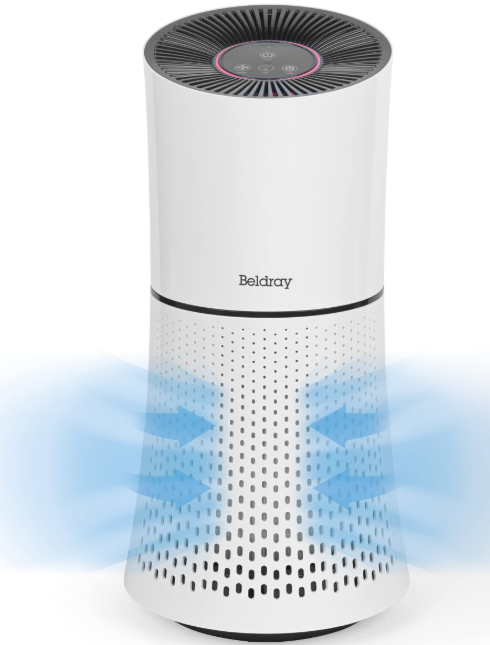

Beldray EH3349 Clean Air Purifier

Introduction

Welcome to your guide for the Beldray EH3349 Clean Air Purifier—an advanced solution for fresher, healthier indoor air. Designed for homes, offices, and shared spaces, this compact air purifier is engineered to capture dust, pollen, bacteria, and unwanted odors, ensuring a cleaner environment for allergy sufferers and health-conscious users alike.

The Beldray EH3349 Clean Air Purifier stands out with its triple-filtration system: a pre-filter, HEPA filter, and activated carbon filter, working together to remove 99.97% of airborne particles as small as 0.3 microns. Its 360° air circulation technology distributes purified air evenly, making it effective for rooms up to 20 square meters. The purifier is lightweight and portable, so you can move it effortlessly between rooms for versatile protection.

Key benefits include three adjustable fan speeds, a quiet sleep mode for undisturbed rest, touch panel controls, and a soothing blue night light. The built-in filter replacement alert ensures you never miss a filter change, maintaining peak performance and air quality.

Ideal for families, pet owners, and anyone sensitive to indoor pollutants, the Beldray EH3349 is a practical choice for everyday use. It is available from leading UK retailers, with an estimated price range that offers excellent value for its feature set. Shipping is nationwide, making it accessible for most buyers seeking reliable air purification at home.

Specifications

Product Code: EH3349
Purification Efficiency: 99.97% for particles ≥0.3 microns (HEPA standard)
Coverage: Up to 20 m² (215 sq ft)
Filtration System: Pre-filter, HEPA filter, activated carbon filter
Fan Speeds: 3 adjustable settings
Special Modes: Sleep mode for quiet nighttime operation
Controls: Touch panel with filter replacement alert
Airflow: 360° air circulation for even distribution
Power
- Input: 220-240 V - 50 Hz
- Output: 22 W
Dimensions: 418 mm (H) x 206 mm (W) x 206 mm (D)
Weight: Lightweight and portable design
Additional Features: Blue night light, compact footprint, easy filter replacement

Compared to similar models, the Beldray EH3349 Clean Air Purifier offers a robust filtration system at a competitive price point. Its combination of HEPA and carbon filtration, along with user-friendly features like the filter alert and sleep mode, sets it apart from basic purifiers that may lack these advanced functions.

Please read all of the instructions carefully and retain them for future reference.

Safety Instructions

When using electrical products, basic safety precautions should always be followed.
Check that the voltage indicated on the rating plate corresponds with that of the local network before connecting the product to the mains power supply.
Children younger than 3 years old should be kept away from the product unless continuously supervised.
Children aged from 3 years and less than 8 years should only switch on/off the product, provided that it has been placed or installed in its intended operating position,, and they have been given supervision or instruction concerning the use of the product in a safe way, and understand the hazards involved.
Children aged from 3 years and less than 8 years should not plug in, regulate, or clean the product or perform user maintenance. Children aged from 8 years and people with reduced physical, sensory, or mental capabilities,, or a lack of experience and knowledge, can use this appliance, only if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
Children should not carry out cleaning or user maintenance without supervision.
Children should be supervised to ensure that they do not play with the product.
This product is not a toy.
This product contains no user-serviceable parts. If the power supply cord, plug,, or any part of the product is malfunctioning or if it has been dropped or damaged, only a qualified electrician should carry out repairs. Improper repairs may place the user at risk of harm.
Keep the product and its power supply cord away from heat or sharp edges that could cause damage.
Keep the power supply cord away from any parts of the product that may become hot during use.
Keep hands, fingers, hair, and any loose clothing away from the rotating parts of the product.
Do not immerse the product in water or any other liquid.
Do not operate the product with wet hands.
Do not leave the product unattended whilst connected to the mains power supply or when in use.
Do not remove the product from the mains power supply by pulling the cord; switch it off and remove the plug by hand.
Do not use the product for anything other than its intended use. Do not cover the product.
Do not use the product outdoors.
Do not move the product whilst it is in use.
Do not shake the product.
Do not put objects into any of the openings.
Do not clean the product with abrasive chemicals or materials such as scourers, as they may damage it.
Do not spray insecticide or chemical solvents on the product. Always unplug the product after use and before any cleaning or maintenance.
Always use the product on a flat, stable surface.
Use of an extension cord with the product is not recommended. This product should not be operated by means of an external timer or separate remote control system, other than that supplied with this product.
This product is intended for domestic use only. It should not be used for commercial purposes.

Warning: If a strong odour is emitted from the product, turn the unit off and unplug it from the mains power supply.

Keep the product and its power supply cord out of the reach of children.

Care and Maintenance

STEP 1: Unplug the air purifier from the mains power supply before attempting any cleaning or user maintenance.
STEP 2: Wipe the air purifier with a soft, damp cloth and dry thoroughly.

Note: Do not use flammable liquids, abrasive cleaning solvents, polishes,, or scouring pads to clean the air purifier, as this may cause damage.
The power indicator light will flash continually when the filter needs to be replaced. Follow the instructions in the section entitled 'Replacing the Filter'. After replacement, press and hold 'TIMER' for approx. 3 seconds; the power indicator light will stop flashing.
This will start an internal timer; when it elapses, the power indicator light will flash again to indicate a new filter is required.

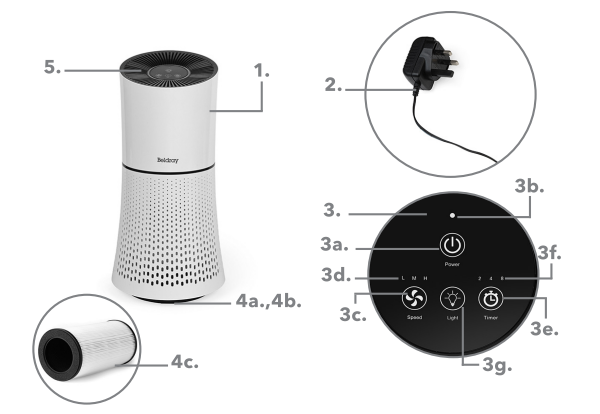

Description of Parts

Total Air Purifier main unit
Power adaptor
Control panel
1. Power button (ON/OFF)
2. Power indicator light
3. Fan speed button (FAN)
4. Speed setting indicator light (L, M, H)
5. Timer button (TIMER)
6. Timer setting indicator light (2, 4, 8)
7. Mood light button
Base cover
1. Power adaptor inlet
2. Base cover lid
3. Filter
LED mood light

Instructions for Use

Before First Use

Note: The filter is originally provided packed in a poly bag; remove this before first use.

Warning: Before removing the filter from the air purifier, check that it is switched off and unplugged from the main power supply.

To remove the poly bag, follow these instructions:

STEP 1: To remove the filter from the air purifier, invert the air purifier and remove the base cover lid by twisting in an anticlockwise direction and pulling away from the air purifier main unit.
STEP 2: Remove the filter by lifting up and away from the air purifier main unit.
STEP 3: Remove the polybag from the filter, then replace the filter back into their aipurifier'ser main unit.
STEP 4: Replace the base cover lid, checking that the tabs are aligned with those on the base cover and lock into place by pressing downwards and rotating in a clockwise direction until secure.

Using the Total Air Purifier

STEP 1: Invert the air purifier main unit and insert the power adaptor into the power adaptor inlet.
STEP 2: Place the air purifier on a flat, stable surface at a height that is comfortable for the user. Plug in the power adaptor into the mains power supply.
STEP 3: Turn the air purifier on by pressing 'ON/OFF' on the control panel. The air purifier will beep once and start to function. The speed setting indicator light 'L' (signalling the lowest speed setting) will illuminate on the control panel.
STEP 4: To select another speed setting, press 'FAN' on the control panel. There are three speed settings to choose from: Low (L), Medium (M), and High (H). The speed setting indicator lights will show the selected speed setting.
STEP 5: Turn off the air purifier by pressing 'ON/OFF'.

Note: Make sure the air purifier is placed at least 30 cm away from any wall or piece of furniture.
The max. The applicable area of use is 20 m2 (225 ft2).

Warning: Do not position the air purifier directly under furniture or objects that may obstruct the exhaust air flow.

Do not use the air purifier near any source of heat.

Using the Timer Function

STEP 1: To turn on the timer function, press 'TIMER' on the control panel.
STEP 2: Select the desired timer function setting by pressing the timer function button on the control panel. Pressing the button will switch in between the air purifier timer function settings '2 hours' (2), '4 hours' (4), and '8 hours' (8). The timer function indicator light will show the selected timer setting.

The air purifier will automatically switch off after the selected time has expired.

Using the Mood Light Function

STEP 1: To turn on the mood light function, press 'MOOD' on the control panel.
STEP 2: Press 'MOOD' again to cycle through the LED light colour options. There are 3 LED light colour options to choose from: green, orange,,e and red. The LED mood light will automatically illuminate in the selected colour.

Using Ambient Mode
Ambient mode sets the air purifier to the lowest speed setting with all indicator lights switched off.

STEP 1: To turn on ambient mode, press and hold 'FAN' for approx. 5 sections until the air purifier beeps once.
STEP 2: Deactivate ambient mode by pressing any button.

Using the Control Lock
Use the control lock to temporarily lock the control panel and deactivate function buttons.

STEP 1: To turn on the control lock, press and hold 'ON/OFF' for approximately. 5 seconds until the air purifier beeps once.
STEP 2: Deactivate the control lock by pressing and holding 'ON/OFF' for approx.5 seconds.

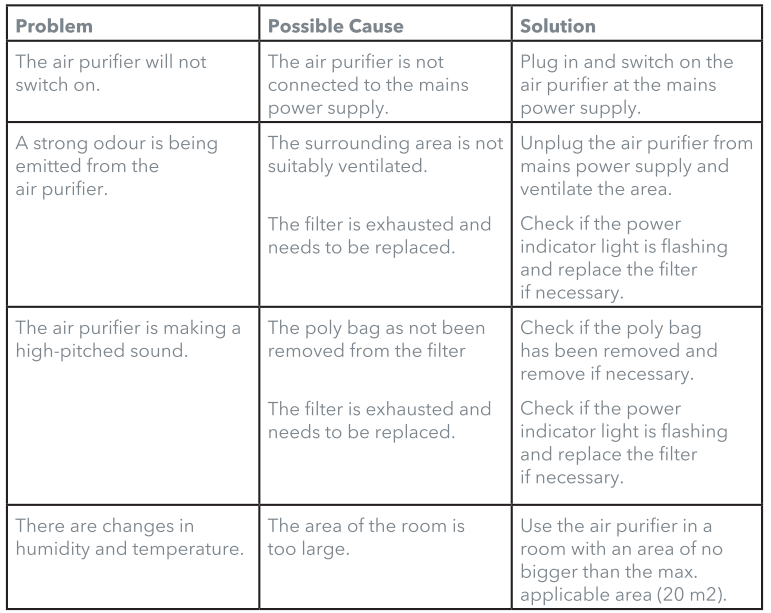

Troubleshooting

Pros & Cons

Advantages

High-Efficiency Filtration: Removes 99.97% of particles, making it ideal for allergy and asthma sufferers.
Versatile Use: Effective in bedrooms, living rooms, and small offices.
Quiet Operation: Sleep mode ensures minimal noise during nighttime use.
User-Friendly: Touch controls and filter replacement alert simplify maintenance.
Portable Design: Easy to move between rooms for whole-home protection.
Value for Money: Competitive pricing for a feature-rich air purifier.

Disadvantages

Room Size Limitation: Best suited for small to medium rooms (up to 20 m²).
Filter Costs: Replacement filters are an ongoing expense, though the alert helps manage this.
Basic Design: Lacks smart features like app connectivity or air quality sensors found in premium models.
Shipping Restrictions: Additional charges may apply for delivery to certain regions.

Compared to alternatives, the Beldray EH3349 strikes a balance between performance, ease of use, and affordability, making it a strong choice for budget-conscious buyers seeking reliable air purification.

Customer Reviews

Users of the Beldray EH3349 Clean Air Purifier frequently praise its effectiveness in reducing allergens and odors, with many noting visible improvements in air quality within days of use. The compact size and quiet sleep mode are highlighted as major pluses, especially for bedroom use. Most reviewers rate it 4 out of 5 stars, appreciating its straightforward operation and value.

Common complaints include the lack of smart features and the need for regular filter changes, though the built-in alert mitigates this issue. Some users mention that while the purifier works well in small spaces, it may not be sufficient for larger rooms. Testimonials often recommend the Beldray EH3349 for anyone seeking an affordable, no-fuss solution to indoor air pollution, particularly for allergy relief.

For those prioritizing ease of use, quiet performance, and effective filtration in compact spaces, the Beldray EH3349 Clean Air Purifier is a recommended purchase. It is especially suitable for first-time air purifier buyers or those upgrading from basic models.

PDF

Faqs

How do I set up the beldray EH3349 Clean Air Purifier for the first time?

To set up the beldray EH3349 Clean Air Purifier, place it on a flat surface in your desired room, ensuring enough clearance for 360° air circulation. Plug it into a 220-240V power outlet, then use the touch panel to select one of the three speed settings. The purifier will start filtering air immediately, providing efficient purification for rooms up to 20 square meters.

What should I do if the beldray EH3349 Clean Air Purifier is not turning on?

If your beldray EH3349 Clean Air Purifier does not turn on, confirm it is properly plugged into a working 220-240V outlet. Check if the power button on the touch panel is responsive. If still unresponsive, inspect the power cord for damage. If the issue persists, consult the user manual or contact customer support for further troubleshooting.

What are the main filtration features of the beldray EH3349 Clean Air Purifier?

The beldray EH3349 Clean Air Purifier uses a multi-stage filtration system including a pre-filter, HEPA filter, and activated carbon filter. This combination efficiently traps dust, pollen, bacteria, and odors, offering 99.97% purification efficiency. It is especially beneficial for allergy sufferers seeking cleaner indoor air.

Can I use the beldray EH3349 Clean Air Purifier in large rooms or open spaces?

The beldray EH3349 Clean Air Purifier is designed to effectively purify air in rooms up to approximately 20 square meters. For larger or open spaces, multiple units or a higher-capacity purifier may be necessary to maintain optimal air quality.

How can I optimize the performance of my beldray EH3349 Clean Air Purifier?

To optimize your beldray EH3349 Clean Air Purifier's performance, regularly clean or replace the pre-filter and monitor the built-in filter replacement alert. Use the appropriate speed setting based on room size and pollution levels, and ensure unobstructed 360° air circulation around the unit for consistent purification.

How often should I replace the filters in the beldray EH3349 Clean Air Purifier?

Filters in the beldray EH3349 Clean Air Purifier should be replaced when the filter replacement alert activates, which depends on usage and air quality. Typically, HEPA and carbon filters last several months, but frequent use in polluted environments may require more frequent changes to maintain efficiency.

What does the sleep mode on the beldray EH3349 Clean Air Purifier do?

The sleep mode on the beldray EH3349 Clean Air Purifier reduces the fan speed and dims the blue night light to minimize noise and light disturbance, providing quiet operation for undisturbed rest while maintaining effective air purification.

Why is the 360° air circulation feature important in the beldray EH3349 Clean Air Purifier?

The 360° air circulation in the beldray EH3349 Clean Air Purifier ensures that purified air is evenly distributed throughout the room, maximizing coverage and efficiency. This feature helps remove pollutants from all directions, improving overall air quality consistently.
