Introduction

The Bestway 56456 Power Steel Frame Pool is a versatile and durable above-ground pool that offers a unique swimming experience. With its sturdy steel frame and polyester mesh wall, this pool is designed to withstand the elements while providing a spacious swimming area for you and your family. The estimated price for this pool is around $800, and it is now available for purchase.

Part Descriptions

NOTE: Some parts already have been installed on the pool.

STEEL PRO FRAME POOL

POWER STEEL FRAME POOL

STEEL PRO FRAME POOL

POWER STEEL FRAME POOL

Detailed Specifications

The Bestway 56456 Power Steel Frame Pool has the following key features:

• Dimensions: 15 x 9.5 x 4.3 feet
• Steel frame with corrosion-resistant coating
• Polyester mesh wall with laminated PVC coating
• Seamless molded pool floor for added durability
• Flow control drain valve for easy water draining
• Safety ladder and pool cover included

WARNING: Smooth out the bottom

Put 1” to 2” water in the pool to cover the floor. Once pool floor is slightly covered, gently smooth out all wrinkles. Start in the center of the pool and work your way clockwise to the outside.

WARNING

Carefully read, understand, and follow all information in this user manual before installing and using the swimming pool. These warnings, instructions, and safety guidelines address some common risks of water recreation, but they cannot cover all risks and dangers in all cases. Always use caution, common sense, and good judgment when enjoying any water activity. Retain this information for future use.

Non-Swimmers Safety

• Continuous, active, and vigilant supervision of weak swimmers and non-swimmers by a competent adult is required at all times (remembering that children under five are at the highest risk of drowning).
• Designate a competent adult to supervise the pool each time it is being used.
• Weak swimmers or non-swimmers should wear personal protection equipment when using the pool.
• When the pool is not in use, or unsupervised, remove all toys from the swimming pool and its surrounding to avoid attracting children to the pool.

Safety Devices

• In order to prevent children from drowning, it is recommended to secure the access to the pool with a protection device. In order to prevent children climbing from the inlet and outlet valve, it is recommended to install a barrier (and secure all doors and windows, where applicable) to prevent unauthorized access to the swimming pool.
• Barriers, pool covers, pool alarms, or similar safety devices are helpful aids, but they are not substitutes for continuous and competent adult supervision.

Safety Equipment

• It is recommended to keep rescue equipment (e.g. a ring buoy) by the pool.
• Keep a working phone and a list of emergency phone numbers near the pool.

Safe Use of the Pool

• Encourage all users, especially children, to learn how to swim.
• Learn Basic Life Support (Cardiopulmonary Resuscitation - CPR) and refresh this knowledge regularly. This can make a life-saving difference in the event of an emergency.
• Instruct all pool users, including children, what to do in case of an emergency.
• Never dive into any shallow body of water. This can lead to serious injury or death.
• Do not use the swimming pool when using alcohol or medication that may impair your ability to safely use the pool.
• When pool covers are used, remove them completely from the water surface before entering the pool.
• Protect pool occupants from water-related illnesses by keeping the pool water treated and practicing good hygiene. Consult the water treatment guidelines in the user’s manual.
• Store chemicals (e.g. water treatment, cleaning, or disinfection products) out of the reach of children.
• Use the signage as outlined below. Signage is to be displayed in a prominent position within 2m of the pool.

Signage

Keep children under supervision in the aquatic environment. No diving.

• Removable ladders shall be placed on a horizontal surface.
• Irrespective of materials used for swimming pool construction, accessible surfaces have to be checked regularly to avoid injuries.
• Regularly monitor bolts and screws. Remove splinters or any sharp edges to avoid injuries.
• ATTENTION: Do not leave the drained pool outside. The empty pool is liable to become deformed and/or displaced due to wind.
• If you have a filter pump, refer to the pump’s manual for instructions.
  WARNING! The pump cannot be used while people are inside the pool!
• If you have a ladder, refer to the ladder’s manual for instructions.
• WARNING! The use of a swimming pool implies compliance with the safety instructions described in the operating and maintenance guide. In order to prevent drowning or other serious injuries, pay particular attention to the possibility of unexpected access to the swimming pool by children under 5 years by securing the access to it, and, during the bathing period, keep them under constant adult supervision. Please read carefully and keep for future reference.

Description

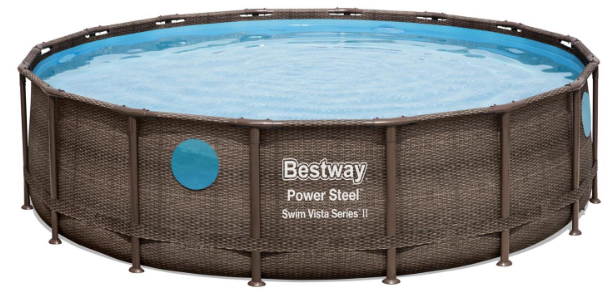

The Bestway 56456 Power Steel Frame Pool is a high-quality above ground pool that is perfect for families who want to enjoy a refreshing swim in their own backyard. The sturdy steel frame is designed to last for years, while the polyester mesh wall provides a comfortable and secure swimming area. The seamless molded pool floor adds extra stability and protection, while the flow control drain valve makes it easy to drain the pool when not in use. The included safety ladder and pool cover ensure that the pool is safe and secure at all times.

Choose the Correct Location

NOTE: The pool must be set up on a completely flat and level surface. Please do not install the pool if the surface is inclined or sloped. Correct conditions to set up the pool:

• The selected location has to be capable of uniformly supporting the weight for the entire time the pool is installed, moreover the location must be flat and must be cleared of all objects and debris including stones and twigs.
• We recommend positioning the pool away from any objects children could use to climb into the pool.
  NOTE: Position the pool near an adequate drainage system to deal with overflow or to discharge the pool. Incorrect conditions to set up the pool:
• On uneven ground the pool may collapse causing serious personal injury and/or damage to personal property and will void the warranty and prevent any service claims.
• Sand should not be used to create a level base; the ground must be dug out if necessary.
• Directly under overhead power lines or trees. Be sure the location does not contain underground utility pipes, lines, or cables of any kind.
• Do not set up the pool on driveways, decks, platforms, gravel, or asphalt surfaces. The selected location should be firm enough to withstand the pressure of the water; Mud, sand, soft/loose soil, or tar are not suitable.
• Grass or other vegetation under the pool will die and may cause odors and slime to develop, therefore we recommend removing all grass from the selected pool location.
• Avoid areas prone to aggressive plant and weed species that may grow through the ground cloth or liner.

NOTE: Check with your local city council for by-laws relating to fencing, barriers, lighting, and safety requirements and ensure you comply with all laws.
NOTE: If you have a filter pump, refer to the pump’s manual for instructions.
NOTE: The ladder must match the pool size and should only be used for entering and exiting the pool. It is forbidden to exceed the permitted payload of the ladder. Check regularly if the ladder is properly assembled.

Installation Instructions

Bestway Inflatables will not be responsible for damage caused to the pool due to mishandling or failure to follow these instructions.

1. Lay out all parts and check that you have the correct quantities as listed in the components list. If you are missing any part do not assemble the pool, contact Bestway Customer Service.
2. Spread out the pool and make sure the pool is right side up, let it sit exposed to direct sunlight for 1 hour or more so that the pool is more flexible during setup.
3. Place the pool near an adequate drainage system to deal with overflow water and ensure the pool’s inlet A and outlet B are correctly positioned to allow your filter pump to connect to a power source.
   Note: Do not use extension power cords to power your pump.
   ATTENTION: Do not drag the pool on the ground, this can damage the pool.
4. Insert the stopper plugs into inlet A and outlet B on the wall from the inside of the pool. (See Fig.1)
   NOTE: For pool with connection valve, please refer to the connection valve installation on the following page.
5. Insert top rail (A) into the pole pockets at the top of the pool. (See Fig.2)
6. Connect top rail (A) with T-Connector (C) at each corner and insert pins (D) into gasket (F) first and then into pre-drilled holes of the frame.
   NOTE: The gasket cups should face downwards to prevent water leaking into the top rails. (See Fig.3,4,5)
7. Repeat steps 5 and 6 until all top rails (A) are connected with T-Connectors (C) and the top frame is set up. For ease of assembly slightly raise the last 2 rails to an inverted v shape and insert into the last T-Connectors (C). Slowly lower until fully connected taking care not to pinch your fingers. (See Fig.6)
8. Attach all footings (E) to the bottom of the vertical pool legs (B). (See Fig.7)
9. Put all vertical pool legs (B) inside the pool wall band. Connect the vertical pool leg (B) into the bottom of the T-Connector (C). Make sure the vertical pool leg (B) has the spring-loaded pins at the top when connecting the T-Connector (C). (See Fig.8)
   NOTE: For 2.44m x 61cm (8’ x 24”) pools, no wall band.
10. Pull the frame from different directions to ensure all rails, pool legs, and connectors are firmly jointed. (See Fig.9)
11. Ensure the drain valve is firmly closed. Smooth out the bottom.

12. Put 1” to 2” (2.5cm to 5cm) of water in the pool to cover the floor. Once the pool floor is slightly covered, gently smooth out all wrinkles. Start in the center of the pool and work your way clockwise to the outside.



Connection Valve Assembly

For pool with connection valve, (See Fig.10)

Filling Pool with Water

ATTENTION: Do not leave the pool unattended while filling with water.

1. Fill the pool until water capacity is 90%. DO NOT OVERFILL as this could cause the pool to collapse. In times of heavy rainfall, you may need to empty some of the water to ensure the level is correct. (See Fig. 11,12)



2. When filling the pool is completed, check that the water is not collecting on any side to ensure the pool is level.
   IMPORTANT: If the pool is not level, drain the water and re-level the ground by digging out (See Fig. 13). Never attempt to move the pool with water in it, serious personal injury or damage to the pool may result.




   WARNING: Your pool may contain a great deal of pressure. If your pool has any bulge or uneven side then the pool is not level, the sides may burst and the water may discharge suddenly causing serious personal injury and/or damage to property.

3. Check the pool for any leaks at valves or seams, check the ground cloth for any evident water loss. Do not add chemicals until this has been done.
   NOTE: In the event of a leak, patch your pool using the underwater adhesive repair patch provided.

Setup Guide

Setting up the Bestway 56456 Power Steel Frame Pool is easy and straightforward. Here are the steps to follow:

1. Choose a flat and level surface for the pool.
2. Assemble the steel frame according to the instructions provided.
3. Attach the polyester mesh wall to the frame using the included clips and ropes.
4. Inflate the top ring of the pool using an air pump.
5. Fill the pool with water up to the recommended level.
6. Install the included safety ladder and pool cover for added safety and protection.

Bestway 56456 Power Steel Frame Pool Maintenance

If you do not adhere to the maintenance guidelines below, your health might be at risk, especially that of your children.

IMPORTANT: If you don’t respect the ideal values of the water chemicals, the PVC can be damaged and become discolored.

The following table lists the sequence of the tests that should be carried out for the ideal values and possible actions. Regularly check the pH value and chlorine concentration weekly and adjust to the ideal values.

To keep your pool clean:

1. Contact your local pool supply shop for advice and purchase of chemicals and pH kits. One of the most important factors to increase the life of the liner is to keep continuously clean and healthy water. Please strictly follow the instructions from professional technicians for the water treatment through the use of chemicals.
2. Locate a bucket of water next to the pool to clean users’ feet before entering the pool.
3. Cover the pool when not in use.
4. Skim the pool regularly to avoid settled dirt.
5. Check and wash the filter cartridge regularly.
6. Gently clean any scum from below the top ring with a clean cloth.
7. Please be careful in case of rainwater, kindly check that the water level is not higher than expected. If so, YOU HAVE TO DISCHARGE THE EXCESS WATER. Proper maintenance can maximize the life of your pool. During the season of use of the swimming pool, the filtration system must be necessarily put into service every day, enough time to assure at least a complete renewal of the volume of water.

ATTENTION: Do not use the pump when the pool is in use. During the season of use of the swimming pool, the filtration system must be necessarily put into service every day, enough for a long time to assure at least a complete renewal of the volume of water.

Repair

Check the pool for any leaks from valves or seams, check the ground cloth for any evident water loss. Do not add chemicals until this has been done.

NOTE: In the event of a leak, patch your pool using the underwater adhesive repair patch provided. Refer to the FAQs for further information.

Dismantling

1. Unscrew the drain valve cap on the outside of the pool counter-clockwise and remove it.
2. Connect the adaptor to the hose and put the other end of the hose in the area where you are going to drain your pool. (Check local regulations for drainage by-laws).
3. Screw the control ring of the hose adaptor clockwise onto the drain valve. The drain valve will be open and water will start to drain automatically.
   ATTENTION: Water flow can be controlled with the control ring.
4. When draining is finished, unscrew the control ring to close the valve.
5. Disconnect the hose.
6. Screw the cap back onto the drain valve.
7. Air dry the pool.

ATTENTION: Do not leave the drained pool outside.

Storage and Winterization

1. Please remove all the accessories and spare parts of the pool and store them clean and dry.
2. Once the pool is completely dry, sprinkle with talcum powder to prevent the pool from sticking together, fold the pool carefully. If the pool is not completely dry, mold may result and will damage the pool liner.
3. Store the liner and accessories in a dry place with a moderate temperature between 5ºC / 41ºF and 38ºC / 100ºF.
4. During the rainy season, pool and accessories should be stored as per the above instructions also.
5. Improper draining of the pool might cause serious personal injury and/or damage to personal property.
6. We strongly recommend the pool is disassembled during the off-season (winter months). Store in a dry location out of children’s reach.

Troubleshooting

If you encounter any issues with your Bestway 56456 Power Steel Frame Pool, here are some common problems and solutions to help you:

• Pool water is leaking: Check for any tears or holes in the pool wall or bottom, and repair them using a pool patch kit.
• Pool pump is not working: Make sure the pump is properly plugged in and the power switch is turned on. If the pump still does not work, check for any blockages in the filter or impeller, and clean them out as necessary.
• Pool water is cloudy: Test the water for the correct pH and chlorine levels, and adjust them as necessary. If the water is still cloudy, try using a pool clarifier to help clear it up.

Pros & Cons

Pros

• Durable and sturdy steel frame
• Comfortable and secure polyester mesh wall
• Seamless molded pool floor for added stability
• Easy to set up and use
• Includes safety ladder and pool cover

Cons

• May require frequent water level adjustments due to evaporation
• May require occasional maintenance to keep the pool clean and clear

BESTWAY Manufacturer’s Warranty

The product you have purchased comes with a 2-years warranty. Bestway stands behind our quality guarantee and assures, through a replacement warranty, your product will be free from manufacturer’s defects.

Please choose the type of your pool:

Customer Reviews

Customers who have purchased the Bestway 56456 Power Steel Frame Pool have praised its durability, ease of use, and spacious swimming area. However, some have noted that the pool may require frequent water level adjustments and occasional maintenance to keep it clean and clear. Overall, customers have been satisfied with their purchase and recommend this pool to others looking for a high-quality above ground pool.
