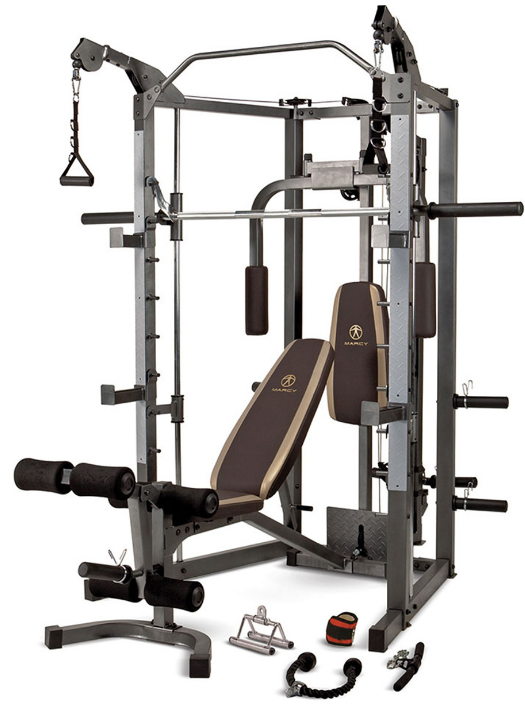

The Marcy Gym Smith Machine SM-4008 is a versatile and robust piece of equipment designed for home fitness enthusiasts. It allows users to perform over 30 different exercises, targeting all major muscle groups through its comprehensive resistance training options. The machine features a Smith-style press bar with adjustable safety stops, a pull-up bar, and an independent motion upper pulley system, making it suitable for both strength training and functional workouts. The cost of the Marcy SM-4008 is approximately $699.99.

Product Details

• Model:** SM-4008
• Type:** Smith Machine with Cable System
• Usage Purpose:** Full-body workout, strength training, muscle building

CAGE PARTS LIST

CAGE EXPLODED DIAGRAM

BENCH PARTS LIST

BENCH EXPLODED DIAGRAM

Detailed Specifications

• Frame:** Heavy-duty steel construction
• Weight Capacity:** 300 lbs (136 kg) for the smith bar and up to 200 lbs (91 kg) for the cable system
• Smith Bar:** Linear bearing system for smooth movement
• Cable System:** Dual cable pulleys with independent arms
• Adjustable:** Multiple height settings for both the smith bar and cable system
• Dimensions:** 65" x 51" x 80" (165 cm x 130 cm x 203 cm)
• Assembly Required:** Yes, but comprehensive instructions are provided

BEFORE YOU BEGIN

We are committed to providing you with complete customer satisfaction. If you have any questions, or find there are missing or damaged parts, we guarantee you complete satisfaction through direct assistance from our factory. To avoid unnecessary delays, please call our TOLL-FREE customer service number. Our Customer Service Agents will provide immediate assistance.

IMPORTANT SAFETY NOTICE

This exercise equipment is built for optimum safety.  However, certain precautions apply whenever you operate a piece of exercise equipment.  Be sure to read the entire manual before you assemble or operate your equipment.  In particular, note the following safety precautions:

1. Keep children and pets away from the equipment at all times.  DO NOT leave  children unattended in the same room with the equipment.
2. Only one person at a time should use the equipment.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, STOP the workout at once.  CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the equipment on a clear, leveled surface.  DO NOT use the equipment near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising.  DO NOT wear robes or other clothing that could become caught in the equipment.  Running or aerobic shoes are also required when using the equipment.
7. Use the equipment only for its intended use as described in this manual. DO NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the equipment.
9. Disabled persons should not use the equipment.
10. Before using the equipment to exercise, always do stretching exercises to properly warm up.
11. Never operate the equipment if the equipment is not functioning properly.
12. A spotter is recommended during exercise.
13. This equipment is designed and intended for home and consumer use only, not for commercial use.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN.  THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT.  IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.

EXERCISE GUIDELINES

Building Muscle and Gaining Weight
Unlike aerobic exercise, which emphasizes endurance training, anaerobic exercise focuses on strength training. A gradual weight gain can occur while building the size and strength of muscles. While developing muscle mass, your body adapts to the stress placed upon it. You can modify your diet to include foods such as meat, fish and vegetables. These foods help muscles recover and replenish important nutrients after a strenuous workout.
Muscle Strength and Endurance
To achieve the greatest benefit from exercise, it is important to develop an exercise program that allows you to work all of the major muscle groups equally.

• To increase muscle strength, follow this principle: Increasing resistance and maintaining the number of repetitions of an exercise results in increased muscle strength.
• To tone your body, follow this principle: Decreasing resistance plus increasing the number of repetitions of an exercise results in increased body tone.

Once you feel comfortable with an exercise, you can change the resistance, the number of repetitions, or the speed at which you do the exercise. It is not necessary to change all three variables. For example, let’s say that you are training at 23 kg (50 lb.) and performing the exercise 10 times in 3 minutes. When this becomes too easy, you may decide to move up to lifting 27 kg (60 lb.) for the same number of repetitions in the same amount of time. Lifting more weights fewer times most often develops muscle strength. To gain both muscle strength and endurance, it is recommended that you perform each exercise 15 to 20 reps per set.
Training Intensity
How hard you begin to train depends on your overall level of fitness. The soreness you experienced can be lessened by decreasing the load you place on your muscles and by performing fewer sets. To avoid injury, you should gradually work into an exercise program and set the load to your individual fitness level. The load should increase as your fitness level increases.
Muscle soreness is common, especially when you first start exercising. If you are painfully sore for a long time, it may be time to change your program. Eventually, your muscle system will become accustomed to the stress and strain placed on it.

Beginning a Strength Building Program

Warming Up
To begin strength training, it is important to stretch and perform light exercise for 5 to 10 minutes. This helps prepare the body for more strenuous exercise by increasing circulation, raising your body temperature and developing more oxygen to your muscles.
Workout
For each workout, to keep in mind that muscle soreness that lasts for a long period is not desirable and may mean that injury has occurred.
Cool Down
At the end of each workout, perform slow stretching exercises for 5 to 10 minutes. Ease into each stretch only going as far as you can. This stage allows your muscles to wind down after training. To provide a total workout program it is also recommended that 2 to 3 days of aerobic exercise is performed in addition to the strength training.
Drinking Water
For the body to function properly, it must be properly hydrated. If you are exercising, you should increase your fluid intake. The reason for this is that the water you take in will leave your system through the sweating mechanism that cools your body during exercise. The water you lose through exercise must be replaced so that the muscles can recover properly.
Rest Day
Although you may not feel like doing it, taking a rest day at least once a week is important because it gives your body a chance to heal itself. Continuously working your muscles will result in over- training, which will not benefit you in the long run.

WARNING LABEL PLACEMENT

The warning labels shown here have been placed on the Base Frame, Rear Stabilizer. If the labels are missing or illegible. Apply the labels in the location shown.

FREE AND TRAINING AREA

IMPORTANT ASSEMBLY INFORMATION

• Tools required for assembling the bench:  Two adjustable Wrenches and Allen wrenches.

NOTE:  It is strongly recommended that this equipment be assembled by two or more people to avoid possible injury.

• Ensure Carriage Bolts are inserted through the SQUARE holes on components that need to be assembled. Attach washer only to end of the Carriage Bolt.
• Use Allen Bolts or Hex Bolts inserted through the ROUND hole on components that need to be assembled.
• Always wait until all bolts are assembled onto the bench before tightening the bolts. Do not tighten each bolt right after it is installed

Fasten Nuts and Bolts

• Securely tighten all nuts and bolts after all components have been assembled in current and previous steps.
  NOTE: Do not over-tighten any component with pivoting function.

• Make sure all pivoting components are able to move freely.



• Do not tighten all nuts and bolts in this step.

• Inspect and ensure all bolts and Nuts are fastened after the equipment is completely assembled.



Assemble with correct Hardware Pack

• Only use the hardware packs marked “For Smith Machine” to assemble Smith Machine.
• Only use the hardware packs marked “For Bench” to assemble Bench.

Tools
Tools required for assembling this equipment: Allen Wrenches (provided by manufacturer), and Adjustable Wrench, or Socket Wrench, or Ratchet Wrench.
NOTE:  It is strongly recommended that this machine be assembled and moved by two or more people to avoid possible injury.

Please ensure that the incline support arm is properly and fully seated and engaged with the frame slot before engaging in any exercise.

Assemble Sliding Weight Post in assembly Step-6
The triangular bracket on the Sliding Weight Post (Part #23) must be facing up and toward to back.

Weight Bar Assembly Note

NOTE: Help of another person is strongly recommended for this step.  Place the Lifting Sleeve (#28) in between the two Safety Stop Frames (#25). Align the holes. Insert the Weight Bar (#29) into the Safety Stop Frame from one end and through the Lifting Sleeve (#28) to the other Safety Stop Frame on the opposite side. Secure the Weight Bar to each Safety Stop Frame with two pre-installed M8 x 3/8” Allen Bolts (#104) on each Safety Stop Frame. Ensure the Bolts are fastened so the Weight Bar won’t slide through the Safety Stop Frame.

Description

The Marcy Gym Smith Machine SM-4008 is designed to offer a comprehensive workout experience. The linear bearing system of the smith bar ensures smooth and quiet operation, while the dual cable pulleys allow for a variety of exercises such as bicep curls, tricep extensions, and chest presses. The adjustable height settings make it suitable for users of different statures. The machine's footprint is substantial but manageable for most home gyms, and it comes with storage hooks for weights and accessories.

SMITH MACHINE CABLE ASSEMBLY INSTRUCTION

Cable Loop Diagram

Butterfly Cable assembly instruction Step-11, Step-11A

1. Attach one end of 113” Butterfly Cable (#45) to the clip on Right Butterfly (#13). Draw the Cable to  the right Swivel Pulley Bracket (#15).
2. Attach a Pulley (#62) and two Cable Retainers (#78) to the Bracket. Secure them with one M10 x  2” Allen Bolt (#94), two Ø ¾” Washer s (#107), and one M10 Aircraft Nut (#110).
3. Draw the Cable around the Pulley then downward. Attach an Angled Floating Pulley Bracket (#52)  to the Cable. Repeat Procedure B above to install a Pulley. Let the Bracket hanging for now.
4. Draw the Cable around the Pulley then upward to the left Swivel Pulley Bracket. Repeat  Procedure B above to install a Pulley to the Bracket.
5. Draw the Cable around the Pulley then clip to the Left Butterfly (#12).

Upper Cable assembly instruction Step-12

1. Attach one Cross-over Swivel Pulley Bracket (#10) to right Upper Side Frame (#7). Secure it  with four M8 x ⅜” Allen Bolts (#101) and four Ø ⅝” Washers (#106).
2. Attach a Pulley (#62) to the right Swivel Bracket and secure it with one M10 x 1 ¾” Allen Bolt  (#93), two Ø ¾” Washers (#107), and one M10 Aircraft Nut (#110).
3. Remove the U-shaped Connector, Big Washer, and Ball Stopper from one end of the 266”  Upper Cable (#47).
4. Insert the open end of Upper Cable through the right Swivel Bracket. Draw the Cable over the  Pulley and pull it toward the back of the machine.
5. Attach a Cable Roller (#42) to the right Swivel Bracket. Secure it with one M8 x 1 ⅝” Allen Bolt  (#102), two Ø ⅝” Washers (#106), and one M8 Aircraft Nut (#109).
6. Attach a Small Pulley (#63) to the opening on the right Upper Side Frame (#7). Secure it with  one M10 x 2 ¾” Allen Bolt (#97), two Ø ¾” Washers (#107), and one M10 Aircraft Nut (#110). Draw the Cable around the top of the Small Pulley.
7. Attach another Small Pulley to the opening next to the Small Pulley installed in Procedure F.
   Secure it with one M10 x 2 ¾” Allen Bolt (#97), two Ø ¾” Washers (#107), and one M10 Aircraft Nut (#110). Draw the Cable under the Small Pulley to an open pulley shaft.
8. Connect a Single Handle (#79) to the Cable End under the right Swivel Pulley Bracket with a Hook (#73). Secure the Hook to the U-shaped Connector with one M10 x 1 ⅛” and one M10 Aircraft Nut (#110).

Upper Cable assembly instruction Step-12A

1. Attach a Pulley (#62) to the open pulley shaft. Secure it with one M10 x 1 ¾” Allen Bolt (#93), one Ø ¾” Washer (#107), and one Cable Retainer (#78).
2. Draw the Cable around the Pulley then to the next open pulley shaft on Rear Upper Frame (#18). Attach a Pulley to the open shaft. Secure it with one M10 x 2 ¾” Allen Bolt (#97), two Ø ¾” Washers 9#107), one Cable Retainer (#78), and one M10 Aircraft Nut (#110).
3. Draw the Cable around the Pulley and to the open bracket on right side of the Rear Upper Frame (#18). Attach a Pulley (#62) to the bracket. Secure it with one M10 x 5” Allen Bolt (#99), one Cable Retainer (#78), two Ø ¾” Washers (#107), and one M10 Aircraft Nut (#110).
4. Draw the Cable around the Pulley and then downward. Attach a Pulley to a Single Floating Pulley Bracket (#34). Secure the Pulley with one M10 x 2” Allen Bolt (#94), two Ø ¾” Washers (#107), two Cable Retainers (#78), and one M10 Aircraft Nut (#110). Draw the Cable around the Pulley and upward to the open bracket on the left side of the Rear Upper Frame. Let the Pulley hanging for now.
5. Remove the M10 x5” Allen Bolt (#99), Nut, and Washer installed in Procedure C. Attach a Pulley onto the M10 x 5” Allen Bolt, then attach a Cable Retainer (#78) to the Pulley, and secure with the removed Washer and Nut.
6. Draw the Cable to an open shaft on Rear Upper Frame. Secure it with M10 x 2 ¾” Allen Bolt (#97), two Ø ¾” Washers 9#107), one Cable Retainer (#78), and one M10 Aircraft Nut (#110).
7. Draw the Cable to next open shaft. Attach a Pulley to the open shaft. Secure it with one M10 x 1 ¾” Allen Bolt (#93), one Ø ¾” Washer (#107), and one Cable Retainer (#78).
8. Draw the Cable to the opening on the left Upper Side Frame (#7).

Upper Cable assembly instruction Step-12B, Step-12C

1. Attach a Small Pulley to the opening on left Upper Side Frame (#7). Secure the Small Pulley with  one M10 x 2 ¾” Allen Bolts (#97), two Ø ¾” Washers (#107), and one M10 Aircraft Nut (#110). B.) D aw the Cable under the Small Pulley and then pull up.
2. Attach a Small Pulley to the next opening. Secure it with one M10 x 2 ¾” Allen Bolts (#97), two Ø  ¾” Washers (#107), and one M10 Aircraft Nut (#110). Draw the Cable around the top of the Small Pulley.
3. Attach a Cross-over Swivel Pulley Bracket (#10) to the right Upper Side Frame (#7). Secure it with  four M8 x ⅜” Allen Bolts (#101) and four Ø ⅝” Washers (#106).
4. Attach a Pulley to the Swivel Pulley. Secure it with one M10 x 1 ¾” Allen Bolt (#93), two Ø ¾”  Washers (#107), and one M10 Aircraft Nut (#110).
5. Draw the Cable around the top of the Pulley and through to the outside of Swivel Bracket. Attach a  Cable Roller (#42) to the left Swivel Bracket. Secure it with one M8 x 1 ⅝” Allen Bolt (#102), two Ø ⅝” Washers (#106), and one M8 Aircraft Nut (#109).
6. Re-install the Ball Stopper; Big Washer, and the U-shaped Connector to the end of the Cable. H.) Connect a Single Handle (#79) to the end of the Cable with a Hook (#73). Secure the Hook to the U-shaped Connector with one M10 x 1 ⅛” Allen Bolt (#92) and M10 Aircraft Nut (#110).

Sliding Weight Post Cable assembly instruction Step-13, Step-13A

1. Attach one end of the 97” Sliding Weight Post Cable (#46) to the triangular bracket on the Sliding  Weight post (#23). Secure it with one M10 x ¾” Allen Bolt (#90), two Ø ¾” Washers (#107), and  one M10 Aircraft Nut (#110).
2. Draw the Cable upward to the opening on the Weight Glide Post (#17).
3. Attach a Pulley (#62) to the opening. Secure it with one M10 x 2 ½” Allen Bolt (#95), two Ø 1” x ½”  Pulley Bushings (#57), and one M10 Aircraft Nut (#110).
4. Draw the Cable around the Pulley and then downward.
5. Attach a Pulley to top holes on the two Double Floating Pulley Brackets (#33). Secure the Pulley with one M10 x 2” Allen Bolt (#94), two Cable Retainers (#78), two Ø ¾” Washers (#107), and one M10 Aircraft Nut (#110).
6. Draw the Cable around the Pulley and upward to the opening under the Rear Upper Frame (#18). G.) Secure the end of the Cable to the opening with one M10 x 2 ⅜” Allen Bolt (#118), two Ø ¾” Washers (#107), and one M10 Aircraft Nut (#110).

Lower Cable assembly instruction Step-14, Step-14A

1. Insert the tip of the 152” Lower Cable (#44) through the opening on Foot Plate (#32) to the  opening on bottom of Middle Vertical Frame (#9).
2. Attach a Pulley (#62) to the opening. Secure it with one M10 x 2 ½” Allen Bolt (#95), two Ø 1” x ½”  Pulley Bushings (#57), and one M10 Aircraft Nut (#110).
3. Draw the Cable to the Angled Floating Pulley Bracket (#52) previously installed in Step-11.
4. Attach a Pulley to the Bracket. Secure it with one M10 x 2” Allen Bolt (#94), two Ø ¾” Washers  (#107), two Cable Retainers (#78), and one M10 Aircraft Nut (#110).
5. Draw the Cable around the Pulley and then downward to the first open bracket on the Lower  Pulley Frame (#16).
6. Attach a Pulley to the bracket. Secure it with one M10 x 2” Allen Bolt (#94), two Ø ¾” Washers  (#107), one Cable Retainer (#78), and one M10 Aircraft Nut (#110).
7. Draw the Cable under Pulley and through the next open bracket to the third open bracket. Attach  a Pulley to the bracket. Secure it with one M10 x 2” Allen Bolt (#94), two Ø ¾” Washers (#107),  one Cable Retainer (#78), and one M10 Aircraft Nut (#110).
8. Draw the Cable around the Pulley and then upward to the Double Floating Pulley Bracket  previously installed in Step-13.
9. Attach a Pulley to the Bracket. Secure it with one M10 x 2” Allen Bolt (#94), two Ø ¾” Washers  (#107), two Cable Retainers (#78), and one M10 Aircraft Nut (#110).
10. Draw the Cable around the Pulley then downward to the open bracket on Lower Pulley Frame. K.) Attach a Pulley to the bracket. Secure it with one M10 x 2” Allen Bolt (#94), two Ø ¾” Washers  (#107), one Cable Retainer (#78), and one M10 Aircraft Nut (#110).
11. Draw the Cable around the Pulley then upward to the Single Floating Pulley Bracket (#34)  previously installed in Step-12A. Secure the Cable to the Bracket with one M10 x 1” Allen Bolt  (#91), two Ø ¾” Washers (#107), and one M10 Aircraft Nut (#110).
12. Move the lower Pulley position on Double Floating Pulley Bracket will adjust the tension of the whole Cable System. Move up the Pulley will increase the tension. Move down the Pulley will loosen the tension.
13. Attach the Shiver Bar (#54) to the Lower Cable with one 15-link Chain (#72) and two Hooks (#72). Replace the Shiver Bar with Ankle Strap (#75) or Triceps Rope (#53) for various exercises.

Operation

1. Load Weights:** Add weights to the smith bar according to your desired load.
2. Adjust Height:** Adjust the height settings of both the smith bar and cable system as needed.
3. Perform Exercises:** Use the machine to perform various exercises such as squats, presses, curls, and extensions.

WEIGHT CAPACITY AND DIMENSION

1. Maximum user weight: 300 lbs.
2. Maximum weight on Sliding Weight Post (#23): 300 lbs (150lbs on each side)
3. Maximum weight on storage Weight Post (#38): 100 lbs
4. Maximum weight on Bar Holder (#21 & #22) and Safety Catch (#19 & #20): 300 lbs
5. Maximum weight on Weight Bar (#29): 300 lbs
6. Maximum weight on Bench: 600lbs (including user weights)
7. Cage assembled dimensions: 65” x 79 ¼” x 84 ½”
8. Bench assembled dimensions: 68 ¼” x 26” x 45 ½”

Marcy Gym Smith Machine SM-4008 Setup Guide

1. Unpacking:** Carefully unpack all components from the packaging material.
2. Frame Assembly:** Follow the instructions to assemble the main frame using bolts and screws.
3. Smith Bar Installation:** Attach the smith bar to the frame ensuring proper alignment.
4. Cable System Setup:** Install the cable pulleys and attach them to their respective hooks.
5. Final Check:** Ensure all parts are securely attached and test the machine before use.

CARE AND MAINTENANCE

1. Lubricate moving parts with WD-40 or light oil periodically.
2. Inspect and tighten all parts before using the equipment.
3. The equipment can be cleaned using a damp cloth and mild non-abrasive detergent. DO NOT use solvents.
4. Examine the equipment regularly for signs of damage or wear.
5. Replace any defective components immediately and/or keep the equipment out of use until repair.
6. Failure to examine regularly may affect the safety level of the equipment.

OPERATION NOTES

This equipment should be placed on flat surface. The incline or decline of surface should be limited to 3% or less for best performance and safety.
Cable Tension Adjustment

Bench Backrest Adjustment Angles

The backrest adjustment angle ranges from -180 to 710.

WEIGHT RESISTANCE CHART

Numbers are approximate. Actual resistance may vary.

Troubleshooting

Common Problems and Solutions

• Sticking Smith Bar:** Check if weights are evenly loaded and ensure proper lubrication of bearings.
• Cable Malfunction:** Inspect cables for any wear or tangles; replace if necessary.
• Loose Bolts:** Regularly inspect and tighten any loose bolts or screws.

Instructions and Warnings

• Always warm up before starting your workout.
• Use a spotter when performing heavy lifts.
• Follow proper lifting techniques to avoid injury.
• Regularly maintain the machine by lubricating moving parts.

WARRANTY

IMPEX Inc. ("IMPEX") warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of  two years on the Frame from the date of purchase. This warranty extends only to the original purchaser. IMPEX's obligation under this Warranty is limited to replacing or repairing, at IMPEX's option.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.  Some States do not allow limitations on how long an implied warranty lasts.   Accordingly, the above limitation may not apply to you.

Register online at https://www.marcypro.com
