Introduction

The BioNaire Remote Control Window Fan BW 2300 is a versatile and convenient solution for all your ventilation needs. This window fan is designed to fit double-hung and slider windows, and it comes with a remote control for easy operation. With an estimated price range of $60 to $80, this window fan is a cost-effective way to keep your home cool and comfortable.

WINDOW FAN ACCESSORIES

• Window Fan Extender Panel



BioNaire Remote Control Window Fan BW 2300 Specifications

The BioNaire Remote Control Window Fan BW 2300 boasts the following key features:

• Three fan speeds for customized cooling
• Extended range remote control for added convenience
• Adjustable fan head for targeted cooling
• LED control panel for easy operation
• Built-in thermostat to maintain desired room temperature
• Integrated twin blades for maximum airflow
• Compact design for easy storage

INSTALLATION INSTRUCTIONS

Description

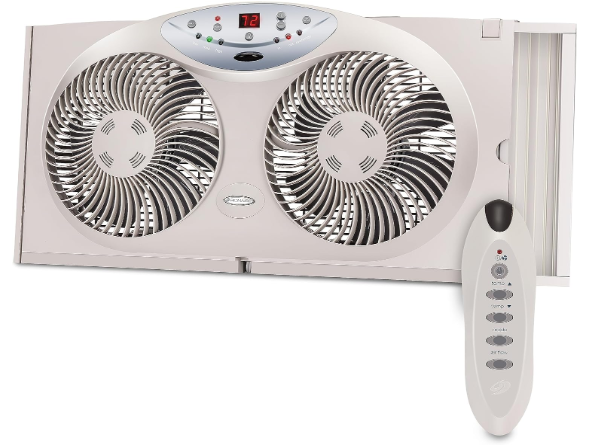

The BioNaire Remote Control Window Fan BW 2300 is a powerful and efficient window fan designed to keep your home cool and comfortable. It features three fan speeds, so you can choose the level of cooling that's right for you. With its adjustable fan head, you can direct the airflow exactly where you need it. The fan also comes with a remote control, so you can operate it from anywhere in the room. The LED control panel is easy to read and use, and the built-in thermostat ensures that your room stays at the perfect temperature. Plus, the compact design means that it's easy to store when not in use.

WINDOW FAN INSTALLATION

The window fan has been designed to fit double-hung, slider and casement windows.

1. Set the fan into your window opening.

2. If the fan does not fit snugly to the top and bottom of the window casing, attach the included extender panel(s) and pull out the built-in extender screen until the fan fits safely in your window (See Figure 3).

3. To keep the fan in place, carefully close the window so that the bottom edge of the window rests on the flat area on the top of the window fan.

WARNING: Be sure fan is securely installed in your window at all times. Do not lean or push on fan while it is in the window.
NOTE: For slider windows, set the fan vertically in your window opening, with the left side on the bottom.

INSTALLATION GUIDE

• The extender panels can be secured to the fan by simply sliding the extender panels into the grooves located on the left hand side of the fan.

• The extender screen can be adjusted by pulling out the extender locks located on the top and bottom of the right side of the fan.

• Push the locks back into place to secure the extender screen at the desired length.
  For 24 inch to 27 inch (61-69cm): Use up to 3 inch (7cm) of right side, pull out extender screen.
  For 28 inch to 34 inch (71-86cm): Use one 3 inch (7cm) extender panel on the left side.

• Adjust the pull out extender screen on the right side for a tight fit (from 0.5 inch to 7 inch (1.3-17.8cm) ).
  For 35 inch to 37 inch (89-94cm): Use two 3 inch (7cm) extender panels on the left side.

• Adjust the pull out extender screen on the right side for a tight fit (from 0.5 inch to 7 inch (1.3-17.8cm) ).
  Larger than 37 inch (94cm): Additional extender panels will be required.

MANUAL OPERATING INSTRUCTIONS

NOTE: To operate the fan continuously, make sure that the auto on light located to the left of the control panel is off.

1. Plug your window fan into any 120V AC electricaloutlet.

   • NOTE: The temperature display will always be on when the fan is plugged into the electrical outlet.

2. To turn the fan on press the Speed Control Button.

3. Set the speed to high, medium (med) or low by pressing the Speed Control Button.

4. Set the airflow direction to Exhaust (out), Intake (in) or exchange (one blade blowing air in and the second blade blowing air out) by pressing the air flow button.

5. To turn the fan off press the Speed Control Button until the fan stops.

AUTOMATIC OPERATING INSTRUCTIONS

Your window fan is equipped with the digital control thermostat that automatically turns the fan on and off depending upon the preset comfort level. For example, if you have set your thermostat to 75 degrees and the room temperature drops to 74 degrees or lower then the fan will automatically shut off. The fan will then turn on again when the room temperature exceeds 75 degrees. In order to take advantage of this feature, make sure your window fan is in automatic mode (this will be indicated by a red light on the left of the control panel).

1. Set the fan to Automatic Mode by pressing the Mode button located on the Control Panel. The Auto On light will illuminate when the unit is in Automatic Mode.

2. Press the Temp Set (+,–) buttons on the front of the Control Panel or use the remote control to program the desired temperature or switch to the manual mode.

3. When you are finished setting the temperature, let go of the button. The display will blink a few times and then will return to displaying the current room temperature.

IMPORTANT: If the unit will not start in automatic mode, please make sure that the set temperature is below the current room temperature. If the fan is stopped and you would like to turn it back on, lower the set temperature or switch to the manual mode.

REMOTE CONTROL INSTRUCTIONS

Your window fan is equipped with a remote control. This remote control can be used to adjust the following functions: Power, Manual/Automatic mode, Air Flow Direction, Temperature adjustments. Two “AAA” batteries have been included for your convenience.

• Do not mix old and new batteries.

• Do not mix alkaline, standard (carbon-zinc),or rechargeable (nickel-cadmium) batteries.

Setup Guide

Setting up the BioNaire Remote Control Window Fan BW 2300 is easy. Simply follow these steps:

1. Choose a location for your fan. It should be near an outlet and in a window that is at least 22 inches wide.
2. Insert the fan into the window, making sure that it is secure and stable.
3. Plug in the fan and use the remote control to turn it on.
4. Use the control panel or remote control to select your desired fan speed and other settings.

CLEANING/MAINTENANCE INSTRUCTIONS

Follow these instructions to correctly and safely care for your fan. Please remember:

• Always unplug the fan before cleaning.

• Do not allow water to drip on or enter into fan housing.

• Be sure to use a soft cloth moistened with a mild soap solution.

• Do not use gasoline, thinner or benzene as a cleaner.

FAN CLEANING

Clean the fan grills, extender screen, and extender panels with a soft, damp cloth. Please use caution around the motor housing area. Do not allow the motor or other electrical components to be exposed to water. Also, using a soft bristle brush attachment, a vacuum cleaner may be used to extract dust buildup on the grill areas.
NOTE: Remember to turn your fan to the off position prior to cleaning

FAN STORAGE INSTRUCTIONS

Your fan can be stored in the off-season, however it is important to keep it in a safe, dry location.

• We recommend using the original (or appropriately sized) box.

• Remember to protect the fan from dust

IMPORTANT SAFEGUARDS INSTRUCTIONS
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Read all instructions before using the appliance.

2. To avoid fire or shock hazard, plug the appliance directly into a 120 V AC electrical outlet.

3. Keep the cord out of heavy traffic areas. DO NOT let the cord hang over the edge of a table or counter. To avoid fire hazards, NEVER put the cord under rugs, near heat registers, radiators, stoves, or heaters.

4. To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water.

5. Close supervision is necessary when any appliance is used by or near children or disabled people.

6. Always unplug the fan before moving it, putting on or taking off parts, cleaning, or whenever the fan is not in use. Be sure to pull by the plug and not the cord.

7. Avoid contact with moving parts. DO NOT operate without fan grills properly in place.

8. DO NOT operate any appliance with a damaged cord or plug, if motor fan fails to rotate, after the appliance malfunctions, or if it has been dropped or damaged in any manner.

9. Return the appliance to the manufacturer for examination, electrical or mechanical adjustment, or repair.

10. DO NOT operate in the presence of explosive and/or flammable fumes.

11. use appliance only for intended household use as described in this manual.

12. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. The use of attachments not recommended or sold by Bionaire® may cause hazards.

13. DO NOT use outdoors.

14. Always use on a dry, level surface.

15. Keep unit away from heated surfaces and open flames.

16. DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty.

17. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified personnel only.

TROUBLESHOOTING

5 YEAR WARRANTY

Sunbeam Products, Inc. doing business as Jarden Consumer Solutions or if in Canada, Sunbeam Corporation (Canada) Limited doing business as Jarden Consumer Solutions (collectively “JCS”) warrants that for a period of five years from the date of purchase, this product will be free from defects in material and workmanship. JCS, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty. Do NOT attempt to repair or adjust any electrical or mechanical functions on this product. Doing so will void this warranty.

Pros & Cons

Pros

• Three fan speeds for customized cooling
• Extended range remote control for added convenience
• Adjustable fan head for targeted cooling
• LED control panel for easy operation
• Built-in thermostat to maintain desired room temperature

Cons

• May not be suitable for very large rooms
• Some users may prefer a more traditional fan design

Customer Reviews

Customers love the BioNaire Remote Control Window Fan BW 2300 for its convenience and ease of use. They appreciate the adjustable fan head and three fan speeds, which allow them to customize their cooling experience. Some users have noted that the fan is a bit noisy on the highest setting, but most agree that it's a small price to pay for the powerful airflow. Overall, customers are impressed with the quality and performance of this window fan.

Common Complaints about BioNaire Remote Control Window Fan BW 2300

The most common complaint about the BioNaire Remote Control Window Fan BW 2300 is that it's a bit difficult to install. Some users have had trouble getting the fan to fit securely in their window, especially if the window is not a standard size. However, most users have been able to resolve these issues with a little bit of trial and error. A few users have also noted that the fan is a bit noisy on the highest setting, but this is not a common complaint.
