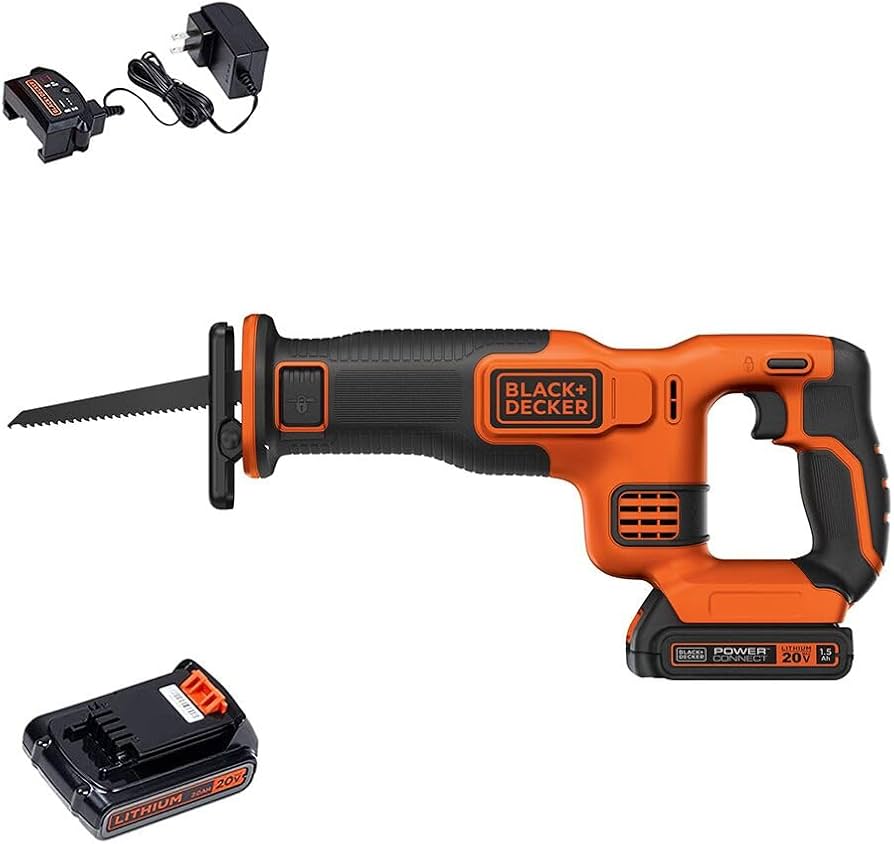

Black & Decker Reciprocating Saw BDCR20

The Black & Decker Reciprocating Saw is a powerful and versatile tool designed for a wide range of cutting tasks. With a variable speed of up to 3,000 strokes per minute, this saw can handle materials such as wood, metal, and plastic with ease. The BDCR20 is also compact and lightweight, making it ideal for use in tight spaces and overhead applications. The estimated price of the Black & Decker Reciprocating Saw is around $60, and it is already available in the market.

Detailed Specifications

• Variable speed of up to 3,000 strokes per minute
• Stroke length of 7/8 inches
• Compact and lightweight design, weighing only 4.5 pounds
• Tool-free blade change system
• Pivoting shoe for improved control and durability
• Adjustable shoe for precise cuts
• Ergonomic handle for comfortable grip
• Integrated hanging hook for easy storage

FUNCTIONAL DESCRIPTION

1. On/Off Trigger
2. Shoe
3. Blade clamp release lever
4. Blade
5. Battery (not included)
6. Battery release button (on battery)
7. Main Handle
8. Secondary Gripping Handle

These products use the batteries and chargers listed in the chart below.

Accessories

Your reciprocating saw will accept up to a 12 inch long blade. Always use the shortest blade suitable for your project. Longer blades are more likely to be bent or damaged during use. During operation, some longer blades may vibrate or shake if the saw is not kept in contact with the workpiece.

Setup Guide of Black & Decker

Setting up the Black & Decker Reciprocating Saw is a simple and straightforward process. First, ensure that the saw is unplugged from the power source. Next, install the blade by pressing the spindle lock and turning the blade clockwise until it clicks into place. Once the blade is installed, adjust the shoe to the desired position and plug in the saw. To use the saw, hold it with both hands and squeeze the trigger. The saw's variable speed allows you to adjust the speed to suit the material you are cutting. For best results, use the pivoting shoe to apply pressure to the material being cut.

CHARGING PROCEDURE

Black & Decker chargers are designed to charge Black & Decker battery packs in 3-4 hours depending on the pack being charged.

1. Plug the charger into an appropriate outlet before inserting the battery pack.
2. Insert the battery pack into the charger as shown in figure B.
3. The green LED will flash indicating that the battery is being charged.
4. The completion of the charge is indicated by the green LED remaining on continuously. The pack is fully charged and may be used at this time or left on the charger.

LEAVING THE BATTERY IN  THE CHARGER
The charger and battery pack can be left connected with the green LED glowing indefinitely. The charger will keep the battery pack fresh and fully charged.
INSTALLATION AND REMOVAL OF THE BATTERY PACK

• TO INSTALL BATTERY PACK: Insert the battery pack into the tool until an audible click is heard. Make sure the battery pack is fully seated and fully latched into position.
• TO REMOVE BATTERY PACK: Depress the battery release button as shown in figure D and pull battery pack out of the tool.

OPERATING INSTRUCTIONS

WARNING: Always use proper eye protection that conforms to ANSI Z87.1(CAN/CSA Z94.3) while operating this power tool.
NOTE: Before cutting any type of material, be sure it is firmly anchored or clamped to prevent slipping.

• Place blade and shoe firmly against work to be cut.
• Switch on saw motor and allow it to obtain maximum speed before starting the cut.
• Always hold saw firmly with both hands while cutting as shown in . Whenever possible, the saw shoe must be held firmly against the material being cut. This will prevent the saw from jumping or vibrating and will minimize blade breakage.

TRIGGER SWITCH

The tool is equipped with a switch lock-off  feature to prevent unintentional operation.

• To switch the tool on, press the lock off button (2), then squeeze the on/off switch (1).
• Releasing the trigger turns the motor OFF.

NOTE: This tool has no provision to lock the switch in the ON position, and should never be locked in the ON position by any other means.
BLADE CLAMP RELEASE LEVER
WARNING: Cut hazard. Turn off and remove battery from tool before making any adjustments or removing or installing attachments or accessories.
WARNING: Cut hazard. Blade breakage may occur if the blade does not extend past the shoe and the workpiece during the cut. Increased risk of personal injury, as well as damage to the shoe and workpiece may result.
To install blade into saw

1. Open blade clamp release lever to its full open position
2. Insert blade shank from the front.
3. Close blade clamp release lever. Check to make sure blade is clamped securely

Note: Blade can be installed upside-down to assist in flushto cutting.
To remove blade from saw
WARNING: Burn hazard. Do not touch the the blade immediately after use. Contact with the blade may result in personal injury.

1. Open blade clamp release lever to its full open position.
2. Remove blade.

Flush Cutting

• The compact design of the reciprocating saw motor housing and pivoting shoe permit close cutting to floors, corners and other difficult areas.
• To maximize flush cutting capabilities, insert the blade shaft into the blade clamp with the teeth of the blade facing up.
• Turn the saw upside down so you are as close to the work surface as possible.

Wood Cutting

• Before cutting any type of wood, be surethe work piece is firmly anchored or clamped to prevent slipping.
• Place blade and shoe lightly against work to be cut.
• Switch on saw motor before applying pressure.
• Always hold saw firmly with both hands while cutting. Whenever possible, the shoe must be held firmly against the material being cut. This will prevent the saw from jumping or vibrating and minimize blade breakage.

Metal Cutting

• Use a finer blade for ferrous metals and a coarse blade for non-ferrous materials.
• In thin gauge sheet metals it is best to clamp wood to the underside of the sheet. This will ensure a clean cut without excess vibration or tearing of metal.
• Avoid forcing cutting blade as this reduces blade life and causes costly blade breakage.

NOTE: You should spread a thin film of oil or other coolant along the line ahead of the saw cut for easier operation and longer blade life. For cutting aluminum, kerosene is preferred.
Pocket Cutting - Wood Only
Measure the surface area to be cut and mark clearly with a pencil, chalk or scriber.

• Insert blade in blade clamp and tighten blade clamp securely.
• Tip the saw backward until the bottom edge of the shoe is resting on the work surface.
• Switch motor on, permitting blade to attain maximum speed.
• Grip handle steadily and begin a slow, deliberate upward swing with the handle of the saw.
• The blade will begin to feed into material. Always be sure blade is completely through material before continuing with pocket cut.

NOTE: In areas where blade visibility is limited, use the edge of the shoe as a guide

PROJECT TIPS

• Cut only with sharp blades; they cut cleaner, faster and put less strain on the motor while cutting.
• When cutting, always ensure that the shoe is firmly against the workpiece. This will improve operator control and minimize vibration.
• For longer blade life, use bi-metal blades. These utilize a carbon steel back welded to high speed steel teeth making the blade more flexible and less prone to breaking.

Description of Black & Decker Reciprocating Saw BDCR20

The  Reciprocating Saw BDCR20 is a versatile and powerful tool that can handle a wide range of cutting tasks. Its variable speed of up to 3,000 strokes per minute and stroke length of 7/8 inches make it ideal for cutting through materials such as wood, metal, and plastic. The saw's compact and lightweight design, weighing only 4.5 pounds, makes it easy to handle and use in tight spaces and overhead applications. The Black & Decker Reciprocating Saw also features a tool-free blade change system, which allows for quick and easy blade changes. The pivoting shoe improves control and durability, while the adjustable shoe provides precise cuts. The ergonomic handle offers a comfortable grip, and the integrated hanging hook makes for easy storage.

Maintenance

WARNING: remove battery from SAW WHEN PERFORMING ANY CLEANING OR OTHER MAINTENANCE. WHEN SERVICING USE ONLY IDENTICAL REPLACEMENT PARTS.

• Avoid using solvents when cleaning plastic parts. Most plastics are susceptible tovarious types of commercial solvents and may be damaged by their use. Use only mild soap and a damp cloth to clean the tool. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.
• When electric tools are used on fiberglass boats, sports cars, drywall etc., they are subject to accelerated wear and possible premature failure, as the fiberglass chips and grindings and drywall dust are highly abrasive to bearings, brushes, commutator, etc. During any use on fiberglass or drywall, it is extremely important that the tool be cleaned frequently by blowing with an air jet.

LUBRICATION

Your tool was properly lubricated before leaving the factory. Once every year take or send your tool to a Black & Decker service center, or authorized service station, for a complete cleaning, inspection and lubrication. Tools “out of service” for long periods should be relubricated before being put back to work.

Troubleshooting

Warranty

Black & Decker warrants this product for two years against any defects in material or workmanship. The defective product will be replaced or repaired at no charge in either of two ways. The first, which will result in exchanges only, is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer). Returns should be made within the time period of the retailer’s policy for exchanges (usually 30 to 90 days after the sale). Proof of purchase may be required.

Pros & Cons of Reciprocating Saw BDCR20

• Pros

  • Versatile and powerful
  • Compact and lightweight design
  • Tool-free blade change system
  • Adjustable shoe for precise cuts
  • Integrated hanging hook for easy storage

• Cons

  • May not be suitable for heavy-duty cutting tasks
  • Blade changes can be difficult to perform one-handed

Customer Reviews of Black & Decker Reciprocating Saw

The Reciprocating Saw BDCR20 has received mostly positive reviews from customers. Users have praised the saw's versatility and power, as well as its compact and lightweight design. Some users have noted that the saw may not be suitable for heavy-duty cutting tasks, but overall, customers have been impressed with the BDCR20's performance. The most common complaint among customers is that the blade changes can be difficult to perform one-handed. However, this is a minor issue that can be easily overcome with practice.
