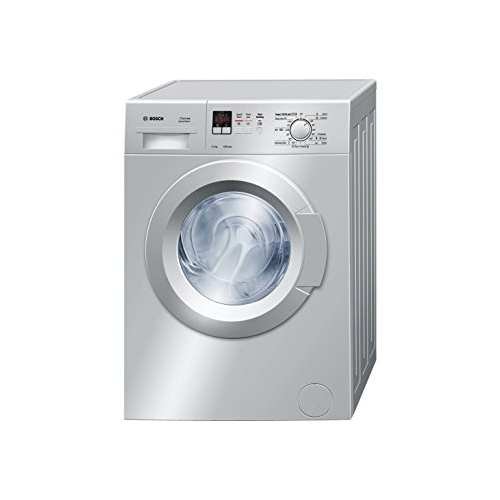

Introduction of Bosch Washing Machine WAB20267IN

The Bosch Washing Machine WAB20267IN is a high-performance washing machine designed to make laundry day easier and more efficient. With a 7 kg capacity, this machine is perfect for small to medium-sized households. The estimated price of the Bosch WAB20267IN is approximately INR 24,000, and it was launched in June 2021.

Detailed Specifications

The Bosch has several key features that make it stand out from other washing machines in its class. These features include

• 7 kg drum capacity
• ActiveWater Plus technology for efficient water usage
• VarioSoft drum for gentle fabric care
• 1,400 rpm maximum spin speed
• 15 washing programs, including a quick wash cycle
• Delay start function
• EcoSilence Drive for quiet operation
• Child lock for added safety

Description of WAB20267IN

The Bosch is a front-loading washing machine that is designed to be both stylish and functional. The machine has a modern and sleek appearance, with a white exterior and a large porthole for easy loading and unloading of laundry. The control panel is intuitive and easy to use, with clear buttons and a digital display that shows the selected washing program and time remaining. The ActiveWater Plus technology in the Bosch WAB20267IN ensures that the machine uses only the amount of water necessary for each load, helping to reduce water waste and save money on utility bills. The VarioSoft drum is designed to provide gentle fabric care, reducing the risk of damage to delicate garments. The machine also has a high maximum spin speed of 1,400 rpm, which helps to remove excess water from clothes and reduce drying time.

Setup of Bosch Washing Machine

Setting up the WAB20267IN is a simple process that can be completed in a few easy steps

1. Plug the washing machine into a grounded electrical outlet.
2. Connect the waste water hose to the machine and the other end to a drain or standpipe.
3. Fill the machine with detergent and fabric softener, if desired.
4. Select a washing program and adjust the settings as needed.
5. Load the drum with laundry and close the door.
6. Press start to begin the washing cycle.

Programmes

Temperature and spin speed can be selected individually, depending on the selected programme and programme progress.

Preparation

Correct installation according to the separate installation instructions.

• Checking the machine
  • Never use a damaged machine.
  • Inform the after-sales service.
• Connecting the mains plug
  • Make sure your hands are dry.
  • Take hold of the plug only.
• Turning the tap on

Insert for liquid detergent (depending on model), page 10. Compartment Il: detergent for main wash, water softener, bleach, stain remover
Compartment 89: fabric softener, starch

Sorting and loading laundry

• Follow the manufacturer's care information.
• According to the information on the care labels
• According to type, colour, soiling and temperature.
• Do not exceed the maximum load
• Observe the important information
• Load items of laundry of varying sizes.
• Close the washing machine door. Take care not to trap items of laundry between the washing machine door and the rubber seal.

Adding detergent and care products

• Measure accordingly: Amount of laundry, level of soiling, water hardness (ask your water supply company) and manufacturer's instructions.
• Models without insert for liquid detergent: Pour liquid detergent into the appropriate dispenser and place inthe drum.
• During operation: Open the detergent drawer with care.

Dilute thick fabric softener and conditioner with water. This prevents blockages.

Setting** and adjusting programs

Programme selector for switching the machine on and off and for selecting the programme. Can be turned in either direction.
Select Start/Pause
If the function buttons are held for longer, the appliance automatically runs through the display options.

Washing

• Switching off
  Turn the programme selector to Off.
• Turning the tap off
  Not required for Aqua-Stop models
• Removing the laundry
  Open the washing machine door and remove the laundry.
• If - - - - (Rinse stop = no final spin) is active: Turn the programme selector to Emptyor select a spin speed.
• Press Start/Pause
  • Remove any foreign objects - risk of rusting.
  • Leave the washing machine door and detergent drawer open so that any residual water can evaporate.

End of programme when…

• ... END appears on the display panel.
• Interrupting the programme
  Programmes at high temperatures
  • To cool the laundry: Select Rinse
  • Press Start/Pause.
• Programmes at lower temperatures
  • Select Spin or Empty(if only emptying: set(spin speed) to - - - -).
  • Press Start/Pause
• Changing the programme, if...
  ... a wrong programme has been selected by mistake
  • Reselect the programme.
  • Press Start/Pause . The new programme starts from the beginning.
• Pausing/continuing the programme...
  Press Start/Pause -P- appears on the display panel; the washing machine door cannot be opened. To continue the programme, press Start/Pause

Individual settings

Function buttons
The spin speed and temperature can be changed before and during the selected programme. The effects depend on the programme progress.
Temp.°C
You can change the displayed washing temperature. The maximum washing temperature that can be selected depends on the programme that has been set.
rpm(spin speed //….. (Rinse stop = no final spin))
You can change the spin speed shown or select….(Rinse stop (Spülstop) = no final spin, laundry remains in the water after the last rinse, display panel - - - -). The maximum selectable spin speed depends on the model and on which program is currently selected.
Ready in
When you select the programme, the relevant programme duration is displayed. You can delay the start of the programme before it begins. The "Finished in" time can be set in increments of one hour up to a maximum of 24 hours. Press the Ready in button repeatedly until the required number of hours is displayed (h = hour).
Press Start/Pause.
Option buttons

Childproof lock
You can lock the washing machine to prevent the functions you have set from being changed inadvertently.
ON/OFF: after the start/end of the programme, press and hold the Start/Pause button for approx. 5 seconds.
Note: The childproof lock can remain activated until you wish to start the next programme, even after switching off the machine.
Then you can deactivate the childproof lock before starting the  programme and activate it again as necessary once the programmehas started.
Start / Pause
To start, pause and continue the programme and to activate/deactivate the childproof lock.
Signal

1. Activate the setting mode for the signal volume



2. Set the volume for button signals( depending on model)




   Set the volume for information signals

Information on the display panel

Programme overview

Consumption values

Important information

• Before washing for the first time
  Do not put any laundry in the machine. Turn the tap on. Pour into compartment II
  • approx. 1 litre water
  • detergent (dosage according to the manufacturer's instructions for light soiling and the appropriate degree of water hardness)
    Turn the programme selector to Easy-care 60 °C and press Start/Pause. At the end of the programme, turn the programme selector to Off.
• Protecting the laundry and the machine
  • When measuring the amount of all detergents/additives and cleaning agents, always check the manufacturer's instructions.
  • Empty pockets.
  • Look out for metal items (paperclips, etc.).
  • Wash delicates in a laundry bag (tights, curtains, underwired bras).
  • Fasten zips, do up any buttons.
  • Brush sand out of pockets and collars.
  • Remove curtain fittings or place in the laundry bag.
• Loading laundry
  • Load items of laundry of varying sizes.
  • Take care not to trap items of laundry between the washing machine door and the rubber seal.
• Laundry with varying degrees of soiling
  • Wash new items of clothing separately.
  • light
    • Do not prewash. If required, select theSpeedPerfect option.
    • Pretreat any stains as necessary.
  • heavy
    Do not load as much laundry. Select the programme with prewash.
• Soaking Load laundry of the same colour
  Pour soaking agent/detergent into compartment II in accordance with the manufacturer's instructions. Turn the programme selector to 􀁌 Cottons 30 °C and press Start/Pause. After approx. 10 minutes, press Start/Pauseto stop the programme. Once the required Pause time has elapsed, press Start/Pauseagain to continue the programme or to select a different programme.
• Starching
  Laundry must not be treated with fabric softener Starching is possible in all wash programmes if liquid starch is used. Pour starch into the fabric softener compartment in accordance with the manufacturer's instructions (rinse first if necessary).
• Dyeing/bleaching
  Dye should only be used in normal household quantities. Salt may damage stainless steel. Always follow the dye manufacturer's instructions. Do not use the washing machine for bleaching clothes.

Insert for liquid detergent

• Position the insert for dispensing liquid detergent
  • Remove the detergent drawer completely
  • Slide the insert forwards.
• Do not use the insert (slide upwards)
  • For gel-type detergents and washing powder,
  • for programmes with Prewash (Vorwäsche) or the Ready in function.

Cleaning and care

Machine housing, control panel

• Remove detergent residue immediately.
• Wipe off with a soft, damp cloth.
• Do not clean with a jet of water.

Cleaning the detergent drawer …
 if it contains detergent or fabric softener residues.

1. Pull out, press insert down, remove drawer completely.
2. To remove the insert: press the insert upwards from below with your finger.
3. Clean the detergent dispenser tray and insert with water and a brush and dry it.
4. Attach the insert and engage (connect the cylinder to the guide pin).
5. Push in the detergent drawer.

Leave the detergent drawer open so that any residual water can evaporate.
Drum
Leave the washing machine door open so that the drum can dry out.
Rust stains - use chlorine-free cleaning agent, not steel wool.
Descaling
Make sure that there is no laundry in the machine. This should not be necessary if the correct detergent dosage has been used. If it is necessary, however, proceed according to the descaling agent manufacturer's instructions. Suitable descalers can be obtained via our website or from our after-sales service

Maintenance

Detergent solution pump
Turn the programme selector to Off and disconnect the mains plug.

1. Open the service flap
2. Carefully unscrew the pump cover (residual water).
3. Clean the interior, pump cover thread and pump housing (the impeller in the detergent solution pump must rotate).
4. Replace the pump cover and screw it on tightly.
5. Replace the service flap.

To prevent unused detergent from flowing straight into the drain during the next wash: Pour 1 litre of water into compartment II and start the Drainprogramme
Drainage hose at the siphon is blocked
Turn the programme selector to Off and disconnect the mains plug.

1. Loosen the hose clamp and carefully remove the drainage hose (caution: residual water).
2. Clean the drainage hose and siphon connecting piece.
3. Reattach the drainage hose and secure the connection with the hose clamp.

Filter in the water inlet is blocked
Risk of electric shock
Do not immerse the Aqua-Stop safety device in water (it contains an electric valve).
Reduce the water pressure in the supply hose

1. Turn off the tap.
2. Select any programme (except for Spin Drain ).
3. Press Start/Pause. Let the programme run for approximately 40 seconds.
4. Turn the programme selector to Off. Disconnect the mains plug.
   Clean the filter:
5. Disconnect the hose from the tap. Clean the filter with a small brush. and/or on standard and Aqua-Secure models: Remove the hose from the rear of the appliance, Take out the filter with a pair of pliers and clean it.
6. Connect the hose and check for leaks.

Safety instructions

1. Read the instruction manual and installation instructions and all other information enclosed with the washing machine and act accordingly.
2. Retain the documents for subsequent use.

• Risk of electric shock
  • Never pull the cable to disconnect the mains plug.
  • Only plug in or disconnect the mains plug if your hands are dry.
• Danger to life
  For worn-out appliances
  • Disconnect the mains plug.
  • Sever the mains cable and discard along with the plug.
  • Destroy the lock on the washing machine door. This will prevent children from locking themselves in and risking their lives.
• Danger of suffocation
  • Keep packaging, film and packaging parts out of the reach of children.
• Risk of poisoning
  • Keep detergents and care products out of the reach of children.
• Risk of explosion
  • Items of laundry pretreated with cleaning agents containing solvents, e.g. stain remover/cleaning solvent may cause an explosion after being loaded into the washing machine. Rinse items of laundry thoroughly by hand beforehand.
• Risk of injury
  • The washing machine door can become very hot.
  • Be careful when draining hot detergent solution.
  • Do not climb onto the washing machine.
  • Do not lean on the open washing machine door.
  • Do not reach into the drum if it is still rotating.

Troubleshooting

Common problems with the WAB20267IN include

• The machine will not start: Check to ensure that the machine is properly plugged in and that the door is closed. If the problem persists, contact Bosch customer service for assistance.
• The machine is making strange noises: This may indicate a problem with the drum or the drive system. Contact Bosch customer service for assistance.
• The machine is not spinning or draining: This may indicate a clogged filter or a problem with the pump. Check the filter and clean it if necessary. If the problem persists, contact Bosch customer service for assistance.

Problem	Possible Cause	Solution
Water is leaking out.	- Incorrectly attached or damaged drainage hose.	- Attach/replace the drainage hose correctly. Ensure the screw connection of the supply hose.
No water supply.	- Tap not turned on? Faucet malfunctioning?	- Turn on the faucet. Check if the faucet is functioning properly.
Detergent not dispensed.	- Detergent dispenser blocked? Drawer not closed properly?	- Clean the detergent dispenser. Make sure the drawer is closed correctly.
Washing machine door cannot be opened.	- Power failure? Washing program not yet finished?	- Check power supply and ensure the washing cycle has completed.
Programme does not start.	- Start/Pause not activated? "Childproof lock" active?	- Press the Start/Pause button. Deactivate the childproof lock if necessary.
Detergent solution is not drained.	- Waste pipe or drainage hose blocked?	- Check and clear any blockages in the waste pipe or drainage hose.
Water not visible in the drum.	- This is not a fault. The water level is below the visible area.	- No action required. This is a normal condition for the washing machine.
Spin result not satisfactory. Laundry wet/too damp.	- Imbalanced load interrupted the spin.	- Redistribute laundry and restart the spin cycle.
The programme duration changes during the wash cycle.	- This is not a fault. The programme adjusts based on load and balance.	- No action required. The washing machine is functioning as designed.
Spin cycle performed several times.	- Unbalanced load detected.	- The machine is adjusting the imbalance. No action required.
Residual water in the compartments for care product.	- Care product dispenser not empty.	- Clean the care product compartments. This does not affect the function.
Odour formation in the washing machine.	- Washing at too low temperatures.	- Run a hot wash cycle without laundry to clean the drum.
Status display flashing. Appliance has detected a detergent overload.	- Too much detergent or the wrong type used.	- Use less detergent and make sure it is the correct type for the washing load.
Loud noises, vibrations, and "wandering" during the spin cycle.	- Appliance feet not levelled. Transportation safety devices left?	- Adjust the feet to level the washing machine. Remove transportation safety devices if left on.
Display panel/indicator lamps do not function during operation.	- Power cut?	- Check if the machine has power. If the problem persists, contact after-sales service.
Programme selection takes longer than usual.	- Repeatedly adjusting the rinse cycle for balancing.	- This is normal behavior. The machine is optimizing the rinse cycle.
There are detergent residues on the laundry.	- Occasional residue from certain types of detergent.	- Use liquid detergent or choose the Rinse option to remove residues.
If you cannot correct a fault yourself...	-	- Turn the program selector to Off. Turn off the water supply and call after-sales service for assistance.

Pros & Cons

Pros

• Efficient water usage with ActiveWater Plus technology
• Gentle fabric care with VarioSoft drum
• High maximum spin speed for reduced drying time
• Quiet operation with EcoSilence Drive
• Intuitive and easy-to-use control panel

Cons

• May be too small for large households
• May be pricier than some other washing machines in its class

Customer Reviews of Bosch Washing Machine WAB20267IN

Customers have praised the Bosch WAB20267IN for its efficient water usage, gentle fabric care, and quiet operation. The machine has received high marks for its intuitive control panel and easy-to-use features. However, some customers have noted that the machine may be too small for large households and that it may be pricier than some other washing machines in its class.
