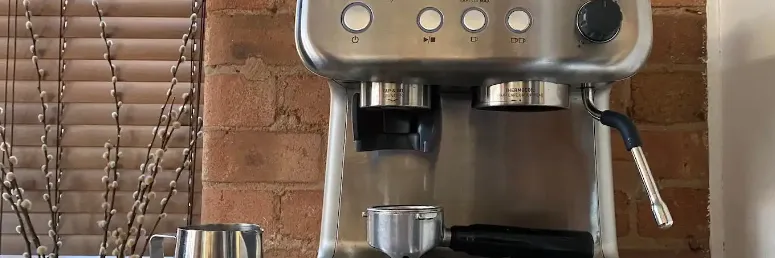

Introduction of Breville Barista Max Coffee Machine VCF126

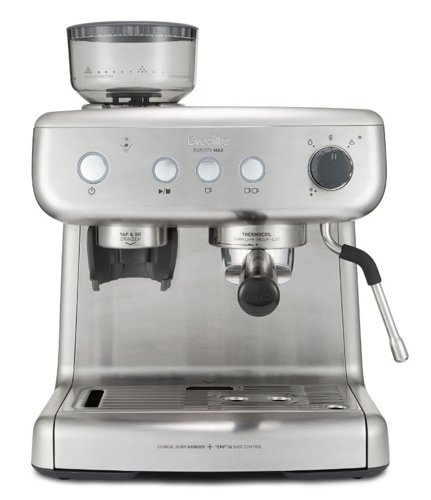

The Breville Barista Max Coffee Machine VCF126 is a high-quality espresso machine designed for coffee lovers who want to enjoy barista-style coffee at home. This machine is perfect for those who are looking for a reliable and easy-to-use coffee machine that can deliver delicious coffee every time. The estimated price of the Breville Barista Max Coffee Machine VCF126 is around $600, and it was launched in 2012.

Detailed Specifications

The Breville Barista Max Coffee Machine VCF126 comewith a powerful 1600W thermocoil heating system that ensures precise temperature control. The machine also features a 15-bar Italian pump that delivers the right amount of pressure for optimal extraction. The Breville Barista Max has a 1/2 lb bean hopper and a 75 oz (2.2L) water tank, making it perfect for making multiple cups of coffee at once. The machine also has a built-in grinder with adjustable grind size, which allows you to customize the taste of your coffee.

FEATURES OF YOUR BREVILLE BARISTA MAX

1. A. Removable Bean Hopper
   The removable 250g capacity Bean Hopper features 30 easily adjustable Grind Settings. Turn the Hopper from coarse to fine to adjust the Grind Setting & maximise the taste of your espresso.

2. B. Illuminated Grind Area
   LED illumination starts when grinding begins. The coffee grinds are illuminated as they are delivered directly into the Filter Basket. The light automatically fades when grinding is complete.

3. C. Tap & Go™ Grinding Cradle
   The unique Tap & Go™ Grinding Cradle holds the Group Handle to provide seamless one-touch on-demand grinding. This helps you to control the amount of coffee grinds straight into the Filter Basket.

4. D. Accessories Storage Home
   Area behind the Drip Tray, for storing the One & Two Cup Filter Baskets, Cleaning Disc, Cleaning Brush & Cleaning Pin.

   E. Removable Drip Tray, Grill & Grind Bin
   Includes a Water Level Indicator which floats through the Stainless Steel Grill to indicate when the tray is full of water & requires emptying.
   A removable Grind Bin for collecting overflowed coffee grinds, separate from the water, is located in the Drip Tray. Simply remove the Grind Bin & discard grinds as required.

5. F. Cord Storage
   Conveniently stow excess cord by pushing the cord inside the machine to keep benchtop tidy.

6. G. Non-slip Feet
   The non-slip silicone feet ensure that the Barista Max remains stable on the benchtop during use.

7. H. Warming Plate with Tamper Home
   Preheats cups & glasses which helps to retain the essential characteristics of true espresso aroma & a rich, sweet taste.
   Tamper home located on the top of the Warming Plate for convenient access & storage.

8. I. Removable 2.8L Water Reservoir
   Push back the lid & fill with cold water, or remove the Water Reservoir by opening the Lid, lifting upwards using the Handle located inside.

9. J. Group Head – 58mm Commercial
   Size The wider size allows more even extraction of the tamped coffee grinds.

10. K. Group Handle/ Portafilter – 58mm Commercial Size
    The wider size ensures the coffee grinds are more evenly spread, and easier to tamp.

11. L. Steam & Hot Water Wand
    Ball joint movement with silicone cover, allows movement of the Steam Wand to desired position without burning fingers.

12. M. Extra Tall Cup Height
    A large 105mm space for extracting coffee directly into tall mugs & glasses.



13. N. Removable Top Burr
    Easily removable by lifting the Burr handles when cleaning. (For more information, see pages 28-29)

14. O.GRINDER Light
    Fully illuminated white when ready.
    Flashes whilst attempting to grind to indicate the Hopper Gates are not completely open.
    Fully illuminated red when Grinder
    Motor is in protection mode.
    (For more information, see page 36)

15. P.  Button & Light
    Press button to turn on the machine.
    The LIGHT will illuminate & pulse to indicate it is heating up. The LIGHT stays fully illuminated when ready. The machine will automatically enter sleep mode after 20 minutes, the LIGHT will stop illuminating.

16. Q. Espresso Extraction Buttons Button
    Allows for shot volumes in addition to one & two shot presets.
    Press button to start extraction, when desired pour volume is reached press button again to stop.
    Automatically stops after 200mL
    ONE CUP Button
    Pours 1 shot of espresso – 30mL
    then automatically stops.
    TWO CUP Button
    Pours 2 shots of espresso – 60mL then automatically stops.

17. R. DIAL Features & Lights
    DIAL Light
    Fully illuminated when ready.
    Flashes when DIAL needs to be returned to the vertical position.
    Steam Light
    Fully illuminated when ready to steam.
    Flashes when warming up to steam temperature & when cooling down (purging water) to espresso temperature.
    STEAM
    Use to heat & texture milk.
    HOT WATER
    Pours 200mL then automatically stops.
    Use for long black coffee, hot drinks such as tea, instant soups and to warm cups prior to making espresso.

18. S.CLEAN Light
    Fully illuminated blue when a cleaning cycle for the Group Head & Shower
    Head is required. (For Cleaning Cycle information, see page 25)

MORE DETAILS ABOUT YOUR BREVILLE BARISTA MAX

Temp° IQ Shot Control Optimum temperature

The Temp° IQ Shot Control™ is an exclusive technology developed by Breville for your Barista Max. This 3 way system delivers the accurate & stable water  temperature that is needed for consistentlygreat tasting coffee.

• Thermoblock Technology
  The Thermoblock ensures fast heat up, and precise water temperature for the best espresso extraction & milk steaming. Only the required amount of water is heated for speed and efficiency. The Thermoblock heats water so that espresso extracts at 92°C
  for the optimum extraction of oils from the tamped coffee grinds. Temperatures above or below will result in burnt/bitter or weak tasting espresso.

• Advanced PID Controller
  The PID monitors and controls the Thermoblock to ensure water is always delivered to tamped coffee grinds at the precise temperature needed.

• Gentle Preinfusion
  Small amounts of water are gently introduced onto the tamped coffee grinds prior to the steady flow of water, for a richer flavoured espresso. (For different Pre-infusion profiles, see page

Café 58mm Group Head & Handle

Extract the maximum amount of flavour The Group Head and the Group Handle are commercial sized, 58mm, just like local café.

• The wider size ensures the coffee grinds are more evenly spread in the Filter Baskets. The coffee grinds are easier to fill, tamp and remove after use.

• The 58mm Group Handle allows a more even extraction of the tamped coffee grinds, resulting in a true café tasting coffee.

Tap & Go Integrated Grinder
Easy on-demand grinding experience

• Tap & Go Technology
  The Tap&Go on-demand grinding technology developed by Breville delivers coffee grinds directly into the Group Handle with one touch. Simply push down on the Group Handle to activate the Grinder.

• Conical Burr Grinder
  The integrated Grinder offers all-in-one grinding experience. The hardened Stainless Steel Conical Burr achieves consistent grind particle sizes, which minimises heat transfer & reduces friction due to its gentle & slow rotation.

• Bean Hopper
  The 250g Hopper features anti-spill  gates which prevents coffee beans from escaping onto the benchtop when removing. The on-board Grinder offers all-in-one grinding experience with Grinder integrated in the Espresso Machine.

Auto Shot & Customizable Volumetric Control

Right quantity of espresso in your cup

• Auto Shot is the easiest way to create a great espresso. Press the ONE or TWO CUP BUTTONS to pour the right amount.

• All Extraction Buttons can be customised to deliver the shot volumes preferred. For more information, see pages 20-21.

Customisable Extraction Temperature
Temperature just like you want

• The Barista Max allows water temperature to be changed from the recommended 92°C (in 2°C increments) to cater for personal preferences. (For more information, see page 22)

BEFORE FIRST USE OF THE BARISTA MAX

Remove Packaging

Ensure all packaging has been removed.
Important: Remove the red plug found at the base of the Water Reservoir.

Position Machine

Ensure the machine is positioned onto a dry, stable, flat & horizontal benchtop.

Wash & Dry Parts

1. Do not immerse appliance, power cord and plug in water or any other liquid.

2. Wash the parts listed below in warm water with a mild detergent:

   • Stainless Steel Milk Jug

   • Stainless Steel One Cup Filter Basket

   • Stainless Steel Two Cup Filter Basket

   • Hardened Stainless Steel Top Burr

   • Water Reservoir

   • Group Handle

   • Bean Hopper

   • Tamper

3. Rinse & allow thorough air drying.

Place Accessories

• Accessories Storage Home behind the Drip Tray for the Cleaning Brush & Cleaning Pin. On the left is storage space for nesting the Cleaning Disc, One & Two Cup Filter Baskets.

• Insert the Grind Bin in the space provided on the left side of the Drip Tray.



• Place the Tamper in the detail provided on the Warming Plate.

Insert Parts into the Grinder

1. Removable Top Burr
   Using the two handles insert the Top Burr into the Grinder Collar.
   The arrows on the Top Burr should align to arrows on the Grinder Collar
   When correctly seated, the Top Burr will be flush with the surface of the Grinder Collar.



   Place handles down, one on each side.

2. Removable Bean Hopper
   Align the Hopper Guide with the red Grinder Interlock.
   Insert Bean Hopper into the Grinder Collar
   Lightly pushing down, turn the Bean Hopper in a clockwise direction to lock the Hopper into place.
   This opens the Hopper Gates (to releasecoffee beans onto the Burrs). At Grind Setting 30, Hopper Gates are fully open.



   Continue to turn the Bean Hopper in a clockwise direction to set the Grind Setting.
   As a starting point for espresso extraction try Grind Setting 20. (Further Grind Setting adjustment might be required, see information on pages 14-15).
   Fill the Bean Hopper with freshly roasted coffee beans.

Preparing to Prime Machine

Important: This priming step must be  completed prior to first use.

1. Fill Water Reservoir
   Open the Lid and lift upwards using the Handle inside.
   Fill with cold water from the tap.
   Insert the Water Reservoir into position & close the Lid.



Note: Make sure that the Water Reservoir is clean & free of any debris, as any fine particles can block the water flow.

• Power

  • Ensure that the Steam  & Hot Water DIAL is in the vertical position.

  • Insert the Power Plug into a 230-240V AC power outlet & switch the power on.

  • Press the BUTTON to turn on the machine.

  • The LIGHT will illuminate & pulse to indicate the Thermoblock is heating up.

  • The GRINDER LIGHT will be fully illuminated from turn on.

  • When the EXTRACTION BUTTONS & DIAL LIGHTS are all fully illuminated, the machine is in the READY state for EXTRACTION & DIAL features.



• Insert Group Handle

  • Insert the Two Cup Filter Basket in the Group Handle.

  • Align the Group Handle with the ‘INSERT’ position located on the left of the Group Head.

  • Insert the Group Handle flat against the Group Head, then turn the Group Handle right all the way to the centre position.



Note: Turning the Group Handle to the centre position might be tight for the first few uses.

Prime Espresso Machine

• Press the BUTTON & water should start flowing from the Group Head.

• Allow water to run through until it stops.

• The machine will return to the READY state.

Note: For the first few seconds the Pump will make a louder than usual noise as it begins pumping the water through.

• Position Steam Wand over the Drip Tray.

• Turn DIAL to .

• Allow water to run through for 20 sec.

• Return DIAL to vertical position.

• The machine will return to the READY state.

• Now the Espresso Machine should be thoroughly primed.

• Wash Group Handle & Filter Basket in warm water & dry before making your first coffee.

•  If water is not flowing from the Group Head or Steam Wand, repeat Step 7.

• If water is still not running through, contact Breville Customer Care. Details are on the back page.

BARISTA MAX COFFEE MAKING GUIDE

1. Check Water & Beans



   Barista Tip: For best espresso results, use filtered water & freshly roasted coffee beans.

2. Start Up
   Press ON/OFF BUTTON, LIGHTpulses = heating up. GRINDER LIGHT fully illuminated = Grinder ready to use.
   ON/OFF, EXTRACTION BUTTONS & DIAL LIGHTS all fully illuminated = Espresso Machine ready to use.

3.

4. Warm Cup – by Hot Water

   • OR by Warming Plate
     Place cup on benchtop and position Steam Wand. Turn DIAL to HOT WATER.
     Quarter fill cup with hot water. Return DIAL to vertical position.
     Empty cup after 20-30 sec.



   • OR by Warming Plate

     Cup can be warmed on the top of the machine when it is ON.



5. Select Filter Baskets

   Select either:
   One Cup Filter Basket.
   Two Cup Filter Basket.



6. Warm Group Head, Handle & Filter Basket
   Press BUTTON.
   Hold Group Handle under Group Head while water flows.
   Wipe Filter Basket with a dry cloth.



7. Fill Coffee Grinds
   Insert Group Handle into Grinding Cradle.
   Group Handle will sit flat, unsupported, in the Grinding Cradle.
   Push down Group Handle to grind into Filter Basket.



8. Tamp

   One Cup = 13-15g coffee grinds.
   Two Cup = 20-22g coffee grinds.
   Evenly tamp (press) grinds to level indicated.



9. Wipe Excess Grinds
   Wipe away any excess grinds to clear edges.
   Wipe fallen grinds on the Drip Tray into the Grind Bin.



10. Insert Group Handle
    Keep Group Handle flat, align, insert & turn into Group Head.
    Group Handle should be in the centre position.



11. Position Cup



    Position cup on Drip Tray, under Group Handle.

12. Espresso Extraction
    Press either:
    BUTTON = 30mL shot.
     BUTTON = 60mL shot.
    Extraction begins and will automatically stop.



13. Remove Coffee Cake
    Turn Group Handle and remove from Group Head.
    Remove spent (used) coffee cake from Group Handle.



14. Prep Milk Jug

    Fill Jug with cold milk just below the bottom of the spout.



15. Before Texturing Milk

    Barista Tip: For best milk texturing results, ensure steam has first heated up (STEAM LIGHT fully ON). You will hear the Pump start.
    Turn DIAL to STEAM. STEAM LIGHT flashes = heating up.
    Some water may come out of the Steam Wand.
    STEAM LIGHT is ON = steam ready. Pause steam by returning DIAL.



16. Position Steam Wand

    Insert Steam Wand Arm at 12 o’clock. Tip at 3 o’clock, finger width from edge and just below the surface of the milk.



17. Start Texturing Milk
    Turn DIAL back to STEAM position to start texturing milk.
    Texturing makes a smooth hissing noise.
    Check milk is moving in a whirlpool action.



18. Milk Texturing
    As milk level rises, lower Jug to keep Tip just below surface.
    When desired microfoam achieved, immerse Steam Wand half way.
    Milk ready when Milk Jug base  is too hot to touch for 3 sec.
    Return DIAL to vertical position.
    Remove Jug from Steam Wand.



19. Purge & Clean Steam Wand

    Barista Tip: To keep optimum Steam Wand performance, always purge & clean the Steam Wand after texturing milk.
    Turn DIAL to HOT WATER for 1-2 sec.
    Milky water will come out of Steam Wand.
    Return DIAL to the vertical position.
    Wipe Steam Wand & Tip with a damp cloth.



20. Milk Finishing Touches
    Tap Jug to release larger air bubbles.
    Swirl Jug to blend milk and create a silky texture.
    Pour milk in one steady motion.



21. Thermo block Auto Purge

    When cooling to espresso temperature, STEAM LIGHT flashes and water purges into Drip Tray. Keep Drip Tray in place.



22. Wash Parts

    Wash parts with warm water.



23. Drip Tray Clean Up
    Check if Drip Tray needs emptying.
    Remove Drip Tray Grill and separate Grind Bin from Drip Tray.
    Empty coffee grinds and wash Grind Bin in warm water.
    Empty water from Drip Tray  and wash in warm water.



TIPS FOR GRINDING & TAMPING

1. Coffee Beans
   For optimum flavour & extraction:
   Buy freshly roasted coffee beans in small 250g batches to reduce the storage time.
   Use within two weeks of opening.
   Store coffee beans in a dry, airtight container. Place in a cool dark cupboard.
   Important: Old coffee beans, no matter the Grind Setting, will have a fast extraction and will produce an under extracted tasting espresso.

2. Grind Setting
   You may need to vary the Grind Setting when using different coffee beans and depending on bean freshness. The range of 30 Grind Settings allows for precision adjustment, controlling the grind size & ultimately the characteristics of the resulting extraction.
   It may take several incremental adjustments before you reach your optimum Grind Setting. Dial in Grind Setting based on pour time & taste see Espresso Extraction Guide.
   Barista Tip
   After adjusting the Grind Setting it is important to purge (for 1-2 sec) a small amount of coffee grinds from the Grinder.
   This removes the coffee grinds of the previous Grind Setting; ensuring the next espresso extraction is made entirely of the coffee grinds from the new Grind Setting.
   Smaller number settings deliver finer coffee grinds & a slower extraction.
   Larger number settings deliver coarser coffee grinds & a faster extraction.



3. Filter Baskets
   Single Wall Filter Baskets
   These work with freshly ground coffee grinds and are supplied with the Barista Max.



   Note: Pre-ground coffee grinds are too coarse to use with Single Wall Filter Baskets.
   Dual Wall Filter Baskets
   These work best with pre-ground coffee grinds, but can also be used for freshly ground coffee grinds.



   These are available for purchase from Breville. Details are on the back page.

4. Grind Dosage & Tamp Force
   For best results, the amount of coffee grinds used should remain consistent.
   Note: It is normal for the correct dose of coffee grinds to appear overfilled in the Filter Basket before tamping.
   Evenly tamp (press) coffee grinds to the level indicated, with firm force 10-15kg.



TIPS FOR PERFECT ESPRESSO EXTRACTION

The way the espresso pours will tell you everything.

1. Extraction Time
   Extraction time is a good indicator of the quality of the pour. The optimum time per shot varies between types & freshness of coffee beans. However, in general, the pour time should be between 20-30 seconds for both One & Two Cup shots.

2. Type of Extraction
   Optimum Extraction
   A quality pour has a steady flow with a consistency similar to that of warm honey. The resulting crema is dark golden. The sweetest flavours & oils have been extracted creating a rich tasting espresso.
   Under Extraction
   The pour is fast & light in colour, the resulting crema is thin with a creamy light brown colour which quickly dissipates. This occurs when too little of the essential oils, flavours & colours of the essential oils, flavours & colours from the coffee grinds have been extracted. This creates a sour tasting espresso.
   Over Extraction
   There may be no pour, or it may be slow & drip throughout the entire pour.
   The resulting crema is very dark. This occurs when too much of the essential oils, flavours & colours from the coffee grinds have been extracted. This creates a bitter tasting espresso.

3. Look for Colour Change
   The optimum shot contains 3 elements:
   Heart: At the base – starts out dark brown.
   Body: Blends with the heart – becomes a rich caramel with reddish reflections.
   Crema: The layer on top of the body – dark golden



4. Espresso Extraction Guide
   This guide will help to improve espresso extraction, to achieve great tasting coffee, every time.

	UNDER EXTRACTION	OPTIMUM EXTRACTION	OVER EXTRACTION
Pour*^	Extraction too fast Pours for under 15 sec	Steady-flow extraction Pours for 20-30 sec	Extraction too slow Pours for over 35 sec
Colour	Pale brown Crema-light brown	Rich caramel Crema-dark golden	Very dark brown Crema-dark brown
Taste	Sour, acidic, watery	Rich, sweet, vibrant	Bitter, dry, grainy
Grind Size^^	Too coarse Use a finer grind	Just right	Too fine Use a coarser grind
Dosage	Not enough grinds Use more grinds	One Cup = 13-15g Two Cup = 20-22g	Too many grinds Use less grinds
Tamp	Not enough tamp force Tamp firmer	Just right-firm force 10-15Kg of force	Too much tamp force Tamp lighter

* If using pre-ground coffee grinds, use Dual Wall Filter Baskets.
^ Ensure coffee beans or pre-ground grinds are fresh.
^^ Old coffee beans no matter the Grind Setting will have a fast extraction and will produce an under extracted tasting espresso.

TIPS FOR MILK TEXTURING

Milk texturing is the steaming of milk.
Key Elements of Textured Milk
Milk that has been textured correctly has a thick, rich microfoam with a silky sheen.
Texturing involves both heating and aerating milk using steam. Vital elements include positioning of the Steam Wand, when to adjust the Milk Jug position and reaching the correct temperature. Use the below steps to help you create café-style microfoam.

1. Fill Milk Jug
   Add cold milk around 4°C into a chilled clean Stainless Steel Jug.
   Fill to the bottom of the spout.
   Note: The volume of milk will increase or ’stretch’ during texturing, so don’t overfill the Jug.



   A larger capacity Milk Jug is available for purchase from Breville. Details are on the back page.

2. Steam Warm Up
   Turn DIAL to . For best milk texturing results every time, allow steam to heat up.
   Steam is ready when LIGHT is fully ON.
   You will also hear the Pump start. Pause steam by returning DIAL to the vertical position.



3. Position
   Place the Steam Wand Arm in the Jug spoutat the 12 o’clock position, with the Steam Wand Tip in the milk at the 3 o’clock position,a finger width away from the edge of the Jug. Keep Steam Wand Tip just under the surface of the milk. Turn DIAL back to position to start texturing. A whirlpool actionshould be created in the Jug.



4. Sound
   How air is introduced to the milk determines the consistency of the foam.
   If large gulps of air are added to the milk, the foam will have large bubbles. Introducing air to the milk in a controlled, gentle fashion indicated by a gentle hissing sound, will ensure the milk has fine aerated microfoam.
   Barista Tip: Milk Texturing Sounds
   Gurgling – Tip not deep enough, raise Jug.
   Smooth Hissing – Just right for latte.
   Screeching – Tip too deep, lower Jug.

5. Keeping Steam Tip Position
   As the steam heats & textures the milk, the milk will stretch causing the level of the milk in the Jug to rise. As this happens follow the level of the milk by lowering the Jug, keeping the Steam Wand Tip just below the surface.



   Note: Some adjustments to technique will be required when using non-dairy milk.

6. Amount of Foam
   Create the amount of microfoam you want. Cappuccinos traditionally have more microfoam than flat whites. (See Coffee Styles to Try, pages 18-19)

7. Immerse Tip
   After creating the desired amount of foam, immerse the Steam Wand half depth way into the milk. This heats all the milk and pulls in milk instead of air. This ensures the milk & foam are blended together, making it denser & smoother.



8. Correct Temperature
   An indication of reaching correct milk temperature is when the Milk Jug base can only be touched comfortably for approximately 3 seconds.
   Barista Tip: Milk Temperature
   Under – If not heated long enough, it will be warm with little texture.
   Optimum – See below table.
   Over – If heated for too long it will start to boil around 72°C and will have a burnt taste with all texture lost.

   Milk	Temperature
   Full & Skim	60-65°C
   Almond	55-65°C
   Soy	55-60°C
   Coconut	65-70°C

   Note: Above recommendations might vary from one milk brand to another and depending on your taste preference.

9. Purging the Steam Wand
   When correct milk temperature has been reached, turn the DIAL to the vertical position and remove the Jug from the Steam Wand. Place Milk Jug to one side.
   Place the Steam Wand over the Drip Tray. Turn the DIAL to the position for a few seconds, then return the DIAL to the vertical position. This will remove any milk that has been sucked into the Steam Wand Tip.



10. Wipe Steam Wand
    Wipe the Steam Wand Arm & Tip with a clean damp cloth to remove any milk residue.

11. Tap & Swirl the Jug
    Gently tapping the Jug on the benchtop helps to release larger trapped air bubbles.
    Swirling helps the milk & froth to combine for an even consistency & a silky appearance.



12. The Finishing Touches
    Pour from the Milk Jug into your cup in one steady motion.

COFFEE STYLES TO TRY

Espresso (Short Black)
Espresso is a concentrated, full bodied coffee with a stable layer of crema on top. An espresso is the foundation of all café coffee.

• Espresso glass (90mL)

• Single or double shot of espresso (30mL-60mL)

Ristretto
A ristretto is an extremely short espresso, distinguished by its intense flavour, aftertaste and its thin crema on top.

• Espresso cup (30mL)

• Half a single shot of espresso (15mL)

Long Black (Americano)
A standard espresso with hot water added. The hot water is added first so that the crema is maintained.

• Cup (190mL)

• Hot Water (to preference)

• Single or double shot of espresso (30mL-60mL)

Con Panna
Con Panna, Italian for ‘with cream’, made up of an espresso topped with lightly whipped cream. It can also be dusted with cinnamon or drinking chocolate.

• Cup (190mL)

• Single or double shot of espresso (30mL-60mL)

• Lightly whipped cream – dusted cinnamon.

Macchiato
Macchiato, Italian for ‘to stain or mark’. Traditionally served as a standard espresso with a dash of cold or textured milk & a small dollop of textured foam into the middle of the crema.

• Espresso glass (90mL)

• Single or double shot of espresso (30mL-60mL)

• Dash of cold or textured milk & small dollop of textured foam.

Flat White
An espresso with textured milk & a thin layer of textured foam milk on top. The wider cup will create the slim layer of foam, the signature of the flat white.

• Wide cup (190mL)

• Single or double shot of espresso (30mL-60mL)

• Textured milk & foam.

Latte
An espresso with textured milk & a finger width layer of textured foam milk on top. The narrower cup will create the thicker layer of foam.

• Glass or Cup (220mL)

• Single or double shot of espresso (30mL-60mL)

• Textured milk & foam.

Cappuccino
An espresso with ⅓ steamed textured milk, topped with ⅓ creamy foam & a dusting of chocolate.

• Cup (190-240mL)

• Single or double shot of espresso (30mL-60mL)

• ⅓ Textured milk, ⅓ textured foam – dusted with chocolate.

Mocha
Made in a similar way to a cappuccino but with the addition of drinking chocolate. Simply stir the chocolate into the espresso prior to adding the steamed textured milk & foam.

• Cup or tall glass (190-240mL)

• Single or double shot of espresso (30mL-60mL)

• Drinking chocolate (to preference)

• ⅓ Textured milk, ⅓ textured foam.

Babyccino
Steamed textured milk with a layer of foamed milk. It can also be dusted with chocolate.

• Small cup (90mL)

• No shot of espresso

• Textured milk & textured foam – dusted with chocolate.

CUSTOMISABLE – SHOT VOLUMES

The Barista Max features Auto Shot Volumetric Control.
It extracts just the right amount of espresso then automatically stops.
– Pours 1 shot of espresso = 30mL
– Pours 2 shots of espresso = 60mL
– Pours up to = 200mL
At any point during espresso extraction you can stop the pour by pressing the same button again.
You can adjust the default shot volumes to suit how you like your coffee.
Note: Maximum allowed shot volumes:

BUTTON	100mL
BUTTON	200mL
BUTTON	400mL

Preparing to Customise Shot Volume(s)

• Check Water Reservoir
  Ensure there is enough water in the Reservoir.



• Check Power
  Ensure that:
  The Power Plug is inserted into the outlet & switched on.
  The DIAL is in the vertical position.
  The machine is on and in the READY state.



Customise – One Cup Shot Volume

• Insert One Cup Filter Basket into the Group Handle.

• Fill with coffee grinds then tamp.



• Insert Group Handle into the Group Head.

• Press & hold the BUTTON for 4 seconds.

• The LIGHT will flash to indicate it is in custom mode.



• Espresso will start to pour.

• When you reach your desired 1 shot volume, press the BUTTON.

• The espresso pour will stop.

• The machine will beep & the LIGHT will stop flashing.

• The new espresso shot volume has been saved.

• The machine will return to the READY state.

Customise – Two Cup Shot Volume

• Insert Two Cup Filter Basket into the Group Handle.

• Fill with coffee grinds then tamp.



  Insert Group Handle into the Group Head.
  Press & hold the BUTTON for 4 seconds.
  The LIGHT will flash to indicate it is custom mode.



• Espresso will start to pour.

• When you reach your desired 2 shots volume, press the BUTTON.

• The espresso pour will stop.

• The machine will beep & the LIGHT will stop flashing.

• The new espresso shot volume has been saved.

• The machine will return to the READY state.

Customise – Manual Shot Volume

• Insert your desired Filter Basket into the Group Handle.

• Fill with coffee grinds then tamp.



• Insert Group Handle into the Group Head.

• Press & hold the BUTTON for 4 seconds.

• The LIGHT will flash to indicate it is in custom mode.



• Espresso will start to pour.

• When you reach your desired shot volume, press the BUTTON.

• The espresso pour will stop.

• The machine will beep & the LIGHT will stop flashing.

• The new espresso volume has been saved.

• The machine will return to the READY state.

PRESS & HOLD TOGETHER 4 SEC

• Press & hold all 3 EXTRACTION BUTTONS at the same time for 4 seconds.



• The machine will beep and all 3 EXTRACTION BUTTON LIGHTS will flash together.



• The default espresso volumes have been restored.

• The machine will return to the READY state.

CUSTOMISABLE – EXTRACTION TEMPERATURE

The Thermoblock heats water so that espresso extracts at 92°C. For the best tasting espresso, balancing bitterness and acidity. You can adjust the water temperature used for espresso extraction, in 2°C increments between 88°C – 96°C, to cater for different types of roasted coffee beans and for personal preference.

• Higher temperatures increase bitterness and decrease acidity.

• Lower temperatures decrease bitterness and increase acidity.

Check Power
Ensure that:

1. The Power Plug is inserted into the outlet & switched on.

2. The DIAL is in the vertical position.

3. The machine is on and in the READY state.



Access Extraction Temperature Custom Mode

• Simultaneously press & hold the & BUTTONS for 4 seconds. The machine will beep and the LIGHT begins to flash.



Note: The LIGHT will continue to flash to indicate you are in a custom mode.
Important: If no buttons are pressed within 1 minute of entering a custom mode, the machine will exit and go back to the READY state.

Adjusting Extraction Temperature
The combination of EXTRACTION LIGHTS illuminated signals the temperature selected. The default setting is:

• 92°C = ONE CUP LIGHT illuminated.



• To adjust extraction temperature press:
  MANUAL SHOT BUTTON = minus button.
  TWO CUP BUTTON = plus button.



• 94°C = ONE & TWO CUP LIGHTS illuminated.



• – 96°C = TWO CUP LIGHT illuminated.



• – 90°C = MANUAL SHOT & TWO CUP LIGHTS illuminated.



• 88°C = MANUAL SHOT LIGHT illuminated.



Confirm Extraction Temperature

• Press the BUTTON to save your selection. The machine will beep & exit the custom mode.

• The machine will return to the READY state.

CUSTOMISABLE – EXTRACTION PRE-INFUSION PROFILE

You can select from three Pre-infusion Profiles to cater for personal preferences.
Gentle Pre-infusion: Small defined amounts of water are introduced into the tamped coffee grinds, gently adding moisture to bloom the coffee grinds in preparation for a steady water flow. For a balanced tasting espresso.This is the default profile setting.
Distinct Pre-infusion: A single distinct dose of water is released into the tamped coffee grinds, followed by a brief rest period, then a steady water flow. For a more bright tasting espresso.
Constant Pre-infusion: Delivers a constant, steady water flow from start to finish. For a more sharp tasting espresso.

• Access Pre-infusion Custom Mode
  The machine is ON and in the READY state.
  Simultaneously press & hold the , ONE & TWO CUP BUTTONS for 4 seconds. The machine will beep and the LIGHT begins to flash.



• Selecting Pre-infusion Profiles
  The EXTRACTION LIGHT illuminated signals the Pre-infusion Profile selected.
  The default setting is:
  Gentle = BUTTON.
  The LIGHT is illuminated.



  To select a Pre-infusion Profile press:
  Distinct = BUTTON.
  The LIGHT will illuminate.



  Constant = BUTTON.
  The LIGHT will illuminate.



• Confirm Pre-infusion Profile
  Press the BUTTON to save your selection. The machine will beep & exit the custom mode.
  The machine will return to the READY state.

RESTORE ALL DEFAULT SETTINGS

You can easily reset all settings to the factory defaults.
Restore All Default Settings

• The machine is on and in the READY state.

• Press & hold the & all 3 EXTRACTION BUTTONS at the same time for 4 seconds.



• The machine will beep and the , EXTRACTION BUTTONS & DIAL LIGHTS will all flash together three times.



• All default settings have been restored.

• The machine will return to the READY state.

Setup Guide

To set up the Breville Barista Max Coffee Machine VCF126, follow these steps:

1. Fill the water tank with fresh, cold water.
2. Add coffee beans to the hopper and select the grind size.
3. Prime the machine by running hot water through it.
4. Select the desired coffee setting and press the start button.

CARE & CLEANING

The espresso making process involves  extracting oils out of coffee grinds. Depositsof grinds & oils build up over time, affecting the taste of the coffee & operation of the Espresso Machine.
Purging water through the Group Head & Steam Wand, before & after making each  coffee, is the easiest way to keep yourEspresso Machine clean. (See Coffee Making Guide pages 10-13)
Cleaning Accessories & Removable Parts

• Do not immerse the appliance, power and plug in water or any other liquid.

• Clean parts in warm water with a mild detergent, rinse & dry.

Note: Do not use alkaline cleaning agents, abrasives or metal scourers, as these will scratch the surfaces of parts.
Dishwasher Safe parts:

• Stainless Steel Milk Jug

• Stainless Steel Drip Tray Grill

• Stainless Steel One Cup Filter Basket

• Stainless Steel Two Cup Filter Basket

• Cleaning Disc

Dishwasher Safe TOP SHELF ONLY parts:

• Hardened Stainless Steel Top Burr

• Grind Bin

NON Dishwasher Safe parts:

• Water Reservoir

• Group Handle / Portafilter

• Bean Hopper

• Drip Tray

• Tamper

• Cleaning Pin

• Cleaning Brush

• Cleaning Warming Plate & Exterior

• When RequiredWipe over the machine with a soft damp cloth with a mild detergent and wipe dry.

CAUTION: To prevent damage to the appliance do not use alkaline cleaning agents, abrasives or metal scourers.
Cleaning Drip Tray & Grind Bin

• When Required
  Empty if the red Water Level Indicator appears through the Stainless Steel Grill, otherwise water will overflow.
  Note: Over time it is normal for the inside of the Drip Tray & Grind Bin to be stained by the oils in the coffee grinds.

• Weekly
  Clean in warm water with a mild detergent, rinse & dry.

Cleaning Group Handle & Filter Basket

• Every Time
  Wash after each use by rinsing them with warm water under the tap.

• Regular Intervals
  In warm soapy water using a mild detergent, rinse & dry.

Cleaning Shower & Group Head

• Every Time
  Run water through before making an espresso. (See Coffee Making Guide pages 10)

• Weekly
  Purge water through the Group head  by pressing the ONE CUP BUTTON.
  Allow water to run through until it stops.
  With the Cleaning Brush remove any coffee grinds from around the Group Head inside rim and Silicone Seal. Wipe the Shower Head with a damp cloth.



Cleaning Tablet
Espresso Machine Cleaning Tablets can be purchased online.
Cleaning Cycle
The CLEAN LIGHT will illuminate blue to indicate a Cleaning Cycle is required. The Cleaning Cycle takes approximately 7 minutes to complete.

• Preparing for Cleaning Cycle
  Ensure there is at least 1 Litre of water in the Reservoir.
  Empty the Drip Tray & replace.



  The machine is on and in the READY state.



  Place the Two Cup Filter Basket & the Cleaning Disc into the Group Handle.
  Place one Cleaning Tablet in the middle of the Cleaning Disc in the space provided.



  Insert Group Handle into the Group Head.

• Start the Cleaning Cycle
  Simultaneously press & hold the ON/ OFF & MANUAL SHOT BUTTONS for 4 seconds. The machine will beep and the Cleaning Cycle will start.



Note: The Cleaning Cycle can be exited at any point by pressing the ON/OFF BUTTON.
The ON/OFF & CLEAN LIGHTS will flash during the cleaning cycle.
Water will purge into the Drip Tray and small amounts of water will pour from the Group Handle spouts.

• Cleaning Cycle Complete
  The machine will beep and the ON/ OFF & CLEAN LIGHTS will stop flashing.
  The machine will return to the READY state.
  Remove the Group Handle from the Group Head. Check tablet has been dissolved.

Note: If the tablet has not been dissolved, insert the Group Handle back into the Group Head, empty the Drip Tray & replace. Repeat the ‘Start the Cleaning Cycle’ section.

• Cleaning Cycle Clean Up
  Purge the Group Head by pressing the ONE CUP BUTTON and water should flow.
  Allow water to run through until it stops.
  Wash the Drip Tray, Group Handle & Cleaning Disc in warm water with a mild detergent, rinse & dry.

Group Head Silicone Seal
A Silicone Seal is located in the Group Head and creates a seal against the Filter Basket when making an espresso.
Important: When not being used, we recommend not to leave the Group Handle inserted into the Group Head, as this will reduce the life of the Silicone Seal.
Over time this Seal loses its elasticity and may require replacement. The seal may need replacing when watery espresso leaks from around the Group Handle during extraction, or if the Group Handle is loose when fully turned to the centre position.
Note: Contact Breville should you think that the Group Head Seal needs replacing. Do not attempt to change the Silicone Seal without first consulting Breville.
Cleaning Steam Wand

• Every time
  After texturing milk purge the Steam Wand by turning the DIAL to HOT WATER for just 1-2 seconds.
  Wipe the Steam Wand with a damp cloth.(See Coffee Making Guide page 13)

• 2-3 Months
  Soak the Steam Wand overnight in the Milk Jug with warm water & one Cleaning Tablet.



  In the morning remove the Jug and rinse ensuring that all traces of the solution have been removed.
  Wipe Steam Wand with a damp cloth ensuring that all traces of the cleaning tablet have been removed.
  Run Hot Water through the Steam Wand for 40 seconds.

• Unblocking Steam Wand If the Steam Wand Tip becomes clogged with milk residue
  Insert the thicker ‘STEAM’ Cleaning Pin up the Steam Wand Tip hole and remove.

  Run Hot Water through the SteamWand for 40 seconds.



• Steam Wand Remains Blocked
  Unscrew the Steam Wand Tip and soak overnight in the Milk Jug with warm water & one Breville Cleaning Tablet.



  In the morning rinse the Jug & Steam Wand Tip under running water ensuring all traces of the cleaning tablet have been removed.
  Use the thicker ‘Steam’ Cleaning Pin to clean the Steam Wand Tip.
  Ensure red O-ring is present & undamaged.
  Screw the Steam Wand Tip back into the Steam Wand Arm.
  Run Hot Water through the Steam Wand for 40 seconds.

Cleaning Filter Baskets

• 2-3 Months
  Soak the Filter Basket(s) overnight in the Milk Jug with warm water & one Cleaning Tablet.



  In the morning rinse the Jug & Filter Basket(s) under running water ensuring all traces of the cleaning tablet have been removed.
  Place a Filter Basket into Group Handle (without coffee grinds) and insert into Group Head.
  Press the ONE CUP BUTTON.
  Allow water to run through until it stops.
  Unblocking Dual Wall Filter Baskets
  If the Dual Wall Filter Basket (not supplied with the Barista Max) becomes clogged with coffee grinds:
  Insert the thinner ‘FILTER’ Cleaning Pin in the exit hole and remove.



  Place Filter Basket into Group Handle (without coffee grinds) and insert into Group Head.
  Press the ONE CUP BUTTON.
  Allow water to run through until it stops.
  Repeat if needed.

Conical Burrs are used to grind coffee beans to a suitable size for espresso extraction. Deposits of grinds & oils build up over time, affecting the taste of the espresso & operation of the integrated Grinder.
Cleaning Grinding Cradle & Grind Outlet

• Weekly
  Remove any coffee grinds from the Grinding Cradle & Grind Outlet with the Cleaning Brush and wipe with a damp cloth, wipe dry.



Cleaning the Bean Hopper

• 2-3 Months
  If the Grinder is used frequently (everyday), the Bean Hopper needs to be cleaned to ensure best performance.



CAUTION: To prevent damage to the appliance do not use alkaline cleaning agents, abrasives or metal scourers.
WARNING: Do not immerse the machine in water.

• Preparing to Clean Bean Hopper
  Turn off the machine, switch off & unplug at power outlet.
  Make note of the current Grind Setting(to use as the starting point after cleaning).

• Remove and Clean Bean Hopper
  Turn Bean Hopper fully anti-clockwise, to close the Hopper Gates and unlock the Bean Hopper.
  Remove the Bean Hopper from the Grinder Collar and store any remaining beans in an airtight container to preserve their freshness.



  Wash the Bean Hopper in warm soapy water, then rinse & dry. Let the Bean Hopper stand to allow thorough air drying before replacing.

• Replace Bean Hopper
  Ensure the Grinder Collar is clear of coffee beans or grinds.



Note: Coffee grinds caught under the Top Burr may prevent the Bean Hopper from seating correctly. If this happens grind off excess coffee beans, see page 28.

1. Ensure the Hopper Guide is aligned with the vertical white lines on the Hopper base.

2. Align & insert the Bean Hopper into the Grinder Collar and firmly pushing down turn clockwise to lock into place and open the Hopper Guide.



3. Reset to the Grind Setting noted prior to cleaning.

Note: After cleaning, the optimum Grind Setting may have changed. To find the optimum Grind Setting use the information on pages 14-15.

CARE & CLEANING GRINDER

Cleaning & Unblocking Grinder Burrs, Collar, Grind Chamber and Outlet

• 1-2 Months
  If the Grinder is used frequently (everyday), the Burrs need to be cleaned to ensure best performance of the integrated Grinder. Regular cleaning helpsthe Burrs achieve consistent grinding results, which is especially important when grinding coffee beans for espresso.

• Grind Off Excess Coffee Beans
  The machine is on and in the READYstate.
  Make note of the current Grind Setting(to use as the starting point after cleaning).
  Insert Two Cup Filter Basket into the Group Handle.
  Insert Group Handle into Grinding Cradle.



  Turn Bean Hopper fully anti-clockwise to close the Hopper Gates and unlock the Bean Hopper. The Bean Hopper will pop up slightly.
  Place your hand on top of the Bean Hopper and push down lightly. At the same time push down the Group Handle to activate the Grinder.
  Continue grinding until no more coffee grinds are emitted from the Grinder.



  Remove the Group Handle and dispose of the waste grinds as these will be too coarse for espresso coffee.
  Remove the Bean Hopper from the Grinder Collar and store any remaining coffee beans in an airtight container to preserve their freshness.



• Preparing to Clean
  Turn off the machine, switch off & unplug at power outlet.

CAUTION: Care should be taken when cleaning Grinder Burrs as they are sharp.

• Cleaning Top Burr:
  Fold the two handles up and lift the
  Top Burr from the Grinder Collar.

• Wash the Top Burr in warm soapy water with a mild detergent, rinse & dry.

Note: Spots & marks on the surface of the Burrs are part of the hardening process (for extra-long life). These marks do not affect the performance of the Grinder or the taste of the espresso.

Cleaning & Unblocking Bottom Burr and Grind Chamber
Use the Cleaning Brush or a Vacuum Cleaner to thoroughly clear the parts and surfaces in the Grind Chamber of fine coffee grinds. A damp cloth can be used to wipe the inside of the Grind Collar.
Allow thorough air drying.

WARNING: Do not pour water or any other liquid into the Grind Chamber.

• Cleaning & Unblocking Grind Outlet
  Feed the Cleaning Brush up into the Grind Outlet from below, wiping & brushing the inside surfaces.
  If the Grind Outlet is clear the bristles willbe visible inside the Grind Chamber.



• Replace Top Burr
  Ensure the dot on the Top Cover aligns with the dot on the Grinder Collar.
  Using the two handles insert the Top Burr into the Grinder Collar.
  The arrows on the Top Burr should align to arrows on the Grinder Collar.
  When correctly seated, the Top Burr will be flush with the surface of the Grinder Collar.



  Place handles down, one on each side.

• Replace Bean Hopper
  Ensure the Hopper Guide is aligned with the vertical white lines on the Hopper base.
  Align & insert the Bean Hopper into the Grinder Collar and firmly pushing down turn clockwise to lock into place and open the Hopper Guide.



  Reset to the Grinder Setting noted prior to cleaning.
  Refill the Bean Hopper with coffee beans.

Note: After cleaning, the optimum Grind Setting may have changed. To find the optimum Grind Setting use the information on pages 14-15.

Adjusting Bottom Burr

The Conical Burrs are made of hardened Stainless Steel for extra-long life. However, after prolonged use, the Bottom Burr may require adjustment to compensate for wear. If the coffee grinds are too coarse when the Grind Setting is below 2 and the espresso is consistently under extracted, the Bottom Burr may need adjusting. Contact Breville (details are on the back page) should you think that the Bottom Burr needs adjustment. Prior to contacting Breville Customer Care, please ensure that you are using freshly roasted beans and that the Top Burr is seated correctly.
Important: Old coffee beans, no matter the Grind Setting, will have a fast extraction and will produce an under extracted tasting espresso.
Important: If the Top Burr is not seated correctly the Grinder will produce coarse coffee grinds. Grind off excess coffee beans and clean the Top Burr & Grind Chamber.
Note: Breville Customer Care may determine that Bottom Burr adjustment shims are required. Do not attempt to add shims without first consulting Breville.

DESCALING CYCLE

After continued use, your Espresso Machine may develop a build-up of mineral deposits and therefore require occasional descaling.
We recommend descaling your Espresso Machine every 4-6 months, although this period will depend on the hardness of water and frequency of use.
Descaling Solution
You have 2 options:
A. Espresso Machine Descaling Tablets. or
B. White vinegar & warm water.
Descaling Cycle
The Descaling Cycle takes approximately 10 minutes to complete.
Important: If the Descaling Cycle is not completed or stopped part way through any of the Descaling Steps, then you will need to start the Descaling Cycle again from the beginning.

Preparing for Descaling Cycle

• Fill Water Reservoir with Solution
  A. Fill Water Reservoir with 1 Litre of warm water. Add one Descaling Tablet. Allow tablet to fully dissolve. or
  B. In an empty Water Reservoir add 1½ tablespoons of white vinegar. Fill Water Reservoir with 1 Litre of warm water.
  Allow solution to mix thoroughly.
  Insert the Water Reservoir into position.



• Place Containers
  Place a 1 Litre container under Group Head and another 1 Litre container under the Steam Wand.



• Check Power Ensure that:
  The Power Plug is inserted into the outlet & switched on.
  The DIAL is in the vertical position.
  The machine is on and in the READY state.



• Access the Descaling Cycle
  Simultaneously press & hold the &  BUTTONS for 4 seconds.
  The machine will beep and a flashing light combination between the &  LIGHTS begins.



Note: The LIGHT will continue to flash until completion of the Descaling Cycle. Important: If Descaling Step 1 is not started within 1 minute of entering the Descaling Cycle, the machine will exit the Descaling Cycle and go back to the READY state.
Important: The Descaling Cycle can be exited at any point by pressing the BUTTON.

Start Descaling Cycle

• Turn the DIAL to the STEAM position.

• The STEAM LIGHT will now be fully illuminated.

• The Pump will start and hot water will run from the Group Head & Steam Wand. Over a 2 minute period the Pump will make different noises.

• When hot water has stopped being released from the Group Head & Steam Wand, this step is finished.

• To indicate the machine has finished this step the machine will beep, the STEAM LIGHT will stop being illuminated and the DIAL LIGHT will now start to flash.

• Turn the DIAL to the vertical position.

• The DIAL LIGHT will now be fully illuminated.

• Move to Step 2.

Preparing for Purge

Important: There is a maximum of 5 minutes allowed to complete this step before the Descaling Cycle will exit.The Steam Wand & Group Head now need to be purged clean with fresh water to remove descaling solution.

• Rinse Water Reservoir
  Remove the Water Reservoir and rinse thoroughly under running water, ensuring that all traces of the descaling solution have been removed.

• Fill Water Reservoir
  Fill the Water Reservoir to the ‘1 Litre’ line with cold water from the tap and insert into position.

• Empty Containers
  Empty water from the containers and replace.
  Move to Step 3.

Start Purge

• Turn the DIAL to the STEAM position.

• The STEAM LIGHT will now be fully illuminated.

• The Pump will start and hot water will run from the Group Head & Steam Wand. Over a 2 minute period the Pump will make different noises.

• When hot water has stopped being released from the Group Head & Steam Wand, the Descaling Cycle is complete.

Descaling Cycle Complete

• To indicate the completion of the Descaling Cycle the machine will beep and the  LIGHT will stop flashing.

• The STEAM LIGHT will stop being illuminated and the DIAL LIGHT will now start to flash to prompt the return of the DIAL to the vertical position.

• Turn the DIAL to the vertical position.

• The machine will return to the READY state.

Descaling Cycle Clean Up

• Empty water from the containers and clean, ensuring that all traces of the descaling solution have been removed.

Description

The Breville Barista Max Coffee Machine VCF126 is a stylish and compact espresso machine that is easy to use and maintain. The machine has a simple interface that makes it easy to select the right settings for your coffee. The built-in grinder allows you to grind your coffee beans fresh, which ensures maximum flavor and aroma. The machine also has a milk frother that allows you to create creamy and rich microfoam for your cappuccinos and lattes. The Breville Barista Max has a sleek stainless steel design that looks great in any kitchen.

BREVILLE’S SAFETY PRECAUTIONS

SAFETY PRECAUTIONS FOR YOUR BREVILLE ESPRESSO MACHINE

• Read carefully and save all the instructions provided with an appliance.

• Do not remove the Group Handle during the espresso pour or water flow as the unit is under pressure. Removing the Group Handle during either of these operations can lead to a scalding or injury.

• The Steam & Hot Water Wand becomes very hot  during texturing milk and water flow. This may cause burns in case of contact, therefore avoid any direct contact with the wand.

• Always disconnect the plug from the power outlet prior to cleaning the espresso machine or if there is any problem during the coffee making process.

• Do not place hands directly under the steam, hot water or espresso pour as this can lead to a scalding or injury.

• The temperature of accessiblesurfaces may be high when the appliance is operating.  Even after use, the heating element surface is subject to residual heat after use.

• Do not use an appliance for any purpose other than its intended use. Injury could occur from misuse.

• Do not immerse the appliance or power cord and plug in water or any other liquid. Wash the following 10 parts in warm water with a mild detergent; milk jug, drip tray grill, one cup and two cup filter baskets, group handle/ portafilter, drip tray, tamper, top burr, bean hopper and water reservoir. Rinse and dry each part thoroughly before replacing. Wipe the steam wand with a damp cloth. See Care & Cleaning section for full details.

• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

• This appliance can be used by children aged 8 years and above and persons withreduced physical, sensory or mental capabilities or lackof experience if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the  hazards involved. Cleaningand maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out ofreach of children aged less than 8 years. Children shall not play with the appliance.

• Always place the unit on a flat, level surface.

• Do not operate without water in reservoir. Fill reservoir withonly clean and cold water. Observe the maximum filling volume is 2 litres.

• Do not allow the Power Cord to come into contact with the hot parts of the espresso machine, including the Cup Warming Plate and the Steam& Hot Water Wand.

• Do not operate this appliancewith a damaged cord or plug or if the appliance has been damaged in any manner. If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Appliances are not intended to be operated by means of an external timer or separate remote control system.
  Breville is very safety conscious when designing and manufacturing consumer products, but it is essential that the product user also exercise care when using an electrical appliance. Listed below are precautions which are essential for the safe use of an electrical appliance:

• Always turn the power off at the power outlet before you insert or remove a plug. Remove by grasping the plug – do not pull on the cord.

• Turn the power off and remove the plug when the appliance is not in use and before cleaning.

• Always use your appliance from a power outlet of the voltage (A.C. only) marked on the appliance.

• Never leave an appliance unattended while in use.

• Do not use an appliance for any purpose other than its intended use.

• Do not place an appliance on or near a hot gas flame, electric element or on a heated oven.

• Do not place on top of any other appliance.

• Do not let the power cord of an appliance hang over the edge of a table or bench top or touch any hot surface. If you have any concerns regarding the performance and use of your appliance, please visit the Breville Website or contact Breville Consumer Care – details are on the back page. Ensure the above safety precautions are understood. Do not use any accessory not recommended by the  manufacturer as this mayresult in injury or damage to the appliance.

TROUBLESHOOTING GUIDE ESPRESSO MACHINE

ACCESSORIES AVAILABLE FOR PURCHASE

Contact Breville Customer care on: 0800 525 089

Visit Breville website to see full Espresso Machine range & accessories available. https://www.breville.co.uk/
For troubleshooting and FAQs visit: https://help.breville.co.uk/s/
ELECTRICAL SAFETY

• This appliance must be earthed.

• If the plug is not suitable for the socket outlets in your home, it can be removed and replaced by a plug of the correct type. If the fuse in a moulded plug needs to be changed, the fuse cover must be refitted.

• The appliance must not be used without the fuse cover fitted.

• If the plug is unsuitable, it should be dismantled and removed from the supply cord and an appropriate plug fitted as detailed. If you remove the plug it must not be connected to a 10 amp socket and the plug must be disposed of immediately.

• If the terminals in the plug are not marked or if you are unsure about the installation of the plug please contact a qualified electrician.



Breville Barista Max Coffee Machine VCF126 Pros & Cons

Pros

• Powerful thermocoil heating system for precise temperature control
• Built-in grinder with adjustable grind size
• 15-bar Italian pump for optimal extraction
• Large water tank and bean hopper
• Easy-to-use interface

Cons

• May be too expensive for some budgets
• May take up a lot of counter space
• Cleaning the machine can be time-consuming
