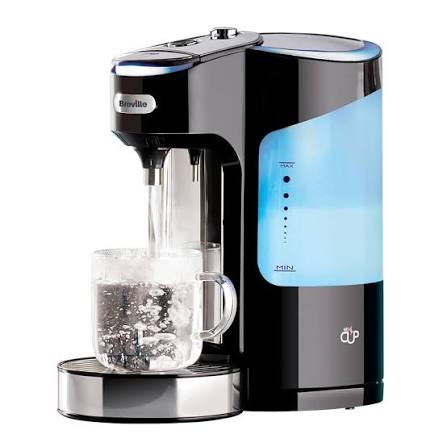

Introduction of Breville HotCup Boil Water Dispenser VKJ318-01

The Breville HotCup Boil Water Dispenser VKJ318-01 is a convenient and stylish appliance that quickly dispenses hot water at the perfect temperature for tea, coffee, or instant meals. With a sleek and modern design, this boiler is a great addition to any kitchen. The estimated price of the Breville HotCup Boil Water Dispenser VKJ318-01 is around $150 to $200, and it was launched in the market in 2021.

Detailed Specifications

The Breville HotCup Boil Water Dispenser VKJ318-01 has the following key features:

• 1.5 liter tank capacity
• 360 degree base for easy use
• Water level indicator
• Boiling time: 50-60 seconds
• Adjustable temperature control
• Automatic shut-off and keep warm function
• Stainless steel water tank
• cord storage
• Removable drip tray

Description

The Breville HotCup Boil Water Dispenser VKJ318-01 is a high-quality appliance that boils water quickly and efficiently. With a 1.5 liter tank capacity, this boiler can provide multiple cups of hot water in no time. The 360 degree base makes it easy to use, while the water level indicator ensures that you never run out of water. The adjustable temperature control allows you to choose the perfect temperature for your needs, and the automatic shut-off and keep warm function ensures that your water stays at the right temperature for as long as you need it. The stainless steel water tank is durable and easy to clean, while the cord storage and removable drip tray add to the appliance's convenience and functionality.

Parts and Features

1. Stop button
2. Start button
3. Lid
4. Re-set button (rear)
5. Heating chamber
6. Magnetised drip tray plate (Allows easy positioning of drip tray)
7. Drip tray (Removable and reversible to hold different cup sizes)
8. Stainless steel drip tray cover
9. Illuminated water reservoir (Easy fill water reservoir holds up to 1.7 litres)
10. Dispensing nozzle

Using Your HotCup Water Dispenser

Before Using Your HotCup Water Dispenser for the First Time

• Remove your HotCup water dispenser carefully from the box. Remove any packaging and promotional material and position it on a dry, level, secure work surface away from the edge.
• Make sure that the re-set button at the rear of the appliance is pressed in.
• Follow the instructions below on using your HotCup water dispenser and discard the first full tank of boiled water (typically six measures) by cycling the appliance. This will remove any residues that may remain from the manufacturing process.

Using Your HotCup Water Dispenser

Always position your HotCup water dispenser in such a way that the start button cannot be accidentally operated, especially by children.

If water has been left in your HotCup water dispenser for a number of days, fill the water reservoir to the MAX marking and discard all of the water by cycling the appliance as described below.

1. Lift the lid. Fill the water reservoir with cold water using a suitable jug. The water level should be between the MIN and MAX markings.
2. Close the lid, then plug your HotCup water dispenser into a mains supply socket.
3. Position the drip tray according to the height of your cup:
   • For a tall cup, place the drip tray in the lower position by guiding it onto the magnetised plate on the HotCup water dispenser until secured in place.
   • For a shorter cup, turn the drip tray upside down and hook the lip of the tray into the positioning slot. The magnet will guide the drip tray into the correct position.
4. Place the stainless steel drip tray cover onto the drip tray.
5. Position your cup with a tea bag, coffee, sugar, etc. below the dispensing nozzle. Never operate your HotCup water dispenser without a cup or suitable container placed below the dispensing nozzle. Then press the start button. The water reservoir and the window under the stop button will both light up.
   • If the start button cannot be pressed, check that the re-set button at the rear of the appliance is pressed in.
6. Boiling water will be dispensed into the cup (about 250ml) and then stop. Alternatively, press the stop button to only dispense the amount of water you require.

   • Always keep your HotCup water dispenser topped up with water (between the MIN and MAX markings). That way, you’ll ensure that it’s always ready to use and don’t forget, unlike an ordinary kettle, this will have no effect on the energy your HotCup water dispenser uses.





Breville HotCup Boil Water Dispenser VKJ318-01 Setup Guide

Setting up the Breville HotCup is easy and straightforward. Simply fill the water tank with fresh water, plug in the appliance, and select your desired temperature. The boiler will do the rest, providing you with hot water in just 50-60 seconds. The automatic shut-off and keep warm function will ensure that your water stays at the right temperature for as long as you need it.

Cleaning and Descaling

Cleaning

• Always switch off and unplug your HotCup water dispenser and allow it to completely cool before cleaning. Never immerse the appliance, power cord, or plug in water or any other liquid. Do not use harsh abrasives, chemicals, or oven cleaners.
• Clean the exterior surface of the appliance with a damp cloth and then polish with a soft dry cloth. Do not use steel wool pads or harsh/abrasive cleaners.

Descaling

• To ensure the safe and efficient operation of your HotCup water dispenser, it is important to descale it regularly. The harder your water, the more regularly it will need doing. Your water company should be able to tell you how hard the water is in your area. Untreated scale deposits prevent the element from conducting heat efficiently, therefore wasting electricity. Scale can also cause your HotCup water dispenser to malfunction or even cause premature failure.

Using a Proprietary Descaling Product

1. Fill your HotCup™ water dispenser to the MAX fill level and place an empty cup on the drip tray. Press the start button and wait for the water to be dispensed into the cup.
2. Add a citric acid-based descaling product to the hot water in the cup and stir.
3. Pour the contents of the cup into your HotCup water dispenser and close the lid.
4. Place the empty cup on the drip tray and press the start button.
5. Wait for the water to be dispensed into the cup.
6. Discard the water from the cup.
7. Repeat steps 4, 5, and 6 until the water reservoir is empty. Fill with fresh water to the MAX fill level and place an empty cup on the drip tray.
8. Press the start button and wait for the water to be dispensed into the cup.

9. Discard the water in the cup. Repeat steps 8 and 9 until the water reservoir is empty.





Using Vinegar or Citric Acid

• You can use ordinary vinegar (white or malt) or citric acid to descale your HotCup water dispenser. Inexpensive, ordinary vinegar can be purchased in large bottles from any supermarket. Citric acid can be bought from pharmacies, home brewing/winemaking suppliers, or online retailers.

1. If you are using vinegar, make up a solution of 1 cup of vinegar to 1 cup of water. If you are using citric acid, mix 30g of citric acid with 500ml of water.
2. Pour the solution into your HotCup water dispenser, close the lid, and allow it to stand for 1 hour.
3. Cycle your HotCup water dispenser (as described in steps 4-6 above) until the water reservoir is empty.
4. Fill your HotCup water dispenser with fresh water to the MAX fill level and place an empty cup on the drip tray.
   • Press the start button and wait for the water to be dispensed into the cup.
5. Discard the water in the cup. Repeat steps 5 and 6 until the water reservoir is empty.

Product Safety

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of the reach of children aged less than 8 years.

Never fill the appliance above the MAX marking. If the appliance is overfilled, boiling water may be ejected, and the appliance may overflow. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

• This appliance generates heat during use. Adequate precaution must be taken to prevent the risk of burns, scalds, fires, or other damage to persons or property caused by touching the exterior whilst in use or during cooling.
• Never use this appliance for anything other than its intended use. This appliance is for household use only. Do not use this appliance outdoors.
• Always ensure that hands are dry before handling the plug or switching on the appliance.
• Always use the appliance on a stable, secure, dry, and level surface.
• This appliance must not be placed on or near any potentially hot surfaces (such as a gas or electric hob).
• Do not use the appliance if it has been dropped, if there are any visible signs of damage, or if it is leaking.
• Ensure the appliance is switched off and unplugged from the supply socket after use and before cleaning.
• Always allow the appliance to cool before cleaning or storing.
• Never immerse any part of the appliance or power cord and plug in water or any other liquid.
• Never let the power cord hang over the edge of a worktop, touch hot surfaces, or become knotted, trapped, or pinched.
• Never leave the appliance unattended when in use.
• Beware of steam coming from the spout or lid, especially during refilling. Never open the lid during the boiling cycle.
• Never use the appliance without sufficient water in the kettle for it to operate correctly.
• Never allow the appliance to boil dry.

Troubleshooting

Connection to the Mains Supply

If the plug is not suitable for the socket outlets in your home, it can be removed and replaced by a plug of the correct type.

• If the fuse in a moulded plug needs to be changed, the fuse cover must be refitted. The appliance must not be used without the fuse cover fitted.
• If the plug is unsuitable, it should be dismantled and removed from the supply cord and an appropriate plug fitted as detailed. If you remove the plug, it must not be connected to a 13-amp socket and the plug must be disposed of immediately.
• If the terminals in the plug are not marked or if you are unsure about the installation of the plug, please contact a qualified electrician.

Guarantee

Please keep your receipt as this will be required for any claims under this guarantee. This appliance is guaranteed for 1 year after your purchase as described in this document. During this guaranteed period, if in the unlikely event the appliance no longer functions due to a design or manufacturing fault, please take it back to the place of purchase, with your till receipt and a copy of this guarantee. The rights and benefits under this guarantee are additional to your statutory rights, which are not affected by this guarantee. Only Jarden Consumer Solutions (Europe) Limited. (“JCS (Europe)”) has the right to change these terms.

Breville HotCup Boil Water Dispenser VKJ318-01 Pros & Cons

Pros

• Quick and efficient boiling
• Adjustable temperature control
• Automatic shut-off and keep warm function
• Durable and easy to clean stainless steel water tank
• Convenient cord storage and removable drip tray

Cons

• Higher price point compared to other boilers
• May be too large for some kitchen spaces
• Some users may prefer a glass or plastic water tank for visual monitoring

Customer Reviews

Customers have praised the Breville HotCup Boil Water Dispenser VKJ318-01 for its quick and efficient boiling, adjustable temperature control, and automatic shut-off and keep warm function. However, some users have noted that the appliance is on the larger side and may not fit in all kitchen spaces. Others have expressed a preference for a glass or plastic water tank for visual monitoring. Overall, the Breville HotCup Boil Water Dispenser VKJ318-01 is a high-quality and convenient appliance that is well-suited for tea, coffee, and instant meal enthusiasts.
