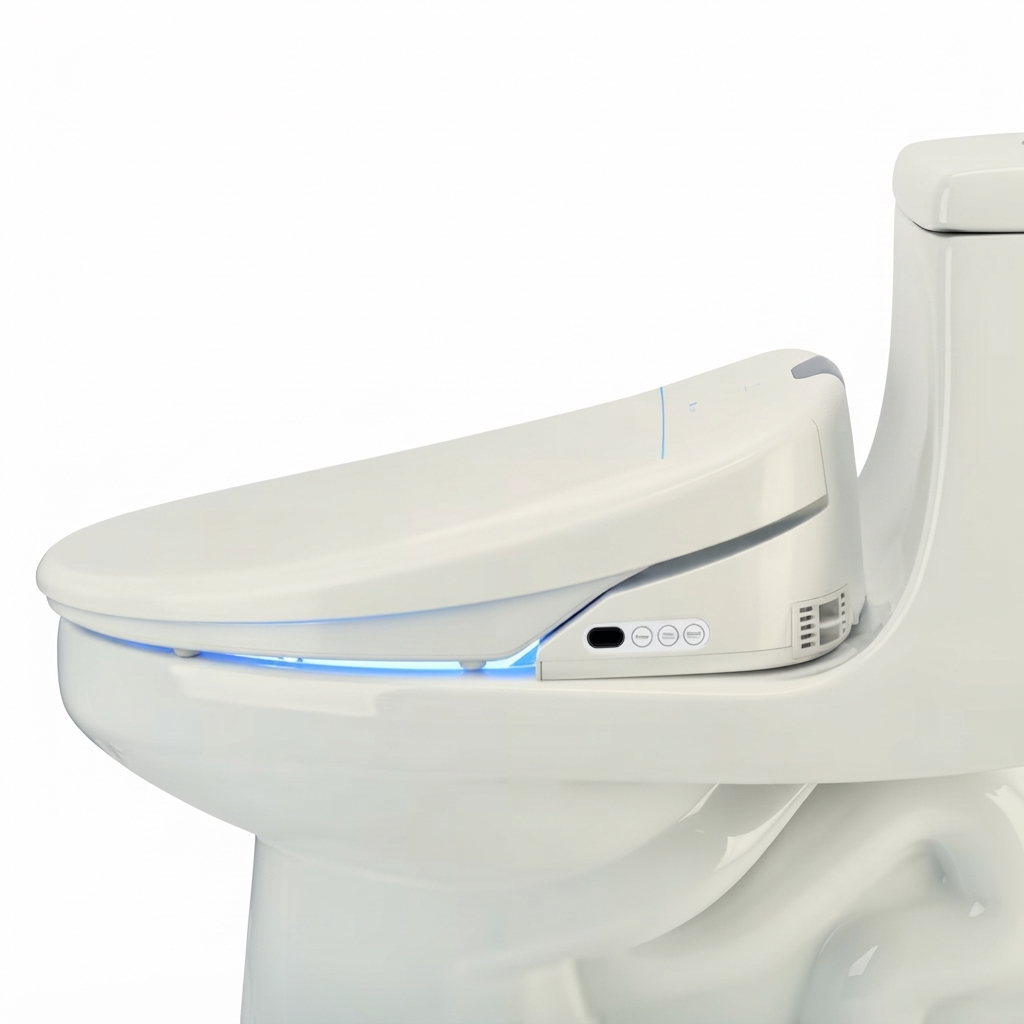

Introduction of Brondell Swash 1400 Luxury Bidet Toilet Seats S1400-RB

The Brondell Swash 1400 Luxury Bidet Toilet Seats S1400-RB is a premium bidet toilet seat that provides a luxury cleaning experience. This bidet seat, which was released in 2021, has modern features such as a wireless remote control, a heated seat, and adjustable water temperature to deliver the ultimate in comfort and hygiene.

PRODUCT SPECIFICATIONS

NOTE: The specifications listed above are subject to change without prior notice due to product performance improvements.

S1200/1400 PRODUCT FEATURES

• Dual Stainless Steel Nozzles - separate stainless steel nozzles resist contamination and bacterial contamination for better hygiene. The dual nozzle configuration ensures accurate coverage for all types of users.

• Aerated Wash Spray – micro-bubbles introduced into the wash spray create a gentler, softer wash action designed for sensitive skin. In addition, the aerated spray reduces overall water consumption and is more effective in washing the skin.

• Positionable Nozzles - each nozzle has seven different positions to ensure the most comfortable and complete wash.

• Ergonomic heated Seat - with four temperature settings (High / Med / Low / Off).

• Night Light - a bright night light means no more terrifying lights on those midnight trips to the bathroom.

• Strong, "Sittable" Cover - strong bidet seat cover will support up to 270 pounds.

• Soft Cover Seats and Covers - "slam free" seat and cover covers are user friendly.

• Fast and Endless Warm Water - the advanced instant ceramic heating system ensures an endless flow of warm water for posterior and feminine washing.

• Adjustable Water Temperature and Pressure - each wash mode (Front and Back) has four water temperature settings available, and three water pressure settings.

• Wide Spray Option - three width settings widens the wash spray from a strong concentrated stream to a soft spray for a more personal and deep wash.

• Wireless Remote Control - the intuitive remote control comes with a convenient magnetic dock and mounting bracket, and includes its own Eco Mode to save battery life.

• Two User Memory Settings - customize settings like water temperature, water pressure, and even spray width to your own preferences and save them with two programmable .settings files.

• "Automatic" function - activates the preset for the front or back wash cycle. The Dry Cycle will then be activated with Swash 1400. See page 22 for more details.

• Auto Eco Mode - this function automatically lowers the seat temperature ten minutes after the last Swash is used.

• Quick-Release Seat - quick-release button for easy removal and cleaning of the seat and toilet.

• The Warm Air Dryer - includes three adjustable temperatures for a hands-free experience and reduces toilet paper - even eliminates it.

• Oscillation Nozzle - the movement function provides massaging, oscillating cleaning during the wash cycle ensuring a thorough and comfortable wash.

• Nozzle Sterilization - using silver as a natural antibacterial agent, we can create a sterilizing wash for the nozzle that is 100% chemical and maintenance free to keep it clean, hygienic, and rust free.

• Deodorizer – the activated charcoal deodorizing filter eliminates odors at the source. It does not cover or mask odors, but eliminates them by removing air from the toilet bowl, passing it through the replaceable filter and expelling the clean air through the vent in the back of the Swash.

PRODUCT DIMENSIONS

Elongated Top View

Round Top View

PRODUCT PARTS

1. Lid

2. Sensor IR

3. Nozel Stainless Steel

4. Your sensor (seat).

5. Seat

6. Cable Power

7. bidet Hose

8. T-valve

9. Plug Channel

10. Banyu channel

11. Quick Release Button

12. Plate Mounting

13. Deodorizer

14. Night Light

15. Remote control

Components

1. Install Bolts (2)

2. Rubber Cone Washers (2)

3. Flat Washing Machine (2)

4. Barrel Nuts (2)

5. Plate Mounting

6. Adjustable bracket (2)

7. Connector T-Valve karo Washer Karet

8. bidet Hose

9. Cable Clips (2)

10. Remote Control Wall Mount

11. Remote Screws (2)

12. Remote Anchors (2)

13. Baterei CR2032 (4)

BEFORE INSTALLATION

• WATCH OUR INSTALLATION VIDEOS
  Installation for all Swash products can be found online at https://www.brondell.com/

• CHECK THE TOP MOUNT INSTALLATION
  If your fixture only has top access to the toilet mounting bolts, you will need to purchase the Swash Bidet Seat Top Mount Hardware Kit.

• Check for hidden toilet fill valves
  Many modern toilets have clever designs to cover and disguise the plumbing connections, which makes standard Swash installations difficult or impossible.

• CHECK THE WATER SUPPLY LINE
  Check the line that connects the toilet tank to the water valve cover. If the pipe is stiff, you may need to purchase a flexible hose to replace it before installing the Swash. Hose lengths and connector sizes will vary.

• NORMAL RESIDUAL MOISTURE
  Every product is tested with pure water during production to ensure the highest quality and performance. It is normal to find a small amount of residual moisture in the product and in the reservoir and filter.

• TOOLS
  A Phillips head or standard screwdriver may be required to remove the existing toilet seat and a standard wrench may be required for tight water supply connections. Teflon tape can help create a waterproof seat between pipe joints.

SWASH INSTALLATION

Read these instructions carefully before installing Swash. Failure to do so may result in flooding, leakage or damage to the product.

1. Existing Toilet Seat Removal

   • Lift the hinge cover and use a screwdriver to remove the mounting bolt.

   • Remove the toilet seat.
     NOTE: Steps may vary by seat and toilet type

2. Turn off the Water Supply Valve and Flush Toilet

   • Turn off the water valve to stop the water flow.

   • Flush the toilet and hold the handle until the tank is empty.

   • Disconnect the water supply hose from the toilet tank. Do not disconnect from the water source cap.



   • You may want to place a container under the tank to catch excess water.

   • Do not proceed without completing the steps above

   • Failure to do so may result in flooding, leaks or damage to the Swash.

3. Connect the T-Valve to the Toilet Tank Fill Valve

   • Place the flat edge of the rubber washer into the T-Valve against the metal with the raised lip facing the toilet tank connection.

   • Attach the T-Valve with a rubber washer to the water connection that enters the bottom of the toilet tank.





   • The T-Valve connects to the fill cap directly below the toilet tank - it doesn't connect to the wall.

   • Just connect to the cold water line of the toilet.

   • If your water supply line is stiff, you may need to replace it before proceeding.

4. Connect the water supply line coming from the wall to the bottom of the T-Valve.

5. Install the Mounting Plate

   • Place adjustable mounting plate over mounting holes on toilet, rubber side faces down, curved edge faces toward the toilet tank.

   • Place the adjustable bracket flat side down in the middle of the box opening on the mounting plate and insert the mounting bolts through the adjustable bracket and the mounting holes. Make sure that the bolt head is installed square even with the side of the adjustable bracket.

   • Slide the rubber cone washer, flat washer, and then the barrel nut onto the bolt attached to the bottom of the toilet bowl and tighten so the plate is in place.



6. Connect the Bidet Hose to the Seat

   • Connect the bidet hose to the water inlet. Hand-tighten to secure. Take care not to twist the bidet hose, exces-sively bend it, or strip the plastic screw threads when screwing the hose onto the bidet seat.



7. Attach the Swash to the Mounting Plate

   • Set the Swash flat on the toilet bowl in front of the mounting plate, and slide seat onto plate until it is secure and “clicks” into place.

   • If the seat appears too short or too long for the toilet, adjust the mounting plate accordingly. To adjust the mounting plate, loosen barrel nuts underneath the toilet and slide seat forward or backwards as needed. Once the seat is lined up properly, tighten barrel nuts to hold in place.





8. Connect the open end of the Bidet Hose to the T-Valve.



9. Turn on the Water Supply

   • Open the main water supply valve slowly and check for leaks.

   • Wait 5 minutes, check again and if there are no leaks continue.

10. Connect the Power

    • Plug the power cord into an outlet.

    • If desired, use the included Cable Clips to connect the power cord and bidet hose side-by-side for a neater look.



    • Make sure you only use GFCI (ground fault circuit interrupter) electrical outlets. In the event of a short circuit, a grounded GFCI outlet can prevent electric shock or injury.

    • If you need to use an extension cord, only use one rated at least 15 amps with a three-wire extension cord with a three-blade grounding plug.

REMOTE CONTROL INSTALLATION

1. Battery installation

   • Separate the remote control from the magnetic dock.

   • Turn remote over and open the child-proof battery compartment by popping off the battery cover with a flat-head screwdriver or small coin. Insert the four included CR2032 batteries “plus” side up and replace battery cover.

   • To confirm the batteries are installed correctly, press the Stop button and you should see the “Wide Spray” LED light turn on for a few seconds (NOTE: the 2 other LED lights may or may not turn on at this time depending on the current settings).



2. Mount Remote (opsional)

   • Identify the location in the bathroom for the remote control to be visible and reachable from the toilet.

   • Depending on the type of wall, you can install it using the supplied screws and anchor mount or use the provided double tape stick at the end of the remote wall mount.
     Make sure the remote mount is fully secured with either method to avoid falling and damaging the remote control.

   • Place the remote control into the mount as shown.



DANGER Important Battery Information

1. The remote contains a "coin style" battery - keep it away from children. If swallowed, seek immediate medical attention.

2. Battery ingestion can cause serious injury or death within 2 hours.

3. Use only CR2032 batteries. Do not mix new and old batteries together.

4. Check the + and - directions again.

5. Be careful when opening the battery compartment to replace the battery - the battery is spring loaded.

6. Dispose of old batteries carefully.

EXTERNAL BIDET FILTER INSTALLATION

NOTE: Customers with hard water, well water, and soft water can extend the life of the bidet seat by purchasing and installing an external inline water filter to be used with the Swash. Bidet filters should be changed every six months.

1. Turn off the Water Supply Valve and Flush Toilet.

   • a. Turn off the water valve to stop the water flow.

   • b. Flush the toilet and hold the handle until the tank is empty.

2. Disconnect the Bidet Hose from the T-Valve

3. Connect the female end of the Swash Filter to the Open T-Valve Connection.

4. Connect the Bidet Hose to the male end of the Swash Filter.

5. Turn the toilet water supply valve back on.

Description

The Brondell Swash 1400 bidet toilet seat is a product that is considered to be of the highest quality and has a broad variety of functions that are designed to improve your experience in the bathroom. There is a peaceful and comfortable cleaning experience provided by the heated seat and the adjustable water temperature, while the stainless steel wand guarantees that the highest possible level of hygiene is maintained. With the programmable user memory, you are able to remember your favorite settings, and the wireless remote control makes it easy to use the device. The entire design is enhanced with a touch of sophistication and convenience thanks to the nightlight and the lid that closes slowly.

SWASH OPERATION

S1200 REMOTE CONTROL

1. Remote IR Signal Transmitter
   Transmits the signal from remote control to the seat when a button is pressed.

2. Rear Wash Button
   This button activates the aerated Rear Wash function.

3. Front (Feminine) Wash Button
   This button activates the aerated Front, or “Feminine”, Wash function.

4. Stop Button
   Stops all functions currently operating.

5. Water Pressure Buttons
   These buttons increase or decrease the water pressure, to one of three settings, during either of the aerated wash cycles.

6. Nozzle Position Buttons
   These buttons move the wash nozzle, to one of seven positions, during either of the aerated wash cycles.

7. Seat Temp. & Indicator
   Indicates the Seat Temperature setting. Press the button to cycle through each setting.Off, Low – 89° F (blue), Medium – 93° F (pink), High – 97° F (red)

8. Spray Width & Indicator
   Indicates the wash Spray Width setting. Press the button to cycle through each setting. Concentrated (blue), Medium (pink), and Wide (red)

9. Water Temp. & Indicator
   Indicates the Water Temperature setting. Press the button to cycle through each setting. Off – incoming water temp., Low – 90° F (blue), Medium – 95° F (pink), High – 100° F (red)

10. User Memory 1
    This button contains the programming for all of the customizations set in User 1’s wash cycles. See page 23 for more details.

11. Auto Mode
    This button automatically runs a pre-programmed wash (front or rear) cycle. See page 22 for more details.

12. User Memory 2
    This button contains the programming for all of the customizations set in User 2’s wash cycles. See page 23 for more details.

S1400 REMOTE CONTROL

1. Remote IR Signal Transmitter
   Transmits the signal from remote control to the seat when a button is pressed.

2. Rear Wash Button
   This button activates the aerated Rear Wash function.

3. Front (Feminine) Wash Button
   This button activates the aerated Front, or “Feminine”, Wash function.

4. Stop Button
   Stops all functions currently operating.

5. Nozzle Oscillation (Move) Button
   This button activates the Nozzle Oscillation function. When activated, the front or rear nozzle moves back and forth during the wash cycle to clean a wider area. Push the button again to stop the oscillation.

6. Dry Button
   Turns on the Warm Air Dryer for a period of two minutes.

7. Water Pressure/Dry Temperature Buttons
   These buttons increase or decrease the water pressure, to one of three settings, during either of the aerated wash cycles. During the Dry cycle, these buttons increase or decrease the temperature of the Warm Air Dryer.

8. Nozzle Position Buttons
   These buttons move the wash nozzle, to one of seven positions, during either of the wash cycles.

9. Water Temp. & Indicator
   Indicates the Water Temperature setting. Press the button to cycle through each setting. Off – incoming water temp., Low – 90° F (blue), Medium – 95° F (pink), High – 100° F (red)

10. Spray Width & Indicator
    Indicates the wash Spray Width setting. Press the button to cycle through each setting. Concentrated (blue), Medium (pink), and Wide (red)

11. Seat Temp. & Indicator
    Indicates the Seat Temperature setting. Press the button to cycle through each setting. Off, Low – 89° F (blue), Medium – 93° F (pink), High – 97° F (red)

12. Nozzle Sterilizer
    Utilizing silver as a natural antibacterial agent, this sterilizing wash is 100% chemical and maintenance-free, keeping the nozzles clean, hygienic, and corrosion-free.

13. Deodorizer
    Eliminates odors by removing air from the toilet bowl, passing it through the replaceable active carbon filter, and expelling the clean air through the vent in the back of the Swash.

14. User Memory 1
    This button contains the programming for all of the customizations set in User 1’s wash and dry cycles. See page 23 for more details.

15. Auto Memory
    This button automatically runs a pre-programmed wash (front or rear) and dry cycle. See page 22 for more details.

16. User Memory 2
    This button contains the programming for all of the customizations set in User 2’s wash and dry cycles. See page 23 for more details.

BIDET SEAT CONTROLS GUIDE

Basic functions such as Rear Cleansing and Nozzle Cleaning can be used without the remote by utilizing the auxiliary buttons shown below.

SEAT DISPLAY

1. Remote IR Receiver (3)
   Receives signal from remote control.

2. Power Indicator
   This indicator is illuminated when the bidet is powered on.
   This indicator is turned off when Eco Mode is activated.

3. Eco Mode Indicator
   This indicator is illuminated when Eco Mode is enabled and activated, ten minutes after the Swash was last used or programmed.

4. Seat Temperature Indicator
   This indicator is illuminated when the seat temperature is set to Low, Medium, or High. The indicator is turned off when the seat temperature is off. This indicator is also turned off when Eco Mode is activated.
   AUXILIARY CONTROL PANEL

5. Power Button
   Turns the seat On/Off. Press and hold the button for 2 seconds to turn off.
   If the Power button is pressed while any wash function is operating, the wash function will stop.

6. Rear Cleansing Button
   Initiates the rear wash function utilizing the settings last used.

7. Nozzle Cleaning Button
   When pressed, one nozzle will fully extend, allowing for easy cleaning. Press again for the second nozzle to extend and once more to retract both nozzles.

USING THE SWASH 1200/1400

NOTES

• The wash functions will not work unless the sensor in the seat detects someone sitting down (skin conductivity sensor). To override the Seat Sensor, please refer to the section on page 27.

• The remote control will not operate the Swash if the batteries are weak, dead, or not installed properly (remote requires 4 x CR2032 batteries to function).

Warm Water Aerated Wash

1. Sit on the seat to ensure skin-to-seat contact. The seat will give an audible response letting you know the seat sensor has been engaged. At the same time an automatic self-cleaning cycle will occur – a small amount of water will flush over the nozzles and into the toilet bowl.

2. Press the Front or Rear button on the remote to begin water flow. The nozzles will self-clean and purge a small amount of water which will last for several seconds prior to starting the wash function – please note that this may take up to 20 seconds.
   The front or rear wand will extend and wash for 2 minutes, then turn off automatically.

3. To keep the wash continuing longer than 2 minutes, press the Front or Rear button again during the wash cycle. Each time you press the button during the wash cycle, the 2 minute cycle starts again.

4. If you would like to stop the wash before the 2 minute cycle ends, press the Stop button to discontinue flow.

5. While washing, users can adjust the water temperature, water pressure, spray width, and nozzle position according to their preferences.

6. After the wash cycle, the nozzles will perform a self clean cycle purging water for approximately 5 seconds.

NOTE:  You cannot increase the water pressure level to higher than level 2 under the following conditions: Main water supply temperature is under 50° F or if the rated power source is under 110V.

• Nozzle Positioning
  While the wash function is operating, use the Nozzle Position up and down arrows on the remote control to move the position of the nozzles and spray. Each nozzle has seven positions.

• Water Pressure Adjustment
  While the wash function is operating, press the Water Pressure “+” and “-“ buttons on the remote control to increase or decrease the water pressure of the spray. There are three water pressure levels: Low – Med – High.

• Wide Spray
  To adjust the spray width of the washing stream during a wash cycle, press the Wide Spray button. The Wide Spray button has three levels indicated by the Wide Spray Indicator Light on the remore control: Concentrated Stream (blue), Medium Stream (pink), Wide Stream (red) Increasing the spray width to the Medium and Wide settings will also decrease the spray pressure.

• Adjusting Water Temperature
  Press the Water Temp. button to adjust temperature to desired level. There are four temperature levels indicated by the Seat Temp. Indicator light on the remote: Off – incoming water temp., Low – 90° F (blue), Medium – 95° F (pink), High – 100° F (red)

• Adjusting Seat Temperature
  Press the Seat Temp. button to adjust the seat temperature to desired level. There are four temperature levels indicated by the Seat Temp. Indicator light on the remote: Off, Low – 89° F (blue), Medium – 93° F (pink), High – 97° F (red)

• Auto Function: The Auto Function will run a preset wash and dry cycle* with a simple press or hold of the “Auto” button.
  Pressing the Auto button will initiate a rear wash cycle for 90 seconds at the medium (pink) water temperature. The water pressure will be set to high and the spray width will be on the medium (pink) setting. The oscillate function will start as soon as the wash cycle starts. The Swash will automatically start the Air Dryer* and run a dry cycle* for 2 minutes immediately after the wash cycle. The Dryer temperature* will be set to medium.
  Press and hold the “Auto” button for 5 seconds to initiate a Front Wash cycle for 90 seconds
  at the medium (pink) water temperature. The water pressure will be set to high and the spray width will be on the medium (pink) setting. The oscillate function will start as soon as the wash cycle starts. The Swash will automatically start the Air Dryer* and run a dry cycle* for 2 minutes immediately after the wash cycle. The Dryer temperature* will be set to medium.
  Press Stop on the remote anytime during the wash or dry cycle* to stop the Auto Function. In “Auto” mode, the seat temperature will be unchanged; it will be set to whatever the last seat temperature setting was. The deodorizer will not turn on during the Auto Function.

NOTE: The Warm Air Dryer is only available on the Swash 1400 model

User Memory Setting
The Swash User 1 and User 2 memory function allows you to program your preferred wash settings for a Front and Rear wash cycle for two users. These settings include: Water Temperature Level, Spray Width Level, Water Pressure Level, Nozzle Position, and Nozzle Oscillation*. Follow the steps below to program and use the Memory Function.
*only available on the Swash 1400 model

Programming User 1 or User 2 Memory Function

1. Sit on the seat. The seat will give an audible response letting you know that the seat sensor has been engaged (unless “Silent Mode” has been set to On). At the same time, a small amount of water will flush over the nozzle, performing an automatic self-cleaning cycle.

2. To program Front nozzle settings, press and release the Front button. To program Rear nozzle settings, press and release the Rear button. A wash cycle will commence.

   • While the wash is operating, set your desired Water Temperature Level, Spray Width Setting, Water Pressure Level, Nozzle Position, and Oscillation option.*

   • Let the wash cycle run the full two minutes or press the Stop button at any time.

3. If desired, initiate another wash cycle using the opposite nozzle.

   • While the wash is operating, set your desired Water Temperature Level, Spray Width Setting, Water Pressure Level, Nozzle Position, and Oscillation option.*

   • Let the wash cycle run the full two minutes or press the Stop button at any time.

4. Press and hold the User 1 or User 2 button on the remote for five (5) seconds to save the programming. You should hear an audible beep when the settings are programed.

Using the User 1 or User 2 Memory Function

1. Sit on the seat. The seat will give an audible response letting you know that the seat sensor has been engaged (unless “Silent Mode” has been set to On). At the same time, a small amount of water will flush over the nozzle, performing an automatic self-cleaning cycle.

2. Press the User 1 or User 2 button followed by the Front or Rear button, depending on which wash cycle was programmed. You will hear an audible tone if you select a wash cycle that has not been programmed.

3. The nozzles will self-clean and purge a small amount of water which will last for several seconds prior to starting the programmed wash function. The Water Temperature Level, Spray Width Level, Nozzle Position, Water Pressure Level, and Oscillation function will be set to the programmed settings. The wash cycle will run for 2 minutes and shut off automatically.

4. To keep the wash continuing longer than 2 minutes, press the Front or Rear button again during the wash cycle. Each time you press the button during the wash cycle, the 2 minute wash cycle will start over again.

5. If you would like to stop the wash before the 2 minute cycle ends, press the Stop button.

IMPORTANT NOTES REGARDING USER MEMORY SETTINGS

• After pushing the User 1 or User 2 button you have 5 minutes before the memory function is cancelled.

• If the seat sensor is de-activated at any time after pushing the User 1 or User 2 button, the memory setting function will be cancelled.

• When you use the User 1 or User 2 memory settings, the LED indicator lights on the remote may not reflect your saved preferences, but your programmed Front and Rear wash settings will be accurate and correct.

• After programing both nozzles for a User, if you decide to change the programing of one nozzle, you must reprogram both nozzles.

Additional controls

1. Power button: Turns the product On/Off. Press and hold the button for at least 2 seconds to turn off the Swash.
   NOTE: If the Power button is pressed while front or rear wash is operating, the wash function bakal mandheg.

2. Rear Cleansing: Selects the rear wash function.

3. Nozzle Cleaning: For better nozzle cleaning, press this button, the nozzle will be full for easy cleaning. See the Maintenance section for additional nozzle cleaning information.

USING THE SWASH 1400’s ADDITIONAL FEATURES

• Nozzle Oscillation (Move) Function
  While the wash function is operating, press the Move button on the remote control to start or stop the nozzle oscillation function (moving back and forth). This provides a wider range of wash spray.

• Fungsi Pengering Udara Anget
  Once the wash cycle is complete, press the Dry button to activate the warm air dryer. The dryer will run for two minutes. To keep the dryer running longer than two minutes, press the DRY button again during the drying cycle to add another two minutes. If you would like to stop the dryer before the two minutes has elapsed, press Stop.
  While the air dryer is operating press the Water Pressure / Dry Temp “+” and “–” to adjust the dryer temperature to a comfortable level. There are four settings: Off – Low – Medium – High.
  NOTE: the Seat Sensor must be activated in order for this function to work, unless the Seat Sensor has been cancelled (see page 27 for details).

• Deodorisasi
  To activate the deodorizer, press the Deodorize button on the remote control. The deodorizer will run for one minute. To stop the deodorizer prior to completion of the cycle, press Stop.

• Nozzle Sterilization
  To sterilize the stainless steel nozzles, press the Sterilize button on the remote control. A cleansing silver oxide nano-particle water treatment will commence. The cleansing spray will last for 60 seconds while the nozzles extend and retract. To stop the nozzle sterilization prior to completion of the cycle, press Stop.
  The Silver oxide nano-particle treatment system has powerful anit-fungal and anti-bacterial properties to keep the nozzles clean and corrosion-free. Use the sterilizing feature as often
  and frequently as you like. The nano-particles will never lose effectiveness and never require replacing, lasting the life of the bidet.

SWASH SPECIAL MODE OPERATIONS

NOTE:  Special Mode Operations can be changed following the instructions below using the Auxiliary Controls on the side of the bidet (see pages 20 and 24).

Selecting/Canceling Eco Mode
When the Eco Mode function is selected, the Swash will go into Eco Mode when the Seat Sensor is not activated and no buttons on the Remote have been active for approximately 10 minutes. The seat heater will automatically set itself to the Low temperature setting to reduce power consumption. Once Eco Mode is activated, the Eco Mode light on the seat will turn green and the other lights will turn off.
Eco Mode is cancelled at the factory by default.

1. Press and hold down the Power and Rear Cleansing auxiliary buttons simultaneously for approximately 5 seconds until one or more of the seat display lights start flashing. Release the buttons.
   NOTE: If the nightlight is turned on, it will also flash.

2. Press the Rear Cleansing button to Set or Cancel Eco Mode.

   • If the Eco Mode indicator light is flashing, this indicates Eco Mode has been set.

   • If the Eco Mode indicator light is not flashing, this indicates Eco Mode has been cancelled.

3. The new setting will automatically be saved within 10 seconds if no other buttons are pressed, or if you press the Stop button on the remote control.

Selecting/Canceling Silent Mode
By default, the Swash will beep to confirm commands from the remote control. Follow the steps below to deactivate the beeping sounds.

1. Press and hold down the Power and Rear Cleansing auxiliary buttons simultaneously for approximately 5 seconds until one or more of the seat display lights start flashing. Release the buttons.
   NOTE:  If the nightlight is turned on, it will also flash.

2. Press the Power button to Set or Cancel silent mode.

   • If the Power indicator light is flashing, this indicates Silent Mode has been set. There will not be any beeping sounds when buttons on the Remote Control are pressed.

   • If Power indicator light is turned off, this indicates the Silent Mode has been canceled. Beeping sounds when buttons on the Remote Control are pressed will resume.

3. The new setting will automatically be saved within 10 seconds if no other buttons are pressed, or if you press the Stop button on the remote control.

Selecting/Canceling Seat Sensor Lock Mode
This function bypasses the body sensor located in the seat and allows the wash functions and dry functions to operate without the sensor being engaged. Use caution in this mode. Seat Sensor Lock Mode is selected at the factory by default.

1. Press and hold down the Power and Rear Cleansing auxiliary buttons simultaneously for approximately 5 seconds until one or more of the seat display lights start flashing. Release the buttons.
   NOTE:: If the nightlight is turned on, it will also flash.

2. Press the Nozzle Cleansing button to Set or Cancel Seat Sensor Lock Mode.

   • If the Seat Temperature indicator light is flashing, this indicates that the Seat Sensor Lock Mode has been set. Someone will need to be sitting on the seat for the unit to operate.

   • If the Seat Temp indicator light is not flashing, this indicates that the Seat Sensor Lock Mode has been cancelled. Someone does not need to be sitting on the seat for the unit to operate. Use caution.

3. The new setting will automatically be saved within 10 seconds if no other buttons are pressed, or if you press the Stop button on the remote control.

Illuminating/Exstinguishing the Night Light
By default, the night light on the Swash will be constantly illuminated. Follow the steps below to turn the night light off.

1. Press and hold down the Power and Rear Cleansing auxiliary buttons simultaneously for approximately 5 seconds until all the seat display lights start flashing. If the nightlight is turned on, it will also flash. Release the buttons.

2. Press the Rear Cleansing button and Nozzle Cleansing buttons simultaneously to Set or Cancel the Nightlight.

   • If the Nightlight light is flashing, this indicates that the Nightlight has been set.

   • If the Nightlight light is not flashing, this indicates that the Nightlight has been cancelled.

3. The new setting will automatically be saved within 10 seconds if no other buttons are pressed, or if you press the Stop button on the remote control.

ID Settings
The Swash 1200 and 1400 has the ability to pair a remote to a specific Swash seat. This is helpful in cases where there is more than one toilet in the bathroom. For more information on how to pair a remote to a Swash, please contact Brondell customer service.

Setup Guide

To install the Brondell Swash 1400 Luxury Bidet Toilet Seats S1400-RB, follow these steps:

1. Remove your existing toilet seat and clean the mounting area.
2. Attach the mounting plate to your toilet bowl using the provided screws and brackets.
3. Place the bidet seat onto the mounting plate and secure it with the mounting bracket.
4. Connect the power cord to an electrical outlet and turn on the power switch.
5. Follow the instructions in the user manual to program the settings and pair the wireless remote control.

MAINTENANCE

SEAT CLEANING & REMOVAL

1. Unplug the Swash from the power source before cleaning or removing the seat.

2. Use a soft, damp cloth and a mild detergent (such as dish soap, Simple Green or Windex) to wipe the chair. DO NOT scrub or use harsh, abrasive products to clean the Swash. DO NOT use thinner, benzene, acidic chemicals, chlorides, or hydrochloric acid detergents. This can cause rust on the metal parts or color or scratches on the body of the bidet.

For a more thorough cleaning, you may remove the Swash. To remove the seat, press the Quick Release button (#11 on Page 9) and slide the seat forward off of the mounting plate and toilet.

NOTE:  Be careful not to leave household and beauty products in contact with the bidet seat, which can cause permanent discoloration. Most stains can be removed using a 1:1 mixture of alcohol and water and a soft cloth or towel. However, some permanent stains are the result of substances left on the seat when the seat heater is activated. Be careful with household and beauty products (including but not limited to various hair and air freshener sprays, lotions, body washes, tanners, body butters, and oils) that come into contact with the couch. Wash any material that gets on the seat as soon as possible. If necessary, replacement seat parts can be purchased through Brondell customer support.

NOZZLE CLEANING

1. Press the Nozzle Cleaning button on the Auxiliary Control panel on the Swash side. The front wash nozzle will be complete. Gently clean the nozzle with a soft cloth or toothbrush.

2. Press the Nozzle Cleaning button again and the front wash nozzle will retract and the back wash nozzle will be full. Gently clean the nozzle with a soft cloth or toothbrush.

3. Press Nozzle Cleaning button a third time and the rear nozzle will retract back into the seat. Take care when cleaning the nozzles not to apply too much pressure to avoid damaging the nozzle system.



REPLACING THE DEODORIZER CARTRIDGE

1. Locate the Deodorizer Compartment at the rear of the Swash. It is on the right-hand side, if you are facing the toilet.

2. Pull the tab that extends from the compartment until the compartment is completely removed from the Swash.

3. Pull the old Deodorizer Cartridge out from the compartment and replace it with the new one.

4. Push the Deodorizer Compartment back into the back of the Swash.

CLEANING THE MESH FILTER
Cleaning intervals will vary depending on usage and water quality. It is recommended to check the filter at least once a year.

1. Turn off the water supply and hold the toilet flush lever down until all the water has drained from the tank.

2. Unplug the Swash, remove the seat from the toilet using the Quick Release button on the left side of the unit (see diagram on page 9), and disconnect the bidet hose. You may want to use a bucket to catch any dripping water from the bidet hose.

3. Remove the Mesh Filter from the water inlet with a pair of tweezers or needle nose pliers.



4. Clean the filter with a toothbrush while running under tap water to effectively remove any foreign substances or build-up.

5. Replace the Mesh Filter and make sure it is installed correctly. If not installed properly, it can cause water leakage.

6. Reconnect the bidet hose and put the seat back on the toilet. Reconnect the cable, and turn the water supply back on.

PRODUCT STORAGE & USE

• Short Term Non-Use
  If the product will not be used for more than a few weeks, you can simply remove it. You can also consider turning off the water source in the wall to be more careful.

• Long Term Non-Use
  If the product will not be used for a long time (more than four months), you must remove the unit, turn off the water source on the wall, remove the Swash from the toilet, then drain the Hot Water Heater. For the Hot Water Heater drain, remove the drain plug and the back of the bidet seat by turning it 90 degrees counterclockwise (Figure "1") and then pulling it forward (Figure "2") so that any water residue comes out.



SAFETY INFORMATION

(IMPORTANT KEEPING)
Be careful to save this safety information. Please read this information to prevent property loss and ensure safety.

• DANGER: If not observed, serious injury or even death can occur.

• WARNING: If not observed, serious physical injury or property damage may occur.

• CAUTION: If not observed, minor physical injury or property damage may occur.

READ ALL INSTRUCTIONS BEFORE USE

Warnings
Failure to observe the following warnings may result in electric shock, fire, personal injury, property damage or product damage:

• The remote control for this product contains a button style coin battery. If swallowed, it can cause severe injury or death in just 2 hours. Keep the remote away from children and seek medical attention immediately if suspected ingestion of the battery occurs.

• Do not use a damaged power plug or plug into a loose power outlet.

• Do not move the product by pulling on the power cord.

• Do not handle the product or electrical plug with wet hands.

• Do not bend the power cord strongly or place heavy objects on it to avoid damage or deformity.

• Do not connect and disconnect the power plug or cable repeatedly.

• Remove the product before cleaning, repairing, inspecting, or replacing parts.

• Remove any dust or water from the power plug before plugging in.

• Do not plug the product into an outlet or electrical outlet that is used by too many other products. Use an electrical outlet that is adequate for the wattage of the product rated at a minimum of 15 amps.

• If the power cord is damaged, do not attempt to repair, modify, or replace the cord yourself. Contact the Brondell Service Center toll free at 888-542-3355 or email through the Website.

• If the product produces strange noises, smells of burning, or emits smoke, unplug it immediately from the outlet and contact Brondell. Failure to do so may result in electric shock or fire.

• Do not insert cables or sharp objects into product slots. This may cause electric shock, fire, or damage to the product.

• Do not place an electronic or gas heater near the product or dispose of any burning materials such as a lit cigarette in the toilet. This may result in fire or product deformation. Do not place any con-tainers filled with water or other liquids, food, metallic objects, or any flammable material on top of the product. If foreign material enters the product, this may result in electric shock or fire.

• Do not use the product in places subject to excessive moisture and do not splash water on the product.

• When cleaning the bathroom, remove the electrical plug from the outlet and be careful to ensure that water or cleaning supplies do not splash into the bidet. Failure to do so may result in electric shock or fire.

• If foreign matter enters the product, pull the power plug out of the electrical outlet, turn off the main water valve, and call the Brondell Service Center.

• Do not disassemble, repair, or modify the product yourself.

• Do not use the product when it is wet from showering or bathing.

• Do not place or store the product where it could fall or be pulled into a tub or sink.

• Do not immerse or immerse the product in water or other liquids.

• Do not touch the product if it has fallen into water. Remove the product immediately and contact the Brondell Service Center.

• Do not use the product if it does not work properly. Please unplug the product immediately, close the water main, and call the Brondell Service Center at 888-542-3355.

• Otherwise, it may cause electric shock, fire, or flood.

WARNING
Failure to observe the following warnings may result in electric shock, fire, personal injury, property damage or product damage.

• Do not plug in, operate, or store the unit in a location where flammable or combustible materials are used or stored.

• Do not use industrial water, or gray water for supply, as it can cause skin damage or disease.

• Turn off the main water supply valve when cleaning.

• For children and the elderly who find it difficult to adjust the temperature or who have sensitive skin or impaired heat sensitivity, set the wash and seat spray temperature to "low" or "off" to prevent burns.

• Close supervision is necessary when this product is used by children, the elderly, or persons requiring general assistance.

• Do not press the button using excessive force.

• Do not stand on or place heavy objects on the seat cover.

• Use this product only for its intended use, as described in this manual. Do not use attachments not recommended by Brondell.

• Do not operate this product if the cord or plug is damaged, if it is not working properly, if it has been dropped or damaged, or if it has been dropped into water. Contact Brondell Service Center for inspection and repair.

• Keep cables away from heated surfaces and heat vents.

• Do not block the product's air vents or place it on a soft surface, such as a bed or chair, where the air vents may be blocked. Keep the air openings free of lint, hair, etc.

• Do not insert or insert objects into openings or hoses.

• Do not use the product outdoors or operate where aerosol (spray) products are used or rooms where oxygen may be exposed.

• Connect this product to a properly grounded outlet only. See the Grounding Guide on the next page of the manual.

Caution: Failure to observe the following warnings may result in electric shock, fire, personal injury, property damage, or product damage.

• For California Residents: CR2032 batteries contain Perchlorate Materials - special handling may apply. Visit http://www.dtsc.ca.gov/hazardouswaste/perchlorate for more information.

• Do not connect the main water supply to a pipe or hot water supply (only connect to a cold water supply).

• After installation, check that all water supply connections are leak free. A rubber washer must be installed for the water connection hose & T-Valve.

• Do not open/close the seat or close the seat with excessive force.

• Be careful that urine does not come into contact with the product - failure to do so may cause bad odor or malfunction.

• If the product will not be used for a long time, unplug the power cord, close the main water supply valve, and drain any water in the water tank.

• Do not pull out the bidet hose using excessive force.

• Do not use thinner, benzene, acidic chemicals, chlorides, or hydrochloric acid detergents on or near the product. This can cause rust on the metal parts or color or scratches on the body of the bidet.

• This device is not intended for use by persons (including children and the elderly) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction regarding the use of the device by a responsible person. for their safety.

• Children should be supervised so that they do not play with the tool.

GROUNDING AND GFI OUTLET INSTRUCTIONS

This product should only be used with a GFCI (Ground Fault Circuit Interrupter) outlet and a three-prong grounded power cord as shown at right. In the event of an electrical short circuit, use a grounded GFCI outlet to reduce the risk of electric shock.
This product is equipped with a ground wire and is for use only on a nominal 120V circuit (minimum 15 amps) and must be plugged into a properly grounded outlet with a GFCI breaker as shown. Replace or repair damaged cables immediately.

Improper use of the grounding plug may result in a risk of electric shock.

• If repair or replacement of the cord or plug is necessary, do not connect the grounding wire to either flat blade terminal. The wire with green insulation
  (either with or without a yellow stripe) is the grounding wire.

• Check with a qualified electrician if the grounding instructions are not fully understood, or if there is any doubt that the product is properly grounded.

TROUBLESHOOTING

Check before proceeding

• Make sure the Swash is connected to power and the outlet is working properly.

• Make sure you check & test the reset button on the GFCI outlet (Standard 120V GFCI outlet).

• Make sure the Remote Control has new batteries and is installed correctly

• Make sure the main water supply valve is open.

• Make sure the seat is not in Eco Mode.

• Make sure there are no leaks from the hose or water supply.

• Make sure the Mesh Filter is clean and free of build-up or debris (see maintenance section).

After checking the items above, refer to the troubleshooting chart below for additional solutions

WARRANTY

Brondell products are backed by some of the most comprehensive warranties in the industry. Brondell warrants that all products (excluding consumable items) are free from defects in materials and workmanship under normal use and service.

S1200 Residential One-Year Limited Warranty
100% Coverage of all parts and labor for the entire product (excluding consumable filters) for the first year from original date of purchase
S1400 Residential Three-Year Limited Warranty
100% Coverage of all parts and labor for the entire product (excluding consumable filters) for the first year from original date of purchase
75% Coverage of all parts and labor for the entire product (excluding consumable filters) for the second year from original date of purchase
50% Coverage of all parts and labor for the entire product (excluding consumable filters) for the third year from original date of purchase

Brondell Swash 1400 Luxury Bidet Toilet Seats S1400-RB Pros & Cons

Pros

• Adjustable water temperature and pressure
• Stainless steel wand for maximum hygiene
• Wireless remote control for easy operation
• Heated seat and programmable user memory
• Nightlight and slow-closing lid

Cons

• Expensive price point
• Requires a GFCI electrical outlet
• May require professional installation

Customer Reviews

Customers love the Brondell Swash 1400 Luxury Bidet Toilet Seats S1400-RB for its high-end features and luxurious cleaning experience. However, some users have reported issues with the remote control and water temperature adjustments. Overall, the Brondell Swash 1400 is a top-rated product with a 4.5-star rating on Amazon.
