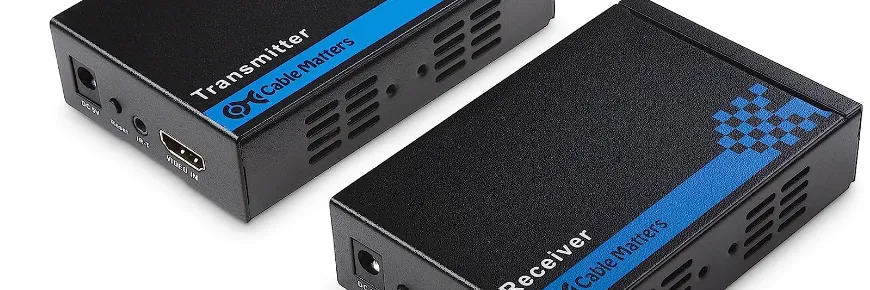

Introduction

A single Cat 6 Ethernet cable can be used to expand HDMI audio and video signals up to 328 feet (100 meters) with the help of the flexible Cable Matters HDMI Extender with IR Control 103002. High-definition audio standards such as Dolby TrueHD and DTS-HD Master Audio are supported by this high-performance extension, which also supports 4K UHD resolution at 60Hz. Users can operate their source device from a distance thanks to its IR control features. This plug-and-play extension kit guarantees dependable and high-quality HDMI signal transmission for home cinemas, conference rooms, classrooms, and digital signage sets, making it ideal for both residential and commercial applications.

Technical Specifications

Extender Connections (Transmitter and Receiver)

Protocol Support

Audio/Video Resolution Support

Transmission Characteristics

Mechanical (Transmitter and Receiver)

Environmental

AC Power Supply

Regulatory Approvals

Warranty

Extend HDMI audio and video connections up to 300 feet

• Utilize existing Cat 6 wiring for an easy installation
• Add up to 8 additional receivers with a dedicated network switch
• Plug & Play without any software drivers or switch settings

PRODUCT OVERVIEW

Package Contents

Please check that the following items are contained in the box: Requires certified Category 6 cabling (sold separately)

• 1 x HDMI Extender Transmitter
• 1 x HDMI Extender Receiver
• 1 x IR Transmitter Cable – 5 Foot
• 1 x IR Receiver Cable – 5 Foot
• 2 x IR cable adhesive mounting circles
• 2 x AC Power Adapters - 5 Foot
• 2 x High Speed HDMI Cables – 6 Foot
• 4 x L Mounting Brackets
• 16 x Mounting Screws
• 1 x User Manual (PDF available from [email protected])

Product Description

The Cable Matters HDMI Extender over Single CAT 6 Cable with IR Control is the ideal solution for connecting HD display equipment in remote locations up to 300 feet apart. Broadcast HDMI audio and video signals to up to 8 displays with a single Cat 6 cable or through a dedicated (not shared) network switch.

Product Features

• Extend HDMI audio/video connections up to 300 feet from an HDMI source such as a computer, Blu-ray player, gaming console, or set-top box to an HDMI display such as an HDTV, monitor, or projector over a single Cat 6 UTP/STP cable
• Connect up to 8 additional (sold separately) through a dedicated network switch
• Plug & Play installation automatically discovers HDMI receivers using existing Cat 6 cabling
• Control the video source (player) from the remote display location (monitor) with the included IR cables that use a dedicated DDC channel
• Supports video resolutions of 1080p/1080i/720p/576p/576i/480p/480i at 50/60 Hz and most audio formats
• Compatible with HDCP compliant equipment for transmitting copy-protected video
• Compatible with an HDMI switch or HDMI matrix
• Connects equipment with DVI ports for transmitting video only when used with an HDMI to DVI adapter (sold separately)
• HDMI Extenders are AC powered to eliminate voltage drop
• A repeater chipset provides automatic adjustment of signal feedback, equalization, and amplification
• Sturdy metal enclosure provides durability and reduces EMI noise
• Gold-plated connector ports resist corrosion and improve the signal performance
• Surface mountable with included brackets and screws

Setup Guide

The Cat-6 Cable Control 103002 is simple to set up and takes little time. Using the included screws, simply fasten the two-piece mounting bracket to the wall or another level surface. After the bracket is firmly in position, put the cable control onto it and tighten the thumbscrew to secure it. Your Ethernet wires should be fed through the opening on top of the cable control before being routed via the cable management system. The Cat-6 Cable Control 103002 is ready for usage after all cables are installed and the cover is put back on.

CONNECTION INSTRUCTIONS

Installation Checklist

Please review the installation checklist before installing the HDMI adapters. Test an active configuration with the included HDMI cables before installing permanently. Sections 3.2 and 3.3 provide a description of the external connections to the Extenders. Section 3.5 provides Troubleshooting notes.

• Power off the connected HDMI source and destination equipment before connecting the HDMI extenders or any cabling.
• The HDMI Extender boxes can be surface mounted with the included hardware.
• Locate the Extenders within 5 feet of an electrical outlet for power.
• The included HDMI cables are recommended for the best performance. When using other HDMI cables, they should be high quality with bare copper conductors in the shortest length necessary.
• Cat 6 cabling with 24 AWG wire is recommended for the best performance. All cabling or network components connected to the HDMI Extenders should be rated for Cat 6 performance.
• The Extenders are wired with a TIA/EIA 568-B straight-through configuration. The Cat 6 cabling should be wired for 568-B.
• Cat 6 unshielded twisted pair (UTP) cable is appropriate for short to medium lengths in a low RFI/EMI noise environment. Cat 6 shielded cable (STP) is appropriate for medium to long lengths with potential RF/EM interference.
• The optional IR Transmitter cable (IR-T) must be within 5 feet of the HDMI source. It can be mounted directly over the IR sensor of the video source so it can be controlled remotely. Adhesive mounting circles are included for both cables.
• The IR Receiver (IR-R) cable face must be positioned to have line of sight for a hand-held remote.

• Use an HDMI to DVI adapter (sold separately) to connect to equipment with a DVI port. DVI does not support audio transmission; it must be transmitted separately.

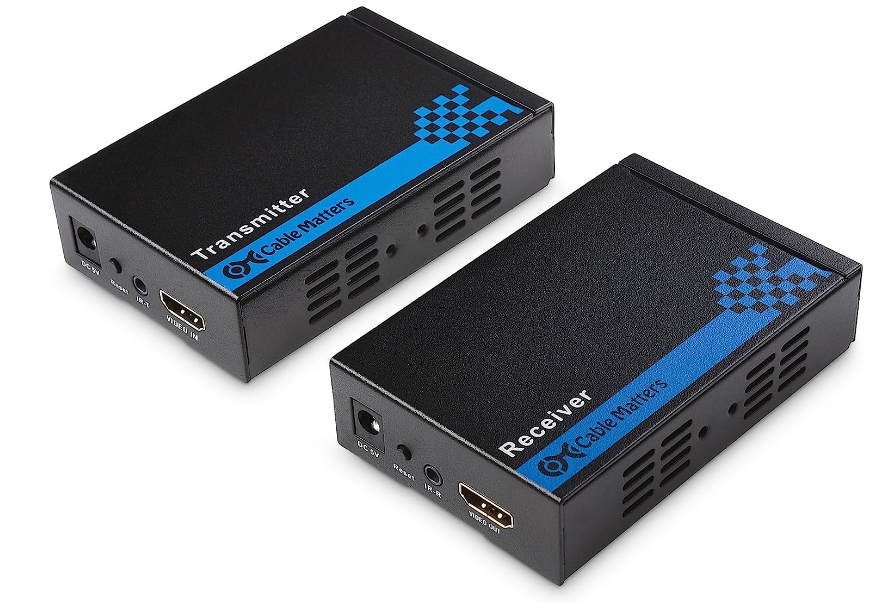

Transmitter Panel Connections

1. Power off the source equipment and destination display before connecting any cabling.
2. Connect the power adapter to the Transmitter and to an electrical outlet. Check that the green LED is lit.
3. Connect an HDMI cable from the ‘HDMI IN’ female port on the Transmitter box to the video source female port.
4. Connect the Cat 6 cable to the CAT 6 port on the Transmitter. Optional: Connect the IR Transmitter cable (IR-T) to the female port of the Extender. It must have line-of-sight with the infrared eye of the video source.

Receiver Panel Connections

1. Connect the power adapter to the Receiver and to an electrical outlet. Check that the green LED is lit.
2. Connect an HDMI cable from the ‘HDMI OUT’ female port on the Receiver box to the HDMI destination display female port.
3. Connect the Cat 6 cable to the CAT 6 port on the Receiver.
4. Turn on the power to the source equipment and connected display and wait a few seconds for the signal to synchronize. Optional: Connect the IR Receiver cable (IR-R) to the female port of the Receiver. Place it in a location that has line-of-sight with a hand-held remote for the video source.

Connecting Additional Receivers

HDMI Extender Receiver boxes (Model 103002-R) are sold separately.

• Each receiver box (up to 8) can be connected over existing wiring with a dedicated (not shared) network switch.
• Test each new Receiver box directly with the original Transmitter box before connecting with a network switch and installing permanently.
• Each Receiver box must be located within 5 feet of an electrical outlet.
• The Receiver box is surface mountable with included brackets and screws.

• An optional IR Receiver cable is included for controlling the video source. Place it in a location that has line-of-sight with the hand-held remote for the video source.



NOTE: Refer to the user manual of your monitor, TV, or projector for changing the resolution and sound input settings and verifying that audio is supported.

Troubleshooting

Please review the following notes if you have any problems connecting the Extenders, HDMI equipment, or cabling.

• Check that both Extenders and the connected equipment have power. The green LED power indicators should be lit on both Extender boxes.
• Check that the correct video input is selected on the output display HDMI devices.
• Check the video resolution settings of the video source and output displays to verify that they are compatible.
• Check the audio settings from the HDTV display menu or from the system settings of the computer to verify the audio output destination.
• Test each HDMI cable by connecting it directly to any equipment with HDMI. When using HDMI cables longer than 10 feet, they should be high quality cables.
• If using a dedicated network switch, verify that the switch has power and is able to successfully connect other devices.
• Test the Cat 6 cable connections with a cable tester. Verify that the Cat 6 cable is terminated using the TIA/EIA 568-B wire termination.
• Sharp bending of the CAT 6 cable near the connector may reduce the bandwidth and cause video signal problems.
• The IR Transmitter and Receiver cables must have line of sight with the source IR sensor and the hand-held remote for the video source.
• If the HDMI image is flickering, it may be due to a harsh environment with EMI or RFI interference. Shielded Cat 6 cabling may be required.
• Press the reset button for 10 seconds after making any changes to the connected equipment.

Warranty

This product is backed by a limited one-year warranty. In addition, Cable Matters warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replaced with equivalent products at our discretion. The warranty covers parts and labor costs only. Cable Matters does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Pros & Cons

Pros

• Durable and sturdy design
• Removable cover for easy access to cables
• 2-piece mounting bracket for easy installation
• Compatible with Cat-6 Ethernet cables
• High-quality materials for a sleek, professional appearance

Cons

• May be difficult to remove the cover for some users
• Cables may not stay in place without the use of cable ties

Customer Reviews

"The Cat-6 Cable Control 103002 is a game-changer for my workspace. I no longer have to deal with tangled and messy cables, and the cable management system looks great. Highly recommend!"

"I was hesitant to spend the money on a cable management system, but the Cat-6 Cable Control 103002 was worth every penny. The construction is high-quality, and it's easy to access my cables when I need to. A must-have for any organized workspace."
