Introduction

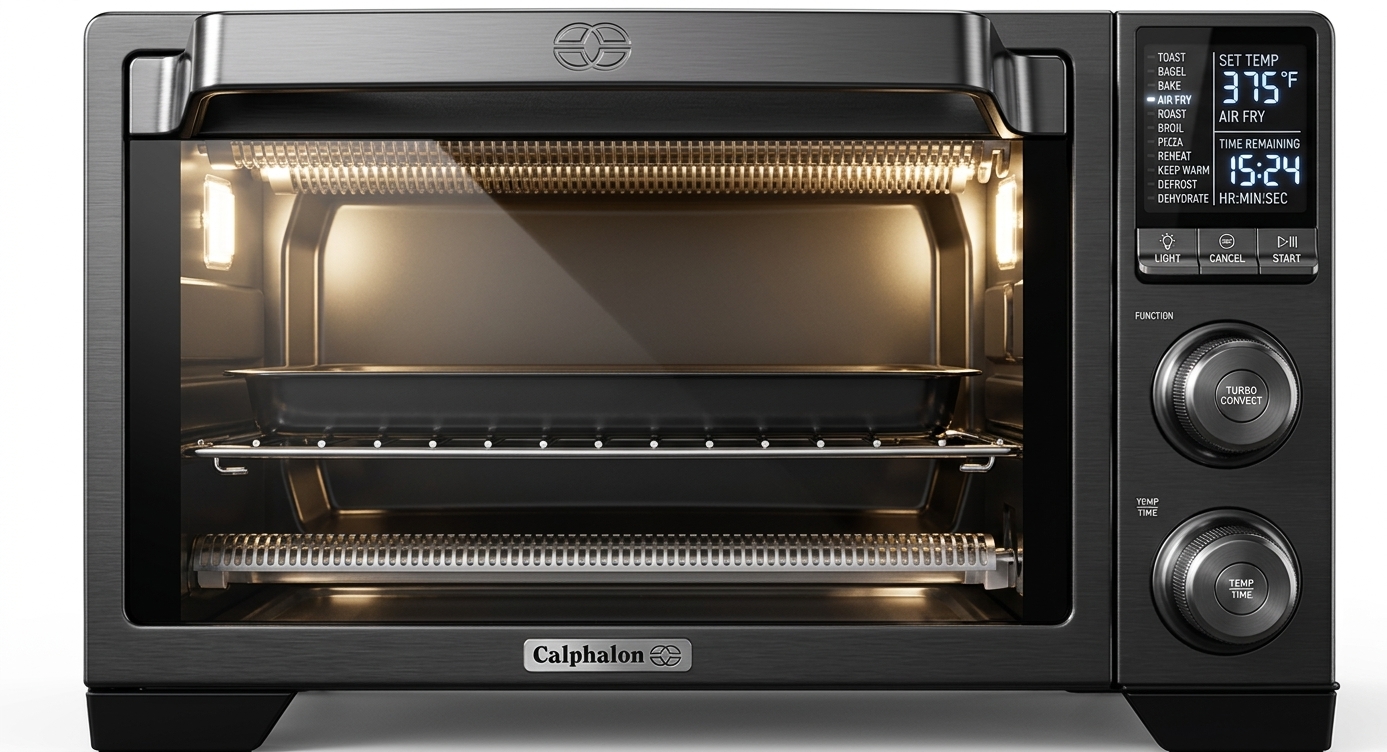

Designed to enhance your cooking experience, the Calphalon Cool Touch Countertop Oven TSCLTVCT2 is a lightweight, high-performing device. You may feel secure knowing that your oven is safe to handle while in operation thanks to its unique cool touch exterior. This multipurpose oven can bake, roast, broil, and perform a variety of other cooking duties, making it an ideal addition to any kitchen.

Detailed Specifications

The Calphalon Cool Touch Countertop Oven TSCLTVCT2 is packed with features that can help you cook your meals to perfection.

Here are some of its key specifications:

• Dimensions: 17.5 x 15.6 x 11.2 inches
• Weight: 22.4 pounds
• Capacity: 12 inches of pizza, 6 slices of bread, or a 5-pound chicken
• Temperature range: 150 to 450 degrees Fahrenheit
• Timer: Up to 2 hours
• Cool Touch exterior for safety
• 11 preset cooking functions, including baking, broiling, toasting, and reheating
• Non-stick interior for easy cleaning

PRODUCT DIAGRAM

1. LCD Screen Display
2. Step Cook, Keep Warm, Defrost, Light, Start, Cancel/Off Buttons
3. Function Selector Dial
4. Turbo Convection Selector Button
5. Time/ Temperature Selector Button
6. Time/ Temperature Control Dial
7. Two Rack Positions
8. Dehydrate Rack
9. Baking Pan
10. Pizza Pan
11. Removable Wire Rack
12. Removable Crumb Tray
13. Interior Light (G9 bulb 25w 120v) (not shown in the image)

*These parts can be replaced on Calphalon.com or at 1-800-809-7267

LCD DISPLAY

1. Function Options
2. Function Indicator
3. Shade Setting or Temperature Setting
4. Timer

5. Turbo Convection Icon



Description

The convection technology of the Calphalon Cool Touch Countertop Oven TSCLTVCT2 distributes hot air throughout the oven to ensure even baking and cooking. With the use of this feature, you can cook food more quickly and evenly, giving you wonderful dinners in no time. In addition, the oven's cool touch exterior eliminates the possibility of unintentional burns or injuries during cooking. The Calphalon Cool Touch Countertop Oven TSCLTVCT2's 11 preset cooking modes are one of its best features; they make it easy to cook a wide range of foods. This oven includes a setting that can help you get the best results whether you're roasting a chicken, toasting bread, or baking a pizza.

PREPARING YOUR COUNTERTOP OVEN

• Remove all packaging before using the Calphalon® Cool Touch Countertop Oven.
• Wipe Countertop Oven with a damp cloth. DO NOT IMMERSE IN WATER. Make sure to only use mild, soapy water. Abrasive cleaners, scrubbing brushes, and chemical cleaners will damage the coating on this unit. Dry the unit thoroughly before using.

NOTE: Do not immerse the cord, plug, or body of the unit in water.

• Clean accessories. Remove them from packaging and immerse in warm, soapy water and wipe with a soft cloth or sponge. These accessories may also be washed in the top rack of the dishwasher. Dry thoroughly.
• Select a location for the countertop oven. The location should be in an open area, on a dry, stable, level surface where the plug will reach an outlet.
• Plug the Countertop Oven into the electrical outlet.

NOTE: Only the top, left side, right side, and front of the oven are cool touch.

OVEN FUNCTIONS OVERVIEW

HOW TO USE YOUR COUNTERTOP OVEN

• Once the Calphalon® Cool Touch Countertop Oven is plugged in, the LCD screen will illuminate and the START Button LED light will flash.
• The Function Options will be displayed on the LCD Screen with the Function Indicator on the default preset TOAST function.
• Turn the Function Selector Dial to select one of the following 10 options: Toast (Default), Bagel, Bake, Roast, Broil, Proof, Pizza, Cookies, Reheat, And Dehydrate. The Function Indicator will scroll as the Function Selector Dial is turned.
• To select Step Cook, Keep Warm, or Defrost, select the appropriate function below the LCD display.
• Once the desired function has been selected, use the Time/Temperature Control Dial to select the desired cooking temperature or shade (for TOAST and BAGEL functions). Turn clockwise to increase and counter-clockwise to decrease.
• Press the START button to begin preheating. PREHEATING will display on the LCD screen. Ensure the Oven door is closed for preheating. The oven does not preheat for BAGEL and TOAST functions. For these functions, food items may be placed inside the Oven immediately after pressing the START button. If desired, the preheat cycle can be skipped by pressing the Start button a second time.
• Once preheating is complete, an audible alert will sound and the START button will flash. Carefully place food in the center of the wire rack for more even cooking and close the countertop oven door. Press the START button to begin the baking cycle.

NOTE: An audible alert will sound and repeat in 1-minute intervals once the oven has preheated until the START button is pressed. The oven will automatically begin the baking cycle if the START button is not pressed after 5 minutes.

You may set the timer before the oven begins preheating, during preheating, or once preheating is complete. Press the Time/Temperature Selector Button to change the Time/Temperature Selector Dial to time selection. Turn the dial clockwise to increase cooking time and counter-clockwise to decrease cooking time.

NOTE: TOAST and BAGEL functions automatically select time based on shade setting.

Once preheating is complete and the timer is set, put food into the Countertop Oven, using the Wire Rack, Baking Pan, Pizza Pan, or Dehydrator Rack. When using the Baking Pan or Pizza Pan, always place on top of the Wire Rack.

NOTE: Never place food or accessories directly on the Quartz Heating elements.

• Once the food is inside, close the door and press the START button again. The Timer will begin counting down.
• Press the Turbo Convect Button for better air circulation and crispier food if needed.
• Once the allotted time has expired, the Countertop Oven will beep, and it will stop heating, but the display will remain lit for a period of time and then it will time out. You may press Cancel/OFF to turn off the display before it times out.
• Use pot holders to carefully remove food from the Countertop Oven.
• The LCD screen light will turn off after 90 seconds of inactivity. Press any button to wake up the appliance.
• Press the Cancel/OFF Button to turn off the Countertop Oven.

1. Keep the oven door closed during and after the cooking cycle once food has been removed. Note that the temperature on the top of the oven will rise whenever the door is open due to heat escape.
2. The cooling fan will run for a variable amount of time following a cooking cycle even though the oven is not on. Please do not unplug the unit while the fan is running.

NOTE: For further details on product features and usage instructions, please visit http://www.calphalon.com

COOKING FUNCTIONS DETAILS

Toast

For best TOAST results, place the wire rack in the upper rack position. This function is ideal for toasting sliced bread, English muffins, and frozen waffles.

NOTE: For darker toast results, use a higher shade setting.

1. Insert the wire rack into the upper rack position.
2. Place food in the center of the wire rack for more even toasting.
3. Close the countertop oven door.
4. Turn the Function Selector Dial to select the TOAST function. Once the function has been selected, use the Time/Temperature Control Dial to select the desired shade. Turn the Time/Temperature Control Dial clockwise to increase shade selection and counter-clockwise to decrease.
5. Press the START button to begin toasting.
6. When the toasting cycle is complete, an audible alert will sound.
7. Open the countertop oven door fully and remove food carefully with an oven mitt.

WARNING: Cooked food can be very hot. Handle with care. Do not leave the countertop oven unattended.

Bagel

For optimal results, place the wire rack in the upper rack position.

1. Insert the wire rack into the upper rack position.
2. Place food in the center of the wire rack for more even cooking.
3. Close the countertop oven door.
4. Turn the Function Selector Dial to select the BAGEL function. Once the function has been selected, use the Time/Temperature Control Dial to select the desired shade. Turn the Time/Temperature Control Dial clockwise to increase shade selection and counter-clockwise to decrease.
5. Press the START button to begin the bagel cycle.
6. When the bagel cycle is complete, an audible alert will sound.
7. Open the countertop oven door fully and remove food carefully. We recommend using oven mitts or pot holders when removing food from the countertop oven.

WARNING: Cooked food can be very hot. Handle with care. Do not leave the countertop oven unattended.

Bake

For optimal results, place the wire rack in the lower rack position.

1. Insert the wire rack into the lower rack position. Note that certain baked goods call for upper rack placement.
2. Ensure the countertop oven door is closed for preheating.
3. Turn the Function Selector Dial to select the BAKE function. Once the function has been selected, use the Time/Temperature Control Dial to select the desired cooking temperature and time. Turn the Time/Temperature Control Dial clockwise to increase temperature and time and counter-clockwise to decrease.
4. Press the TURBO CONVECT button for better air circulation and crispier food if needed. The turbo convection fan will appear on the LCD screen to indicate that Turbo Convection is on. To cancel the convection setting, press the TURBO CONVECT button once more.
5. Press the START button to begin preheating. PREHEATING will appear on the LCD screen.
6. Once preheating is complete, an audible alert will sound. The START button will flash.
7. Carefully place food in the center of the wire rack for more even cooking.
8. Close the countertop oven door.
9. Press the START button to begin the baking cycle.

Note: An audible alert will sound and repeat in 1-minute intervals once the oven has preheated until the START button is pressed. The oven will automatically begin the baking cycle if the START button is not pressed after 5 minutes.

1. When the baking cycle is complete, an audible alert will sound.
2. Open the countertop oven door fully and remove food carefully. We recommend using oven mitts or pot holders when removing food from the countertop oven.

WARNING: Cooked food can be very hot. Handle with care. Do not leave the countertop oven unattended.

Roast

For optimal results, place the wire rack in the lower rack position.

1. Insert the wire rack into the lower rack position.
2. Ensure the countertop oven door is closed for preheating.
3. Turn the Function Selector Dial to select the ROAST function. Once the function has been selected, use the Time/Temperature Control Dial to select the desired cooking temperature and time. Turn the Time/Temperature Control Dial clockwise to increase temperature and time and counter-clockwise to decrease.
4. Press the TURBO CONVECT button for better air circulation and crispier food if needed. The turbo convection fan will appear on the LCD screen to indicate that Turbo Convection is on. To cancel the convection setting, press the TURBO CONVECT button once more.
5. Press the START button to begin preheating. PREHEATING will appear on the LCD screen.
6. Once preheating is complete, an audible alert will sound. The START button will flash.
7. Carefully place food in the center of the wire rack for more even roasting.
8. Close the countertop oven door.
9. Press the START button to begin the roasting cycle.

Note: An audible alert will sound and repeat in 1-minute intervals once the oven has preheated until the START button is pressed. The oven will automatically begin the roasting cycle if the START button is not pressed after 5 minutes.

1. When the roasting cycle is complete, an audible alert will sound.
2. Open the countertop oven door fully and remove food carefully. We recommend using oven mitts or pot holders when removing food from the countertop oven.

WARNING: Cooked food can be very hot. Handle with care. Do not leave the countertop oven unattended.

Broil

For optimal results, place the wire rack in the lower rack position.

1. Insert the wire rack into the upper rack position.
2. Ensure the countertop oven door is closed for preheating.
3. Turn the Function Selector Dial to select the BROIL function. Once the function has been selected, use the Time/Temperature Control Dial to select the desired cooking temperature and time. Turn the Time/Temperature Control Dial clockwise to increase temperature and time and counter-clockwise to decrease.
4. Press the TURBO CONVECT button for better air circulation and crispier food if needed. The turbo convection fan will appear on the LCD screen to indicate that Turbo Convection is on. To cancel the convection setting, press the TURBO CONVECT button once more.
5. Press the START button to begin preheating. PREHEATING will appear on the LCD screen.
6. Once preheating is complete, an audible alert will sound. The START button will flash.
7. Carefully place food in the center of the wire rack for more even broiling.
8. Press the START button to begin the broiling cycle.

Note: An audible alert will sound and repeat in 1-minute intervals once the oven has preheated until the START button is pressed. The oven will automatically begin the broil cycle if the START button is not pressed after 5 minutes.

1. When the broiling cycle is complete, an audible alert will sound.
2. Open the countertop oven door fully and remove food carefully. We recommend using oven mitts or pot holders when removing food from the countertop oven.

WARNING: Cooked food can be very hot. Handle with care. Do not leave the countertop oven unattended.

Pizza

For optimal results, place the wire rack in the lower rack position.

1. Insert the wire rack into the lower rack position.
2. Ensure the countertop oven door is closed for preheating.
3. Turn the Function Selector Dial to select the PIZZA function. Once the function has been selected, use the Time/Temperature Control Dial to select the desired cooking temperature and time. Turn the Time/Temperature Control Dial clockwise to increase temperature and time and counter-clockwise to decrease.
4. Press the TURBO CONVECT button for better air circulation and crispier food if needed. The turbo convection fan will appear on the LCD screen to indicate that Turbo Convection is on. To cancel the convection setting, press the TURBO CONVECT button once more.
5. Press the START button to begin preheating. PREHEATING will appear on the LCD screen.
6. Once preheating is complete, an audible alert will sound. The START button will flash.
7. Carefully place pizza on the pizza pan and place it in the center of the wire rack for more even cooking.
8. Close the countertop oven door.
9. Press the START button to begin the pizza cycle.

Note: An audible alert will sound and repeat in 1-minute intervals once the oven has preheated until the START button is pressed. The oven will automatically begin the baking cycle if the START button is not pressed after 5 minutes.

1. When the pizza cycle is complete, an audible alert will sound.
2. Open the countertop oven door fully and remove food carefully. We recommend using oven mitts or pot holders when removing food from the countertop oven.

WARNING: Cooked food can be very hot. Handle with care. Do not leave the countertop oven unattended.

Cookies

For optimal results, place the wire rack in the upper rack position.

1. Insert the wire rack into the upper rack position.
2. Ensure the countertop oven door is closed for preheating.
3. Turn the Function Selector Dial to select the COOKIES function. Once the function has been selected, use the Time/Temperature Control Dial to select the desired cooking temperature and time. Turn the Time/Temperature Control Dial clockwise to increase temperature and time and counter-clockwise to decrease.
4. Press the TURBO CONVECT button for better air circulation and crispier food if needed. The turbo convection fan will appear on the LCD screen to indicate that Turbo Convection is on. To cancel the convection setting, press the TURBO CONVECT button once more.
5. Press the START button to begin preheating. PREHEATING will appear on the LCD screen.
6. Once preheating is complete, an audible alert will sound. The START button will flash.
7. Place cookies on the baking pan. Then, carefully place the baking pan on the wire rack.
8. Close the countertop oven door.
9. Press the START button to begin the cooking cycle.

Note: An audible alert will sound and repeat in 1-minute intervals once the oven has preheated until the START button is pressed. The oven will automatically begin the baking cycle if the START button is not pressed after 5 minutes.

1. When the cooking cycle is complete, an audible alert will sound.
2. Open the countertop oven door fully and remove food carefully. We recommend using oven mitts or pot holders when removing food from the countertop oven.

WARNING: Cooked food can be very hot. Handle with care. Do not leave the countertop oven unattended.

Setup Guide

Setting up the Calphalon Cool Touch Countertop Oven TSCLTVCT2 is easy. Here are the steps to follow:

1. Unbox the oven and remove all packaging materials.
2. Place the oven on a flat and stable surface.
3. Plug the oven into a power outlet.
4. Press the power button to turn on the oven.
5. Use the control panel to select the cooking function, temperature, and time.
6. Place your food inside the oven and close the door.
7. Wait for the oven to reach the desired temperature before starting to cook.
8. Use the oven mitts or gloves provided to handle the oven and the hot dishes.

CLEANING & MAINTENANCE

• Clean oven and any accessory after each use.
• Before cleaning your Calphalon® Cool Touch Countertop Oven, press the CANCEL/OFF button to turn OFF the countertop oven. Unplug the cord and allow it to cool before cleaning.
• To clean exterior of oven, wipe with a damp cloth. DO NOT IMMERSE IN WATER. Make sure to only use mild, soapy water. Abrasive cleaners, scrubbing brushes and chemical cleaners will damage the coating on this unit.
• To clean Wire Rack, Baking Pan, Dehydrate Rack, or Pizza Pan remove from the Oven and immerse in warm, soapy water and wipe with soft cloth or sponge. These accessories may also be washed in the top rack of the dishwasher. Dry thoroughly.
• Remove the Removable Crumb Tray and shake off crumbs. Wash with soapy water, and dry thoroughly. Cleaning the Crumb Tray often will avoid any accumulations.

This appliance has no user serviceable parts. Any servicing beyond that described in the Cleaning Section should be performed by an Authorized Service Representative only. See warranty available online.
CHANGING THE LIGHTBULB

• Remove all accessories from the Countertop Oven.
• Remove Interior Light bulb cover by turning it counter-clockwise, and then pull out interior light bulb.
• Insert new 25w 120v G9 bulb, per instructions on light bulb package. Then replace interior Light bulb cover, turning clockwise to tighten.

NOTE: This should be done when the oven has been off for a while and no longer hot.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following:

1. Read all instructions before using this product.
2. This appliance generates heat during use. Do not touch hot surfaces. Use handles or knobs. Always protect your hands with non-slip oven mitts or similar.
3. To protect against electric shock, do not place or immerse cord, plugs, or appliance in water or other liquid.
4. This appliance is not intended for use by children or by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance. Keep the appliance and its cord out of reach of children.
5. Unplug from outlet when not in use, before putting on or taking off parts and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning. To disconnect, turn any control to OFF, then unplug the power cord from the outlet. Do not disconnect by pulling on the cord. Always grasp the plug and pull to disconnect.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Do not attempt to replace or splice a damaged cord. Return the appliance to the manufacturer (see warranty) for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. Do not use outdoors or for commercial purposes.
9. Do not let the cord hang over the edge of the table or counter, or touch hot surfaces.
10. Do not place on or near wet surfaces, or heat sources such as a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving an appliance or removing a pan, containing hot oil or other hot liquids. Always protect your hands with non-slip oven mitts or similar.
12. Do not use the appliance for other than intended use. Misuse can cause injuries. Intended for household countertop use only. Keep 8 inches (203 mm) clear from the wall and on all sides. Always use the appliance on a dry, stable, level surface.
13. Oversize foods or metal utensils must not be inserted in a toaster-oven as they may create a fire or risk of electric shock.
14. A fire may occur if the toaster-oven is covered, touching, or near flammable materials, including curtains, draperies, towels, walls, and the like, when in operation. Do not store any item on top of the appliance when in operation.
15. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.
16. Extreme caution should be exercised when using containers constructed of materials other than metal or glass.
17. Do not store any materials, other than the manufacturer’s recommended accessories, in this oven when not in use.
18. Do not place any of the following materials in the oven: paper, cardboard, plastic, or any materials that may catch fire or melt.
19. Do not cover the crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.
20. Empty the crumb tray after each use.
21. The glass door is made of tempered glass. Always inspect the glass door for chips, cracks, or any other damage. Do not use the toaster oven if the glass door is damaged, as the glass may shatter during use.
22. If your toaster oven is equipped with a STAY-ON feature, the toaster oven will stay ON if the knob is turned counter-clockwise past zero. Exercise caution when using this feature and do not operate unattended for long periods.
23. Do not use with a programmer, timer, wireless plug adapter or outlet that allows control remotely, or connect to a circuit that is regularly switched on and off by the utility.

SAVE THESE INSTRUCTIONS HOUSEHOLD USE ONLY

North American models with polarized plugs

POLARIZED PLUG
This appliance has a polarized plug, (one blade is wider than the other). As a safety feature to reduce the risk of electrical shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature or modify the plug in any way. If the plug fits loosely into the AC outlet or if the AC outlet feels warm, do not use that outlet.

POWER CORD INSTRUCTIONS: A short power-supply cord or detachable power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. If a long detachable power-supply cord or extension cord is used:

1. The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance;
2. The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally; and
3. If the appliance is of the grounded type, the cord set or extension cord should be a grounding-type 3-wire cord.

Do not pull, twist or otherwise abuse the power cord.

NOTICES

1. Some countertop and table surfaces are not designed to withstand the prolonged heat generated by certain appliances. Do not set the heated unit on a finished wood table. We recommend placing a hot pad or trivet under your toaster oven to prevent possible damage to the surface.
2. During the initial use of this appliance, some slight smoke and/or odor may be detected. This is normal with many heating appliances and will not recur after a few uses.

TROUBLESHOOTING

ERROR CODE TROUBLESHOOTING

Calphalon WARRANTY

3 YEAR LIMITED WARRANTY
Calphalon (“Calphalon”) warrants that for a period of three year from the date of purchase, this product will be free from defects in material and workmanship.  Calphalon, at its option, will repair or replace this product or any component of the product found to be defective during the guarantee period.

Pros & Cons

Here are some of the pros and cons of the Calphalon Cool Touch Countertop Oven TSCLTVCT2:

Pros

• Spacious interior that can accommodate a variety of dishes
• Cool touch exterior for safety
• 11 preset cooking functions for convenience
• Convection technology for even cooking and baking
• Non-stick interior for easy cleaning

Cons

• May be too large for some kitchen counters
• Can be expensive for some buyers
• Some users may find the control panel confusing to use

Customer Reviews

The Calphalon Cool Touch Countertop Oven TSCLTVCT2 has received positive reviews from many customers, who praise its spacious interior, even cooking, and ease of use. However, some users have reported issues with the control panel and the oven's size. Some customers have also complained about the high price point, but many believe that the oven's features and performance justify the cost. Overall, the Calphalon Cool Touch Countertop Oven TSCLTVCT2 is a powerful and versatile appliance that can help you cook a variety of dishes with ease and convenience. While it may be expensive for some buyers, its features and performance make it a worthwhile investment for serious cooks and bakers.
