Introduction

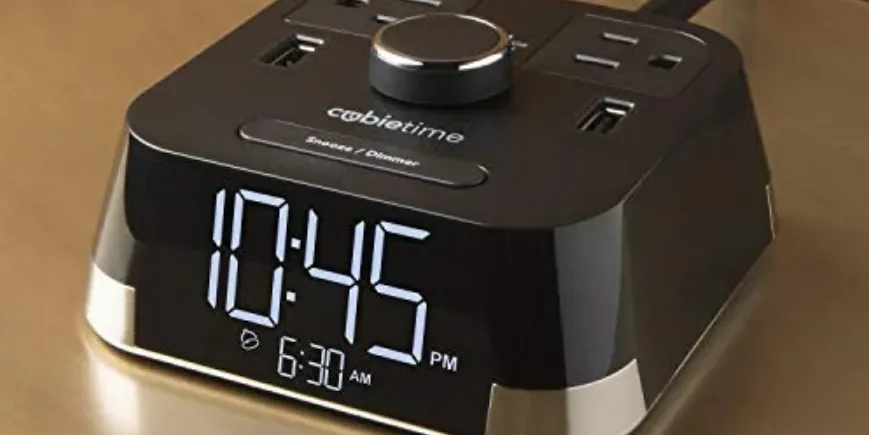

The Brandstand CubieTime Charging Clock is a compact and efficient alarm clock designed for modern convenience, particularly in hotel rooms. It features a simple single-day alarm, one USB-A and one USB-C charging port, along with two AC power outlets, allowing users to charge multiple devices simultaneously. The price for this product is approximately $53.99. With its display dimmer and surge protection, the CubieTime ensures a user-friendly experience while maintaining safety standards.

The information in this document is subject to change and does not represent a commitment on the part of Brandstand Products. No part of this document may be reproduced, transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or information storage and retrieval systems, or translated into any language for any purpose other than the purchaser’s personal use, without the written permission of Brandstand Products.

Technical Specifications

Continuous Duty Electrical Rating
125VAC 12A 60Hz 1500W
Maximum Energy Dissipation
600J L-N 300J L-G 300J N-G 300J
Maximum Spike Current
36000A L-N 12000A L-G 12000A N-G 12000A
UL Clamping Voltage (3-line)
UL1449 800V
AC Outlets Output
125V 12A
Powered USB Output
5V/2400mA shared
EMI/RFI Filtration
150kHz-1000MHz up to 40db
Surge Response Time (ns)
<20 ns
Working Temperature
No higher than 95º F
Power Cord
6ft 15W 3-line
Housing Material
UL94V-0
Working Surroundings
Indoor Fixed Mount

Features

User-friendly alarm clock with single day alarm (optional)
Convenient connections for AC and USB-powered devices
Efficient and stylish design
Surge protection through all AC outlets and/or USB Ports

Product Description

2 AC Outlets
2 USB Charging Ports
Single Day Alarm Clock
Right Angle Pass-Through Plug
Surge Protection
6ft 15A Power Cord
Adhesive Mounting Pad
Security C-Clamp
2 Wood Screws (included)

Important Safeguards

CAUTION: Do not install this device if there is not at least 10 meters (30 feet) or more of wire between the electrical outlet and the electrical service panel.
Ensure that the unit is plugged into an AC120V~60Hz outlet. The use of incorrect outlets could cause the unit to malfunction or catch fire.
To reduce the risk of fire or electrical shock, do not use this device with a receptacle in which the slot openings do not align with the blades.
Do not allow children to operate the unit without adult supervision.
Always ensure the product is unplugged from the electrical outlet before relocating or cleaning it.
Keep the power cord and product away from heated surfaces.
The unit should not be exposed to dripping or splashing and no objects filled with liquids, such as vases, should be placed on or around the product.
Do not place or drop product into water or other liquids. If product falls into water, immediately unplug it from the electrical outlet; do not pull on power cord.
Do not put any stress on the power cord where it connects to the product as the power cord could fray and break.
Do not plug/unplug the product into/from the electrical outlet with a wet hand.
Do not operate the product if it has a damaged or cut power cord or adapter, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if it is dropped in or exposed to water.
Place the unit where there is good air circulation.
This product has no user-serviceable parts. Do not attempt to examine or repair this product yourself. Only qualified service personnel should perform the servicing; take the product to an electrical repair shop of your choice for inspection and repair.
No open flame sources, such as candles, should be placed on the product.
Product should only be used indoors and in dry locations. It should not be used with aquariums or other water-related products.
Never allow any water or other liquids to get inside the unit while cleaning.

Battery Handling and Usage

WARNING: Only adults should handle batteries. Do not allow a child to use this product unless the Battery Compartment Cover is securely attached to the Battery Compartment in accordance with all product usage instructions.

Follow the battery manufacturer’s safety and usage instructions.
Keep batteries away from children and pets.
Do not mix a new and a used battery or mix batteries of different chemistries or sizes.
Insert the batteries observing the proper polarity (+/-) as indicated inside the battery compartment. Failure to properly align the battery polarity can cause personal injury and/or property damage.
Remove spent or discharged batteries when not using the product for an extended period.
Never throw batteries into a fire. Do not expose batteries to fire or other heat sources.
Dispose of or recycle spent/discharged batteries in compliance with all applicable laws. For detailed information, contact your local solid waste authority.

Top View

Description

The CubieTime Charging Clock is designed with user convenience in mind. Its compact size and sleek design make it perfect for placement on a bedside table or desk. The large LED display ensures that you can easily see the time, date, and temperature from across the room. The wireless charging pad supports all Qi-compatible devices, eliminating the need for cables and clutter.

The clock also features multiple alarm settings, allowing you to customize your wake-up times for different days of the week. An additional USB port provides an extra charging option for other devices. The snooze function allows for a quick five-minute snooze without having to reset the alarm entirely.

Unpacking and Set up

Carefully remove from packaging. Verify that you have all necessary components before you dispose of display carton.
Component List:
- CubieTime Main Unit
- C-Clamp
- 2 Wood Screws
Place in desired location.
Note: This product is designed to be used on a level, stable, flat surface such as a table, desk, shelf or stand, convenient to an AC outlet, out of direct sunlight and away from sources of excess heat, dust, moisture or vibration.
Plug directly into wall AC outlet. Do not plug into another surge protector or extension cord.
Secure cord with C-Clamp to back of nightstand or desk. Wood screws are included.

Setting the Time

Press and hold SNOOZE/DIMMER button for 6 seconds
Year will begin to flash, adjust by rotating knob, press the knob to select
Month will begin to flash, adjust by rotating knob, press knob to select
Day will begin to flash, adjust by rotating knob, press knob to select
Hour will begin to flash, adjust by rotating knob, press knob to select hour.
Minutes will begin to flash, adjust by rotating knob, press knob to select minutes.

Setting the Alarm

Press knob to turn ON alarm
Alarm time will begin to flash, adjust by rotating knob, press knob to select. (Alarm will automatically set to last selected alarm time after 6 seconds)
Press knob to turn OFF alarm
In Single Day Alarm On Mode: alarm time will reset to 6:00am with every activation of the alarm.
In Single Day Alarm Off Mode: the alarm time will default back to the
last set alarm time with every activation.

Secure Battery Door/Hidden Switches

Single Day Alarm (Preset to ON)

ON: Alarm time will reset to 6:00am with every activation of the alarm.
OFF: the alarm time will default back to the last set alarm time with every activation.

Daylight Saving Time (Preset to ON)

ON: Time will automatically update +1 or -1 hour based on the pre-set Daylight Saving Time Calendar. Year, Month and Day must be set correctly for this feature to work properly
OFF: Time will not automatically update for Daylight Saving Time. Any changes to the time must be manually updated.

Back Up Battery Function
Two "AAA" size batteries are supplied with the clock. If the AC supply is interrupted, the internal clock will not be interrupted due to battery back up. The back up battery will not support the Alarm Settings.

Other Features

Snooze/Dimmer Button

When in standby mode, press SNOOZE/DIMMER button to change brightness (off, dimmest, medium, brightest). When the display is turned off, user can also press or rotate the knob to turn display on.
When alarm is sounding, press SNOOZE/DIMMER button to go to snooze status, the alarm symbol will flash and the alarm will resound after 9 minutes.

Gradual Awake
Alarm will sound in a low volume and gradually increase to a higher volume.

Troubleshooting

If you encounter any issues with your Brandstand Products CubieTime Charging Clock, here are some common problems and solutions:

Device Not Charging: Ensure that your device is Qi-compatible and properly aligned on the charging pad.
Alarm Not Working: Check that the alarm is set correctly and that the volume is not muted.
Display Not Showing Time: Ensure that the clock is plugged in and that the display settings are configured correctly.

Always follow the manufacturer's instructions and take necessary precautions to avoid any damage or injury.

Brandstand CubieTime Charging Clock Warranty

Products are warranted by Brandstand Products against manufacturing defects in materials and workmanship under normal use for 1-year (365) days from the date of purchase. Defective products will be exchanged for the sample or a comparable item.

Pros & Cons

Pros:

Convenient wireless charging for smartphones.
Large and clear LED display.
Multiple alarm settings for different days of the week.
Additional USB port for extra charging options.
Sleek and modern design that fits any decor.

Cons:

Limited battery backup duration.
No Bluetooth or Wi-Fi connectivity options.
Slightly higher price point compared to basic alarm clocks.

Customer Reviews

Customers have praised the CubieTime Charging Clock for its ease of use and multifunctionality.

Here are some common reviews:

"The Brandstand Products CubieTime Charging Clock has been a game-changer for my morning routine. It's so convenient to have both an alarm clock and wireless charger in one device." - Sarah M.
"I love how sleek and modern it looks on my bedside table. The additional USB port is also very useful." - John D.

Common Complaints

Some users have noted that the battery backup could last longer and that there are no Bluetooth or Wi-Fi connectivity options. However, these are minor complaints compared to the overall satisfaction with the product's performance.
