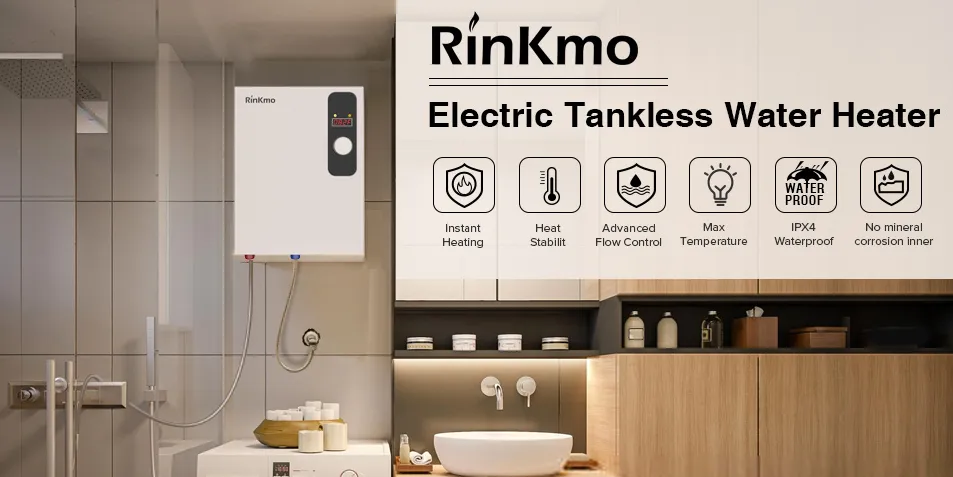

Introduction Of Rinkmo Tankless Water Heaters EI24

The Rinkmo Tankless Water Heater EI24 is a state-of-the-art solution designed to provide endless hot water on demand, while maximizing energy efficiency and saving space. This innovative appliance is perfect for both residential and commercial applications, offering reliable performance and convenience. With advanced technology and a sleek design, the Rinkmo EI24 ensures that you never run out of hot water, no matter the demand.

Detailed Specifications

The following are the main advantages of the Rinkmo Tankless Water Heaters EI24:

Model	EI24
Voltage	208V / 240V
Watts	18.0kW / 24.0kW
Amperage Draw	3x29A / 3x34A
Temp Rise @1.5GPM	80°F / 92°F
Temp Rise @2.25GPM	53°F / 73°F
Temp Rise @3.0GPM	40°F / 54°F
Min. Wire Size (copper)	3x8AWG
Min. Water Flow	0.66GPM / 2.5L/min
Water Connection	3/4"NPT
Phase	Single 60 Hz
Working Pressure	150PSI / 10BAR

Description

The Rinkmo Tankless Water Heaters EI24 is made to use less energy and provide a steady supply of hot water. Its cutting-edge self-modulation technology maintains ideal energy efficiency and temperature stability by adjusting the heating output in response to water demand. Setting and maintaining the ideal water temperature is made simple by the user-friendly controls and digital temperature display. Because of its stainless steel water channels and ability to be installed both indoors and outdoors, the EI24 is an excellent option for any household due to its durability and versatility.

Setup Guide

The Water Heaters EI24 can be configured and operated by following these steps:

Select an appropriate installation site, making sure it has access to electricity and adequate ventilation.
As directed in the user handbook, mount the device under the counter or on the wall.
Using the supplied fittings, attach the unit's water inlet and outflow pipes.
Make sure the unit is correctly grounded before connecting the electrical power supply to it.
After turning on the electricity and water supply, use the digital control panel to adjust the water's temperature.
To make sure everything is working properly, test the unit by turning on a hot water faucet.

IMPORTANT INFORMATION

This water heater is used to provide domestic hot water for household use and can provide multiple outputs.
If the water heater is not used, the connection with power supply shall be cut off. In order to avoid a hazard.
If it is not used for a long time in winter, Drain the water from the the water heater to avoid water frozen which will damage the container. Please cut off the power supply before emptying.
Keep the instructions after installation, you may need it later to get more information and support.

NOTE: This unit has multiple power inputs. Shut off all breakers before maintenance.

WARNING

To ensure your own safety and that of others you need to read the installation and user instruction carefully before using the unit for the first time; Failure to comply with the instruction may cause property damage, serious injury, or death; If you have any questions, contact our company or the maintenance personnel appointed by our company.
This unit should be installed by a qualified electrician or plumber in accordance with federal, state and local electrical and plumbing codes.
When installing or using any high voltage electrical appliance, basic safety precautions should always be followed.
DO NOT install this unit in a location where it may be subject to freezing temperatures. If the water inside your tankless water heater freezes, it can cause severe and permanent damage that is not covered under your warranty.
Water temperature over 125°F (52°C) can cause severe scalding. If the set temperature of the unit is too high, there is the possibility of hot water scalding. Children, disabled persons or the elderly in small households may need to set the temperature of the product below 113°F (45°C) in order to prevent possible harm caused by hot water.
Where children or persons with limited physical, senso-ry or mental capabilities are to be allowed to control this appliance, ensure that this will only happen under supervi-sion or after appropriate instructions by a person responsi-ble for their safety. Children should be supervised to ensure that they never play with the appliance.
This unit has more than one power-supply connection point. Disconnect all power supplies before servicing.
To avoid damage, the unit needs to be kept dry. Keep unit away from direct sunlight, moisture, dust, steam, and other liquids. The unit do not installed in places with water leaks (such as under air conditioning lines that might leak or condense moisture or water pipes ).
Be sure that the water heater are out of the reach of children so they cannot adjust the temperature knob at will.
The outlet water pipe can get very hot, make sure that the outlet water pipe is out of the reach of children, and must be insulated.
This product is only used to heat water, do not use it to heat other liquids.
Damage caused by water quality is not covered by the warranty.
Make sure all circuit breakers and disconnect switches are off before installation and maintenance.
Do not store inflammables and explosives near the water heater.
Piping that has been treated with boiler seal, chromates, or other chemicals is not allow to use.

Attentions: This water heater must be connected to a reliable earth connection at all times.

PRODUCT DIMENSIONS

MOUNTING YOUR WATER HEATER

BEFORE MOUNTING
THE UNIT MUST BE INSTALL BY QUALIFIED ELEC-TRIC ENGINEER

The wall for installation of water heater must be firm and solid and can bear four times the weight of the water heater.
Indoor installation only. Do not install this water heater near flammable, volatile substances or strong magnetic fields. The unit must be installed in the vertical position of the water pipe joint.
Be sure that the external power harness and air-opening meet the standard requirements.
Gloves are required during installation.

INSTALLATION LOCATION
There should be a certain space around the machine for installation and future maintenance.


SUGGESTION:
- (side gap): minimum 12" (305mm)
- (top gap): minimum 15" (381mm)
  WARNING:
- (bottom gap): keep a distance out of the reach of children

MOUNTING YOUR WATER HEATER

Accessories contents

TOOLS/MATERIALS REQUIRED (not include)

INSTALLATION INSTRUCTIONS

Mark the positions of mounting holes on the wall as the installation template shows (Fig. 1).
NOTE: For ease of installation and servicing, we recommend that this unit be installed in an up right position with the inlet and outlet water connections at the bottom.
Drill 4 mounting holes (Ø6x32mm) at the marked position (Fig. 2).
Put espansion boltes into the holes (Fig. 2).
Put two screws into the upper two holes (Fig. 3).
Remove the knob on front cover and 4 screws on the top and bottom edges of the unit, and then dismantle the front cover (Fig.4).

MOUNTING YOUR WATER HEATER

Hang the body on the two installed screws, then fix the other two screws. Tighten all 4 screws to secure the body.
NOTE: Make sure that the mounting surface is solid and firm, and ensure that the unit is level prior before tighten the screws (Fig. 5).
Reinstall the front cover after finish “PLUMBING INSTALLA-TION” and “ELECTRICAL INSTALLATION”. Fasten the front cover only after confirming that the mounting screws are firm and reliable. The front cover mounting shows as right (Fig. 6).
WARNING: The electrical compo-nents inside the water heater may cause serious personal injury or electric shock death. Make sure that the front cover is installed correctly and firmly. Do not remove the front cover unless installation or maintenance.
Screw the front cover to body. Reinstall the knob (Fig. 7).

PLUMBING INSTALLATION

CAUTION: The plumbing installation must be completed before the electrical installation.
WARNING: It is the responsibility of the Service Person to ensure that the water supply to the equipment is provided with protection against backflow by an air gap as defined in ANSI/ASME A112. 1.2-1979; or an approved vacuum breaker or other such method as proved effective by test. WARNING: Pipe dope or PVC/CPVC primer and glue is not allowed to used on the threads of the outlet and inlet fittings. These chemicals can damage the nipples and cause leaks. Only thread sealing tape can be used. SUGGESTION: To avoid the property damage caused by leakage (small probability event), the machine needs to be installed in place with floor drain.
SUGGESTION: Install a valve (not include) at the inlet pipe for future maintenance.
SUGGESTION: Install a pressure relief valve between valve and unit if the inlet water supply pressure exceeds 150 PSI.

Installation Instructions

Facing the unit, the outlet located marked on the left side of the unit connect to the hot water line. The inlet located marked on the right side of the unit connect to the cold water line.
After tightening both fittings at the unit, open the hot water tap to allowed water run through the unit for about 2 to 3 minutes, to make sure all the air is discharged from the water lines. This step must be performed before power on. IF DO NOT FOLLOW THIS STEP CAN CAUSE PERMA-NENT DAMAGE TO THE HEATING ELEMENTS.
Close outlet, open inlet, to check all connections for water leaks.

ELECTRICAL INSTALLATION

CAUTION: Ensure that you have made the correct connections. You must follow the wire connection as shown in ensure proper operation of the unit. WARNING: For supply connections use 8 AWG or larger wires suitable for at least 160°F (75°C).
WARNING: This product has more than one power-supply connection point. Disconnect all power supplies before servicing.
WARNING: The overcurrent protective devices are provided as a separate assembly, the product shall be used only with this separate assembly.
WARNING: Firstly turn on the water and let it to run in the product for several minutes, and exhaust all the air in the plumbing. At the same time, check whether there is water leakage at the internal and external water connections of the product.
WARNING: To avoid a short circuit and damage the circuit board, make sure all strands are secure inside the terminal block.
Before installing the water heater, make sure that your home has enough power to handle the maximum current available for this product.
As with all high-power electrical products, Make sure to turn off all power to the product directly at the fuse or breaker box before installing, repairing or disassembling this water heater.
All circuit protection (breakers) and wiring (wire gauge) must conform to the US National Electrical Code (NEC) in the America or Canadian Electrical Code (CEC) in the Canada .
Failure to comply with these warnings can lead to the risks include fire, electrical shock and/or death and void your warranty.
Before starting the electrical installation work, make sure that all water pipelines have been installed and the main circuit breaker and power switch have been closed to prevent electric shock.

Circuit Connection

Connect each group of power wires to a circuit breaker in pairs (show as below). Make sure that each circuit breaker is connected one group of L1 and L2.
- EI18 need two circuit breakers.
- EI24 need three circuit breakers.
When connecting the power cords to the terminal block, make sure that the wire and the electric conductor inside the terminal block are in full contact. Then tighten the screws. If it is loose, May causing electrical short circuit and/or the terminal block burn out.
Again make sure that the wiring from the main circuit breaker to the water heater is correct. If the wrong wires is connected, the product will not work normally and may cause unnecessary danger.
Check earth resistance and make sure there is a proper earth continuity.
Confirm that all the air has been purged from the water lines prior to turning on power to the unit.

Wiring diagram

NOTE: The rated voltage is 240VAC. If the connected power supply is 208VAC, please turn the dial switch on the display PCB to the upper side with a slotted screwdriver

Circuit Diagram

OPERATION INSTRUCTIONS

Power On
When the mains power supply is switched on, the buzzer beeps once and all the indicators light up for three seconds and then go out except power indicator. Power indicator is on green, heating indicator and display screen are not on.

Operation

Press the knob (a beep can be heard) to turn on the water heater power, the LED display will turn on, it shows the actual outlet water temperature. Heating indicator is on red in the state of heating.
Note: The unit will not work and the heating indicator is not on if there is no water flow, or the water flow do not meets the start-up requirements (0.66GPM/2.5L/min).
If the unit is frequently used and the intermediate interval is short, initially a short burst of very hot water from the unit will flow out, wait a few seconds for the water to cool down to the set temperature when using. CAUTION: Regularly clean the inlet filter and the shower head to get enough flow.

Temperature Control
In the state of heating the outlet water temperature can be adjusted by turning the knob. Turn the knob clockwise to increase the outlet temperature, and turn the knob coun-terclockwise to decrease the outlet temperature between 80°F – 140°F (26℃- 60℃), the factory set temperature is 95°F. When the setting temperature is turned to the maximum or minimum, it will be not changed and two beeps will be heard at the same time.

Fahrenheit / Celsius Switch

The factory set temperature of the unit is Fahrenheit.
In the state of heating, press the knob for 3 seconds, the display will switch between Fahrenheit and Celsius.
When fahrenheit is displayed, the last text shows F.
When celsius is displayed, the last text shows C.


NOTE: When the outlet water temperature reaches 167°F (75℃) the unit will stop heating.

TROUBLESHOOTING

PROBLEM ISSUE	POSSIBLE CAUSE	SOLUTION
Display E1 / E0	Inlet temperaturesensor failure.	Contact: rinkmo.service@outlook.com
Display E2 / E3	Outlet temperaturesensor failure.	Contact: rinkmo.service@outlook.com
Display LL	Inlet temperature lower than 37°F (3℃)	Unit do not work when inlet temperature lower than 37°F (3℃).
Display HH	Inlet temperature higher than 176°F (80℃)	Unit do not work when inlet temperature higher than 176°F (80℃).
Water leakage at the inlet and outlet connector.	The connector is not installed in place. Seal damage.	Tighten the connector. Replace the seal.
The unit does not work (Powerindicator is NOT on)	Incorrect power wiring connection or no power.	Make sure that the main circuit breakersthat supply the water heater is on. The unitmay be wirederror. There may is a problem with the circuit breaker. Contact: rinkmo.service@outlook.com
Water heater is not heatingat all (Power indicator is on)	No waterflow. The flow too small to start up the unit. Control board failure.	1a. Check the water supply channel; 1b. Clean filter at unit; 1c. Clean faucet aerator or shower head. Increase water flow. Cut off the power and contact: rinkmo.service@outlook.com
Water heater is working but the outlettemperature is not hot well.	Low Setting temperature Excessive water flow Faulty wiring Voltage too low. Temperaturesensor failure. Heating element damaged.	Turn up the setting temperature. Reduce water flow. If the first installation occurs, pleaselet the electrician check the wiring carefully. The wiring may be incorrect. If not contact: rinkmo.service@outlook.com Check the power supply. Replace temperature sensor. Replace heating element.
Water heater is heating but the outlettemperature is too hot.	Temperature set too high. Low water flow PCB failure	Turn down the setting temperature Increase water flow Cut off the power and contact: rinkmo.service@outlook.com
The outlet flow is reduced.	Inlet filter,showeror faucet clogged.	Clean them

Pros & Cons Of Water Heaters EI24

Pros

Energy efficient
Compact and space-saving design
Digital temperature control
Suitable for indoor and outdoor installation

Cons

May not provide sufficient hot water for households with high demand
Installation may require professional assistance

Customer Reviews Of Rinkmo Tankless Water Heaters

The Water Heaters EI24 has received high marks from customers for its reliable hot water supply and energy-saving features. Some have, however, pointed out that installation can be difficult and advised seeking expert help. Its small size and digital temperature controls have received positive feedback from users overall.
