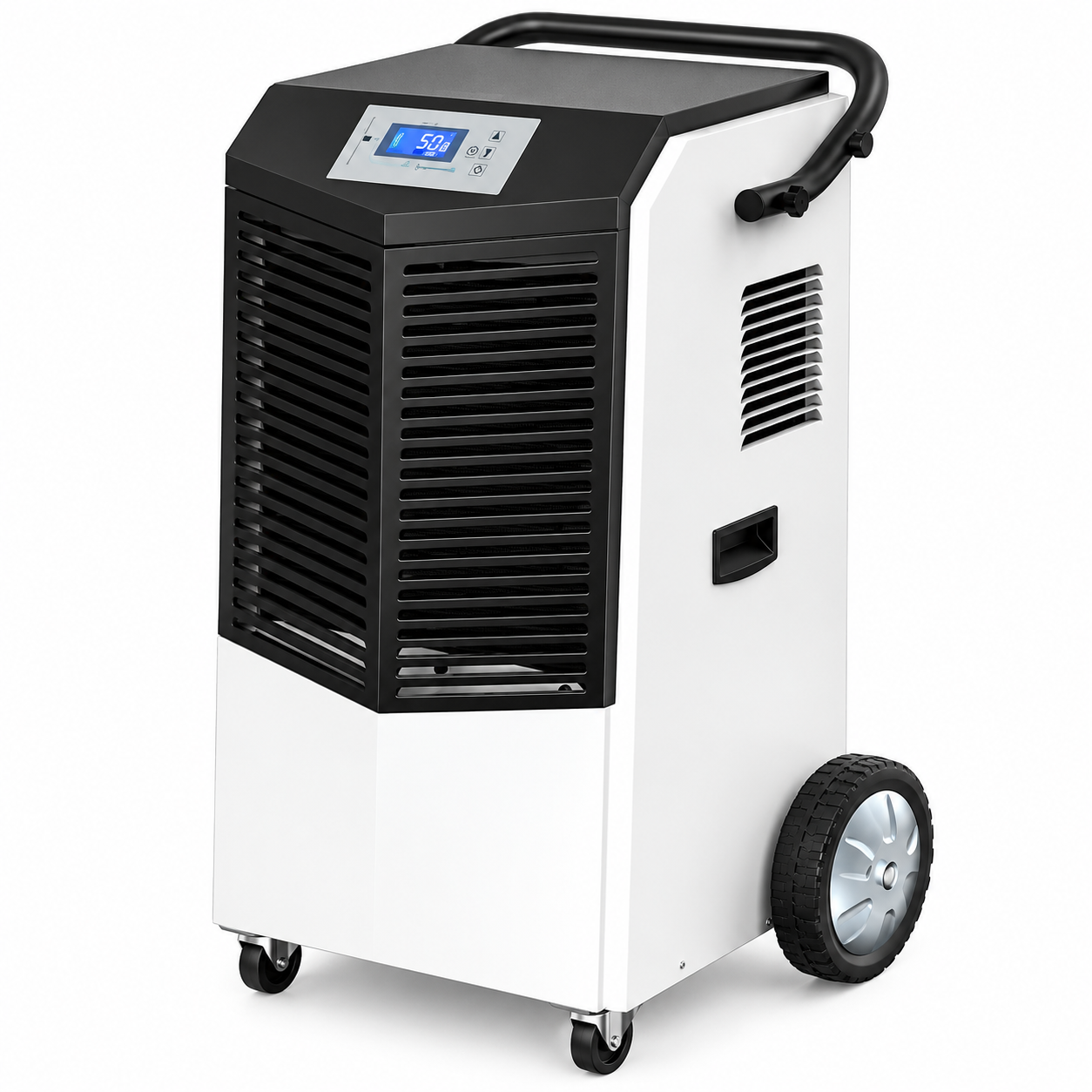

Colzer Dehumidifier Pump TR160D

The Colzer Dehumidifier Pump TR160D is a powerful and efficient appliance designed to keep your home dry and comfortable. With a sleek and modern design, this dehumidifier is perfect for any room in your house, including basements, bathrooms, and bedrooms. The TR160D is available for an estimated price of $250 and is now available for purchase.

Detailed Specifications

The Colzer Dehumidifier Pump boasts an impressive set of features that make it stand out from the competition. Some of its key specifications include

• A powerful 160 pint (20L) per day dehumidification capacity
• Automatic shut-off and restart functions
• A built-in pump for automatic water discharge
• A programmable humidistat for customized humidity levels
• A quiet and energy-efficient operation

FEATURES

• High Dehumidifying Capacity for commercial & industrial use
• Straightforward Control Panel for easy operation
• Built-in Pump for convenient drainage
• Tough Semi-pneumatic Wheels for easy transport
• Rotational Molded Housing for tough job
• Fold-able Handle for space-saving storage
• Hot Gas Valve System for fast defrost

PARTS IDENTIFICATION

Description of Dehumidifier Pump

The Colzer Dehumidifier Pump TR10D is a versatile and reliable appliance that can remove up to 160 pints of moisture from the air per day. Its automatic shut-off and restart functions ensure that it operates efficiently and safely, even in the event of a power outage. The built-in pump allows for automatic water discharge, eliminating the need for manual draining. The programmable humidistat allows you to set your desired humidity level, and the appliance will automatically maintain it. With its quiet and energy-efficient operation, the TR160D is a great choice for any home.

Setup of Colzer TR160D

Setting up the Colzer TR160D is quick and easy. Simply unbox the appliance, place it in your desired location, and plug it in. Use the built-in wheels and handles to move it easily. Set the humidistat to your desired level, and the appliance will do the rest. The built-in pump will automatically discharge water as needed, and the automatic shut-off and restart functions will ensure safe and efficient operation.

OPERATION INSTRUCTIONS

Install the Handle

1. Remove the handle from the buckle and flip the handle up 180° to align the hole position of the handle and the handle holder;
2. Insert the corded bolts into the holes of the handle holder and the handle by pressing and holding the metal button on the top of the bolt.
3. Release your finger when you have inserted the bolt to the latch.

To Fold the Handle for Storage

1. Pull out the bolt from the latch by pressing and holding the metal button on the top of the bolt;
2. After removing both bolts from the latches, fold the handle down by 180° and fix it to the buckle.|

NOTE: Press and hold the top knob of the bolt when you are trying to insert or pull out the bolts. Otherwise, you may not be able to insert or pull out the bolts.

Position Your Dehumidifier

IMPORTANT
Transporting or storing the dehumidifier in a horizontal position is not recommended. When the dehumidifier is placed in a horizontal position, the oil from the compressor can flow into the refrigerant coils and reduce the ability of the dehumidifier to function and possibly damage the dehumidifier. If the dehumidifier has been placed in a horizontal position, set it upright and let it stand for at least 24 hours before plugging it in.
For best results, operate your dehumidifiers in an enclosed area. Close all doors and windows that open to efficiency. Place your dehumidifier away from obstructions, and keep it away from anything that could block airflow into and out of the dehumidifier.

Set Up the Drainage

The dehumidifier pump connects to a plastic drainage hose. The hose, stored on the back of the dehumidifier, is equipped with a quick-connect fitting for easy attachment to the drain outlet.

1. Uncoil the entire hose
2. Attach the end of the hose with the connect fitting to the drain outlet directly, until you hear a “click” sound;
3. Place the unattached end in a sink, drain, bucket or outdoors – anywhere that water can drain out safely. ( Ensure there are no kinks or other obstructions that will stop the water to flow.)

NOTE

• Ensure that water which runs to outdoors does NOT create a slip hazard
• If you use a bucket or other container for water collection, check it regularly to prevent overflows.
• The drain hose for the water pump can drain up to 15ft vertically. More than 15ft may cause water back up to the pump resulting in leakage.
• When turning off the dehumidifier, please take the hose out from the water collection container to avoid the water back-flow causes water leakage.
• To remove the drain hose from the outlet, press and hold the buckle on the connect fitting and pull the hose out.

Plug-in the Electrical Cord

The dehumidifier needs to be plugged into a GFCI-protected 115 volt outlet rated for at least 15 amps. Uncoil the power cord from the winder and plug it firmly into a suitable outlet. After plugged in, the dehumidifier will automatically enter into standby mode where the readout on the display screen is in dim light.

Understand the Control Panel

Display Screenc

• The first line of the display shows the total number of hours the dehumidifier has been in operation. It will also countdown the timer on the right if the timer function has been activated.
• The second line of the display shows current temperature and humidity of inlet and outlet.

Power Button: Press to turn the dehumidifier ON or OFF.

1. To Turn the Dehumidifier ON: In standby mode, press the POWER button to turn the dehumidifier on. The readout on the display screen will light up and the dehumidifier will run in continuous dehumidify mode.
2. To Turn the Dehumidifier OFF: Press the POWER button again to turn the dehumidifier off. The compressor will turn off right after you pressed the POWER button, but the fan will not stop until 1-2 minutes later.
3. To Toggle the Temperature Scale: Press and hold the POWER button for 5-8 seconds to toggle the temperature scale between Fahrenheit and Celsius. (Default temperature scale is Fahrenheit.)

• Defrosting Indicator: The dehumidifier begins to defrost when the defrost indicator illuminates; the dehumidifier has stopped defrosting when the light is no longer illuminated. When defrosting is complete, the dehumidifier begins to dehumidify again automatically.
• Water Full Indicator: When the water pump is full of water, the indicator light turns on to remind the user to drain.
• Purge Button: Press to empty water from the condensate pump reservoir. Use
  "PURGE" before moving the dehumidifier to avoid water spillage. During normal operation, the pump purges automatically when the reservoir is full. The FULL indicator will light up after you pressed the PURGE button, which means the pump is working. 30 seconds later, the pump will stop working automatically and the FULL light will go off.
• Timer Button: The TIMER function enables you to either Delay Start or Delay Stop the dehumidifier in the choice from 1 hour to 24 hours.
  If the dehumidifier is running, then selecting Timer will turn the dehumidifier off in the hours that will be set (Delay Stop). If the dehumidifier is off, then selecting Timer will turn the dehumidifier on in the hours that will be set (Delay Start).

To Set Timer

1. Press and hold the TIMER button for 3-5 seconds;
2. Adjust the timer setting by pressing the TIMER button to change the delay timer at 1-hour increments, up to 24 hours. The control will count down the time remaining (8,7.5,7, etc.) until the dehumidifier either starts or stops.
3. After the TIMER setting finishes, pressing the TIMER button again at any time will stop the TIMER function.

Note

• The Delay Start/Stop Feature will work until the dehumidifier either starts or stops. Once that happens the above steps have to be repeated.
• The TIMER feature is one-shot. So the timer will not cycle the dehumidifier on or off indefinitely.
• Before entering the TIMER setting, make sure you’ve plugged it in.

Smart Functions

• Auto Drainage
  Thanks to the built-in pump, the dehumidifier will drain the condensation water automatically.
• Wait 3 Minutes before Resuming Operation
  To avoid any damage to the dehumidifier, the dehumidifier will not start operation following a complete cycle until after 3 minutes. The operation will automatically start after 3 minutes.
• Auto Defrost
  When the frost builds up on the evaporator coils, the compressor will cycle off and the fan will continue to run until the frost disappears.
• Auto-Restart
  If the dehumidifier shuts off unexpectedly due to power being cut, the dehumidifier will restart with the previous function setting automatically when the power resumes.

MAINTENANCE

Ensure the dehumidifier is turned OFF and the plug is removed from the power socket before cleaning or maintenance is carried out.
Cleaning the Dehumidifier
Clean the dehumidifier body with a soft damp cloth. Do not submerge or place water on the dehumidifier or control panel. Water may damage the electronic components of the dehumidifier. Do not use chemical solvents such as benzene, alcohol, gasoline or other heavy-duty cleaners. The surface may become damaged or deformed.
Cleaning the Air Filter
The working performance of the dehumidifier will be greatly reduced if the filters become blocked.
To Clean the Filter

1. Pull out the air filter from the top side gently.
2. Vacuum any debris from the filter using the vacuum hose and nozzle attachment.
3. Immerse the filter into lukewarm water (about 40°C) with a mild detergent, and then wash it and allow it to dry.
4. Once dry, re-install the filter into the dehumidifier

Dehumidifier Storage

1. Push the purge button to empty the water before transportation or storage.
2. Transport and store the dehumidifier upright.
3. You can fold the handle and stack this dehumidifier to save space.

SAFETY INFORMATION

• Install the dehumidifier on flat surface to minimize vibration and or noise.
• Inspect the power cord before use. Never operate the dehumidifier when the power cord or plug is damaged.
• Insert the three-prong plug on the power cord into a matching electrically grounded outlet (115V/ 60 Hz, 15 A at least). Do not use an adapter. Never cut off the third prong. Do not use an extension cord.
• Do not operate the dehumidifier in standing water. Keep motor and wiring dry.
• Never immerse the dehumidifier into water or other liquids.
• Do not put the dehumidifier close to heat-generating devices, including flammable or dangerous materials.
• Unplug the power supply before cleaning or storing the dehumidifier. Always grasp the plug (not the cord) to unplug.
• Do not put fingers or other items into air inlet or air outlet.
• Never insert any other objects into the dehumidifier body.
• Do not sit, stand or put heavy objects on the dehumidifier.
• This dehumidifier should only be used by adults who have read the manual and understand the operating procedure of the dehumidifier.
• The dehumidifier is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction by an adult.

Never repair or remove plug and or power cord. Any repairs should be completed by qualified electrician or distributor.

TROUBLESHOOTING GUIDE

Error Codes

Warranty Information

Colzer offers a limited 1-year warranty on all of our products, with original proof of purchase and where a defect has arisen, wholly or substantially, as a result of faulty manufacture, parts or workmanship during the warranty period.

Pros & Cons of Colzer Dehumidifier Pump

Pros

• Powerful and efficient dehumidification
• Automatic shut-off and restart functions
• Built-in pump for automatic water discharge
• Programmable humidistat for customized humidity levels
• Quiet and energy-efficient operation

Cons

• May be too large for some small spaces
• May be more expensive than some other dehumidifiers

Customer Reviews of Colzer Dehumidifier Pump TR160D

Customers love the Colzer Dehumidifier Pump for its powerful and efficient dehumidification, automatic shut-off and restart functions, and built-in pump for automatic water discharge. Some common complaints include its large size and higher price point compared to other dehumidifiers.
