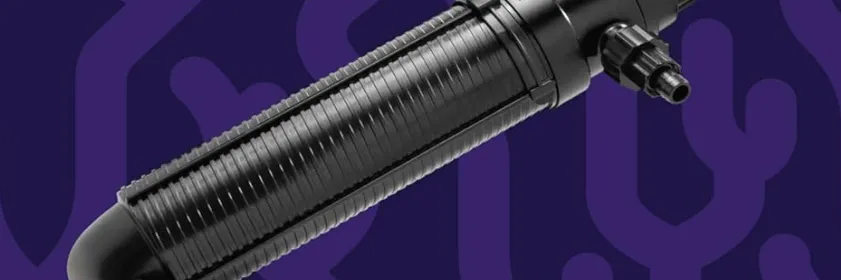

Introducing the Coralife Turbo Twist UV Sterilizer

The Coralife Turbo Twist UV Sterilizer is a powerful tool to keep your aquarium water clean and clear. This sterilizer uses ultraviolet light to kill bacteria, viruses, and other microorganisms, providing a healthy environment for your fish and other aquatic life. The Coralife Turbo Twist UV Sterilizer is available at an estimated price range of $70 to $150, depending on the size and model. It was launched in 2015 and has been a popular choice among aquarium hobbyists ever since.

Specifications

Parts Diagram

Coralife Turbo Twist UV Sterilizer Instructions

Set up and positioning

Adjusting the hose barb inlet and outlet
The hose barbs can be positioned in four different locations to facilitate connections to other applications.

1. Unscrew locking ring screw and slide tab down to release.
2. Carefully twist the quartz housing and the main body opposite of each other.
3. Slide the quartz sleeve out of the main body.

4. Reinstall locking ring and tighten screw.



Bracket Installation

1. Adjust the tank bracket so that it hangs on the outside of the aquarium.



2. Slide the Turbo-Twist bracket onto the tank bracket. Make sure the Turbo-Twist bracket is securely fastened onto the tank bracket.



3. Snap the main body into the bracket indicated by a “click”. Snap the other bracket with the suction cup in the same way.



4. For horizontal positioning, take the suction cup out and snap the main body into the brackets until it locks with a “click”. Bracket may be secured to a level surface.



UVC Lamp installation

Remove threaded cap, install  UVC lamp into socket until lamp  “clicks” into place. Handle lamp   with a clean cloth.

Reassembly

Make sure that the flat O-ring gasket is properly positioned inside the threaded cap (already installed in unit). Screw the threaded cap tightly back into place.

Note: The plug and cord should be turned together when screwing the threaded cap back into place.

Attaching the hose lock nuts

1. Position the hose lock nuts on the hose-barb inlet and outlet.
2. Use flexible tubing (not supplied) to connect the sterilizer to the water supply. Turn the hose lock nut counter-clockwise to tighten flexible tubing onto the hose barb. Hose lock nuts require only hand tightening.

Hose barb adapter installation

1. Place the O-ring on hose barb inlet/outlet, watching for taper orientation.
2. Hand tighten the hose barb adapter onto the Turbo-Twist.
3. Use flexible tubing to connect the sterilizer to the water supply. Turn the hose lock nut counter-clockwise to tighten flexible tubing onto the hose barb.

Note: Water will leak if the O-ring is not in place.

Installing the Turbo-Twist

1. Hang-on Positioning
   Hang the unit using the Turbo-Twist  bracket and suction cup on the  outside of the aquarium. Adjust   the tank bracket to secure the  Turbo-Twist UV Sterilizer.



2. Horizontal Positioning
   Attach Turbo-Twist bracket with screws on a fixed surface.



Tubing connection of Coralife Turbo Twist UV Sterilizer

Connect the tubing between the  water flow outlet and the hose  barb inlet. It is recommended that a prefilter  be used with the Turbo-Twist to  limit the amount of debris entering  the sterilizer.

Warning: Never install a valve on the tubing between the main body and the aquarium.

Note: Make sure that the tubing is not carrying the weight  of the Turbo-Twist UV Sterilizer. Use the Turbo-Twist brackets to support the unit to a firm surface.

Start water flow

Turn on water supply to the Turbo-Twist. Once proper water flow has been established, tilt the unit and let the air bubbles inside the tubing and the main body escape. Examine the unit and check for any leaks.

Power up Turbo-Twist

Connect the Turbo-Twist to the power supply. Verify that the UVC lamp is working properly, indicated by the light blue glow emitted through the lamp-on indicator. The light from the lamp-on indicator will not affect the skin or the eye.

CAUTION

• Never look directly at the unshielded lamp as ultraviolet radiation is harmful.
• Disconnect the UV Sterilizer from the power supply when installing or performing maintenance.
• Never submerse the UV Sterilizer in water.

Description

The Coralife Turbo Twist UV Sterilizer is a highly effective tool to maintain the water quality in your aquarium. The sterilizer uses a high-intensity ultraviolet light to kill harmful microorganisms, reducing the risk of diseases and infections. The durable quartz sleeve ensures efficient UV light transmission, and the adjustable flow control clip allows you to customize the water flow for optimal sterilization. The removable spin-off cap makes cleaning the sterilizer easy and convenient. The Coralife Turbo Twist UV Sterilizer is suitable for both freshwater and saltwater aquariums, providing a healthy and safe environment for your aquatic life.

Suggested Tubing Connections

Coralife Turbo-Twist UV Sterilizer Flow Rates

Setup Guide

Setting up the Coralife Turbo Twist UV Sterilizer is easy and straightforward. Here are the steps to follow:

1. Choose a location for the sterilizer, ensuring it is close to the aquarium and the power supply.
2. Attach the suction cups to the back of the sterilizer and position it in the aquarium water flow.
3. Connect the hoses to the sterilizer and the aquarium. Make sure the hoses are securely attached to avoid leaks.
4. Plug in the sterilizer and set the flow control clip to your desired water flow.
5. Wait for 10 to 14 days for the sterilizer to achieve optimal effectiveness.

Maintenance

To ensure superior performance, the quartz sleeve should be cleaned periodically.

Cleaning the quartz sleeve

1. Disconnect UV Sterilizer from outlet, turn off the pump and let water drain from Turbo-Twist.
2. Unscrew locking ring screw and slide tab down to release.
3. Carefully twist the quartz housing and the main body opposite of each other.

4. Slide the quartz sleeve out of the main body.



5. Wipe the quartz sleeve using a soft, damp cloth. Do not use household cleaners or abrasive scrubbers to clean the quartz housing.
6. Once clean, reinstall the quartz sleeve into the main body.

7. Reinstall locking ring and tighten screw.



UVC Lamp Replacement

The UVC lamp has a useful life of about 12 months. To ensure effective performance, replace the UVC lamp once per year.

How to replace the UVC lamp

1. Disconnect the sterilizer from the power supply. (It is also necessary to disconnect the power to the water pump.)

2. Remove the threaded cap to expose the lamp socket.



3. Pull the UVC lamp assembly out of the main body and allow to cool. (Be careful not to touch the lamp as it may be hot.)
4. Once cool, pull the UVC lamp out of the socket.
5. Make sure that the pins of the lamp plugs into the socket, indicated with a "click".

6. Reassemble the Turbo-Twist.



WARNING

• Cut off the power and stop using  if the UV Sterilizer was submersed or dampened by water.
• Cut off the power immediately if water enters into the quartz housing.
• Cut off the power if there is a burning or smoking smell.
• Never connect the sterilizer to the power outlet while hands are wet.
• Never look directly at the unshielded lamp or allow prolonged exposure to skin as the ultraviolet radiation emitted from the lamp can be harmful.
• Do not pull cord to disconnect power supply.
• Always leave a drip loop in the power cord to prevent water from running down the length  of the cord and  reaching the  power outlet.
• Though the Turbo-Twist is water resistant, it should never be intentionally submersed in water. Always install the sterilizer in a location where there is little likelihood of flooding or water dripping onto the UV Sterilizer.
• The water temperature flowing through the UV Sterilizer should be below 105oF (40oC).
• Make sure that appropriately-sized hose lock nuts are positioned on hose barbs before attempting to connect tubing.
• Always disconnect the UV Sterilizer from the power supply before shutting down the flow of water  to prevent overheating.
• Only a 120V (60 Hz) electrical source should be used with the Turbo-Twist.

Troubleshooting

Issue	Problem	Solution
UVC Lamp is not working	The plug is not connected to the power supply.	Connect the plug to the power supply.
	UVC lamp base is loose.	Carefully push the UVC lamp onto the socket until a “click” is heard.
	The lamp has expired.	Replace the UVC lamp.
Water leak between the main body and hose lock nuts	The hose lock nut is loose.	Tighten the hose barb or the hose lock nut.
	The O-ring is not in place.	Install the O-ring.

Warranty

WHAT THE WARRANTY COVERS: Central Aquatics (Company) warrants this product (see Exclusions below) to the original purchaser against defective material and workmanship that occurs during normal use for One year from the  date of original purchase. Company will, at Company’s option, either repair or replace product or part without charge (but no cash refunds will be made).

Pros & Cons

Pros

• Effective at killing microorganisms
• Easy to install and use
• Customizable water flow
• Durable and long-lasting design

Cons

• Can be expensive for larger aquariums
• UV bulb needs to be replaced periodically
• Suction cups may not be sufficient for heavy water flow

Customer Reviews about Coralife Turbo Twist UV Sterilizer

Customers have generally positive reviews for the Coralife Turbo Twist UV Sterilizer. They appreciate its effectiveness at keeping the aquarium water clean and clear, as well as its easy setup and usage. However, some customers have noted that the UV bulb needs to be replaced regularly, and the suction cups may not be sufficient for larger aquariums. Overall, the Coralife Turbo Twist UV Sterilizer is a highly recommended tool for aquarium hobbyists seeking to maintain a healthy and safe environment for their aquatic life.
