Introduction

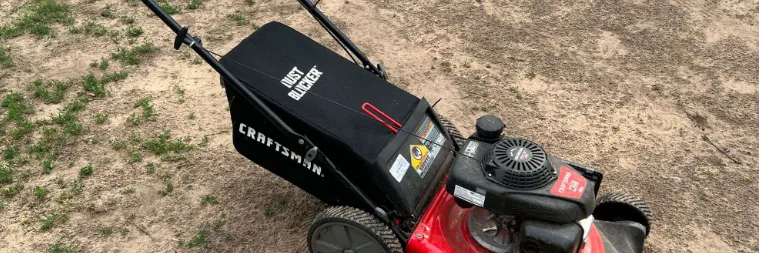

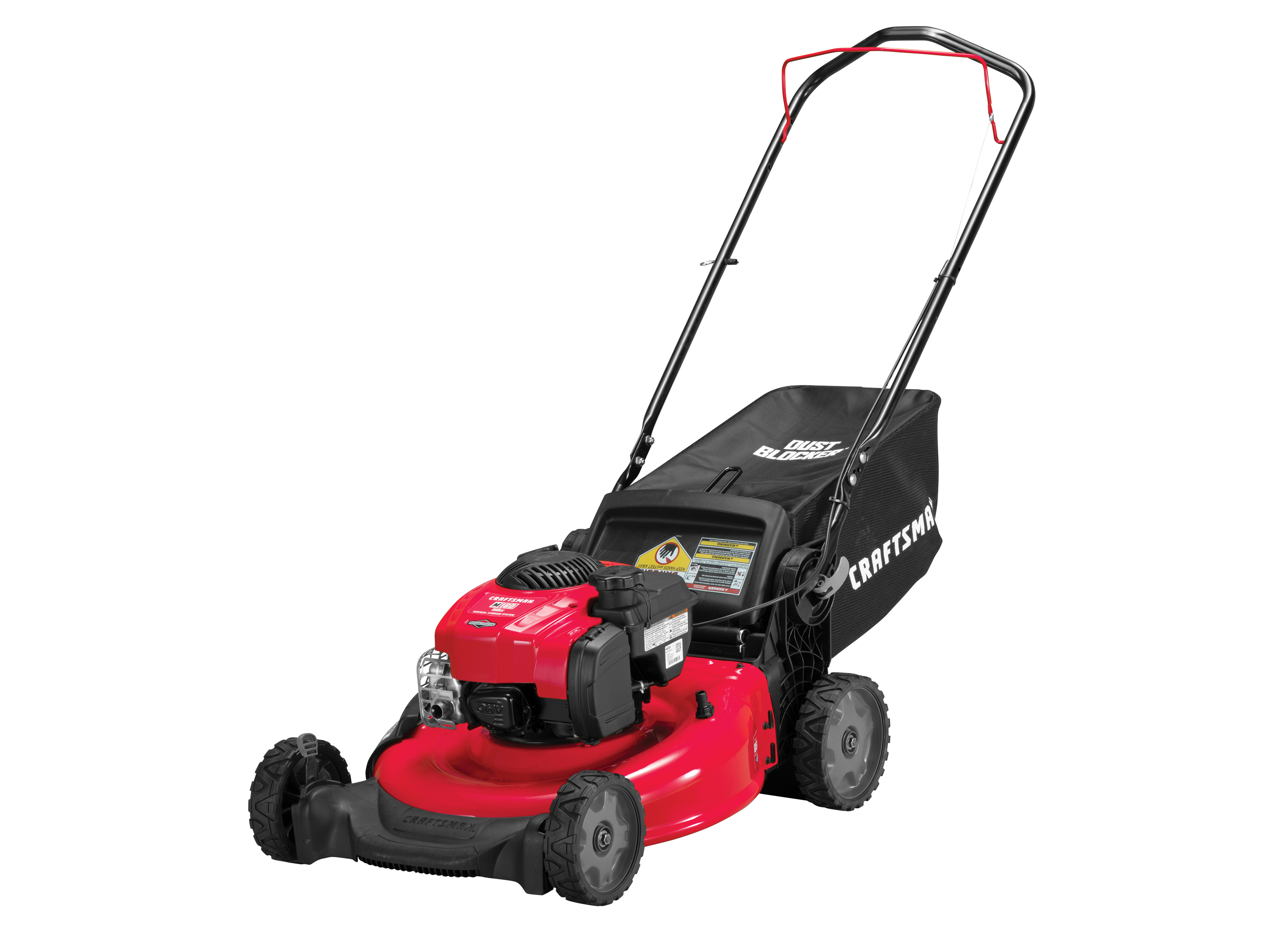

If you're a homeowner looking for a strong and dependable lawn mower, go no further than the Craftsman Gas Push Lawn Mower M160. Mowing has never been easier than with this mower, thanks to its 160cc Honda engine's reliable power and simple starting mechanism. Because of its wide 21-inch cutting deck, you won't have to mow your grass as often. The M160 can mulch, bag, and side discharge, making it a versatile lawn mower that can meet a variety of demands. Keeping a perfect lawn has never been easier than with the Craftsman M160, thanks to its sturdy build and intuitive design.

Detailed Specifications

The Craftsman Gas Push Lawn Mower M160 boasts several key features that make it an attractive choice for homeowners. These features include:

• Powerful 159cc OHV engine
• 2-in-1 cutting deck: mulching and rear bag discharge
• 6 height adjustments for optimal cutting height
• 11-gauge steel deck for durability
• 16-inch rear and 14-inch front wheels for easy maneuverability
• Recoil start system
• 3-year limited warranty

Description

The Craftsman Gas Push Lawn Mower M160 is designed to provide a comfortable and efficient mowing experience for homeowners. Its powerful 159cc engine is capable of handling various grass types and sizes, ensuring a clean and even cut every time. The mower's 2-in-1 cutting deck allows for both mulching and rear bag discharge, providing versatility for different lawn conditions. With six height adjustments, users can choose the ideal cutting height for their lawn. The 11-gauge steel deck guarantees durability and resistance to rough terrains, while the 16-inch rear and 14-inch front wheels ensure easy maneuverability around obstacles and corners.

READ AND UNDERSTAND ALL INSTRUCTION, WARNING, AND DANGER LABELS.

Identify Handle Style

IMPORTANT: Pull-Out Handle (if equipped)

Before starting the mower engine ensure the handle has been moved up to the operating position and secured to the mower - Otherwise damage may occur to the blade or engine.

Pull-Out Handle (if equipped)

1. A: Remove the two knobs and carriage bolts securing the upper handle to the lower handle.
   - or-
   Unlock EZ-Fold handle release levers.
   B: Remove  the two  T-bolts from the handle brackets.



2. A: Pivot the upper handle up into the opperating position



3. A: Reinstall the two knobs and carriage bolts to secure the upper handle to the lower handle.
   - or-
   Lock EZ-Fold handle release levers.
   B: Reinstall the two T-bolts ˜ through handle and  into handle brackets.



Folding Handle (if equipped)

1. Remove the two knobs carriage bolts securing the upper handle to the lower handle.
   - or-
   Unlock EZ-Fold handle release levers.
   A: Remove  the two T-bolts from the handle brackets.



2. Pivot the handle up into the operating position.



3. A: Reinstall the two knobs carriage bolts to secure the upper handle to the lower handle.
   - or-
   Lock EZ-Fold handle release levers.
   B: Reinstall the two T-bolts through handle and  into handle brackets.



Vertical Storage Handle (if equipped)

1. A: Remove four carriage bolts from the lower handle.
   B: Unlock the handle release levers.
   C: Pivot lower handles forward

2. Using the four carriage bolts, secure the lower handle to



   the upper handle.



3. A: Pivot the handle up into the operating position.
   B: Lock the handle release levers.



4. A: Hold the blade control against the upper handle.
   B: Slowly pull recoil starter rope handle from engine and slip starter rope into the rope guide.
   C: Tighten rope guide wing knob.



5. Pour the entire contents of the supplied oil bottle into the oil fill. Check the oil level by inserting the dipstick (not threading it) into the oil fill.

6. Fill tank with fresh gas to within ½-inch of top of tank. Do not overfill. Do not use E85 or fuel containing more than 10% Ethanol.



7. Make sure the spark plug boot is connected to the spark plug before attempting to start.

8. Fuel Valve (if equipped): Rotate the fuel valve into the OPEN position



9. Recoil Start (all models)
   A: While standing behind the mower, pivot the blade control gainst the upper handle.
   B: Grasp the recoil starter rope handle and pull with quick, full-arm stroke. If the engine does not start after three pulls, wait a few minutes and repeat.
   OR
   Electric Start System (if equipped)
   NOTE: For battery pack installation, refer to Operator’s Manual.
   Insert plastic electric starter push key into starter housing.
   Standing behind the mower, pull the blade control back against the upper handle. While holding the blade control, push the electric starter push key to start the engine.
   NOTE: Electric starter is equipped with an internal circuit breaker. If unit fails to start when starter  button is depressed, wait one minute for breaker to reset, then attempt to start again.



Setup Guide

Before operating the Craftsman Gas Push Lawn Mower M160, follow these steps to ensure a safe and smooth experience:

1. Check and fill the oil and gas levels according to the manufacturer's recommendations.
2. Inspect the mower for any damages or loose parts and tighten them accordingly.
3. Adjust the cutting height to your desired level.
4. Attach the grass bag or set the mulching feature based on your preference.
5. Start the mower using the recoil start system, ensuring a firm grip on the handle.
6. Mow in a steady and consistent pattern, moving the mower forward and backward in straight lines.

Troubleshooting

Here are common issues and solutions regarding the Craftsman Gas Push Lawn Mower M160:

• Problem: Engine won't start.
  Solution: Check the gas and oil levels, ensure the choke is in the correct position, and verify the spark plug is functioning properly.
• Problem: Uneven cutting.
  Solution: Sharpen the mower blades, adjust the cutting height, or ensure the mower is operating on a flat surface.
• Problem: Overheating.
  Solution: Allow the mower to cool down, check for any debris obstructing the cooling system, or adjust the cutting height to reduce strain on the engine.

Craftsman Gas Push Lawn Mower M160 Pros & Cons

Pros

• Powerful 159cc OHV engine
• 2-in-1 cutting deck
• Durable 11-gauge steel deck
• Comfortable and easy to maneuver
• Affordable price range

Cons
