Usage: Crane HEPA Air Purifier Setup Guide

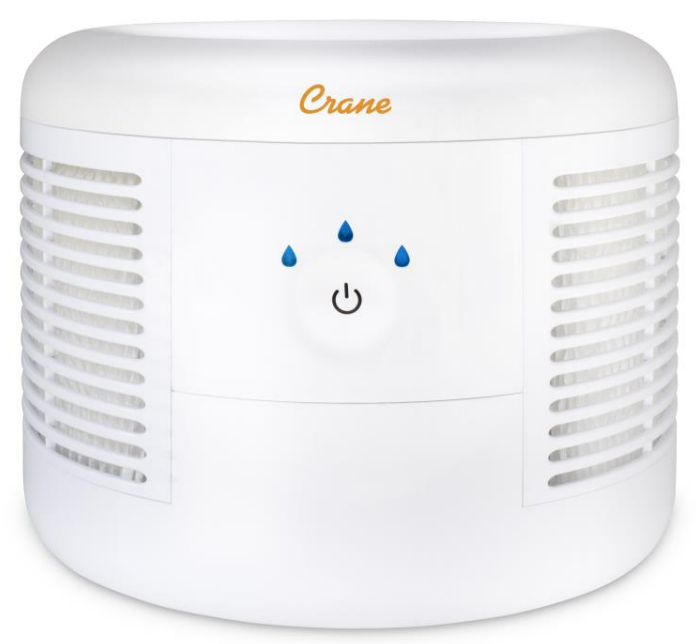

Crane HEPA Air Purifier

Introduction

The Crane HEPA Air Purifier offers a powerful and effective solution for improving indoor air quality by removing airborne contaminants with advanced filtration technology. Designed to serve small to medium homes and office spaces, it targets allergens, dust, mold spores, bacteria, viruses, and pet dander to create a healthier breathing environment. Key features include a True HEPA filter that captures 99.97% of particles as small as 0.3 microns, along with an integrated UV-C germicidal light to deactivate pathogens — providing comprehensive air purification beyond traditional filters.

This air purifier is ideal for allergy sufferers, pet owners, families with young children, and individuals sensitive to smoke or odors. It operates quietly, making it suitable for bedrooms, living rooms, and workspaces, and its sleek design blends well with modern décor. With multiple speed settings and timer functions, users can customize purification levels and operational times conveniently.

The estimated price range for the Crane HEPA Air Purifier models varies between $120 and $170, depending on size and features, and the product is widely available through major retailers such as Home Depot, Staples, and online marketplaces. This combination of efficiency, user-friendly design, and strong pathogen removal capabilities makes the Crane HEPA Air Purifier a highly attractive choice for consumers seeking reliable air filtration.

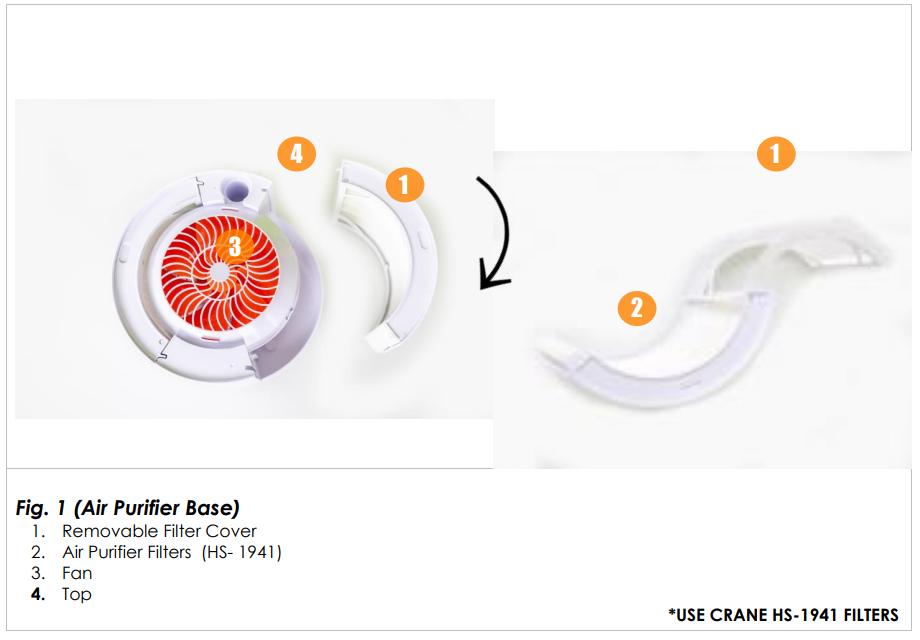

LIST OF MAIN PARTS

ASSEMBLY & USE

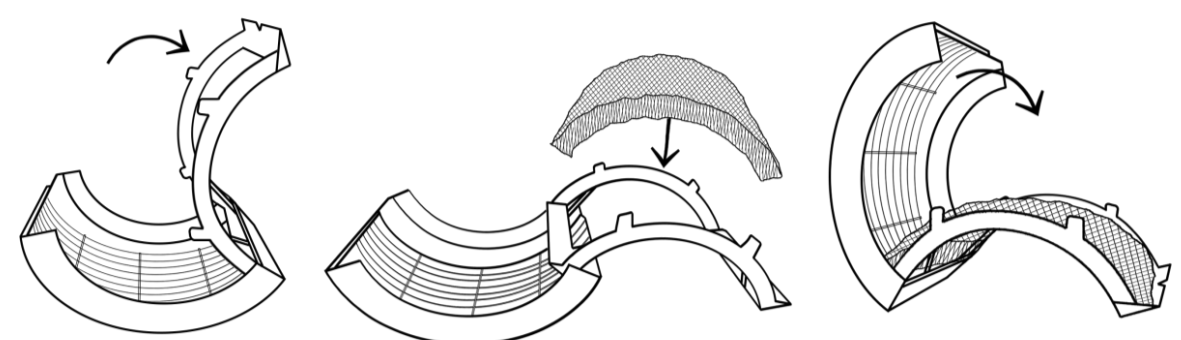

AIR PURIFIER ASSEMBLY

1. Open the filter cover by gently pulling the end with the finger notch until it swings open like a door.  There are 2 notches on the inside tohelp keep the door closed. Try pulling up and out to open.
2. Place aithe r filter along the inside before closing the cover until it snaps closed.
3. Insert filter covers into the sides of the base (see LIST OF MAIN PARTS: Fig. 1)
4. Properly place the purifier cover on the base to create a seal (Crane Logo will align with power button)
5. Plug the power cord into a wall socket..
6. Press the power button. The power light will illuminate one blue water droplet for low. Press again to change to medium; the light will illuminate 2 blue water droplets. Press a third time to change to high; the light will illuminate 3 blue water droplets. Press a fourth time to power off the purifier.

PURIFIER MAINTENANCE

• We recommend unplugging the product before maintenance.
• AIR PURIFIER FILTER MAINTENANCE (HS-1941 Filter)
• Please check the filter regularly for dust and particles.

PURIFIER MAINTENANCE

1. Unplug the unit before cleaning.
2. The exterior of the unit can be cleaned by wiping with a damp cloth. DO NOT use gasoline, polish, or any chemical solution to clean the purifier.

NOTE: No part of the air purifier should be placed in the dishwasher

END-OF-SEASON MAINTENANCE & STORING YOUR AIR PURIFIER

1. Turn off, unplug from he outlet.
2. Follow instructions for Purifier maintenance above.
3. Let all parts dry completely.
4. Store the air purifier in a cool, dry place.

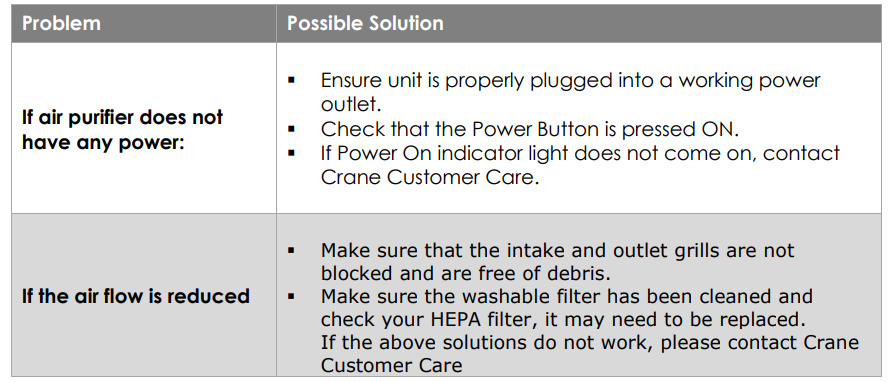

TROUBLESHOOTING

• DO NOT attempt to disassemble the fan and motor; this will void the warranty.
• If the air purifier continues to not operate, please contact Crane Customer Care.

CRANE WARRANTY

L I M I T E D   W A R R A N T Y

• Thank you for purchasing a Crane product,, which has been tested to meet our stringent quality standards.  This prproductrris anteddd to be free from manufacturing defects under normal use and conditions for 1 year.
• PLEASE CONTACT US BEFORE RETURNING THIS PRODUCT TO THE STORE.
• CALL CRANE CUSTOMER CARE FOR PROBLEMS AND QUESTIONS.  WE CAN HELP.
• WARRANTY REQUIRES A DATED PROOF OF PURCHASE.
• This warranty is void if the defect is due to accidental damage, misuse, abuse, neglect, improper repair or alteration by unauthorized persons, or a failure to follow operating instructions provided with the product.  This warranty does not apply to normal wear and tear or commercial use.
  In no event shall liability exceed the purchase price paid by the purchaser of the product.  Under no circumstances shall there be liability for any loss – direct, indirect,, or incidental – or consequential damage arising out of, or in connection with the use of this product.
• This warranty is valid only in the 48 contiguous states plus the District of Columbia and excludes Puerto Rico and the Virgin Islands.  This warranty is effective only if the product is purchased and operated in the United States of America.
• Any instructions or warranty included in this manual may be subject to change without notice.  For the most up-to-date instructions and warranty information, please contact us or visit our website.

Specifications and Features of Crane HEPA Air Purifier

• Filtration Technology: True HEPA filter capturing 99.97% of particles ≥0.3 µm, combined with a pre-filter and UV-C germicidal light for deactivating viruses, mold, and bacteria.
• Room Coverage: Models available for 250 sq. ft., 300 sq. ft., and up to 500 sq. ft., suitable for various room sizes.
• Dimensions: Typical units measure approximately 18.75" H x 9.5" W x 9.5" D for larger models; smaller tower designs are around 15.3" H x 9.25" W x 9.25" D.
• Speed Settings: 3-speed controls,, including a low-noise mode ideal for nighttime use.
• Timer Function: Options for 2, 4, or 8-hour runtimes with automatic shut-off.
• Additional Filters: Active carbon filter for odor absorption (smoke, pets, cooking), and washable pre-filters to extend HEPA filter life.
• Power Consumption: Approximately 40 Watts at 120V, 60 Hz.
• Noise Level: Quiet operation with low decibel output on low speed.
• CertificatiUL-listedsted and CARB-certified for safety and air quality standards compliance.
• Warranty: 1-year limited manufacturer warranty covering defects.

Compared to similar products, the Crane HEPA Air Purifier stands out for its UV-C germicidal feature combined with comprehensive filtration, offering broader pathogen control than many standard HEPA units. Its coverage capacity also spans from compact rooms to mid-sized spaces, giving users versatile options.

Troubleshooting Guide for Crane HEPA Air Purifier

• Unit Not Turning On: Ensure the purifier is plugged in and the power outlet is functional. Press and hold the power button for 3 seconds if needed. Check for tripped circuit breakers.
• Filter Change Indicator On: Replace the HEPA filter if it has been used for 3-6 months or if airflow decreases. Reset the indicator by holding the power button for 5 seconds after filter replacement.
• Unusual Noise: Verify the device is on a flat, stable surface. Clean the pre-filter to remove dust build-up. If noise persists, contact support.
• UV Light Not Working: UV bulb may need replacement; contact Crane customer service for compatible bulbs.
• Odor Not Eliminated: Replace or clean the active carbon filter regularly to maintain odor absorption efficiency.

Preventive Measures: Regularly clean and replace filters as recommended, keep the unit away from moisture, and avoid blocking air intake or outlet vents.

Warranty & Support: The Crane HEPA Air Purifier comes with a 1-year limited warranty. For assistance, contact Crane USA Customer Care at 1-888-599-0992 (Mon-Fri, 9 AM - 4 PM CST) or email customer-service@crane-usa.com.

Pros & Cons of the Crane HEPA Air Purifier

• Pros:
  • Highly efficient True HEPA filter with 99.97% particle removal,, including allergens and pathogens.
  • UV-C germicidal light enhances air purification by deactivating bacteria, viruses, and mold spores.
  • Multiple speed and timer settings allow flexible operation and energy savings.
  • Wide range of room coverage options from 250 to 500 sq. ft. accommodates various spaces.
  • Quiet operation suitable for bedrooms and offices.
  • An active carbon filter effectively absorbs household odors.
• Cons:
  • Not portable; units are relatively bulky for small desk use.
  • Filter replacements can add to maintenance costs over time.
  • UV bulb replacement requires contacting the manufacturer, which may be less convenient.
  • Some users report a learning curve in understanding timer functions and filter resets.

Overall, the Crane HEPA Air Purifier offers excellent value for money given its advanced filtration technology and comprehensive air cleaning capabilities, standing favorably against alternatives lacking UV-C features or with smaller coverage areas.

Customer Reviews and Feedback on Crane HEPA Air Purifier

Users commonly praise the Crane HEPA Air Purifier for its effective reduction of allergens and noticeable improvement in air freshness, especially in allergy-prone households. The quiet operation and ease of use with timer settings receive positive remarks.

Typical complaints include the frequency and cost of filter replacements and occasional confusion over resetting the filter indicator light. Some users also note that while the UV light feature is appreciated, its impact on odor elimination is limited without regular carbon filter maintenance.

Overall ratings average around 4 out of 5 stars, with many recommending the product for bedrooms, living rooms, and small office environments. The balance of performance, features, and price makes it a popular choice for consumers seeking reliable air purification.
