Introduction

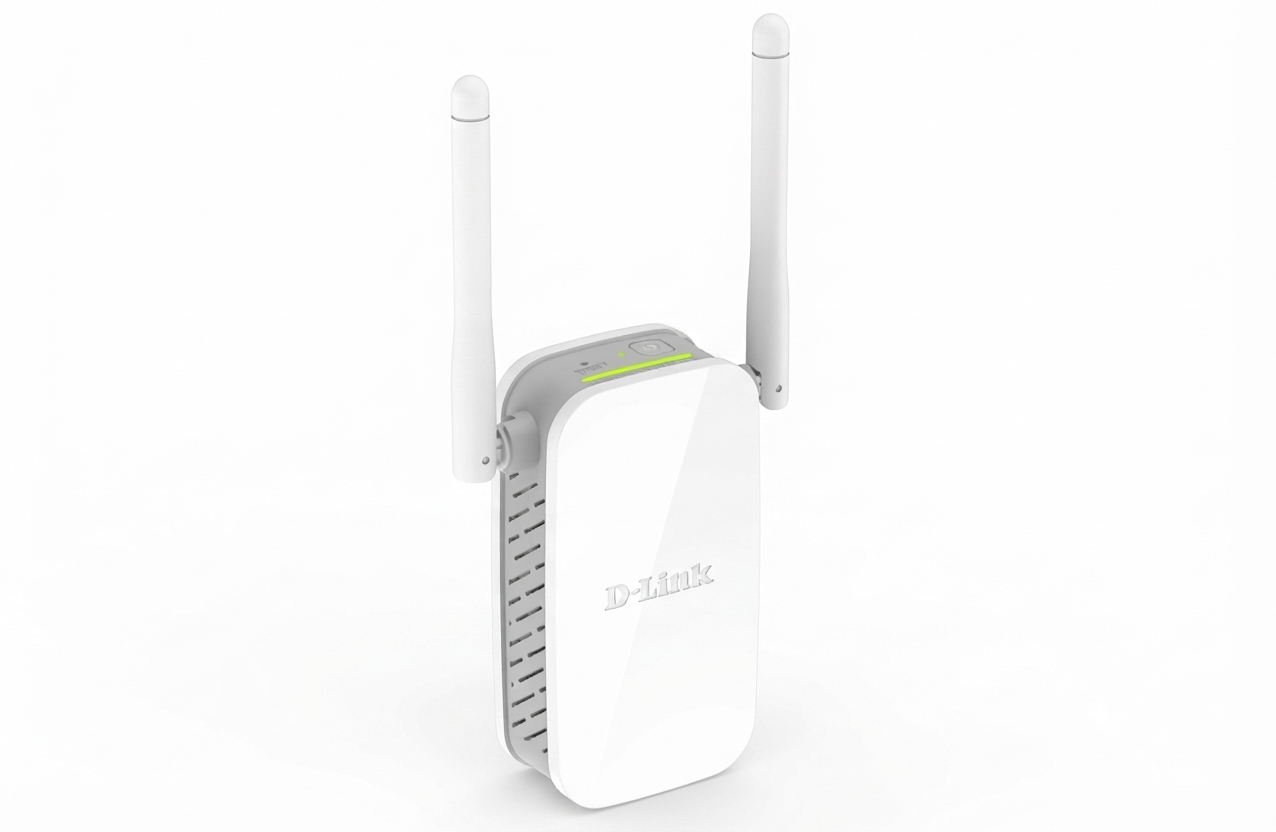

Improving the range and signal strength of your existing wireless network is the goal of the compact and intuitive DAP-1325 Wi-Fi range extender for D-Link N300. With its 300 Mbps maximum speed, it wirelessly connects even the most inaccessible areas of your home or office. It offers a one-button WPS (Wi-Fi Protected Setup) for easy setup and can be plugged into any power outlet. By eliminating dead zones and providing dependable internet connectivity for all of your devices, the DAP-1325 makes your life easier.

Package Contents

• DAP-1325 Mesh Wi-Fi Range Extender
• Wi-Fi Configuration Card
• Quick Install Guide

If any of the above items are missing, please contact your reseller.

Detailed Specifications

The DAP-1325 D-Link N300 Wi-Fi Range Extender is capable of supporting wireless technologies 802.11n/g/b and offers a maximum wireless speed of 300Mbps. It provides a maximum wireless coverage of 1000 square feet using a single 2.4GHz band. The device is equipped with two additional antennas to enhance signal strength and expand coverage. Additionally, it includes a WPS button for the purposes of both convenience and security. Measuring just 3.2 x 2.6 x 1.6 inches, the DAP-1325 is compact and can easily fit into any available space. The device has a power consumption of 3.4 watts and accepts power input within the range of 100 to 240 volts.

Before You Begin

For setup, you will want your Range Extender to be plugged into an available outlet as close to your Wi-Fi Router as possible. Once setup is complete, you can plug it into an outlet in the area between your Wi-Fi router and where you want improved coverage. See the Troubleshooting section for tips on Wi-Fi Extender placement.

If your wireless router or access point does not have a WPS button ( ), follow the steps under Method Two: QRS Mobile Setup to set up your Range Extender.

Description

A small and reasonably priced wireless range extender for D-Link N300 networks, can increase the reach of your current wireless network. The DAP-1325's elegant form allows it to be installed covertly in any room to eliminate dead zones and offer whole-home Wi-Fi connectivity. The device works with any wireless router and is simple to set up and operate. It is the perfect option for households wishing to increase the coverage and signal strength of their Wi-Fi because of its two external antennas. The tiny form of the DAP-1325 makes it easy to place in any location, and it also includes a WPS button for simple setup and security.

Product Overview

Signal Strength Indicator

Setup Guide

The D-Link N300 Wi-Fi Range Extender DAP-1325 can be configured by doing the following:

• Find a power outlet close to your wireless router and plug in the DAP-1325.
• Within two minutes, hit the WPS button on the DAP-1325 after pressing the WPS button on your router.
• The DAP-1325's power LED will turn solid green after a successful connection.
• Place the DAP-1325 where you need to expand the coverage yet still have a strong wifi signal from your router.
• Link your devices to the network of the DAP-1325.

There are two easy ways to set up your Range Extender. It is recommended that you use Method One. If your router does not have a WPS button (), see Method Two: QRS Mobile Setup

Quick WPS Setup

1. Plug your Range Extender into an available outlet near your wireless router and wait until the Status LED is blinking amber (this may take up to 3 minutes). You can move it to a more suitable location after it is set up.



2. Press the WPS (Wi-Fi Protected Setup) button on your wireless router for 3 seconds. Look for the WPS light () on your router and make sure it is blinking. If it does not blink, see the important note below.




   IMPORTANT: WPS may be disabled on some Routers or Modems. If the WPS Status LED on your Router or Modem does not start blinking when you have pressed the WPS button, try again and hold it a little longer. If it still does not blink, STOP, and configure your Range Extender using Method Two: QRS Mobile Setup.

3. Once confirmed that the WPS light is blinking on your router, within one minute, press the WPS button on your Range Extender for 2-3 seconds. The Status LED should start to blink green.



4. When the Status LED turns solid green (may take up to 3 minutes), this indicates that your Range Extender is securely connected to your wireless router. Your setup is complete! You can now unplug and move your Range Extender to a location between your wireless router and the area where you want wireless coverage. By default, your Range Extender will share the same name and password as your Router.



If after moving your Range Extender, the signal strength indicator is showing one single amber bar or if your Range Extender LED does not turn solid green within 3 minutes, move your Range Extender to a wall outlet closer to your wireless router.

QRS Mobile Setup

1. Search for “QRS Mobile” on the App Store or Google Play and download the QRS Mobile App to your iPhone, iPad, or Android device. Do not launch the app until step 4.



2. Plug your Range Extender into an available outlet near your wireless router and wait until the Status LED is blinking amber (this may take up to 3 minutes). You can move your Range Extender to a more suitable location after it is set up.



3. You now need to connect to your Range Extender. Go to Wi-Fi Settings on your mobile device. From the list of available Wi-Fi networks, select the Wi-Fi Name (SSID) as listed on the supplied Wi-Fi Configuration card and enter the Wi-Fi Password when prompted. Note: It is OK if you see an “Internet may not be available” notification or similar during the setup process.



4. Once connected to your Range Extender, launch the QRS Mobile app, wait for the Introduction Screen to change to the Welcome Screen (this may take up to 30 seconds), then tap Start to continue.



5. When prompted to select a Mode, select Repeater (default), then tap Next to continue. Please follow the on-screen instructions to complete the setup.



6. Your setup is complete! You can now unplug and move your Range Extender to a location between your Wireless Router and the area where you want wireless coverage. By default, your Range Extender will share the same name and password as your Router.

\If after moving your Range Extender, the signal strength indicator is showing one single amber bar or if your Range Extender LED does not turn solid green within 3 minutes, move your Range Extender to a wall outlet closer to your wireless router.

D-Link N300 Wi-Fi Range Extender DAP-1325 Troubleshooting

Why can’t I connect to my wireless router or my wireless connection drops?

1. Verify that your Range Extender is within range of your wireless router. Try plugging it into a location closer to the router and verify the Status LED is solid green.
2. Note that when extending a wireless signal from a router or access point, devices connected to the Range Extender will not get the same speed/throughput as when connected directly to the router.

How do I change the wireless settings on my Range Extender?

1. Open a web browser (e.g., Internet Explorer, Firefox, Chrome, or Safari) and go to http://dlinkap.local/
2. At the login screen, enter your Admin Password (If WPS Setup was used, password is blank by default - just leave blank) and click Log in.
3. Go to Settings > Extender.
4. Enter a new Wi-Fi Network Name (SSID) and modify the security (Wi-Fi password) settings as needed.

5. Click Save.



Note: If you have changed the Wi-Fi Network name or Wi-Fi Password, the device you are currently using to connect to your Range Extender will drop. You will need to go to your Wi-Fi Settings and connect to your Range Extender using the new network name and password.

Where should I place my Range Extender for best performance?

• A Range Extender only works as well as the signal it is extending. Therefore, proper placement of your Range Extender is important in achieving desired results.



• For best performance, place your Range Extender in between your router and your dead zone, making sure it is placed in a location where the Wi-Fi signal is still strong. Use the Smart Signal Indicator to help find a location with a strong signal. The more bars lit on the signal indicator, the stronger the Wi-Fi signal is.



What if I forgot my Range Extender’s Admin password or want to reset my Range Extender?

1. If you forgot your Admin password or want to reset your Range Extender back to the factory default settings, press and hold the reset button on the bottom of the extender using a paper clip and release after a minimum of 10 seconds. The Status light will turn red.
   Note: This process will erase all your settings.
2. Setup your Range Extender using your preferred method.

What if WPS setup is not working?

WPS may be disabled on some Routers or Modems. If the WPS Status LED on your Router or Modem does not start blinking when you have pressed the WPS button, try again and hold it a little longer. If it still does not blink, STOP, and configure your Range Extender using Method Two: QRS Mobile Setup.

What is Mesh Smart Roaming?

With Mesh Smart Roaming, your Wi-Fi device (e.g. Smartphone, Tablet) will automatically roam to the strongest Wi-Fi signal, eliminating the need to switch between your Router’s and Range Extender’s Wi-Fi signal as you move around your home.

Mesh Smart Roaming Requirements

1. The Wi-Fi device (e.g. Smartphone, Tablet) must support the 802.11k/v standard.
2. The Wireless Name (SSID) & Wireless Password must be the same on both the Mesh Wi-Fi Range Extender and your Wireless Router.

Pros & Cons

• Pros
  • Compact and affordable
  • Easy to set up and use
  • Compatible with any wireless router
  • Two external antennas for better coverage and signal strength
  • WPS button for easy setup and security
• Cons
  • Only supports wireless speeds of up to 300Mbps
  • Has a single 2.4GHz band
  • Wireless coverage of up to 1000 square feet may not be enough for larger homes
