Introduction

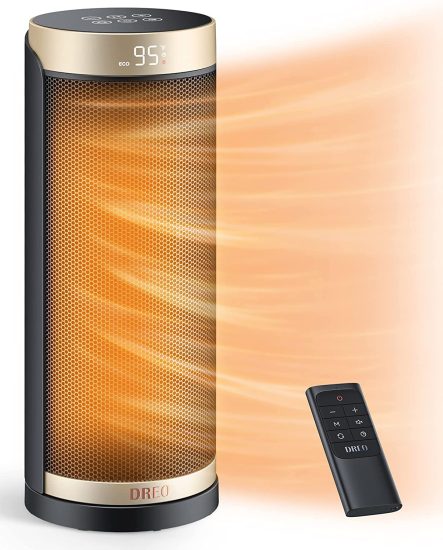

The Dreo PTC Fan Heater DR-HSH002 is a compact, oscillating space heater designed for efficient and quiet heating. Featuring a 1500W ceramic heating element, it quickly warms up small to medium-sized rooms. With adjustable thermostat, 12-hour timer, and safety features like tip-over and overheat protection, this heater offers convenience and peace of mind. Its sleek design and remote control make it a practical choice for any indoor space. The price of Heater DR-HSH002 is $67.49

Specifications

USING YOUR HEATER

Package Contents

• 1 x PTC Fan Heater

• 1 x Remote Control

• 1 x Thank You Card

• 1 x User Guide

Product Diagram

Control Panel

Remote Control

Note: For added convenience, the same control buttons can be found on the remote control.

Description

The Dero PTC Fan Heater DR-HSH002 is a versatile and efficient heating solution for any space. Its PTC heating technology delivers fast and consistent warmth, while the adjustable thermostat and three heat settings allow for customized heating. The fan-assisted heating feature ensures increased air circulation, while the overheat protection, anti-freeze function, and tip-over switch provide added safety. With its cool-touch exterior, energy-saving mode, and compact design with built-in handle, the Dero PTC Fan Heater DR-HSH002 is both practical and convenient.

Operations and Functions

Place the heater on a firm, level surface free from obstructions, and at least 3ft. (0.9m) away from any wall or combustible material. Plug into an appropriate voltage AC 120V outlet, the unit will enter standby mode with a beep and power indicator on red. Your heater is ready for use now.

Power ON/OFF

• The RED indicator (Power ON indicator) lightens when the Heater is switched on.

• Press on the heater / remote control once to turn the heater ON with default settings: Power indicator on red, default temperature “95°F” & high heat level “HI” on LED display

• Press once again to turn the heater OFF with 15-second delay and countdown time on the display.

Mode / Heat Level Settings

• When the unit is on, repeatedly press on the heater / remote control to cycle through High (HI) ->Low (LO) -> ECO -> High (HI) modes.

ECO Mode

• When ECO mode is turned on, the heater will adjust the working mode (High or Low) automatically based on the ambient temperature.

• Both “ECO” and “HI” / “LO” will light up on the LED display.

• You can also adjust the temperature by pressing .

Mute / Unmute

• Hold the MODEL button for 3 seconds or press the mute button on the remote control to turn the buzzer on or off. The HI LO and ECO will flash once along with a beep sound.

Temperature Adjustment

• When the unit is on, press on the heater / remote control to adjust the temperature from 41 to 95°F in 1°F increments.

• When the setting temperature (T0) is reached, the heater will stop working and enter standby mode (with 30-second delay). When the room temperature is lower than the set one (T0), the heater will start working again.

Oscillation Button

• When the unit is on, press  on the heater / remote control to start oscillating.

• To stop oscillating, press it again.

Auto OFF Timer

• When the unit is on, press on the heater / remote control to cycle through 00 -> 01 -> … -> 12 -> 00 -> 01 hour timer. When time is up, the unit will automatically stop running.

• To cancel Timer setting, press and hold on the heater for 3 seconds, or adjust the timer setting to 00, or turn the unit off.

Auto LED Display OFF

• If no operation is done within 1 minute when powered on, the display will turn off automatically （Only the power indicator light + working mode light should be on).

• To turn the display back on, press any button to wake it up.

Other Features of Dreo PTC Fan Heater DR-HSH002

Replacement of Batteries in Remote Control

1. Press the locking button to pop up the battery holder.
2. Replace the battery with the same type (CR2025 3V), making sure the (+) side facing up
3. Pushing the holder until securely locked into place.

Caution

Chemical Burn and Choking Hazard. Keep batteries away from children.

• This product contains a lithium button/coin cell battery. If a new or used lithium button/coin cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours. Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries, and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
• The cells shall be disposed of properly, including keeping them away from children, Even used cells may cause injury.

Setup Guide

To operate the Dero PTC Fan Heater DR-HSH002, follow these steps:

1. Place the heater on a flat and stable surface.
2. Plug the heater into a power outlet.
3. Select your desired heat setting and adjust the thermostat using the control panel.
4. Allow the heater to run for several minutes to reach the desired temperature.
5. When not in use, turn off the heater and unplug it from the power outlet.

CLEANING AND MAINTENANCE

It is recommended that the heater be cleaned at least one time during the operating season and before off-season storage in order to provide the optimum level of performance. Always disconnect the appliance from the mains by switching it off and removing the plug from the power outlet before cleaning.

• Turn the heater “OFF”, unplug it and wait for the heater to cool down.
• Use only a soft cloth to gently wipe the outer surfaces of the heater clean.
• Do not use any cleaning agents or detergents.
• Never immerse the heater in water and never allow water to drip into the motor housing. Be sure not to wet the heating element and the switches.
• For storage, you may leave the heater covered to protect it from dust. Store it in a cool, dry location and arrange the cable away from traffic areas so that it will not be tripped over or damaged.

Caution

• Do not allow water to run into the interior of the heater as this could result in a fire or electric shock hazard.
• Any other servicing should be performed by an authorized service representative.
• Except cleaning, any other servicing should be performed by an authorized service representative.
• Carefully fold the power supply cord and tie it up with a cord, than put the Heater into the packing box. Keep it in a cabinet away from any hot or wet location.

IMPORTANT SAFETY INSTRUCTIONS

Thanks for choosing the Dreo PTC Fan Heater. Please read this User Guide thoroughly before use and retain it for future reference.

READ AND FOLLOW ALL SAFETY INFORMATION AND INSTRUCTIONS. KEEP FOR FUTURE REFERENCE. FOR HOUSEHOLD USE ONLY

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before using this heater
• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear.
• Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
• Always unplug heater when not in use.
• Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Discard heater, or return to authorized service facility for examination and/or repair.
• Do not use outdoors.
• This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate heater where it may fall into a bathtub or other water container.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
• To disconnect heater, turn controls to off, then remove plug from outlet.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
• A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
• Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
• Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).
• If there is a loose fit between the plug and the socket or the plug becomes very hot, the socket may need to be replaced. Check with a qualified electrician to replace the socket.
• It is normal for the plug and cord to feel warm to the touch.
  A plug or cord which becomes hot to the touch or becomes distorted in shape may be a result of a worn electrical outlet. Worn outlets or receptacles should be replaced prior to further use of the heater. Plugging the heater into a worn outlet / receptacle may result in overheating of the power cord or fire.
• The output of this heater may vary and its temperature may become hot enough to burn exposed skin. Use of this heater is not recommended for persons with a high sensitivity to heat or an inability to react to avoid burns.
• Ensure the heater is on a stable, secure surface to eliminate the potential of tipping it over.
• Make sure that no pieces of polystyrene or other packaging material have been left between elements of the appliance.
  It may be necessary to pass over the appliance with a vacuum cleaner.
• Do not attempt to modify or repair the product by yourself.
  Doing so could void the warranty and cause damage or personal injury. Only a repair technician may disassemble or repair this product.
• Choking hazard – This remote control unit contains a small battery. Keep the remote control away from children and do not swallow the battery. If the battery is swallowed seek medical advice at once.
• If the machine is not working as it should, has received a sharp blow, has been dropped, damaged, left outdoors, or dropped into water, do not use and contact Customer Support.
• NOTE: There may be a trace of smoke or odor when the unit is first operated. This indicates that a drop of oil fell on the heating coil during the manufacturing process. It will quickly evaporate and should not re-occur.

IMPORTANT
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to rig this safety feature.
DANGER
High temperatures may be generated under certain abnormal conditions. Do not partially or fully cover or obstruct the front of this heater.

READ AND SAVE THESE INSTRUCTIONS

TROUBLESHOOTING

The following troubleshooting guide addresses the most common problems. If problems persist, contact the Customer Support at [email protected].

WARRANTY

Default 12-Months Warranty

Thanks for choosing DREO heater. This product is covered with Dreo product and labor warranty for 12 months from the date of its original purchase.

Additional 18-Months Warranty

Extend your warranty to 30-Month by registering your new product on our website https://dreo.com/warranty

Dreo PTC Fan Heater DR-HSH002 Pros & Cons

Pros

• Fast and consistent heating
• Adjustable thermostat and three heat settings
• Fan-assisted heating for increased air circulation
• Overheat protection and other safety features
• Cool-touch exterior and energy-saving mode
• Compact and portable design

Cons

• May produce a burning smell when first used
• May be relatively loud on higher heat settings

Customer Reviews

Customers praise the Dero PTC Fan Heater DR-HSH002 for its fast and efficient heating, as well as its adjustable thermostat and safety features. Some common complaints include a loud operating noise on higher heat settings and a burning smell when first used. Overall, the Dero PTC Fan Heater DR-HSH002 is a reliable and effective heating solution for any space.
