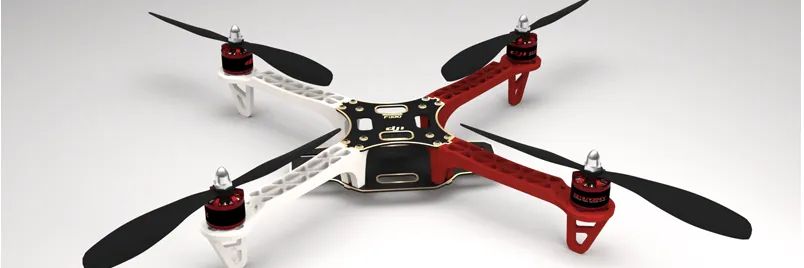

Introducing the DJI Drone FlameWheel F330

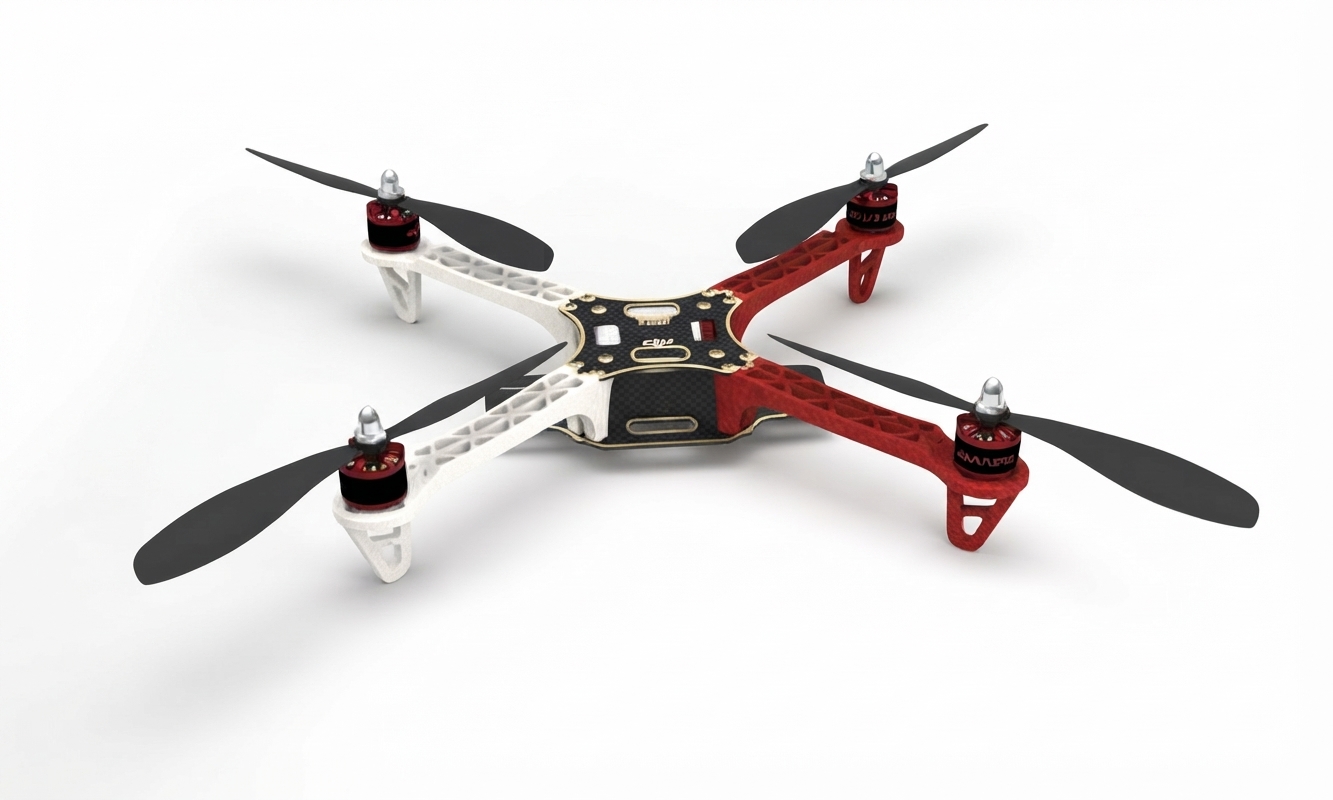

The DJI FlameWheel F330 is a compact and robust quadcopter frame designed for both beginners and experienced drone enthusiasts. Constructed from durable materials, it supports various payloads, making it suitable for aerial photography and FPV flying. The F330 features a straightforward assembly process and is compatible with DJI's high-quality motors and ESCs, ensuring reliable performance. Its lightweight design allows for easy maneuverability, making it an excellent choice for indoor and outdoor flying. The Price of DJI Drone FlameWheel F330 is $35.58.

Read this disclaimer carefully before using FlameWheel330. By using this product, you hereby agree to this disclaimer and signify that you have read them fully. FlameWheel330 is an excellent multi-rotor. With a good autopilot, it will even offer tremendous flight features for low altitude flight working in restricted space.

Despite the controller of autopilot operates in the safest manner when the main power battery is connected, we strongly recommend customers to remove all propellers, use power supply from R/C system or flight pack battery, and keep children away during system calibration and parameter setup. Please respect the AMA’s National Model Aircraft Safety Code. DJI Innovations assumes no liability for damage(s) or injuries incurred directly or indirectly from the use of this product.

DJI FLAME WHEEL is registered trademark of DJI Innovations. Names of product, brand, etc., appearing in this manual are trademarks or registered trademarks of their respective owner companies. This product and manual are copyrighted by DJI Innovations with all rights reserved. No part of this product or manual shall be reproduced in any form without the prior written consent or authorization of DJI Innovations. No patent liability is assumed with respect to the use of the product or information contained herein.

In Box

Tools Needed

DJI Drone FlameWheel F330 Specifications

Frame

ESC

Motor

ESC Wiring

Important

• Please solder ESCs to power pads on bottom board as the figure shows.
• Use any insulating method at all soldering spots. Make sure there is no short or open circuit.
• Make sure the side of power pads is upward.
• Make sure the rotation direction of each motor is the same as the way in the figure of “Assembly” shows. If not, switch any of two wire connetcions of the incorrect motor to change its rotation direction.

DJI Drone FlameWheel F330 Assembly

In up figure, arms ①② front of craft, arms ③④ are back of craft. You'd better choose the same color arms for the same direction. See from top, motors on arms ①③ rotate counter-clock wise, use propellers 8045; motors on arms ②④ rotate clock wise, use propellers 8045R.

ESC Sound Introduction

Tips: DJI ESCs are specially designed for multi-rotors. When use with DJI autopilot systems, you do not have to setup any parameters or calibrate travel range.

Profile

FlameWheel330 (F330) is a multi-rotor designed for all pilots for fun or AP. With DJI Naza autopilot system, it can achieve hovering, cruising, even rolling and other flight elements. It can be applied for entertainment, aerial photography, FPV and other aero-modeling activities.

Description

The FlameWheel F330 is known for its simplicity and robustness. The frame comes with pre-drilled holes for easy installation of motors, ESCs, and other components. It features a central plate that houses the flight controller and power distribution board, making wiring and component placement straightforward. The frame also includes vibration dampening mounts for smoother flights and better camera stability. Its modular design allows users to upgrade or replace parts easily, extending the drone's lifespan.

Product Usage Cautions

When flying, the fast rotating propellers of FlameWheel330 will cause serious damage and injury. Therefore, please fly with a high safety consciousness.

1. Keep flying multi-rotor away from objects, such as obstacles, human beings, high-voltage lines and so on.
2. Do not get close to or even touch the working motors and propellers, which will cause serious injury.
3. Do not over load the multi-rotor.
4. Check that the propellers and the motors are installed correctly and firmly before flight.
5. Make sure the rotation direction of each propeller is correct
6. Check whether all parts of multi-rotor are in good condition before flight. Do not fly with old or broken parts.
7. Use DJI parts as much as possible.

If you have any problem you cannot solve during installation, please contact our customer service.

Setup Guide

To set up the DJI FlameWheel F330, follow these steps:

1. Assembly:** Attach the arms to the central plate using screws. Ensure all connections are secure.
2. Motor Installation:** Mount the motors to the arms and connect them to the ESCs.
3. ESC and Flight Controller Installation:** Install the ESCs and flight controller on the central plate.
4. Wiring:** Connect all components according to the wiring diagram provided.
5. Calibration:** Calibrate the flight controller and configure the transmitter settings.
6. Pairing:** Pair the transmitter with the receiver and perform a safety check before flight.

Troubleshooting

Common issues with the FlameWheel F330 include:

• Motor Misalignment: Check if motors are securely attached and aligned properly.
• ESC Overheating: Ensure proper airflow around ESCs and monitor temperatures during flight.
• Flight Controller Issues: Re-calibrate the flight controller or update firmware if necessary.
• Battery Problems: Check battery connections and ensure the battery is fully charged before flights.
• Warning: Always wear protective gear when assembling or flying drones, and follow local regulations.

Pros & Cons

Pros

• Durable Frame: Made from high-quality materials for long-lasting use.
• Customizable: Compatible with a wide range of components.
• Ease of Assembly: Straightforward setup process.
• Good Stability: Vibration dampening mounts ensure smooth flights.
• Affordable Price: Offers great value for money.

Cons

• - No Pre-Installed Components: Requires additional purchases for motors, ESCs, etc.
• - Limited Support for Beginners: May require technical knowledge for assembly and configuration.
• - No Integrated Camera Gimbal: Requires separate purchase if needed.

Customer Reviews

Customer reviews highlight the FlameWheel F330's durability and ease of assembly. Many users appreciate its customization options but note that it may not be suitable for beginners due to the need for technical knowledge. Common complaints include the lack of pre-installed components and limited support resources.
