Introduction

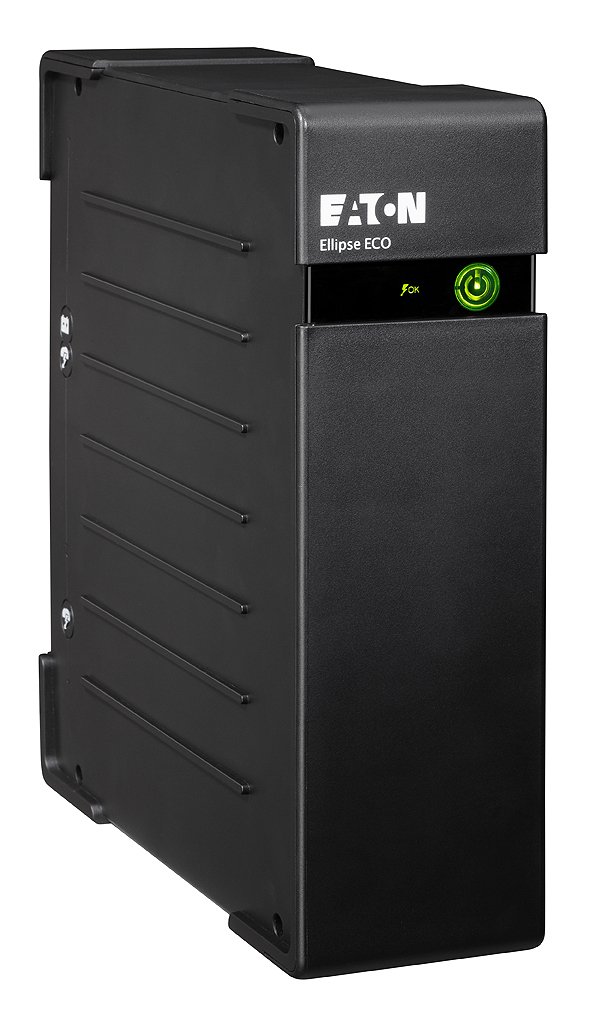

The Eaton Ellipse Eco 1600 USBIEC UPS is a reliable and efficient power protection solution designed to provide uninterrupted power supply to your electronic devices. This UPS is perfect for home offices, small businesses, and networks, offering a battery backup that protects connected equipment from power outages, surges, and spikes. With an estimated price range of $200 to $250 and a launch date of January 2021, this UPS system is an excellent investment for anyone looking to secure their electronic devices.

Packaging

Before installing the Ellipse, read the booklet 3 containing the safety instructions that must be followed. Then follow the instructions given in this manual2.

Description

• 6 ON/OFFbuttonforthe battery backup outlets
• 7 Scroll down
• 8 ASR LED
  LCD
• 9 UPS ON
• 10 AVR mode
• 11 Battery mode
• 12 Internal fault
• 13 Output load level
• 14 Battery level
• 15 Input measurements
• 16 Output measurements

• 17 Measuring unit



  Outlets

• 18 Surge protection outlets
• 19 Battery backup outlets

• 20 Protection (circuit breaker)



Technical characteristics

Here is the table formatted as requested:

(*) Warning: Output cables should not exceed 10 m length.

Performances tested according to IEC 61643-1 (class 3) standard for 8/20 µs surge wave

Here is the table formatted as requested:

Quick start Eaton Ellipse Eco 1600 USBIEC UPS

Battery disposal and safety

• Caution. Battery service life is reduced by 50 % for every ten degrees above 25 °C.
• The battery must be replaced exclusively by qualified personnel (risk of shock), with new battery approved by Eaton to ensure correct operation of the UPS.
• The battery must be disposed of in accordance with applicable regulations. To remove the battery, shut down the UPS (button 6 OFF), remove the power cord and proceed as indicated below "Battery change".

Battery change

Warning: take care not to inverse the polarity + (red) and - (black) when connecting the battery as this will destroy the device.

Operating conditions

• This product is an Uninterruptible Power Supply (UPS) for computers and their peripherals, television sets, stereo systems and video recorders... It must not be used to supply other electrical equipment (lighting, heating, household appliances, etc.).
• UPS can be installed in horizontal, vertical position, or placed in Rack 2U (optional kit).

UPS connections

• Connect the UPS 1 to the AC-power system via a wall outlet with an earth connector, using the supplied cord 4 for a UPS with FR/DIN sockets or with the supply cord of your computer for a UPS with IEC sockets (see figure A).
• Plug critical equipment (computer, monitor, modem, etc.) into the outlets 19 providing battery backup power and surge protection (see figure B), taking care not to exceed the rated current indicated in amperes.
• Other devices (printer, scanner, fax, etc.) can be connect to the surge protection outlets 18 (see figure B). The surge protection outlets are not backed up by battery power in the event of a power outage.
• Leave sufficient space around the UPS for better ventilation.

Optional Internet modem / Network connection:
A modem or Ethernet data line can be protected against surges by connecting it via the UPS. Connect the existing device cable between the wall outlet and the UPS, and use a similar cable between the UPS and the device, as indicated in figure C (cable not supplied).
Optional USB connection:
The UPS device can be connected to the computer using the USB cable 5 supplied (see figure C).
Eaton UPS Companion software is downloadable from powerquality.eaton.com. Register for the warranty on powerquality.eaton.com.

Master and EcoControl outlets operating procedure

In order to limit energy consumption of peripherals (scanner, printer) in standby mode, the Ellipse PRO is equipped with EcoControl outlets that are dependent on the Master outlet. When the main device supplied by the Master outlet (computer) is shut down, the EcoControl outlets are automatically deactivated and the peripherals shut down. This function (deactivated by default) is validated and configured using the configuration tool integrated in the software.
Note: when the function is activated, do not connect critical applications to EcoControl outlets. Threshold setup A default setup ensures the correct operation of the EcoControl function. However, depending on the consumption of the main load, the trigger threshold of the EcoControl function may have to be modified using the configuration software:

• First, make sure that the function is activated in the "EcoControl Function" tab of the configuration tool.
• If the peripherals connected to the EcoControl outlets do not switch off when the main load is not in normal operation (ex: when in standby mode), the detection threshold value must be set to High.
• If the rated consumption level of the main load is low and the EcoControl outlets shut down when the main load is operating normally, the detection threshold value must be set to Low.

UPS setting through the LCD

Release scroll down button to select menu

Example of setting

LCD shut off if no activity for 3 minutes.

Eaton Ellipse Eco 1600 USBIEC UPS Operation

• Battery charge
  The UPS charges the battery as soon as it is connected to the AC outlet, whether button 6 is pressed or not. When used for the first time, the battery will only provide its maximum performance after it has been charged for 8 hours. It is recommended that the UPS be permanently connected to the AC power supply to ensure the best possible performance.
• Switching-on the UPS
  Press button 6 for about 1 second.
• Surge protection outlets 18 without battery backup
  Equipment connected to these outlets is supplied as soon as the AC cord 4 is plugged in. They are not affected by button 6 .
• Battery backup outlets 19
  Equipment connected to these outlets is supplied as soon as button 6 turns green (see figure D).
  These outlets can be turned on even if the UPS is not connected to AC power (button 6 flashes).
• AC-power disturbance
  • If AC power is disturbed or fails, the UPS continues to operate on battery power. Button 6 flashes green. In normal mode, the audible alarm beeps every ten seconds, then every three seconds when the end of battery backup time is near. In silent mode, the audible alarm simply beeps once when the UPS transfers to battery power.
  • If the power outage lasts longer than the battery backup time, the UPS shuts down and automatically restarts when power is restored. Following a complete discharge, a few hours are required to recharge the battery back to full backup time.
• Surge protection:
  All outlets include surge protection.
• Shutdown of the battery backup outlets 19
  Press button 6 for more than two seconds.

Setup Guide

Setting up the Eaton Ellipse Eco 1600 USBIEC UPS is simple and straightforward:

1. Place the UPS system in a location close to your electronic devices.
2. Connect the battery to the UPS system using the provided cable.
3. Connect the electronic devices to the battery-supported outlets or surge-protected outlets.
4. Plug the UPS system into a wall outlet.
5. Configure the UPS system using the LCD display.
6. Test the UPS system by unplugging the wall outlet and verifying that the battery-supported outlets are providing power to the connected devices.

Troubleshooting

Eaton Ellipse Eco 1600 USBIEC UPS Pros & Cons

Pros

• Reliable and efficient power protection solution
• LCD display for easy monitoring and configuration
• Five battery-supported outlets for backup power
• High efficiency and reduced energy consumption
• Three-year warranty

Cons

• Limited to five battery-supported outlets
• No remote management capabilities

Customer Reviews

Customers have praised the Eaton Ellipse Eco 1600 USBIEC UPS for its reliability, efficiency, and ease of use. While some have noted that the limited number of battery-supported outlets is a drawback, most have been satisfied with the overall functionality and performance of the UPS system. Common complaints include issues with the LCD display and difficulties with USB connectivity, but these issues have been relatively rare.
