Introduction

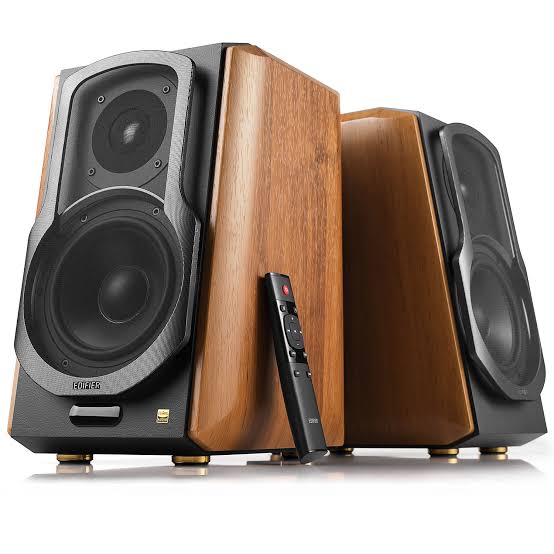

Introducing the Edifier Bookshelf Speakers S1000MKⅡ, a powerful and high-quality audio solution for your home or office. These speakers are perfect for music lovers, audiophiles, and anyone looking to upgrade their listening experience. With an estimated price of $399.99 and a launch date set for November 2021, these speakers are sure to be a popular choice for those seeking superior sound quality.

Specifications

• Power output
  • R/L (Treble): 25W+25W
  • R/L (Mid-range and bass): 35W+35W
• Frequency response: 45Hz-40KHz
• Input sensitivity
  • Line In 1: 750±50mV
  • Line In 2: 900±50mV
  • OPT/COAX: 350±50mFFs
  • Bluetooth: 450±50mFFs
• Audio input: Line In 1/Line In 2/Optical/Coaxial/Bluetooth
• Frequency Band: 2.402GHz ~ 2.480GHz
• RF Power output: ≤20 dBm (EIRP)

There is no restriction of use.

Box Contents

Note: Picture for reference only, actual product prevails.

Illustration

1. Volume dial/Input selection
   • Press to switch amongst Line in 1→Line in 2→Optical→ Coaxial→Bluetooth input
   • Press and hold to disconnect Bluetooth in Bluetooth input
2. Treble control
3. Bass control
4. Power switch
5. Power cable
6. Line in input
7. Optical input
8. Coaxial input
9. Connect to passive speaker
10. Connect to active speaker
11. Indicator light
    1. Red: Optical/coaxial input
    2. Green: Line in input
    3. Blue: Bluetooth input

Connectivity Illustration of Edifier Bookshelf Speakers S1000MKⅡ

1. As the illustration shows, connect speakers using speaker connecting cable.
2. Connect speakers to power source using power cable and turn power switch on, the speakers should be ready to go, LED light will be lit.

Remote Control

Point the remote control to the remote receiving window on the speaker, the optimum operational distance is 7 meters. Displayed value in the display window will alert or blink when the system receives remote control command.

1. Power on/off
2. Mute
3. Bluetooth input
   • Press and hold to disconnect Bluetooth
4. Previous track/next track (Bluetooth input)
5. Volume up/down
6. Pause/play (Bluetooth input)
7. Line in input 1
8. Line in input 2
9. Optical input
10. Coaxial input

Note

• The batteries life is normally about 6 months; please replace them when the remote control is not sensitive or the control distance is shortened.
• Never use old and new batteries together.
• Do not place the remote control in places that are hot and humid.
• Do not charge the batteries.
• Remove the batteries when unused for a long period of time to avoid batteries leakage.
• The batteries should not be exposed to excessive heat such as direct sun, fire or similar.
• Danger of explosion if batteries are incorrectly replaced. Replace only with the same or equivalent type.

Edifier Bookshelf Speakers S1000MKⅡ Line In Input

1. Connect audio source (mobile phone, tablet, etc.) to Line In 1/Line In 2 input port (note color matching) on the rear panel of the active speaker using audio cable.
2. Press the “LINE 1”/“LINE 2” button on the remote control, or press the “Volume dial/Input selection” dial on the rear panel of the active speaker, green light will be lit.
3. Play music on the connected device and adjust the settings to a desired level.

Optical / Coaxial Input

1. Connect audio source (Blu-ray player, Set Top Box, etc.) to Optical/Coaxial input port on the rear panel of the active  speaker using fiber optical audio cable or coaxial cable (not included).
2. Press the “OPT”/“COAX” button on the remote control, or press the “Volume dial/Input selection” dial on the rear panel of the active speaker, red light will be lit.
3. Play music on the connected device and adjust the settings to a desired level.

Bluetooth Input

1. Press the “ BLUTOOTH” button on the remote control, or press the “Volume dial/Input selection” dial on the rear panel of the     active speaker, blue light will be lit.
2. Set your Bluetooth device (mobile phone, tablet, etc.) to search for and connect to “EDIFIER S1000MKⅡ”.

Note: Bluetooth connectivity and compatibility may differ amongst different source devices, depending on the software versions of source devices.

Description

The Edifier Bookshelf Speakers S1000MKⅡ are a 2.0 speaker system that delivers crystal-clear audio with deep, rich bass. They feature a sleek and modern design, making them a stylish addition to any room. The speakers are equipped with Bluetooth 5.0 technology, allowing for wireless connectivity to your devices, and also include optical and AUX inputs for wired connections. With a total power output of 130W, these speakers are perfect for filling large spaces with high-quality sound.

Troubleshooting of Edifier Bookshelf Speakers S1000MKⅡ

No sound

• Check if the speaker is ON.
• Try to turn up the volume using either the master volume control or remote control.
• Ensure the audio cables are firmly connected and the input is set correctly on the speakers.
• Check if there is a signal output from the audio source.

Cannot connect via Bluetooth

• Make sure the speaker is switched to Bluetooth input. If it is in other audio input modes, Bluetooth will not connect. Disconnect from any Bluetooth device by pressing and holding the “    ” button, then try again.
• Effective Bluetooth transmission range is 10 meters; please ensure that operation is within the range.
• Try another Bluetooth device for connection.

The S1000MK does not turn on

Check if main power is connected, or if the wall outlet is switched on.

Noise coming from speakers

EDIFIER speakers generate little noise, while the background noise of some audio devices are too high. Please unplug audio cables and turn the volume up, if no sound can be heard at 1 meter away from the speaker, then there is no problem with this product.

Pros & Cons

Pros

• High-quality sound with deep, rich bass
• Sleek and modern design
• Bluetooth 5.0 technology for wireless connectivity
• Optical and AUX inputs for wired connections
• Total power output of 130W

Cons

• Higher price point compared to some other bookshelf speakers
• May be too powerful for small spaces

Customer Reviews

Customers have raved about the Edifier Bookshelf Speakers S1000MKⅡ, praising their high-quality sound, sleek design, and easy setup. However, some have noted that they may be too powerful for small spaces and that the price point is higher compared to some other bookshelf speakers.
