Introduction

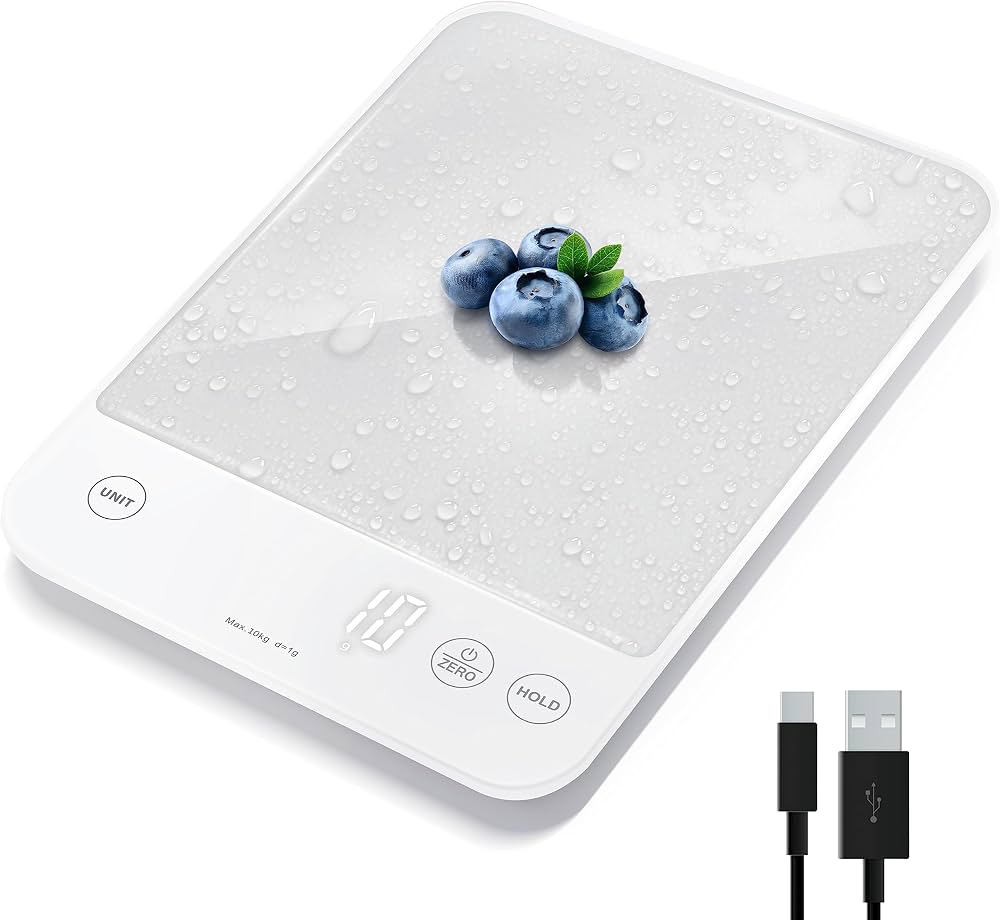

The Etekcity Luminary Lite Kitchen Scale EKS-L422 is a highly accurate and user-friendly digital kitchen scale specifically intended to enhance the precision and efficiency of your cooking and baking endeavors. This kitchen scale guarantees precise measures for your recipes with its stylish appearance, user-friendly LCD display, and highly accurate sensors. The Etekcity Luminary Lite Kitchen Scale EKS-L422 is a dependable instrument for any kitchen, whether you're measuring ingredients for a gourmet dish or monitoring your food consumption.

Package Contents

• 1 x Luminary™ Lite Kitchen Scale

• 1 x USB Type-C Charging Cable

• 1 x Quick Start Guide

Etekcity Luminary Lite Kitchen Scale EKS-L422 Specifications

Model	EKS-L422-VUS
Weight Capacity	353 oz / 22 lb / 10 kg / 10000 mL
Units	oz / lb:oz / g / mL (water/milk) /fl’oz (water/milk)
Increments	0.05 oz / 1 g
Auto-Off	180 seconds
Battery	300mAh Li-ion Battery
Input	5.0V 500mA (USB Type-C Charging)
Dimensions	9.5 x 6.6 x 0.8 in / 242 x 167.5 x 19.5 mm

Function Diagram

• A. LED Display
• B. Unit Selection Button
• C. Power/Zero Button
• D. Hold Button
• E. Anti-Skid Pads
• F. USB Charging Port

Display Diagram

• A. Battery Charging Indicator
• B. Hold Indicator
• C. Tare Indicator
• D. Milk (Liquid)
• E. Water (Liquid)
• F. Measurement Unit
• G. Weight Value

Description

The Eleckcity Luminary Lite Kitchen Scale EKS-L422 is a compact and versatile kitchen scale that is perfect for measuring ingredients for cooking and baking. The scale has a sleek and modern design, with a touch-sensitive button and an LCD display with backlight. The scale has a capacity of 5 kg / 11 lbs and can measure in grams, ounces, pounds, and fluid ounces. The scale also has a temperature feature, which allows you to measure the temperature of your ingredients. The scale is powered by 2 x AAA batteries, which are included with the purchase. The scale has a slim and compact design, making it easy to store in your kitchen.

Using Your Scale

Note

• For accurate results, always place the scale on a hard, flat surface, and keep the scale away from dirt, dust, vibrations, wind, air currents, and electromagnetic interference.

• When you turn on the scale, choose units, or use the tare function, wait for the display to read “0.00” before measuring.

General Operation

1. Place the scale on a hard, flat surface.

2. Tap to turn on the scale. Make sure the display reads “0.00”. If the screen does not display “0.00” automatically, tap to adjust to zero.

3. Tap UNIT to select your desired measuring unit, which will show on the bottom of the display.

4. Place your item on the scale.

5. Wait for the reading on the display to stabilize.

6. When you’re done, reset the scale by removing all items from the scale. If the display doesn’t read “0.00”, press to reset the weight to zero.

Zero / Tare Function

Whenever you measure items inside a container, you can use the tare function to remove the container’s weight from the final measurement.

1. Tap to turn on the scale. Make sure the display reads “0.00”. If the screen does not display “0.00” automatically, tap to adjust to zero.

2. Place the container on the center of the scale.

3. Wait for the reading on the display to stabilize. The display will show the container’s weight.

4. Tap to tare the weight of the container. The screen will now display “0.00”.

5. Place the liquid or items into the container. The scale will measure the contents without including the weight of the container.

6. When you’re done, reset the scale by removing all weight and tapping again.

Unit Conversion
To change the unit of measurement, tap UNIT until the display shows your desired unit of measurement.

Hold Function

There are two ways to use the hold function:

• Place your item on the scale. Tap HOLD to lock the measurement reading. Tap HOLD again to unlock the display.

• Tap HOLD and place your item on the scale. Wait 3 seconds for the reading to stabilize. The scale will automatically lock the measurement reading. Tap HOLD again to unlock the display.

Note: In hold mode, will not work. You can still use UNIT to switch between units.

Automatic Power Off
To save battery power, the scale will automatically power off after 180 seconds of inactivity.
Manual Power Off
Press and hold for 2 seconds to turn off the scale.

Setup Guide

• To utilize the Eleckcity Luminary Lite Kitchen Scale EKS-L422, adhere to the following instructions:
• Place the two AAA batteries into the battery compartment situated at the rear of the scale.
• Activate the scale by pushing the power button situated on the front of the device.
• Position the desired component onto the scale for measurement.
• Utilize the unit button to choose the specific unit of measurement you desire to employ.
• The LCD panel will show the weight of the substance.

READ AND SAVE THESE INSTRUCTIONS

Important Safety Information

To avoid damage to this scale, please read and follow all instructions and safety guidelines in this manual.

Scale

• Do not exceed the 22 lb / 10 kg weight capacity, as it will damage the scale. An error indicator will appear on the LED display if the limit is exceeded.

• The scale is IPX6 water resistant, which means it can withstand most liquid spills without permanent damage. However, we still recommend wiping the scale dry with a soft cloth after any spills to keep it in optimal condition.

• Handle with care. This scale is not intended for commercial or heavy-duty use.

• Keep the scale in a cool, dry place. Avoid exposure to damp environments or extreme temperatures.

• Household use only.

Battery

When the scale is in use, will flash if the scale is running low on battery. The scale’s display will show “Lo” when the battery needs to be charged immediately. Follow the steps to recharge the battery.

1. Insert the USB charging cable into the USB charging socket.

2. Plug the USB charging cable into a DC 5V adapter and plug into an outlet. You can also plug the cable into a powered USB outlet.

3. When charging, will flash. Once the battery is fully charged, will stop flashing.

Note: The scale can’t be used while charging, so it is recommended to charge the battery when flashes, indicating low battery.

Troubleshooting

Problem	Possible Solution
Scale does not turn on.	The scale may need to be charged. Plug in the USB power cord to charge.
Reading is inaccurate.	Place scale on a level surface.
	Keep scale away from dirt, dust, vibrations, wind, air currents, and electromagnetic interference.
	Make sure the screen displays “0.00” before measuring (see Zero / Tare Function, page 10).
Battery Charging Indicator is flashing	When the scale is in use, will flash if the scale is running low on battery. Plug in the USB power cord to charge.
	will flash when the battery is charging. Once the battery is fully charged, will stop flashing.
Display shows “Err”	Item is too heavy. Remove item from scale to protect its weight sensor. Use a different scale with a higher weight range.
Display shows “Lo”	The battery is out of power and needs to be charged immediately. Plug in the USB power cord to charge the scale (see Battery, page 6).

Luminary Lite Kitchen Scale EKS-L422 Warranty Information

• Product: Luminary'” Lite Kitchen Scale

• Model: EKS-L422-VUS

For your own reference, we strongly recommend that you record your order ID and date of purchase.

Etekcity Corporation (“Etekcity”) warrants this product to the original purchaser to be free from defects in material and workmanship, under normal use and conditions, for a period of 2 years from the date of original purchase.

Pros & Cons about Etekcity Luminary Lite Kitchen Scale EKS-L422

Pros

• Sleek and modern design
• Accurate measurements
• Compact and easy to store
• Temperature feature

Cons

• No auto-off feature
• No tare function

Customer Reviews

Customers love the Eleckcity Luminary Lite Kitchen Scale EKS-L422 for its sleek design and accurate measurements. Some common complaints include the lack of an auto-off feature and the lack of a tare function.
