Introduction

With its remarkable range, this cordless phone is perfect for large establishments or workplaces where mobility is essential. Clear and dependable communication over large distances is ensured by the FreeStyl V2 thanks to features like multiple handset support, interference resistance, and digital signal processing. The Engenius FreeStyl V2 offers consistent performance and user-friendliness whether you require a powerful phone system for your home or place of business.

Technical Specifications

Notes

1. NA = Not Applicable.
2. The manufacturer reserves the right to change designs and specifications without notice.

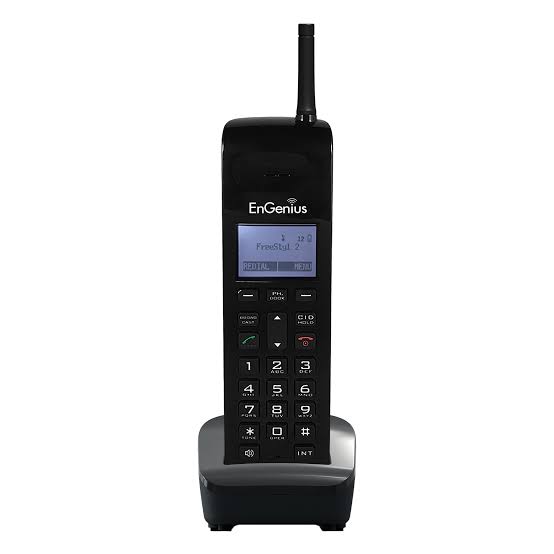

Handset Illustration

Base Illustration

Base unit Diagram

Base Features

Basic Base Station Features

1. Antenna
   1. The antenna port has a reversed thread connector; to remove antenna or cable, turn counterclockwise; to install, turn clockwise.  Improper installation may damage the connector.
   2. When using an outdoor antenna, locate the antenna (not the base station itself) as high as possible for a clear transmission path.
2. LED
   1. Power (blue color):  indicates base station has power.
   2. In-Use (white color): indicates an active telephone line.
3. RESET Button
   1. Restores base station to factory settings
   2. Reset button is intended to prevent accidental system reset.
   3. All handsets (including administrator) need to be re-registered after a base station reset.
4. Page Button (Locate handset)
   • To find a misplaced handset; press “PAGE” and all registered handsets will beep for 30 seconds.
   • Press “PAGE” again or any key on handset to stop.
5. Registration Button (PAGE)
   • Enters registration mode along with handset, assigns handset ID (11-19).
6. Line Jack
   • Standard RJ-11C/CA-11A connector to plug in the telephone line
7. Telephone Jack
   • Another RJ-11C to plug in the optional answering machine

Charger Illustration

Charger Features

1. DC In
   Connects to Charger AC Adaptor.
2. Handset Charging Slot
   1. Charge handset battery when handset is placed in cradle.
   2. Refer to the handset LCD for charging status
      1. Charging: battery status bar is running and the LCD screen will show : “Charging”.
      2. Fully Charged: battery status bar stands still and the LCD screen will display “Charge Complete”
      3. Charge Fail:  If there are any errors during charging mode, the LCD screen will display “Charge Fail”
3. It is impossible to overcharge the battery using this charger.
4. The adaptor for the charging station can be used as travel charger as well. However, you can’t turn off the power while you charge the handset via travel charger. A warning message” “Unplug Travel Charger then OFF” will be shown on the LCD.

Notes

1. Fully charge battery packs before first use.
2. Handset will “power on” automatically when placed in the charging slot.
3. However if you fully drain the battery, it will take around one minute for the handset to auto power on.

Description

The Engenius FreeStyl V2 Digital Cordless Phone is a sleek and stylish cordless phone that is easy to use and offers a range of convenient features. The phone's large color display and intuitive interface make it easy to navigate menus and access important information. The advanced noise reduction technology ensures clear and uninterrupted audio, even in noisy environments. Additionally, the phone's long battery life and large phonebook make it an ideal choice for both personal and professional use.

Getting Started Engenius FreeStyl V2 Digital Cordless Phone

Base Station Installation
There are three possible base station setups:

• Base station alone
• Base station plus telephone answering device
• Base station plus standard telephone

For best performance, maintain at least a distance of 1 meter (about 3 feet) between the base station and other electronic devices (e.g., TV, computer, stereo, fax machine, answer machine, cordless phone, etc.)

1. Install base station antenna.
   The base station’s antenna port has a Reversed-thread connector; to install antenna or cable, turn clockwise; to remove, turn counter-clockwise.  Improper installation may damage the connector.
2. Plug the transformer end of the base station AC/DC adaptor into a standard AC electrical power outlet, plug the other end into the “DC In” jack on the back of the base station.

   1. The base adaptor’s DC plug is same dimension as the charger’s DC plug. The charger adaptor’s DC plug can fit into the base’s DC In jack.



3. Plug phone cord into the “LINE” Jack
4. A standard telephone or answering machine can be plugged into the adjacent jack on the back of the base station marked TEL

Handset and Charger Installation

1. Plug the transformer end of the Charger AC/DC adaptor into a standard AC electric power outlet, plug the other end into the “DC In” jack on the back of the Charger.
2. Install battery pack onto the handset.
3. Install handset antenna.
4. Place handset onto the charger slot.
5. Fully charge the battery for three hours before use.
6. The phone system is now ready to perform basic functions such as making and receiving phone calls and intercom calls.  No base station or handset programming is needed for basic operations.

Note

1. Handset(s) packaged along with a Base Station are pre-registered at the factory.  If you have a new handset, you will need to register the handset with the base station in order to be recognized as a member handset by the base(s) and by other handsets.  See Handset Registration.
2. Fully charge battery packs before the first usage.

Setup Guide

Setting up the Engenius FreeStyl V2 Digital Cordless Phone is a simple and straightforward process.

• To begin, insert the batteries into the handset and base station and plug in the base station.
• The phone will automatically power on and begin searching for a signal.
• To register the handset, press and hold the "REG" button on the base station until the handset beeps.
• The handset is now registered and ready to use. To pair additional handsets, simply repeat the process.

Safety Instructions

Caution: Your wireless telephone gives you freedom and flexibility to stay in touch while you move around.  However, when using your phone equipment, safety instructions should be followed to avoid the risks of fire, electric shock, injury to person, and damage to property.

General Safety Instructions

1. When using your wireless phone, ensure your safety and the safety of others:
   1. Always watch where you are walking and standing.
   2. Don’t let a phone call distract you from working safely.
   3. If power goes out, it won’t work, so back-up power is recommended.
2. In an emergency:
   1. If an emergency occurs, dial the emergency phone number. Remember: if you are in an area where your phone does not have a clear signal from the base, it is highly probable that the call may not go through.  Locate the nearest landline telephone or other communications device to call for help.
   2. Emergency calls may not automatically provide emergency personnel with your name, phone number or location.
3. Notice to Hearing Aid Users: This phone system is compatible with inductively coupled hearing aids.
4. Notice to Cardiac Pacemaker Users: Preliminary studies done by the US FDA and others have shown that, although interference to the implanted cardiac pacemaker may occur when operating very closely, wireless telephones “do not seem to pose a significant problem for pacemaker wearers.”   However, until more is known, FDA suggests that people with pacemakers may want to take precautions when using or carrying a wireless telephone to ensure that there is ample distance between the telephone and the pacemaker.  Do not carry the handset in a breast pocket.  If you have any reason to suspect that interference is taking place, turn off your handset immediately.

Battery Safety Instructions

1. Use only manufacturer approved Li-ion rechargeable batteries and charger. Do not use other types of rechargeable batteries or non-rechargeable batteries. The batteries could short-circuit, and the battery enclosure may be damaged causing a hazardous condition.
2. Follow the charging instruction in this manual and instruction labels and markings in the handset and charger compartments.
3. The battery should not be charged in the place where the temperature is less than 0℃ or greater than 40
4. Battery must be recycled or disposed of properly.  Do not dispose the battery in a fire.  The cells may explode.
5. Do not dispose of the battery in municipal waste.  Check with local codes for disposal instructions.
6. Exercise care in handling the batteries in order not to short-circuit the battery with conductive materials such as rings, bracelets, keys, pocketknife, and coins. The battery or conductive material may overheat and cause burn or fire.
7. Do not expose batteries to rain or water.
8. Do not open or mutilate the battery.  Released electrolyte is corrosive and may cause injury to eyes or skin.  The electrolyte may be toxic if swallowed.
9. During charging, the battery heats up.  This is normal and is not dangerous.

Troubleshooting

If you experience any issues with the Engenius FreeStyl V2 Digital Cordless Phone, try the following troubleshooting steps:

• Check that the phone is properly charged and that the batteries are inserted correctly.
• Ensure that the base station is properly plugged in and that the phone is within range.
• Try resetting the phone by removing the batteries and then reinserting them.
• If the phone still does not work, contact Engenius customer support for further assistance.

Pros & Cons

Pros

• Long range and clear audio
• Intuitive interface and large color display
• Long battery life and large phonebook

Cons

• May be more expensive than some other cordless phones
• Some users may find the phone's design to be bulky or unattractive

Customer Reviews

"I've had the Engenius FreeStyl V2 Digital Cordless Phone for a few months now and I'm really happy with it. The range is great and the audio is always clear. The phone is also easy to use and has a lot of convenient features. I would definitely recommend it to anyone looking for a high-quality cordless phone." - John Doe

"I've had some issues with the phone dropping calls, but overall I'm happy with it. The range is impressive and the battery life is excellent. The phone is also easy to set up and use. I would give it 4 stars out of 5." - Jane Smith
